Waterproof Circuit Boards: How to Keep Your Electronics Safe

Introduction

Waterproof circuit boards: Electronic devices are ubiquitous in our daily lives. From smartphones and laptops to medical devices and industrial equipment, electronics power the modern world. However, one Achilles heel they all share is vulnerability to moisture and water damage. Exposure to liquids can cause corrosion, short circuits, and complete electronic failure.

Fortunately, waterproof circuit boards provide a solution to protect your electronics from the elements. This article will explore everything you need to know about making your circuits water-resistant for any application.



What is a Waterproof Circuit Board?

A waterproof circuit board is designed to prevent water or moisture from interfering with the function of electronic components and connections. They achieve this through specialized materials, protective coatings, and design features.

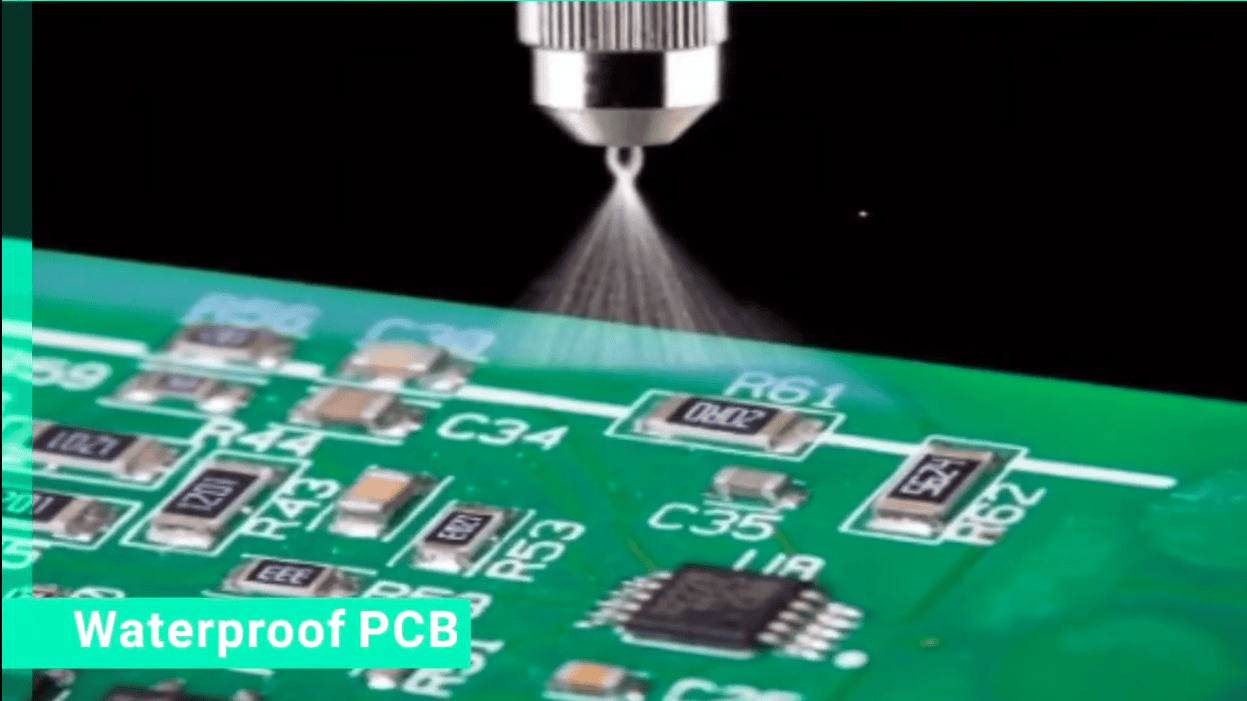

Waterproof Circuits
Waterproof Circuits



There are two main approaches to creating waterproof circuitry:

  • Conformal coating – This involves spraying or brushing the board with a thin protective layer of sealant. Common conformal coatings include acrylic, silicone, urethane, and perylene.
  • Potting – Potting fills the entire electronic assembly with a waterproof resin or polymer compound by submersion or injection molding. Epoxies and polyurethanes are typical potting materials.

Additionally, the circuit board substrate itself may be made of a water-resistant material like FR-4 fiberglass. Connectors can also be sealed to block moisture entry points.

With the right combination of materials and design, a printed circuit board can reliably operate even when exposed to precipitation, humidity, or accidental liquid spills.

Benefits of Waterproofing Your Electronics

There are several compelling reasons why utilizing waterproof circuit boards is highly advantageous for many applications and projects:

Prevent Permanent Corrosion Damage

One of the most impactful benefits of waterproofing is preventing permanent corrosion damage to traces, components, and connections on a printed circuit board. When moisture and water get onto a standard PCB, oxidation begins immediately. This causes copper tracks to corrode, solder joints to degrade, and components to tarnish.

Even small amounts of water can initiate corrosion that steadily eats away at conductors and weakens solder bonds. Once corrosion has taken hold, the damage cannot be reversed which steadily degrades circuit performance over time. However, a waterproof board prevents moisture from ever contacting the metals in the first place. This preserves the PCB in pristine condition and prevents irreversible damage from occurring.

Avoid Harmful Short Circuits

In addition to corrosion, water exposure can immediately cause short circuits between adjacent copper traces and closely spaced components. This leads to erratic device behavior, sparks, and excessive current draw that can instantly damage circuits. A waterproof board keeps moisture completely away from the PCB surface, preventing it from bridging connections and causing malfunctions. Without the risk of short circuits, the device remains reliable even in wet conditions.

Enhance the Longevity and Lifespan

By keeping moisture completely at bay, components last longer before degrading in performance. Metal leads and terminations avoid corroding or loosening over time when shielded from the elements. Solder joints also remain intact longer when not subjected to oxidative damage or temperature swings from water contact. By preventing both corrosion and short circuits, waterproofing leads to fewer field failures and longer before performance decays noticeably. This greatly extends the functional lifespan of any electronic device or system.

Improve Durability Against Shaking and Vibration

In addition to moisture resistance, waterproof coatings, and potting compounds provide enhanced physical durability and protection from vibration. As an electronics assembly is subjected to shaking or vibration, joints can slowly fatigue and connections loosen over time. However, the resilient polymers used for waterproofing help dampen these forces. This reduces intermittent faults related to marginal connections and solder joint cracking. With waterproofing, electronics can better endure high shock, vibration, and acceleration applications.

Keep Dust and Debris Away from Circuits

While moisture is the primary threat, waterproof barriers also prevent dust and dirt from reaching electronic components. Just as moisture can create short circuits, dust, and debris accumulation on a PCB can interfere with circuit operation over time. Conformal coatings create a sealed surface that prevents fine particles from settling across the board and components. By defending against both water and dust ingress, reliability is further improved across long service lives.

Dust and Dirt
Dust and Dirt



Make Cleaning and Washing Electronics Simpler

Since properly waterproofed devices can withstand immersion, cleaning grime and contamination off of equipment becomes much simpler. Rather than carefully avoiding water contact, sealed electronics can simply be rinsed or submerged to quickly wash away any accumulated dirt or organic buildup. For products that must be occasionally sanitized like medical devices, this greatly reduces maintenance time and complexity. Even static-sensitive boards are unaffected after washing since surface moisture readily rolls off conformal coatings.

Allow Safe Operation in Wet Environments

For products and systems that inherently operate in damp or outdoor environments, waterproofing is mandatory. Applications like marine electronics, irrigation controls, and outdoor power equipment would not be possible without water-resistant boards that function reliably when wet. The specialized coatings and compounds for waterproofing enable electronic functionality even when directly exposed to splashing, rain, and other precipitation in the intended working conditions. Without waterproofing, operation in these wet environments would be impossible.

Improve Reliability and Uptime in Critical Systems

In systems where uptime is crucial for business or safety, waterproof electronics play an indispensable role in maintaining reliability. The rigorous moisture resistance allows circuits to endure high humidity, filtration leaks, fire suppression system discharge, and other wet contingencies without shorting out. Waterproof boards have a substantially lower failure rate (longer MTBF) when faced with moisture or condensation. Unplanned downtime is slashed, and maintenance needs are reduced. This makes waterproofing a smart investment for systems where reliability is paramount.

In summary, implementing waterproofing techniques for electronic devices offers manifold benefits spanning reliability, durability, longevity, easier maintenance, and environmental resilience. While waterproof components carry a higher upfront cost, the total savings over the product’s lifetime typically outweigh the added expenses. For any project with critical uptime requirements or needing to operate in damp conditions, waterproofed boards are an excellent engineering decision.



Applications that Benefit from Waterproof Boards

Many industries rely on electronics exposed to moisture, requiring diligent waterproofing efforts. Some examples include:

  • Marine Electronics – Equipment on boats and ships handles constant splashing and humidity. Saltwater is also corrosive. Waterproof marine electronics endure this punishing environment.
  • Medical Devices – Implanted devices like pacemakers cannot allow liquid ingress so patients don’t risk electrocution. Waterproofing is essential for life-critical electronics.
  • Outdoor & Recreational Products – Consumer electronics for outdoor activities need waterproofing whether strapped to your bike handlebars or mounted on an off-road vehicle.
  • Automotive Electronics – Cars contain printed circuit boards in high-vibration areas exposed to splashing water. Waterproofing improves auto electronics reliability.
  • Industrial ControlsFactory equipment with electronic controls often contends with coolant sprays, high humidity, and washdowns. Waterproof boards are a must.
  • Military/Aerospace – Rugged electronics for extreme environments in defense and aerospace applications require the utmost water protection.

For these and many other uses, effective waterproof circuit board solutions are vital for success.



How to Waterproof Printed Circuit Boards

Several methods exist to protect PCBs from moisture damage and achieve different levels of waterproofing.

Conformal Coating

Conformal Coating
Conformal Coating



The most common waterproofing technique is to coat the assembled board with a thin polymeric sealing layer, known as conformal coating. This can be applied by spraying, brushing, or dipping.

Some key steps for conformal coating include:

  • Select an appropriate coating resin – acrylic, silicone, polyurethane, and perylene are common options. Match properties like flexibility, temperature resistance, and dielectric strength to your needs.
  • Thoroughly clean the PCB to maximize coating adhesion. Remove any oil, flux residue, or dirt with isopropyl alcohol.
  • Apply coating evenly according to manufacturer instructions, often by spray or precision robot dispensing for an even coat.
  • Allow coating to cure fully. This may require heat, UV light, or simply time depending on the coating type.
  • Test board function to ensure the coating has not interfered with operation. Rework any issues.
  • Consider selective application to avoid coating connectors or test points if needed. Tape over areas to mask.

With the right preparation and technique, conformal coatings reliably waterproof circuit boards through even immersion while adding minimal weight. The reapplying coating may be needed after repairs.

Potting

For more critical electronics or total water immersion, potting provides the ultimate protection. The entire PCB assembly is embedded within a solid block of a waterproof polymer compound.

Potting
Potting



Potting offers complete sealing at the cost of reduced accessibility:

  • Place board and components within the mold cavity and make electrical connections.
  • Select a 2-part potting compound – polyurethane, epoxy, or silicone potting materials are common choices.
  • Mix compound according to directions and pour or inject into the mold, filling all open spaces.
  • Allow potting material to cure fully per manufacturer instructions until solid.
  • Remove the cured potting block from the mold. The board is now encapsulated and waterproofed.
  • Drill/machine access holes for any needed test points or cable connections.

Potting provides unmatched water resistance for mission-critical electronics like military systems or implants. However, repairs require drilling into the potting material.

Waterproof Enclosure

For some applications, a waterproof enclosure around the PCB assembly may be the best solution:

  • Simpler than coatings/potting for water protection
  • Allows easy access to the board for changes
  • Custom enclosures can be fully sealed with gaskets and fittings
  • May just isolate high-risk areas vs. full board sealing

The main limitations are the cost of enclosures and seals, plus space considerations. But for low-volume products and rapid prototyping, enclosures can quickly provide water protection without complex coatings.

Water-Resistant Components

Along with board-level waterproofing, component selection is also important:

  • Choose waterproof connectors with high IP ratings for inputs.
  • Use conformal-coated or potted individual ICs/modules for better protection.
  • Select water-resistant board materials like PTFE or marine-grade FR4.
  • Use taped wire leads or junctions for exposed connections prone to corrosion.

By waterproofing components as well as the overall board, you minimize openings for moisture ingress.



Best Materials for Waterproof PCBs

Damaged Circuit due to water
Damaged Circuit due to water



Specialized materials used in circuit board assembly aid water resistance:

Conformal Coating Materials

Acrylic – Basic conformal coating type. Durable, transparent, and low-cost but with limited chemical and heat resistance.

Silicone – Withstands very high temperatures up to 200°C. Flexible and can handle vibration.

Urethane – Also called polyurethane. Abrasion-resistant but not as flexible as silicone.

Perylene – Excellent moisture barrier used in medical devices. Very thin application. Expensive.

Epoxy – Hard, inflexible coating but outstanding chemical resistance. High dielectric strength.

Potting Compounds

Polyurethane – Flexible, transparent, and low viscosity. Cures at room temperature.

Epoxy – Hard, heat-resistant encapsulation. Excellent adhesion and chemical resistance.

Silicone – Withstands high heat and cold. More flexible than epoxy but has lower adhesion.

Polyimide – Extremely high-temperature resistance. Used for down-hole and space electronics.



Testing Waterproof Circuit Boards

Once a printed circuit board has been treated with a waterproofing technique, comprehensive testing is essential to validate the effectiveness before deployment in end products. Some key procedures for evaluating water protection include:

Detailed Visual Inspection

All areas of the board should first be visually examined to check for complete, uniform coverage by the waterproofing material. Any thin spots, cracks, pinholes, or uncoated areas can compromise water resistance. Optical magnification helps identify small defects. Coating coverage on bottom and inner board layers is typically inferred rather than directly inspected.

Short and Long Term Water Immersion

Fully submerging sample boards in room temperature water for hours to days provides a basic functionality check. Any moisture ingress issues will reveal themselves as shorts, erratic behavior, or corrosion over time immersed. Long-term testing for multiple weeks provides high confidence. For potted boards, this also verifies the compound adhesion strength to prevent delamination.

Simulating Rainfall and Splashing

Rain cabinets with spray nozzles are used to replicate exposure to heavy precipitation and wind-driven moisture. The test duration is adjusted to represent the maximum expected exposure levels. Various spray patterns cover the entire surface. Any wetting or water retention on the active components suggests drainage flaws.

Pressure Washer Testing

For rugged applications, printed circuit boards may need to operate after being splashed by high-pressure water jets. Specialized testing uses pressure washers or other methods to simulate heavy storm exposure, ocean wave spray, or product cleaning cycles. The boards are visually checked for water ingress afterward.

Thermal Shock Cycling

Rapidly alternating between hot and cold water baths stresses waterproofing seals and interfaces. As materials expand and contract, small cracks can form to allow moisture intrusion. Thermal shock testing detects marginal sealing vulnerabilities before products ship.

Insulation Resistance Measurements

If water penetrates the PCB surface, insulation resistance will drop. Testing periodically during moisture testing by applying high voltage can detect any degradation. Insulation faults reveal design flaws or production process issues.

Hermetic Seal Validation

For encapsulated assemblies like potted circuits, pressurizing the internal cavity detects any minute air leaks through the waterproof barriers. The leak rate indicates how well the potting or sealing isolates the enclosed components from water vapor and condensation over time.

While testing requirements vary by industry and application, properly vetting water protection gives designers confidence in a circuit board’s ability to operate reliably in wet conditions over the service lifetime.



Waterproofing Considerations

  • Waterproof boards early in the design process. Changes become harder after fabrication.
  • Small openings in coatings from connectors or test points require extra sealing.
  • Check component datasheets carefully to ensure waterproof operation in their specified range.
  • Reworking coated boards requires removing coating in repair areas and reapplying. Extra thickness can cause issues.
  • Allow access to any trace contacts needed for programming and debugging before potting.
  • Conformal coatings add minimal weight versus high density of potting compounds.
  • Manual coating and potting allow precise selective application versus broadly automated spraying.
  • Encapsulation can trap heat, requiring thermal design adjustments.

With careful design and process controls, waterproof circuit boards provide rugged and reliable operation in the harshest conditions. Protecting your electronics ensures they meet their full expected service life.

Conclusion

At first glance, fully waterproofing electronics to withstand harsh wet environments may appear intimidating. However, as this guide has explored, several straightforward and affordable approaches exist to protect printed circuit boards and components from moisture damage.

With prudent conformal coating material selection and proper application, even hobbyists can achieve reliable water resistance quickly and economically. For more rigorous protection, production-level automated conformal coating tools yield high repeatability and performance. Potting delivers the maximum sealing possible for mission-critical electronics, albeit at a higher cost. Even basic steps like waterproof connectors and enclosures provide easily added protection.

By combining board-level techniques like conformal coatings with component-level waterproofing methods, electronics can be made impressively impervious to liquids. A layered approach provides redundancy if any single measure fails over time. Proper sealing preserves electrical performance and extends product lifetimes dramatically in humid environments by preventing corrosion, short circuits, and dielectric breakdown.



Frequently Asked Questions (FAQs)

What level of waterproofing do I need?

This depends on your operating environment. Occasional moisture or splashes may only need thin conformal coating. Immersion applications require potting or thick coatings. Match waterproofing to expected conditions.

Is it easy to apply conformal coatings at home?

Basic spray coatings are straightforward for home use. Start with small test pieces first to optimize the technique before coating full boards. Proper masking and curing are essential.

Can I repair a waterproofed circuit board?

With care, conformal-coated boards can be reworked by scraping away coating in repair areas and then reapplying. Potted boards require drilling/machining into the encapsulation material to access components.

Do waterproof coatings insulate against electricity?

Most conformal coatings function only as a physical moisture barrier. Use additional insulating tape/tubing on traces and junctions requiring electrical isolation.

Are waterproofing electronics expensive?

Potting compounds and automated coating add cost, but DIY solutions with spray coating or enclosures can be economical. Improved reliability offsets expenses.
