USB PCB – Comprehensive Guide



Introduction

USB (Universal Serial Bus) has become an indispensable interface in today’s world of electronics and computing. From charging smartphones to connecting peripherals, USB plays a crucial role in data transfer and power delivery. At the heart of every USB-enabled device lies a Printed Circuit Board (PCB) designed specifically to handle USB functionalities efficiently. In this comprehensive article, we will delve into the world of USB PCBs, exploring their design, components, key considerations, and future trends in their implementation.



What is a USB PCB?

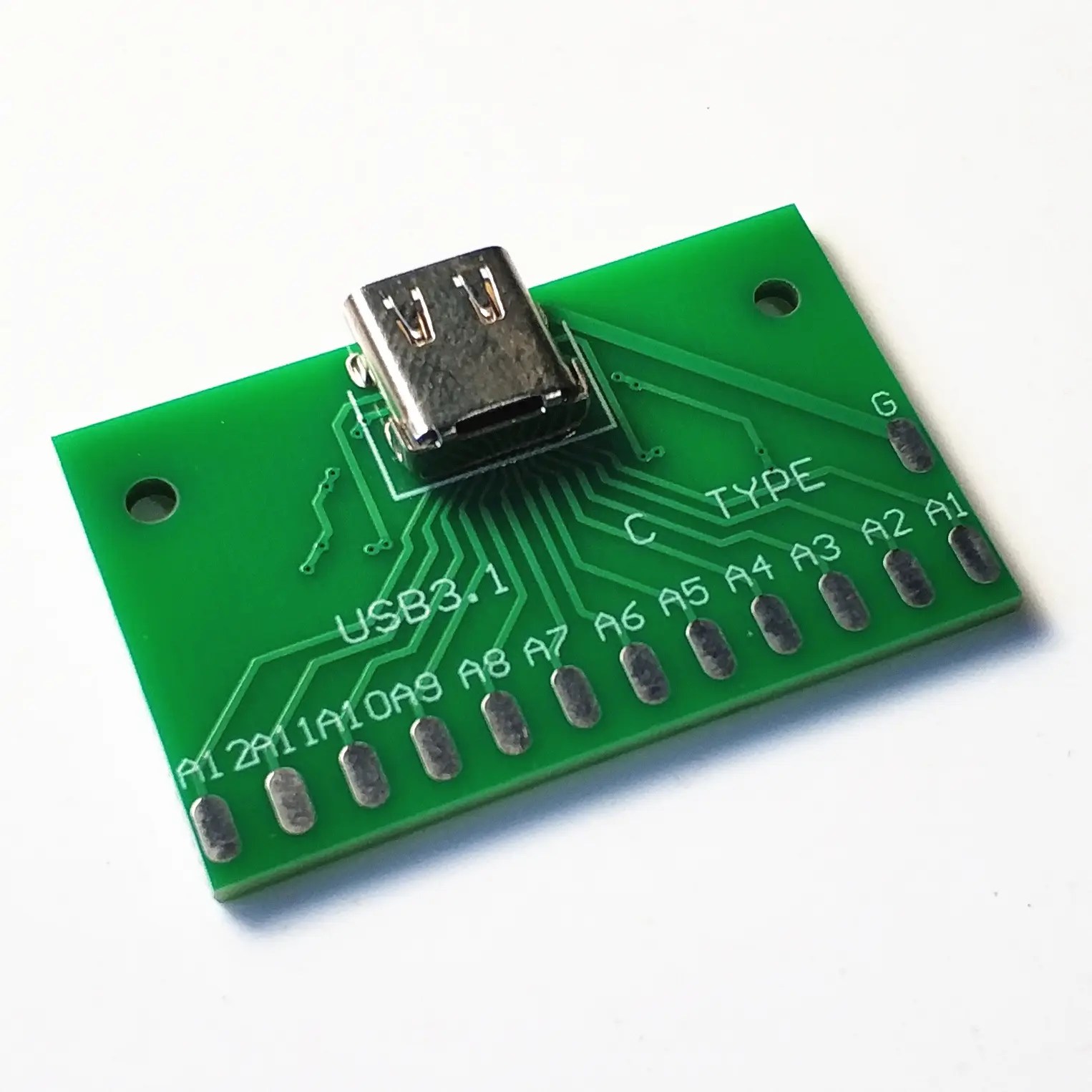

A USB PCB is a specialized circuit board designed to incorporate USB functionalities into a device. It provides the necessary electrical connections and components to facilitate data communication, power delivery, and device enumeration. USB PCBs adhere to specific industry standards, ensuring compatibility and interoperability across various USB devices.

USB PCB
USB PCB



Designing a USB PCB

Designing a USB PCB requires careful consideration to ensure optimal performance and compliance with USB specifications. Here are the key steps involved in the process:

USB Standard Selection

The USB standard chosen for a PCB design depends on the required data transfer rates and power delivery capabilities for the specific application. USB standards have evolved over the years, ranging from the original USB 1.0 to the latest USB 3.2, with even faster iterations under development. The designer must be familiar with the unique features and advantages of each standard to make an informed decision.

USB Types
USB Types

Schematic Design

The schematic design stage involves creating a circuit diagram that outlines the connections between USB components, including USB connectors, resistors, capacitors, and transceivers. Special attention should be given to data lines, power connections, and grounding. For more complex USB designs, such as those supporting multiple USB ports or USB hubs, the schematic becomes more intricate, necessitating careful organization and consideration of signal pathways.

Component Selection

Choosing high-quality components is essential to ensure signal integrity and reliability. The selection of USB connectors, crystal oscillators, and ESD protection devices plays a crucial role in overall performance. The choice of USB connector type (Type-A, Type-B, Type-C, micro-USB, etc.) depends on the device’s requirements and form factor constraints. Each connector type has its advantages and usage scenarios, and designers must consider factors like size, durability, and ease of use when making their selection.

Routing

PCB routing involves laying out the traces that connect the USB components. Careful consideration must be given to minimize noise, impedance mismatches, and crosstalk. Impedance-controlled traces are necessary to maintain signal integrity, especially for high-speed USB standards. Differential pair routing should be used for data lines to reduce interference and improve data transmission reliability. Moreover, avoiding long and meandering traces, as well as reducing vias, can help reduce signal degradation.

Grounding and Shielding

Proper grounding and shielding techniques are critical to reducing electromagnetic interference (EMI) and maintaining signal integrity. Ground planes and shielded traces help protect the USB signals from external interference and vice versa. A solid ground plane beneath the USB signal traces can serve as an effective shield, preventing the radiation of high-frequency signals and reducing EMI.

Power Delivery Considerations

For devices that require power delivery, the USB PCB should incorporate necessary power management circuits, including voltage regulators and current-limiting components, to ensure safe and efficient power delivery. The implementation of power management features is particularly important for USB-powered devices, where various voltage levels may be required for different components within the device.

ESD Protection and Overcurrent Detection

USB PCBs should include robust ESD protection components to safeguard the circuitry from voltage spikes and static electricity. Furthermore, incorporating overcurrent detection and protection mechanisms can prevent damage to the PCB and connected devices in case of a power surge or short circuit.

USB Signal Integrity and High-Speed Design

As USB data rates continue to increase, ensuring signal integrity becomes even more critical. The use of high-speed design practices, such as controlled impedance routing, length matching, and signal termination, is crucial to minimize reflections, signal distortion, and jitter. Simulations using tools like electromagnetic field solvers can help validate the high-speed design and identify potential issues early in the development process.



Components of a USB PCB

A USB PCB comprises several key components that enable its functionality:

USB Connectors

USB connectors are available in various form factors, such as Type-A, Type-B, Type-C, and micro-USB. The choice of connector depends on the device’s requirements and the USB standard to be implemented. Each connector type has its advantages and usage scenarios. For instance, Type-C connectors are increasingly popular due to their reversible plug orientation and ability to handle higher data rates and power delivery.

USB Connectors Types
USB Connectors Types



USB Transceivers

USB transceivers facilitate bidirectional data communication between the device and the host computer. They handle data encoding and decoding, ensuring reliable data transfer. USB transceivers should comply with the specific USB standard requirements and support the desired data transfer rates.

Crystal Oscillators

Crystal oscillators generate precise clock signals required for USB data synchronization. They play a crucial role in maintaining data integrity during high-speed data transfers. Selecting high-quality, low-jitter crystal oscillators is vital to ensure accurate timing and data synchronization.

ESD Protection Components

Electrostatic discharge (ESD) protection components safeguard the USB circuitry from voltage spikes and static electricity, enhancing the reliability and lifespan of the device. ESD protection devices should be chosen based on their clamping voltage and response time to effectively dissipate ESD events.

ESD Protection Circuit
ESD Protection Circuit



Voltage Regulators

Voltage regulators regulate the voltage levels to ensure stable and consistent power delivery to the USB device. Switching regulators are commonly used to efficiently regulate voltage and minimize power dissipation.

Passive Component

Passive components like resistors and capacitors are used to control impedance, filter noise, and stabilize signals on the USB PCB. Decoupling capacitors are essential for providing local charge storage, reducing voltage fluctuations, and preventing signal distortion.

Decoupling capacitors and Ferrite Bead
Decoupling capacitors and Ferrite Bead



Considerations for USB PCB Design

Designing a USB PCB requires careful attention to various factors to ensure optimal performance, reliability, and compliance with USB specifications. Here are the key considerations that engineers must take into account during the design process:

Signal Integrity

Signal Integrity (SI) is crucial for USB PCB designs, especially for high-speed USB standards like USB 3.2 and USB 4.0. The following formula can be used to calculate the characteristic impedance of USB signal traces:

Characteristic Impedance (Z0)=LC

Where:

Zo = Characteristic impedance in ohms

L = Inductance of the trace in Henries per meter (H/m)

C = Capacitance of the trace in Farads per meter (F/m)

To ensure signal integrity, designers must adhere to high-speed design practices, such as:



Controlled Impedance Routing

Maintaining a consistent impedance throughout the signal traces to minimize signal reflections.

Length Matching

Ensuring all signal traces have similar lengths to avoid timing skew.

Signal Termination

Implementing proper termination resistors at the receiver end to minimize signal reflections.

EMI/EMC Compliance

USB PCBs should adhere to Electromagnetic Interference (EMI) and Electromagnetic Compatibility (EMC) standards to prevent interference with other devices and ensure seamless operation in various environments. Shielding, proper grounding, and EMI filtering components can help achieve compliance.

To ensure Electromagnetic Interference (EMI) and Electromagnetic Compatibility (EMC) compliance, designers can create an EMI budget table. The table should list the sources of EMI emissions, potential coupling paths, and corresponding mitigation strategies.

EMI Source Coupling Path Mitigation Strategy
Switching Power Conducted Use EMI filters
Supplies Radiated Proper grounding and shielding



Power Delivery and Thermal Management

Power Delivery in USB PCBs requires careful consideration of power management circuits and thermal dissipation techniques. The power track width can be calculated using the following formula:

Power Track Width (W)=IxKT

Where: W = Power track width in millimeters (mm)

I = Maximum current in Amperes (A)

K = Trace temperature rise constant (typically 0.024 for internal layers, 0.048 for external layers)

ΔT = Maximum allowable temperature rise in degrees Celsius (°C)

Thermal management techniques like heatsinking, thermal vias, and proper component placement help dissipate heat effectively and prevent overheating issues.

USB Compliance Testing

Before finalizing the design, USB PCBs must undergo comprehensive compliance testing to ensure they meet the specific USB standard requirements. This involves testing aspects such as voltage levels, data transfer rates, power delivery capabilities, and adherence to USB-IF guidelines. Obtaining USB-IF certification validates the USB PCB’s compliance and guarantees compatibility with other USB devices. The compliance test results can be organized in a table as follows:

Test Parameters Requirement  Test Result
Voltage Levels  5V±5% Pass
Data Transfer Rate USB 3.2 (10 Gbps) Pass
Power Delivery  USB PD 3.0 Pass

PCB Manufacturing Considerations

Selecting the right PCB manufacturing process is crucial for achieving the desired performance and reliability of the USB PCB. Factors such as the number of layers, material selection, and surface finish impact the final product. USB designs with higher data rates may require more PCB layers to support controlled impedance routing and minimize signal losses.A decision matrix table can be used to evaluate various manufacturing options:

PCB Manufacturing Option  Number of layers  Material Selection  Surface finished
Option 1 8 FR-4 ENIG
Option 2 6 High Speed  HASL
Option 3 10 Rogers Immersion Tin

USB Power Delivery (USB PD)

With the increasing adoption of USB Power Delivery, designers must consider USB PD support in their USB PCB designs. This involves incorporating specialized power delivery circuitry, power negotiation protocols, and support for higher voltage levels to enable fast charging and power-efficient devices. A power delivery table can be created to showcase the different power profiles and their supported voltage levels:

Power Profile Voltage Levels (V) Max Current (A)
USB PD 2.0 5, 9, 15 3
USB PD 3.0 5, 9, 15,20 5
USB PD 3.1 5, 9, 15,20 5,9



Future Trends in USB PCB Design

The world of USB PCB design is continuously evolving to meet the growing demands of modern electronics. Several trends are shaping the future of USB PCB design:

USB 4.0 and Beyond

The USB standard will continue to advance, with USB 4.0 and higher iterations promising even faster data transfer rates and improved power delivery capabilities. USB 4.0 will bring enhanced features like 40Gbps data rates, making it suitable for high-bandwidth applications such as video streaming and virtual reality.

USB Type-C Adoption

The adoption of USB Type-C connectors is expected to increase further due to their versatility, reversible design, and support for USB PD. More devices will transition from traditional USB connectors to USB Type-C, providing users with a universal and consistent experience across devices.

Enhanced Power Delivery

USB PD will become more prevalent, allowing devices to charge faster and handle higher power requirements. This will enable USB-powered devices, such as laptops and monitors, to receive sufficient power through a single USB-C cable, simplifying cable management and reducing clutter.

USB in the Internet of Things (IoT) Devices

The proliferation of IoT devices will drive the integration of USB functionality into a wide range of smart devices, sensors, and wearables. USB PCBs in IoT devices will need to be compact, power-efficient, and capable of handling various data formats.

USB for 5G Connectivity

The rollout of 5G networks will increase the demand for high-speed data transfer and communication. USB PCBs will play a critical role in providing seamless connectivity for 5G-enabled devices, such as routers and network equipment.

USB-C Alt Mode Support

USB-C Alt Mode allows USB-C connectors to carry video, audio, and other protocols, making them suitable for various applications like HDMI, DisplayPort, and Thunderbolt. USB PCBs will need to support Alt Mode features to enable the convergence of data and video signals through a single USB-C cable.



Conclusion

USB PCBs are the backbone of modern electronic devices, enabling seamless data transfer and power delivery. A well-designed USB PCB incorporates the right components, adheres to industry standards, and takes into account various considerations to ensure reliable performance and compliance with USB specifications. As USB standards continue to evolve, so too will the design and capabilities of USB PCBs, pushing the boundaries of what is possible in the realm of data communication and power delivery.

With the emergence of USB 4.0, increased adoption of USB Type-C connectors, enhanced power delivery, and the integration of USB in IoT and 5G devices, the future of USB PCB design promises exciting advancements and possibilities. Properly designed and implemented USB PCBs will continue to drive innovation, powering the devices that shape our connected world. As engineers and designers adapt to the ever-changing landscape of technology, they will continue to play a pivotal role in ensuring that USB PCBs remain at the forefront of connectivity and device interactivity.
