Transparent PCB Technology: Unveiling the Future

August 26, 2023

Table of Contents

Introduction

Printed circuit sheets (PCBs) structure the foundation of all cutting-edge hardware. From smartphones to laptops, PCBs power our digital lives. Traditionally made of fiberglass and copper, these green boards host intricate circuits but hide their workings under opaque shells. In any case, Transparent PCB innovation is revealing this previously covered-up world, opening additional opportunities for gadgets.

Transparent printed circuit boards, as the name suggests, allow light to pass through them. This transparency empowers energizing applications in optics, presentations, detecting, and then some. Transparent PCBs build on recent developments in manufacturing processes, 3D printing, and materials research.

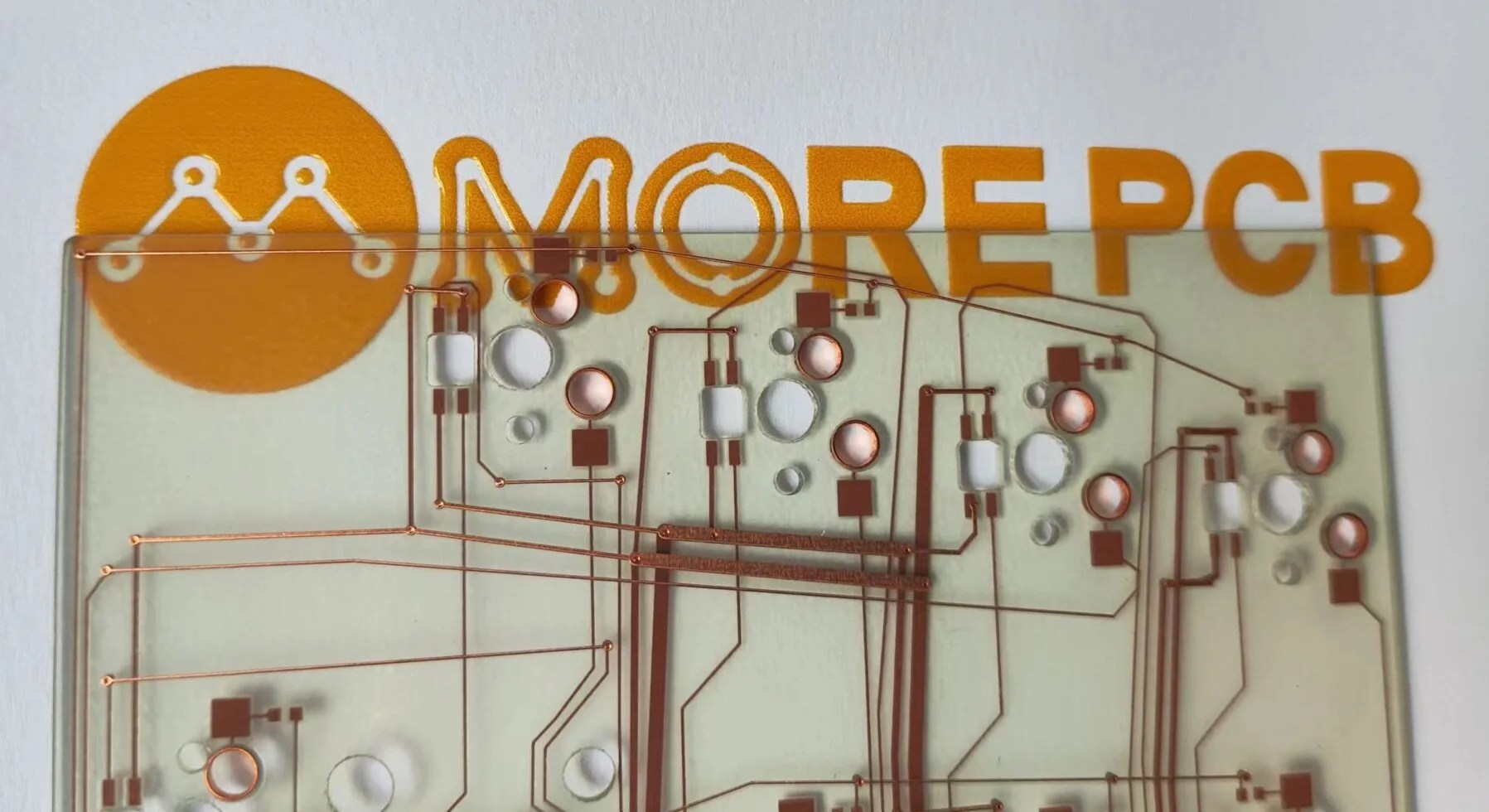

What is a Transparent PCB?

A transparent printed circuit board is a circuit board made of transparent materials that allow light to pass through. While traditional PCBs use opaque fiberglass as the base, transparent PCBs use transparent materials like glass, sapphire, or polyimide. This allows the components and circuitry to be visible through the board.

Key Properties:

Made of transparent materials like glass, sapphire, polyimide, etc. allowing light transmission
Circuit traces and components are visible through the board
Can enable optical applications like edge-lit displays
More expensive than traditional opaque PCBs
Requires advanced manufacturing techniques

So in summary, a transparent PCB substitutes opaque materials with clear ones while retaining electrical functionality. This makes the workings of the board visible for unique applications.

Brief History of Transparent PCBs

While the idea of transparent electronics has been around for decades, real progress accelerated in the 2000s. Let’s look at some key milestones:

2000 – Researchers experiment with glass fabric PCBs.

2003 – Polyimide flexible transparent circuits developed.

2008 – Glass fabric PCBs with 45% transparency demonstrated.

2011 – Polyimide boards with 80% transparency were created.

2013 – Fully printed transparent PCB process developed.

2016 – High-speed flex PCBs on glass substrates fabricated.

So materials and processes matured over the past two decades enabling commercial transparent PCBs. Let’s look at the materials and manufacturing processes powering this technology next.

Materials for Transparent PCBs

Since traditional PCB materials like FR-4 fiberglass are opaque, different materials are required to make transparent PCBs. Here are some options:

Glass

Glass provides an excellent transparent and rigid substrate for PCBs. Different types of glass offer varied properties:

Soda-lime glass – Inexpensive and easy to manufacture but lower durability

Borosilicate glass – More durable and temperature-resistant

Fused quartz – Extremely high melting point but difficult to manufacture

Sapphire – Very strong but more expensive

So glass offers an attractive transparent substrate, especially with treatments like tempering to enhance durability.

Ceramics

Ceramic materials like aluminum oxide, magnesium oxide, and alumina also enable transparent and rigid PCB substrates. Their key advantages are:

High thermal conductivity
Low thermal expansion
High strength and hardness
Excellent electrical insulation

However, ceramics are more expensive than glass. Different material formulations balance cost, optical transmission, and manufacturability.

Polymers

For flexible transparent PCBs, polymeric materials like polyimide (PI), polyethylene terephthalate (PET), and others serve as substrates. Advantages include:

Flexibility and durability
Low cost
Easy manufacturability
Moderate thermal performance

Polymer-based transparent flex PCBs enable many innovative applications.

So in summary, while no material is ideal, glass, ceramics, and polymers enable transparent PCB substrates with useful properties. Let’s look at manufacturing next.

Manufacturing Processes

Specialized manufacturing processes are required to fabricate transparent PCBs. Here are some key methods:

Substrate Manufacturing

Glass and ceramic substrates can be formed using processes like:

Float glass manufacturing – Molten glass floated over the molten tin to form flat sheets
Pressing – Powdered ceramics pressed into rigid boards
Tape casting – Ceramic slurries are cast on films to produce flexible tapes

Polymers like polyimide are usually formed into films via extrusion processes. So a range of methods produces transparent substrates.

Photolithography

The circuitry patterns are created on the substrates using photolithography. This involves:

Substrate cleaning and surface enhancement
Photoresist application – Photosensitive polymer coating
Mask alignment – Circuit patterns defined on masks
UV exposure – Crosslinking exposed photoresist
Developing – Dissolving unexposed photoresist
Etching – Removing copper not protected by photoresist

While similar to traditional PCB fabrication, transparent PCB lithography needs special care.

3D Printing

An emerging option is directly 3D printing transparent PCBs using materials like photosensitive resins. This can enable:

Additive instead of subtractive fabrication
Incorporation of conductive traces during printing
Low-waste, high-speed, low-cost processes

However, resolution and material limitations persist. Hybrid processes combining 3D printing and lithography provide a balanced approach.

Surface Finishes and Coatings

Since transparent substrates expose copper traces, oxidation protection coatings are imperative. Options include:

Conformal coatings – Thin acrylic or epoxy layers
Immersion processes – Electroless nickel-gold, silver, or tin plating
Solder masks – Glass coatings shield traces during soldering

Such finishes protect copper traces and limit optical occlusion.

So fabricating transparent PCBs requires an arsenal of specialized processes – though the technology is maturing swiftly.

Applications of Transparent PCBs

Let’s explore some emerging applications that benefit from or require transparent printed circuit boards:

Optoelectronic Systems

Optoelectronics combine optics and electronics – exactly what transparent PCBs enable. Potential applications include:

Optical sensors and detectors
Optical communications like Li-Fi
Lab-on-a-chip biosensors
Spectrometry systems
Optogenetic interfaces

So transparent PCBs unlock new classes of optoelectronic systems and devices.

Edge-Lit LED Displays

Edge-lit LED displays offer stunning visual effects and thin form factors. Here is how they work in more detail:

LEDs are placed along one or multiple edges of clear acrylic or polycarbonate substrates
Light emitted from the side-mounted LEDs reflects internally within the acrylic panel through total internal reflection
The light reflects and scatters to create an even and uniform glow across the entire surface
The light extraction features like micro-lenses can help diffuse the light and improve uniformity
This edge lighting creates dynamic and energy-efficient backlighting effects
It allows the creation of very thin display and lighting forms since no backlight is needed
Transparent PCBs are fabricated along the panel edges to control and power the LED arrays
Careful LED spacing, driving, and optics help maintain uniform illumination
White LEDs are typically used for backlighting but RGB LEDs enable color tuning ability
Light can also pass through the transparent panels for see-through effects
Displays can incorporate graphics, colors, and masks for unique visuals

So in summary, edge-lit LED architecture uses transparent PCBs to power LEDs along panel edges and create a striking uniform, and dynamic illumination. This technology enables next-generation slim displays and creative lighting applications.

Capacitive Touch Sensors

Touch interfaces are now ubiquitous, from phones to tablets to interactive information kiosks. Transparent PCBs help enable seamless capacitive touch sensing:

Clear glass or acrylic provides robust outer surfaces for displays and interfaces
Transparent flex PCBs fabricated on polyimide allow conformal and flexible form factors
Conductive electrodes are patterned on the transparent flex PCB to create capacitive touch sensors
The sensors consist of two conductive patches with a small gap between them
An alternating current signal is applied to the transmit patch electrodes
This generates an electromagnetic field that crosses over to the received electrodes
When a finger touches the surface, it absorbs some of this field
This changes the capacitance between the transmit and receive electrodes
The capacitance change is detected and converted to a digital signal
A controller processes these signals to detect touch location and pressure
No overlay or additional layer is needed since the glass is the outer surface
Allows detecting multiple simultaneous touchpoints

So in summary, transparent flex PCBs with printed capacitive sensors facilitate touch interactivity through solid glass or acrylic surfaces. This enables seamless and robust touchscreen interfaces.

Transparent Electronics

Futuristic transparent electronics integrate see-through displays, touch sensors, solar cells, and other components to produce fully transparent devices. This emerging technology enables innovative new applications:

Transparent displays – Using transparent OLEDs or micro-LEDs, entire display panels can be made transparent. This allows glass tablets, windows, or other surfaces to seamlessly transition into interactive displays.
Augmented reality – Transparent optical waveguides projected onto the retina can overlay digital information without obstructing real-world views. Transparent PCBs control the projection systems.
Smart windows – Photovoltaic solar cells made from transparent organics can harvest energy through tinted windows. DC-DC converters and batteries mounted on transparent PCBs store and regulate the power.
Automotive HUDs – Projectors with transparent PCBs display driving information like speed onto the windshield for drivers. Eye trackers on transparent boards monitor gaze direction.
Transparent capacitive surfaces – Glass desktops or tables with transparent flex PCBs embedded below the surface detect touch location and pressure through the glass.
Transparent phones – Using graphene or carbon nanotube conductors, futuristic transparent smartphones with see-through displays and shells could become possible.

Key enabling technologies for transparent electronics include:

High-clarity OLED and micro-LED displays with >80% transparency
Printed graphene and carbon nanotube conductors which are over 90% transparent
High-index transparent waveguides for AR projection systems
Organic and perovskite photovoltaic films with adjusted bandgaps for high visible light transmission

In summary, transparent PCBs combined with emerging transparent components could enable fully integrated see-through electronic devices. This futuristic technology is approaching reality with rapid progress underway.

Enhanced Product Aesthetics

Besides advanced applications, transparent PCBs offer simpler aesthetic improvements for consumer products:

Allowing users to view internal circuits and components engenders feelings of premium quality and fine craftsmanship
Illuminated transparent PCBs behind shells using edge-lit LEDs create stunning visuals and ambient lighting effects
Troubleshooting and repairs are easier for customers and technicians when components are visible
Transparent cases simplify the material selection and industrial design
Transparent boards allow customization with illuminated logos, branding, and designs
LED backlit transparent PCBs provide opportunities for unique visual marketing
Visible electronics differentiate products and attract consumer interest
Diagnostic machines can reassure patients by allowing them to see the internal workings

So from LED-backlit home appliances to gaming PC cases to medical equipment, transparent PCBs enable endless design possibilities. Manufacturers can leverage see-through boards to demonstrate product value, quality, and customization.

Transparent PCB technology combines electronics and optics, enabling a variety of present and future innovations. From edge-lit LED panels to transparent capacitive buttons to biosensors, transparent PCBs unveil new technological possibilities. With improving fabrication methods, transparent electronics are transitioning from labs to practical high-volume manufacturing.

Design Considerations for Transparent PCBs

To effectively design transparent printed circuit boards, engineers should consider:

Substrate material – Glass, ceramic, or polymer-based on requirements
Number of layers – Typically limited to 2-4 layers
Component chips – Die or wire bonding often needed vs surface mount
Conductor material – Silver vs copper traces
Board thickness – Thinner substrates are generally preferred
Masks – Clear masks help maximize transparency
Vias and holes – Laser drilling avoids cracking substrates
Coatings – Ensure the finish doesn’t block light transmission
Warpage – Transparent substrates can warp more than FR-4
Testing – Optical and electrical testing needs special care

While challenging, following sound design practices results in functional and reliable transparent PCBs.

Future Outlook

Transparent PCB technology has progressed tremendously over the past decade. However, there remains ample room for improvement. Some key areas to watch include:

Manufacturing improvements – Higher throughput, yields, registration accuracy, and consistency
Hybrid technologies – Combining 3D printing, lasers, and photolithography
New materials – Higher performance polymers, conductive inks, nanomaterials
Cost reduction – Developing lower cost processes at scale
High-density PCBs – Achieving fine features rivaling opaque PCBs
Improved performance – Matching or exceeding electrical, thermal, and mechanical properties

So continued materials science, manufacturing, and design innovations will expand transparent PCB capabilities and applications.

Transparent printed circuit boards, in summary, offer an innovative new platform for electronics. They make it possible for novel applications at the nexus of light and electricity by swapping opaque substrates for transparent ones. Transparent PCBs are opening up new technical possibilities for edge-lit LED displays, transparent capacitive buttons, and biosensors.

While materials and fabrication challenges exist, recent years have seen tremendous progress. With improving performance and economies, transparent PCBs are transitioning from laboratories to high-volume manufacturing. They represent the future of merging optics, electronics, and advanced manufacturing. Fasten your seatbelts for this see-through ride!

Applications in Detail

Let’s take a deeper look at some of the promising applications for transparent PCB technology:

Optoelectronic Systems

Optoelectronics combine optics and electronics, making transparent PCBs a perfect match. Specific applications include:

Optical sensors – Transparent PCBs can enable onboard optical sensors like photodiodes, photoresistors, and camera modules for measurement and machine vision applications.
Optical communications – Fibre optic communications transmit data using light signals. Embedding waveguides and optical components on transparent PCBs can transmit and route optical data onboard instead of needing fiber connections.
Biosensors – Lab-on-a-chip biosensors integrate microfluidics, optics, and electronics to enable portable point-of-care diagnostic devices. Transparent PCBs are ideal for these complex hybrid systems.
Spectrometry – Spectrometers analyze the spectrum of light interacting with a material sample. Integrating the light source, monochromators, detectors and electronics using transparent PCBs miniaturizes these tools.
Optogenetics – Emerging optogenetic interfaces stimulate neurons using light-sensitive proteins and detectors. Transparent PCBs with embedded waveguides offer a fabrication platform for these revolutionary implants.

So in summary, transparent PCBs enable the integration of optics and electronics for highly functional and compact devices.

Edge-Lit LED Displays

Edge-lit LED displays offer stunning visual effects and thin form factors. Here is how they work:

LEDs are placed along the edge of clear acrylic or polycarbonate substrates
Light from the side-mounted LEDs reflects internally and illuminates the entire substrate
This creates an even glow and dynamic lighting effects on the surface
Transparent PCBs along the edges control and power the LEDs
Light can also pass through for transparent effects

So transparent PCB technology is critical to enabling edge-lit LED arrays for next-gen displays and interfaces.

Capacitive Touch Interfaces

Touch interfaces are now ubiquitous, from phones to tablets to interactive information kiosks. Transparent PCBs help enable seamless capacitive touch sensing:

Clear glass or acrylic provides robust outer surfaces for displays and interfaces
Transparent PCBs fabricated on polyimide allow flexible form factors
Conductive patches are patterned on the transparent flex PCB to create capacitive sensors
An alternating current applied to the sensors generates an electromagnetic field
Touching the surface changes the capacitance detected by the sensors
This capacitance change is processed to detect touch location and pressure

So transparent flex PCBs with printed capacitive sensors facilitate touch interactivity through solid surfaces.

Transparent Electronics

Futuristic transparent electronics integrate transparent conductors and components to produce see-through devices. Possible innovations include:

Fully transparent touchscreen displays by combining transparent OLEDs, capacitive sensors, antennas, and cameras
Augmented reality glasses with transparent edge-lit waveguides and electronics
Transparent solar cells on building windows with integrated DC-DC converters
Head-up displays on vehicle windshields enabled by transparent PCBs and projection systems
Glass-topped tablets or desks with integrated transparent touchscreen displays

So transparent PCBs are a key enabling technology for fully transparent electronics which remain further on the horizon.

Aesthetic Improvements

Besides advanced applications, transparent PCBs offer simpler aesthetic improvements for consumer products:

Allowing users to view internal circuits engenders feelings of high quality and craftsmanship
Illuminated transparent PCBs behind shells create stunning visuals and ambiance
Troubleshooting and repairs are easier when components are visible
Transparent cases simplify the material selection and industrial design

So from LED backlit appliances to gaming PC cases, transparent PCBs enable limitless design possibilities.

Transparent PCB technology enables applications across optics, capacitive touch, transparent electronics, and product aesthetics. As materials and manufacturing mature, many more innovations lie ahead.

Challenges and Limitations

While promising, transparent PCBs pose fabrication and performance challenges including:

Lower fabrication yields – Specialized processing steps reduce fabrication success rates compared to traditional PCBs. This results in more waste and cost overruns.

Warpage control – Transparent substrate materials can warp more than opaque boards. Keeping boards perfectly flat during processing is difficult.

Lasers drilling limitations – Laser drilling transparent boards can crack substrates, limiting achievable hole sizes and densities.

Lower component densities – Component and routing densities are lower than opaque PCBs. Highest-performance transparent PCBs only achieve 2-4 metal layers currently.

Conductor oxidation – Copper oxidizes more rapidly when exposed to transparent substrates. Effective coatings are essential.

Thermal management – The insulating transparent substrates impede heat sinking from components. Thermal issues must be managed through design.

Higher costs – All these factors plus higher material costs result in transparent PCBs costing far more than traditional PCBs.

However, technology is steadily improving on all these fronts with advanced manufacturing techniques and material science.

Environmental Benefits

Besides enabling new applications, transparent PCBs offer sustainability advantages:

Easier recycling – Glass substrates allow easier separation and recycling than fiberglass at end-of-life.
Reduced waste – Emerging additive manufacturing techniques minimize material waste versus subtractive methods.
Smaller carbon footprint – Enabling lighter and thinner electronics reduces carbon emissions from manufacturing and transportation.
Eco-friendly materials – Ceramics and soda-lime glass utilize abundant minerals and recycled materials.
Lower power consumption – Innovations like edge-lit LEDs require far less energy than traditional lighting and displays.

So transparent PCB technology provides both economic and environmental benefits for the electronics industry.

Conclusion

In conclusion, transparent printed circuit boards provide an exciting new platform for electronics. By substituting opaque substrates with transparent materials, they enable unique applications at the intersection of light and electricity. From edge-lit LED panels to transparent capacitive buttons to biosensors, transparent PCBs are unveiling novel technological possibilities.

Frequently Asked Questions (FAQs)

What are the different types of transparent PCBs?

The main types of transparent PCBs are:

Glass PCBs – Using glass substrates like soda-lime, borosilicate, or sapphire

Ceramic PCBs – Using ceramic substrates like alumina or aluminum oxide

Polymer PCBs – Using polymer substrates like polyimide or PET

How are transparent PCBs manufactured?

Specialized processes like photolithography, laser drilling, 3D printing, and surface finishing are used to fabricate transparent PCBs. Materials science innovations enable transparent substrates.

What are some applications of transparent PCBs?

Applications include LED displays, capacitive touch sensors, optoelectronics, transparent electronics, enhanced product aesthetics, optical biosensors, and more.

What are the challenges in transparent PCB manufacturing?

Challenges include lower yields, warpage control, substrate fractures, laser drilling limitations, conductor oxidation, cost, and others – but solutions are emerging.

How do transparent PCBs compare to traditional PCBs?

Transparent PCBs enable unique applications where optics and visibility matter. However traditional PCBs currently offer higher densities, yields, and electrical performance at lower costs.

Ready to take your PCB designs to the next level?

Experience the quality and precision of MorePCB today.

Let’s bring your ideas to life!

Tag: PCB Styles
