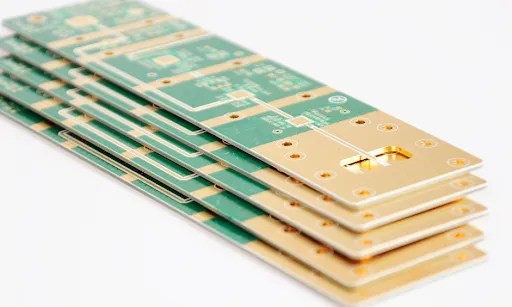

RF PCB Design – The Ultimate Guidelines


Radio Frequency (RF) PCBs have become one of the most crucial and commonly used PCBs around the world. They are well-known in the electronic industry for their capability to handle the unique problems related to transmitting, receiving, and controlling high-frequency signals. RF PCB design plays a significant role in the development of a wide range of high-frequency applications, like wireless communication systems, radio devices, and more.

In the past, RF PCBs were only limited to the military and aerospace sectors because they have complex designs and are expensive. But with the advancement in the electronic industry, RF PCBs are now commonly used in all RF-based applications.

Radio Frequency PCB design is more complex than the standard PCB design. It requires careful consideration of different aspects, like material selection, component placements, temperature control, trace design, impedance matching, via size, loss tangent, and grounding techniques to ensure signal integrity. Every element of the design process impacts the reliability and efficiency of the radio frequency (RF) system.

In this article, we’ll delve into the realms of RF PCB design, covering every detail about RF PCB’s working, RF PCB design techniques, testing, and manufacturing. We will cover how to design a PCB circuit board and how to design RF circuits in detail. RF PCB design guidelines in this article will enable you to fully understand how to make more robust and efficient RF systems. Keep reading as we discover the significant aspects of RF PCB design, RF PCB design considerations, PCB design guidelines for RF, factors that impact RF PCB design & their solution, and real-world applications.


What is an RF PCB?

The RF PCB stands for Radio Frequency Printed Circuit Board. RF PCBs operate at much higher frequencies than standard PCBs. The frequency range for an RF PCB is 300kHz (megahertz) to 300GHz (gigahertz). RF PCBs are high-speed specialized circuit boards that are used in applications that involve receiving and transmitting radio signals. These PCBs are used in various applications like wireless communication systems, cell phones, sensors, radars, radio systems, and more. They are also used in medical, military, and aerospace applications.

RF PCB design is much more complicated than normal PCBs. It is mainly due to the high-frequency radio signals involved in RF PCBs. RF PCBs are designed to maintain signal integrity, minimize signal loss, and enhance the efficiency of the RF system.



RF PCB Design Basics

RF PCBs are often confused with high-frequency PCBs and microwave PCBs. These terms are related but they can have distinct designs, characteristics, and applications. Here are the key differences between RF PCB, microwave PCB, and high-frequency PCB

RF PCB: RF-printed circuit boards are specially designed for handling radio frequency signals. Radiofrequency signals have typical frequencies ranging from 300kHz to 300GHz. The frequency range of RF signals is broad, so circuit designers have subdivided them into different parts to understand them properly. In circuit design, the frequency of an RF signal ranges from 50MHz to 1GHz. They are used in various applications like wireless communication systems, radio devices, Wi-Fi, Bluetooth, and other RF-based applications. The impedance of RF PCBs is 50 ohms.

Microwave PCB: Microwave PCBs cover signals with frequencies ranging from 300MHz to 300GHz. They are considered a subset of RF signals. Microwave PCBs cover frequencies ranging from 1GHz to 30GHz in the circuit design field. The applications of microwave PCBs include microwave ovens, radar systems, satellite communications, and other microwave-based systems. Microwave PCBs usually have an impedance of 50 or 75 ohms.

High-Frequency PCB: It is a broader term that can involve both RF signals and microwave signals depending on the requirements of the application. High-frequency PCB refers to the printed circuit boards engineered to manage signals in a high-frequency range. These PCBs can be used in different applications like wireless systems, radio devices, satellite communications, aerospace, and medical equipment. The impedance of a high-frequency PCB can be 50, 75, or 100 ohms.

In short, high-frequency PCB has a wide range of frequencies that encompasses both RF and microwave signals. RF PCBs manage signals up to the lower microwave range and microwave PCBs are specific to the applications involving higher-microwave frequencies. The design considerations for each type of PCB are different but they share the same goal of ensuring signal integrity in their respective frequency ranges.

RF PCB schematic
RF PCB schematic


RF PCBs contain both analog and digital signals. The analog signals in an RF PCB are considerably higher than analog signals used in a standard PCB. In RF PCB design, it is crucial to consider both analog and digital signals as they coexist and interact within the RF system. Both signals need distinct components to handle their signals. Here’s an overview of both analog and digital signals in RF PCB design:

Analog Signals: An analog signal has a continuous waveform shape that varies smoothly and continuously over time. The waveform has an infinite number of values, and analog signals can take on any value within the continuous range of the waveform. Resistors, capacitors, inductors, diodes, and transistors are all electronic components that process analog signals. In addition to that, RF amplifiers, RF filters, mixers, phase shifters, and RF switches handle and process analog signals. Handling analog signals in RF PCBs is extremely difficult because they are vulnerable to noise, distortion, impedance, and other problems. Designers must use various RF PCB design techniques to maintain the integrity of analog signals. In RF circuits, analog signals usually carry key information like audio, video, or sensor data.

Digital Signals: Digital signals are finite and represent information as a sequence of discrete values (bits), usually binary (0s and 1s). These signals have a square shape rather than a continuous waveform like analog signals. Digital PCBs are costly but are more straightforward to design than analog circuits. Digital signals can generate electromagnetic interference (EMI) that can affect analog signals of other components of the PCB. Proper grounding, shielding, and signal routing techniques are necessary to minimize EMI. Digital signals are less vulnerable to noise and interference. But as they operate at higher speeds, other issues like crosstalks and reflections may arise. Therefore, careful routing, controlled impedance, and other techniques must be used to ensure signal integrity. In RF circuits, digital signals carry control, data, and modulation information.

Both analog and digital signals are of great significance in RF PCB design. They should be designed carefully to ensure signal integrity and minimize interference, which results in reliable and accurate signal transmission and reception.


Types of RF PCBs

Radiofrequency printed circuit boards have various types. Different kinds of RF PCBs are used to meet the demands of various applications. Here are some of the common types of RF PCBs.

Single-Sided RF PCB

A single-sided RF PCB refers to a printed circuit board where all components and traces are located on one side of the board. The other side remains mostly or completely copper-free. These types of PCBs are used in simpler RF applications where the circuitry is not complex. As the component placement takes place on one side of the PCB, it must be planned carefully to optimize signal flow and minimize trace lengths.

Double-Sided RF PCB

Double-sided RF PCBs are printed circuit boards engineered to handle high-frequency signals and components on both sides of the board. These PCBs offer more component density and routing options as compared to single-sided RF PCBs. With components on both sides of the board, the routing of traces becomes more flexible. Double-sided PCBs are commonly used in applications where space optimization and signal performance are critical.

Multilayer RF PCB

These PCBs contain multiple layers of copper traces separated by insulating layers. The multilayer RF PCB provides more flexibility in component placement. RF components, like amplifiers, antennas, mixers, etc., and non-RF components can be strategically placed on different layers to minimize crosstalk, enhance signal path, and improve the overall performance of the RF system. The multilayer RF PCB also allows for efficient routing of RF traces, which assists in decreasing trace lengths and reducing signal loss.

The multilayer RF PCB design is more complex than single or double-sided RF PCBs. It requires careful planning of various aspects to make an efficient multilayer RF PCB. These PCBs are designed to handle high-frequency signals and are used in applications like wireless communications, satellite communications, radars, and more.

Hybrid RF PCB

A hybrid RF PCB has both RF components and non-RF components on the same side of the board. The integration of both RF and non-RF components on the same board allows a more compact and efficient system design.

In these PCBs, RF components like amplifiers, transceivers, mixers, antennas, filters, etc., are used to handle RF-specific tasks such as signal generation, amplification, and frequency conversion. The non-RF components carry data processing, control functions, user interfaces, power regulation, or other system-level functions. These non-RF components include microcontrollers, processors, digital integrated circuits (ICs), sensors, memory devices, and power management ICs.

Integrating RF and non-RF components helps improve the coordination and communication between different parts of the system. As RF and non-RF components are on the same board, one can shorten signal paths, minimizing the possibility of signal degradation, noise, and interference. Hybrid RF PCBs find applications in various sectors like telecommunication, the Internet of Things (IoT), aerospace, and more.


RF flex PCBs combine the advantages of RF PCBs and flexible PCBs. They are also known as RF Flexible PCB and RF Flex-Rigid PCB. This PCB can handle high-frequency signals and also offers the benefits of flexibility and bending capabilities.

Polyimide (PI) or liquid crystal polymer (LCP) are the common materials used to design RF flex PCBs. These materials enable the PCB to bend or conform to non-planar surfaces. In addition to being flexible, RF flex PCBs employ various techniques to maintain signal integrity in RF applications.

RF Flex PCBs have a wide range of applications in different industries, like wireless communication, consumer electronics, aerospace, IoT, automotive, and medical devices. Their unique design makes them beneficial for applications that require flexibility, space optimization, high-frequency operation, and durability.

RF High-Density Interconnect (HDI) PCB

This PCB is a specialized type of printed circuit board that combines the advantages of high-density interconnect technology with the demands of RF applications. High-frequency RF systems benefit significantly from HDI technology’s higher component density, lower form factor, and greater signal integrity.

RF HDI PCBs use advanced techniques like micro vias and laser drilling to achieve increased component density. Microvias optimize space utilization by allowing the routing of traces and interconnections between layers with smaller diameter holes.

These PCBs find applications in various sectors like automotive, aerospace, and wireless communication. They are specifically designed for applications where space optimization and efficient RF functionality are crucial.

RF Ceramic PCB

RF Ceramic PCBs use ceramic materials like Alumina (Al2O3) or Aluminum Nitride (AlN) as the substrate instead of conventional organic materials like FR-4. Ceramics have exceptional electrical, thermal, and mechanical characteristics, which provide unique benefits for high-frequency and high-power RF applications.

These PCBs have low dielectric constant and low dielectric loss tangents, which enable them to minimize signal attenuation and distortion in the RF system. The high thermal conductivity of the RF ceramic PCBs allows them to dissipate heat generated by RF components efficiently. This characteristic assists in smooth operation under high-power conditions without performance degradation or damage to the circuitry. Common examples of RF ceramic printed circuit boards include Bluetooth devices, routers, and microwave satellite communications.


RF PCB Design Considerations

RF PCB design is more complex than the standard PCB design because of the high-frequency signals involved in these PCBs. It requires careful consideration of different aspects, like material selection, component placements, temperature control, trace design, impedance matching, via size, loss tangent, and grounding techniques to ensure signal integrity.

Every element of the design process impacts the reliability and efficiency of the radio frequency (RF) system. Therefore, it is crucial to deal with all factors that impact the RF PCB design carefully to avoid any problems while designing the PCB. The following are the key aspects to consider before designing an RF PCB.

Material Selection

Material selection is one of the most important aspects of the PCB design process, as it directly affects the performance and characteristics of the RF circuits.

There are various materials used to make RF PCBs, but before selecting the right material, you should consider different properties of the material, like dielectric constant, coefficient of thermal expansion, moisture absorption, and cost. Material selection is also dependent on the requirements of the application, such as frequency range, signal integrity, loss tangent, cost, and dielectric constant. So, before selecting the material for RF PCB design, designers must consider the properties of the material and the requirements of the RF application.

RF PCB Material Selection
RF PCB Material Selection


Here are some of the common materials used in RF PCBs.


FR-4 (Flame Retardant-4) is the most widely used PCB material. It has a moderate dielectric constant (4.4), which is suitable for many low-frequency RF applications. FR-4 also offers good mechanical strength, electrical insulation, and ease of processing. In addition to that, FR-4 is cost-effective, which makes it the first choice for designers to make PCBs.

However, FR-4 is not optimized for high-frequency applications. It has a higher loss tangent (the amount of energy dissipated as heat during signal transmission), which results in signal loss and decreased overall performance of the RF system.

The low thermal conductivity of FR-4 is another problem, especially for high-frequency RF applications. FR-4 may pose challenges in dissipating heat from the high-power RF components. In that case, designers may need additional thermal management techniques to dissipate the heat efficiently.

FR-4’s low thermal conductivity, higher loss tangent, and limited electrical properties make it less suitable for applications that demand precise impedance control, low signal loss, and high-frequency stability.


PTFE (Polytetrafluoroethylene) is an excellent material used in RF PCB design, especially for high-frequency applications. It has a low dielectric constant (2.2-2.8) and low loss tangent, which help maintain signal integrity and minimize signal loss. PTFE-based materials have a wide frequency range, enabling them to manage high-frequency signals without considerable degradation.

Moreover, PTFE exhibits excellent electrical stability over a wide range of temperatures, ensuring consistent performance in varying environmental conditions. The good thermal stability of PTFE materials makes them an ideal choice for applications that require efficient thermal management and greater power-handling capabilities.

However, PTFE is more expensive than standard FR-4 material. This material may also pose problems during fabrication and assembly processes due to its high melting point and non-stick properties. But despite these advantages, PTFE is still used in almost all high-frequency RF applications – thanks to its excellent electrical and thermal properties.

Rogers Laminate

Rogers Corporation is well known for producing dielectrics and laminates for high-frequency RF systems. Roger laminates are available in a variety of grades and product lines, each with a unique set of performance attributes and price ranges.

The dielectric constant of Rogers material is very low (typical 2-10), which allows accurate impedance control and signal integrity in high-frequency circuits. All Rogers materials have low-loss tangents. This characteristic is responsible for minimal signal loss and distortion that ensure efficient signal transmission in RF systems.

Furthermore, Rogers laminates are prepared to have excellent thermal conductivity. This helps in dissipating heat efficiently from the RF components. High electrical stability is another plus point of using Rogers material in RF PCB design. This stability allows reliable electrical performance and impedance management, even in demanding RF applications.

However, the specialized properties of Rogers materials make them more expansive than FR-4. Some Rogers laminates are even more costly than PTFE PCB material. If the cost is not a constraint, Rogers materials can be the ideal choice for RF and microwave PCB design.

Ceramic-Based Materials

Ceramic-based materials, like Alumina (Al2O3) and Aluminum Nitride (AN), have high thermal conductivity, which allows effective heat dissipation from RF components to prevent overheating and improve the overall performance of the RF application. They have a low high-frequency loss and provide exceptional stability over a wide frequency range.

The dielectric loss in ceramic materials is quite low, which means they dissipate minimal energy when RF signals pass through them. This ensures signal integrity and minimizes the overall in the RF system. However, ceramic-based materials are more fragile than other PCB materials and can break if not handled properly. Their high cost is another critical factor to remember before using them to design an RF PCB.

Liquid Crystal Polymer (LCP)

This PCB material has low dielectric constant, low tangent loss, and stable electrical properties, making it ideal for high-frequency RF applications where signal integrity is crucial. LCP is flexible, versatile, and has impressive dimensional stability. These characteristics make it suitable for the design of compact and highly integrated RF circuits.

LCP is excellent chemical, solvent, and fuel resistant, which means it can work exceptionally well for applications that need exposure to harsh environments or aggressive chemicals. In addition to that, LCP has a low coefficient of thermal expansion and can withstand high-temperature soldering processes.

However, the mechanical strength of LCP is lower than the standard FR-4 material. So, it can’t be used in applications that require high mechanical strength. LCP is more expensive than FR-4 or PTFE and can also be more challenging to process than other PCB substrates

All these PCB materials have their own advantages and disadvantages. The PCB material designers select must fulfill the requirements of the application. It is also possible to use different materials for each layer of the PCB. For example, designers can use Rogers or PTFE material for RF components on the outer layers, and use cheap FR-4 material for other layers. In this way, engineers can combine the benefits of different materials in one PCB while saving tons of money.

Component Placement

Component placement is another critical element in RF PCB design that can significantly impact the performance of the RF system. Appropriate placement of RF and non-RF components is crucial to optimize signal integrity, minimize interference, and achieve efficient signal transmission and reception.

The first step in component placement is to separate RF, analog, and digital components. Isolate RF components from non-RF components as much as possible to avoid interference that affects the signal quality.

A single-sided RF PCB is not useful for high-frequency applications because you have to place all (RF & non-RF) components on the same side, which can cause numerous problems. Therefore, a multilayer layer RF PCB is always the right choice for high-frequency applications. The top layer, in this case, should contain RF components and the power stage.

RF components must be placed closely to achieve shorter signal paths. Short signal paths minimize signal losses & phase differences and maintain signal integrity. RF signals should have some distance between them to prevent crosstalk. To avoid signal losses and maintain signal integrity, the length of the RF signal lines must not be greater than 1/20 length of the wavelength (λ). For instance, if we calculate for a 200MHz RF line;

λ = c/f

Where c is the speed of light and f is the frequency of the signal line.

λ = 300000000/200000000

λ = 150 cm
Line length = λ/20
                  = 150/20 = 7.5 cm

If the length of the RF line is bigger than 7.5 cm (for a 200MHz RF line), other techniques, like impedance matching must be applied.

It is essential to note that there should be a ground layer after the RF layer. In order to provide a low-impedance return channel for RF signals, RF components should be connected to specialized ground planes or RF ground structures. These ground structures should be properly placed to limit ground loops and noise coupling.

Impedance Matching

Impedance matching is a crucial aspect of RF PCB design as it ensures efficient power transfer and signal integrity between RF components, transmission lines, and antennas. Proper impedance matching helps minimize signal reflections, maximize power transfer, and optimize system performance.

Characteristic Impedance (Z0) refers to the inherent impedance of a transmission line or the impedance seen by a signal propagating along the transmission line.

The characteristic impedance is calculated by the physical dimensions and properties of the transmission line, like its width, thickness, dielectric material, and the relative permittivity (εr) of the substrate material.

The characteristic impedance affects signal integrity by controlling the amount of signal reflection and power transfer between the source and load. When the characteristic impedance of the transmission line matches the impedance of the source and load (known as impedance matching), it reduces signal reflections, maximizing power transfer and maintaining signal integrity.

For RF and high-speed digital applications, the most common characteristic impedance values are 50 Ω and 75 Ω. The selection of the appropriate characteristic impedance depends on the specific application, industry standards, and the impedance requirements of the components used in the system.

An easy way to achieve the target impedance is to set the impedance value of the systems (typically 50, or 75 ohms), and then select the components that match this impedance value. But it isn’t possible in very high-frequency RF applications. Therefore, designers use various methods to achieve impedance matching in RF PCB design. Here are some of the common impedance matching techniques used in RF PCB design.

  • Series Impedance Matching: In this system, a series inductor or series capacitor is placed at the load end of the transmission line to adjust the impedance. The value of the series inductor or series capacitor should be such that the impedance at the input and output becomes equal.
  • Shunt Impedance Matching: Unlike series matching, an inductor or capacitor is placed in parallel to adjust the impedance at the source end of the transmission line. The value of a shunt inductor or capacitor can vary based on the requirements.
  • L-section Matching: In L-section impedance matching, designers place an inductor or capacitor in series with the source and an inductor or capacitor in parallel with the load. This method combines both series matching and shunt matching to adjust the impedance of the RF system.
  • T-section Matching: The T-section matching or T-matching circuit is used to adjust the impedance between the source and the load. The capacitor and inductor in the circuit make a T shape, that’s why it is called T-section impedance matching. In this system, you can either place the capacitor or inductor near the source or load based on the needs of the RF system.

Proper impedance matching is essential for RF PCB designs to ensure efficient signal transfer, minimize reflections, and maximize system performance.

Transmission Lines

A transmission line is a controlled impedance interconnect structure designed to carry high-frequency signals over longer distances without significant signal degradation. Transmission lines consist of two conductors (a trace signal and a return path) with a specific characteristic impedance and are surrounded by a dielectric material. This configuration allows for efficient signal propagation with minimal reflections or losses.

Transmission lines are designed to keep characteristic impedance constant throughout their length, ensuring proper signal integrity and impedance matching. The trace width, spacing, and dielectric properties of the PCB board all affect the characteristic impedance. Typical characteristic impedance values for RF PCBs are 50 or 75 ohms, based on the application and guidelines being followed.

What are the types of transmission lines? Transmission lines in RF PCB design have different types. The followings are the most common types of transmission lines used in RF printed circuit board design.

Microstrip Transmission Line

Microstrip transmission lines are broadly used in RF PCB design because they are simple and easy to fabricate. These transmission lines have the signal trace on the top and the return path or the ground plane at the bottom.  A dielectric material separates the signal trace and the ground plane.

The trace width and spacing, along with the dielectric constant of the substrate material, are carefully chosen to achieve the desired characteristic impedance.

Microstrip Transmission Line
Microstrip Transmission Line


Stripline Transmission Line

In a stripline transmission line, the signal trace is embedded between two parallel ground planes. It gives the transmission line a symmetrical shape. The signal trace is routed on the inner layer of the board and is surrounded by dielectric layers. The dielectric layers separate the trace signal from the reference planes.

The stripline transmission line offers two return paths for the signal. Stripline transmission lines increase signal integrity and are frequently utilized in RF PCB designs where better isolation or impedance control is essential.

Stripline Transmission Line
Stripline Transmission Line


Coplanar Waveguide (CPW) Transmission Line

Coplanar waveguide (CPW) transmission line has the signal trace and two return planes on either side of the trace signal on the same layer. The dielectric material isolates the trace signal from the return planes.

CPW transmission line is widely used in RF PCB design because it offers excellent isolation between adjacent transmission lines, minimizes EMI (Electromagnetic Interference) effects, wider trace widths, and lower losses. It is frequently utilized in RF PCB designs where low insertion loss, good isolation, and ease of fabrication are crucial considerations.

Coplanar Waveguide Transmission Line
Coplanar Waveguide Transmission Line


Transmission Line Bends and Layer Changes

Transmission lines don’t always travel in straight lines, but sometimes they need to change directions due to various constraints to optimize signal performance. The common way to change the direction of the transmission lines is curving or bending. But bending or curving the transmission lines can introduce impedance discontinuities, which can lead to signal reflection and degradation of the signal integrity.

A 90-degree bend is commonly used to change the path of the transmission line, but this can add capacitance to the transmission line. This capacitance causes a change in the impedance, i.e., the impedance of the whole line doesn’t remain the same. This impedance mismatch causes a small amount of signal to reflect back to the source, which affects the signal integrity and overall performance of the system.

To minimize this capacitance and avoid impedance mismatch, a mitered or mitered bend is used. In mitered bend, the sharp ends of the transmission lines are cut at a preplanned angle (from 30˚ to 90˚).

The figure shows the resulting transmission line when the mitering angle is set to 45˚. The 45˚ angle cuts the line two times forming a tilted section. This tilted part reflects the incoming signal at 90˚ along the negative y-axis, i.e., the signal travels to the load instead of reflecting back to the source. In this way, a mitered bend keeps the impedance of the transmission line same at all points, reducing capacitance and maintaining signal integrity.

Mitred Bend
Mitred Bend


Transmission lines experience layer changes when the signal flow changes from one PCB layer to another. These layer shifts may result in impedance discontinuities, which can cause signal reflections and deteriorate the integrity of the signal. To mitigate these problems, designers employ vias, which are plated through holes that offer a conductive channel between various layers. In transmission lines, layer variations during signal propagation are crucially controlled by via designs.

The via size with respect to transmission lines depends on several factors, including the PCB material, the transmission line’s characteristic impedance, the layer transition requirements, and the frequency of operation.

The via’s diameter and aspect ratio (ratio of via’s depth to diameter) affects its electrical and thermal performance. A large via diameter offers low impedance than a small via diameter. The aspect ratio must be lower as a higher aspect ratio causes higher inductance and poor signal performance. But keep in mind that the via diameter and aspect ratio must match the impedance of the transmission line.

Using multiple vias for each layer transition in a transmission line can be beneficial in certain cases, especially for high-frequency RF PCB designs where signal integrity is critical. The use of multiple vias can help improve impedance matching, reduce via inductance, and enhance the signal’s return path, resulting in better overall signal performance.

The inductance of a single via can be considerably high at high frequencies. Using two or three vias in parallel for each layer transition can significantly reduce the inductance, improving the signal’s performance at high frequencies.

Multiple vias distribute the current more evenly, minimizing the impact of each via’s inductance on the overall impedance of the transmission line. This can lead to better impedance matching, minimizing signal reflections, and ensuring proper signal propagation. However, the decision to use two or three vias for each transition depends on the specific design requirements and the frequency of operation.

Via Design

Vias are plated through holes that provide a conductive path between different PCB layers, and they play a crucial role in connecting signal traces, ground planes, and power planes in RF circuits. Via design in RF PCBs is a critical aspect that directly affects signal integrity, impedance matching, and overall performance. Here are some of the key factors to consider for via design in RF PCBs.

Via Type

Vias can be used in many ways depending on the needs of the circuit in a PCB design and come in a variety of shapes and sizes. Through-hole vias are the most common kind of vias used in PCB design. These vias start from one side of the board and end on the other, providing conducting path to all the layers. Designers use thermal vias to connect traces, power planes, and ground planes in multilayer PCBs.

Blind vias start on the external layer and end on the inner layer. They do not go through the entire PCB. You can use blind vias to connect components from the outer layer to the inner layer.

Buried vias are used to connect one or more inner layers’ components. They don’t extend to the external layer. You can use all these different vias in RF PCB, but make sure to avoid impedance, inductance, and interference caused by these vias.

Via Size

The via size impacts the signal integrity, impedance matching, and overall performance of the RF system, so it must be appropriate to avoid any problems. The via diameter must be smaller in RF PCB design, as a larger via diameter causes high parasitic inductance. Common via diameters for RF PCBs range from around 0.2 mm (8 mils) to 0.4 mm (16 mils) or smaller.

The aspect ratio (ratio of via’s depth to diameter) must be lower as a higher aspect ratio causes higher inductance and poor signal performance. A typical aspect ratio in RF PCBs could be around 0.8 to 1.2.

RF PCB Stack-up

PCB stack-up refers to the arrangement and order of different conductive and dielectric layers in a printed circuit board (PCB). The stack-up defines the arrangement of various layers of the PCB, including signal layers, power planes, ground planes, and other functional layers.

RF components and traces are usually routed on the top or bottom layers. The number of layers can vary depending on the requirements of the system. The ground and power planes often follow the RF signal layer.

RF PCB Stack-Up
RF PCB Stack-Up


The ground plane serves as a low-impedance reference for the signals on the adjacent signal layer. When signals travel through the PCB, they encounter the ground plane, which provides a well-defined return path, reducing the loop area and minimizing the potential for noise and EMI. This controlled impedance path helps maintain signal integrity, reduce crosstalk, and improve overall circuit performance.

The last layer contains all the non-RF components and traces. This RF PCB stack-up configuration provides minimum interference between RF and non-RF components, which is crucial to maintain signal integrity and enhancing the overall performance of the RF system.

Dielectric Constant & Loss Tangent

The dielectric constant and loss tangent of the RF PCB material plays a crucial role in maintaining the desired characteristic impedance of the transmission line. Therefore, it is crucial to select the right material with appropriate dielectric constant and loss tangent to meet the demands of RF application.

The dielectric constant, also known as the relative permittivity, determines how much electric charge a material can store compared to a vacuum. In RF PCBs, the dielectric constant of the PCB material determines the velocity at which electromagnetic waves propagate through the PCB.

A higher dielectric constant corresponds to slower signal propagation, while a lower value results in faster propagation. Controlling the dielectric constant is essential for maintaining the desired characteristic impedance of transmission lines. Proper impedance matching ensures efficient signal transmission, reduces signal reflections, and decreases signal degradation. High-frequency laminates, such as PTFE and Rogers material, typically have low dielectric constants, making them suitable for high-frequency RF applications.

The loss tangent, commonly referred to as the dissipation factor or tanδ, is a metric used to assess a material’s capacity to dissipate energy in the form of heat. A low-loss tangent is preferred in RF PCB design to reduce dielectric losses and signal attenuation. Low-loss tangent materials, such as PTFE and Rogers material, lose very little energy, which allows RF signals to propagate with little degradation. High-loss tangents can result in signal absorption, which reduces the signal amplitude and quality, particularly at higher frequencies.

Antenna Size

Antennas are essential components in RF systems, used to radiate or capture electromagnetic waves in wireless communication, RFID (Radio-Frequency Identification), GPS, and other applications. Antenna size is an important factor to consider in RF PCB design.

The antenna size varies depending on the requirements of the application. Larger antennas offer high gain, improved signal strength, and longer communication range. That’s why they are typically used in applications where signal strength and coverage are crucial, including wireless communication systems, and high-power radio systems.

On the other hand, smaller antennas are used in applications where space is limited. The common applications include IoT sensors and mobile phones.

You can select any antenna size based on your requirements and available space. If your design has less space, you can add small antennas. But if you want to improve the signal strength, a large antenna is the right choice. You can also use multiple small-sized antennas to improve the signal strength and overall performance of the RF system.

Noise Sensitivity

Noise refers to any unwanted and random electrical disturbances or fluctuations that interfere with the intended signals and degrade the overall performance of the circuit. It is a form of electromagnetic interference (EMI) that can originate from various sources, including external sources, active and passive components, and the PCB itself.

RF signals are highly sensitive to various kinds of noise, which can affect the performance of the circuits and communication systems. Keep reading to find out more about the different kinds of noise in RF PCBs.

Thermal Noise

Thermal Noise, also known as Johnson-Nyquist noise, occurs due to the random motion of electrons in conductive materials due to temperature. It is found in all components and traces present on an RF PCB. Thermal noise reduces the signal-to-noise ratio (SNR), which directly affects the sensitivity and accuracy of RF receivers.

One way to mitigate thermal noise is to use low-noise components and lessen resistive losses in transmission lines. You can also mitigate thermal noise by controlling the impact of temperature on the circuits. Designers do this by using cooling systems or heat-dissipation features on the circuits.

Phase Noise

As the name indicates, phase noise influences the phase of an RF signal’s carrier wave. It is typically linked to frequency sources like oscillators. Phase noise can compromise the spectral integrity of the carrier signal. This can lead to sidebands and jitter, which affect the performance of the RF communication system.

Designers can use high-quality low-phase-noise oscillators and other frequency sources to decrease phase noise. You can also mitigate phase noise by using proper grounding and shielding techniques.

Avalanche Noise

Avalanche noise occurs when the avalanche breakdown process generates random noise due to the multiplication of carriers. Avalanche noise can be a significant noise source in RF systems that utilize avalanche devices for signal detection or amplification.

You can easily minimize the effect of avalanche noise by using various filters designed to remove this noise. Usually, a capacitor-based filter helps reduce avalanche noise.

Shot Noise

Shot noise, also known as Schottky noise, occurs due to the statistical variation in the arrival of charge carriers (electrons or holes) at a point in a circuit. It is predominant in applications operating at low currents or high frequencies. This noise can limit the sensitivity and accuracy of RF receivers, which influences SNR and dynamic range.

Designers can increase the current levels or use high-power devices in the RF circuitry to diminish the relative impact of shot noise.

Flicker Noise

Flicker noise, also called 1/f noise, occurs due to the presence of defects or traps in the semiconductor material or active components in RF PCBs. This noise is dominant at low frequencies and can cause problems in RF systems, particularly when dealing with low-frequency signals.

You can reduce the flicker noise by selecting low-noise devices, using high-quality components, and employing proper filtering techniques to suppress noise at low frequencies.

Power Routing

A crucial component of RF PCB design is power routing, which involves the effective distribution of power across the printed circuit board to supply all active and passive components with the necessary voltage and current.

Power integrity in RF circuits is of paramount significance since any voltage or impedance changes can have a substantial impact on the signal’s performance at high frequencies. Accurate power routing helps minimize voltage dips, power losses, and noise coupling into vulnerable RF circuits.

Here is how you can achieve effective power routing in an RF system:

  • To minimize voltage drops and decrease resistance, use wide, low-impedance power traces.
  • Make power planes for both power distribution and RF signal return paths.
  • Reduce loop areas and inductance by placing the power and ground traces close to one another.

Supply Decoupling

Power supply decoupling is another crucial aspect of RF PCB design. Power supplies are prone to noise and other interference. To minimize the noise, designers use the supply decoupling technique. Supply decoupling involves the usage of decoupling capacitors to stabilize the power supply and decrease the noise that can affect the performance of sensitive components.

Selecting Decoupling Capacitors or Bypass Capacitors

Choosing the right decoupling capacitors depend on various factors like component requirements, the frequency range of the noise to be filtered out, and capacitance values.

Microcontrollers, amplifiers, and other ICs require specific decoupling capacitor values. Also, the frequency range of the noise to be filtered out must be determined before selecting the decoupling capacitors. For high-frequency applications, use ceramic capacitors with low equivalent series resistance (ESR), as they provide superior filtering in high-frequency ranges.

The capacitor values change based on the requirements of the components and the noise to be filtered out. In most cases, a combination of capacitors with different values, such as 0.001 µF, 0.1 µF, and 10 µF, is used to address a broad range of frequencies.

Placement of Decoupling Capacitors

Place decoupling capacitors as close as possible to the power and ground pins of each active component, such as microcontrollers, RF transceivers, amplifiers, and other ICs. The goal is to create a low-impedance path for high-frequency noise to be filtered out at the point of its generation.

You can use both single and star configurations depending on your requirements to filter out noise. In a single configuration, use individual capacitors for each component, placing them close to their respective power pins. This approach ensures that each component has its dedicated energy reservoir to filter out noise generated by its operation.

In a star configuration, centralize all decoupling capacitors at a single point on the PCB, typically near the power supply connection. Connect the power and ground pins of all components to this central capacitor point using separate traces. The star configuration creates a low-impedance power distribution network, reducing ground loops and providing effective decoupling for the entire circuit.

Keep in mind that, the impedance of the whole circuit must be the same after placing the decoupling capacitors. Otherwise, it will affect the signal quality and efficiency of the RF system.

The below diagram shows the valid and invalid placement of the capacitors. The left diagram is valid because the decoupling capacitor is placed near the power and ground pin, creating a low-impedance path for the noise to be filtered out.

Decoupling (Bypass) Capacitor Placement
Decoupling (Bypass) Capacitor Placement


Return Loss

Return Loss is a measure of the power reflected back toward the source due to an impedance mismatch in a transmission line or system. In RF PCBs, transmission lines carry high-frequency signals between components and devices. When there is an impedance mismatch between the transmission line and the connected component, a portion of the signal gets reflected back toward the source.

It is represented in decibels (dB) and is calculated as:

Return Loss (dB) = 20 * log10 (|Reflection Coefficient|)

The reflection coefficient is the ratio of the amplitude of the reflected signal to the amplitude of the incident signal. It is a complex number and is expressed as a magnitude and phase. When return loss is in positive dB values, it means that the reflected power is lower than the incident power, indicating less power is being reflected back.

A higher return loss value in dB signifies a smaller reflection coefficient and less signal reflection. In other words, higher return loss indicates better impedance matching between the transmission line and the connected component.


Proper grounding is crucial in the RF PCB design to provide a low-impedance return path for RF signals. For RF signals, ground planes offer a low-resistance and low-inductance return path. A steady and continuous ground reference is necessary for high-frequency signals as they travel across the PCB. A stable ground plane helps prevent ground loops and preserve signal integrity by lowering the impedance of the signal return path.

Usually, a ground plane under the RF layer is necessary to provide low-impedance return path RF signals. This helps maintain signal integrity, reduces ground loops, and minimizes the chances of signal distortion and interference. The ground plane must be continuous to avoid any interference.

Shunt-connected components, such as supply decoupling capacitors, must have two ground vias for each component. This minimizes the impact of via parasitic inductance as explained earlier.

IC ground plane needs a little more consideration. It is a localized ground plane, specifically dedicated to a particular IC or group of ICs. It is usually located directly beneath the corresponding IC(s) and serves as a local ground reference for the IC’s internal circuitry.

This ground plane offers a low-impedance path for the IC’s internal currents, ensuring proper operation and reducing noise in the IC’s circuitry. It also acts as a thermal pad, dissipating heat generated by the IC and aiding in thermal management.


RF PCB Design Process

RF PCB design is a critical process in developing high-frequency circuits for wireless communication, radar systems, and other RF applications. To ensure the success of an RF PCB design, you must follow a systematic and comprehensive approach. We already have covered the design considerations in detail. Now, we’ll present a step-by-step guide to the RF PCB design process. Keep reading to find out the right way to design RF PCB to achieve optimal performance.

Gather Requirements

First of all, designers need to determine all the requirements of the application. You need to know the frequency range, cost, noise requirements, bandwidth, power levels, PCB size, and any other technical needs.

Component Selection

Component selection is a greatly significant process in the RF PCB design. Choose the RF components, like amplifiers, antennas, mixers, filters, etc., based on the application’s requirements. Keep in mind the frequency range, gain, noise figure, power levels, and temperature resistivity of all components.

Schematic Design

Before developing a circuit diagram, make a high-level system diagram to visualize the components, connections, and signal flow in the RF system.

Now, create the circuit schematic using RF PCB design software. Make sure the connections are correct and the impedance value remains the same.

Stack-up Design

Determine the PCB layer stack-up, specifying the number and arrangement of RF layer, power, and ground planes. RF microwave PCB board design and RF PCB layout differ based on the application’s requirements but you must follow the high frequency PCB design guidelines.

As discussed earlier, the RF or signal layer must be at the top followed by a ground plane to provide a low-impedance return path to the RF signals.

If you are designing a 4-layer PCB, the first layer must contain all RF components. The second layer should be the ground plane, followed by the power plane (third layer). The last layer should contain all the non-RF components. In this way, you can isolate the RF and non-RF components to avoid interference and optimize the system’s overall performance.

Place all the components and traces on the PCB layout. Keep in mind the design considerations mentioned above to achieve proper trace routing, impedance matching, and RF signal isolation.


Grounding is one of the most crucial PCB design steps that need careful implementation. The ground plane must be close to RF signals and traces. Make sure to implement a stable ground plane to maintain signal integrity in the whole RF system.

Impedance Matching and Thermal Management

Place the components and design transmission lines to match the characteristic impedance of the RF system. Use proper techniques to match the character impedance at the source and load to avoid signal reflection and interference.

Thermal management is necessary to dissipate heat from high-power RF components. Use thermal vias and heat sinks to maintain proper operating temperature.

Simulation and Design Verification

Use simulation tools to evaluate the performance of PCB design before prototyping. If there are any problems, solve them using the right techniques. Assemble the PCB prototype and check its performance in various circumstances.

After careful testing and optimizing the design, you can move forward with full-scale production and development of the RF PCB.



RF PCBs have complex designs but offer various benefits that make them crucial in the implementation of high-frequency applications. Here are some of the key advantages of RF PCBs:

Signal Integrity

Signal integrity is of utmost importance for a reliable operation of a high-frequency system. RF PCBs employ different techniques, like impedance matching, noise reduction, decreasing signal reflection, and more to maintain the signal integrity of the circuit.

Impedance Matching

Impedance matching plays a vital role in RF systems to minimize signal reflection and maximize power transfer. If the impedance of components and traces is not the same at the source and load, it will cause many problems and affect the overall performance of the RF system.

RF PCB design enables accurate impedance matching, ensuring that the components and traces have the right impedance to match the source and load impedance.

Noise Reduction

RF PCBs incorporate proper grounding techniques, decoupling capacitors, and shielding to reduce electromagnetic interference (EMI) and radio frequency interference (RFI). This leads to lower noise levels, improved sensitivity, and enhanced system performance.

Low Losses

High-frequency applications are prone to losses due to conductor resistance and dielectric losses. RF PCBs utilize materials with low-loss materials with the right dielectric constants and loss tangent values to minimize signal attenuation. This results in efficient power transfer and enhanced system performance.

Heat Dissipation

RF systems contain high-power components that dissipate huge amounts of heat. RF PCBs are engineered with efficient heat sinks, thermal vias, and copper planes to dissipate heat effectively, avoiding overheating and ensuring the long-term operation of the components.


RF PCB design allows for compact layouts, enabling the miniaturization of RF circuits and systems. This is crucial for portable devices, IoT applications, and space-constrained environments where size reduction is a priority.

Frequency Performance

RF PCBs are optimized for high-frequency operation, allowing for stable and reliable performance across a wide frequency range. This makes them suitable for various RF applications, including cellular communication, satellite systems, radar, and wireless networks.


RF PCBs find a wide range of applications in various industries and technologies due to their ability to handle high-frequency signals and maintain signal integrity. Let’s explore some of the key applications of RF PCB design:

Wireless Communication

RF PCBs are widely used in wireless communication systems, including smartphones, tablets, Wi-Fi routers, Bluetooth devices, and IoT devices. They’re responsible for reliable data transmission and reception at various frequencies, enabling seamless communication between devices.

Radar Systems

Radar systems used for surveillance, navigation, and weather monitoring depend heavily on RF PCBs. They manage high-frequency signals for radar transmitters, receivers, and signal processing units, assuring precise detection and tracking capabilities.

Aerospace and Defense

RF PCBs are used in a wide range of applications in the aerospace and defense sectors, including avionics systems, radars, communication systems, electronic warfare gear, and satellite payloads. They guarantee dependable operation in demanding situations and rigorous performance requirements.

Medical Devices

In the medical industry, RF PCBs are used in CT (Computed Tomography) scanners and MRI (Magnetic Resonance Imaging) systems, which process high-frequency signals to produce detailed medical images.

Satellite Communication

RF PCB design is essential for satellite communication systems, such as satellite transponders and ground stations. These systems depend on RF PCBs to manage complicated RF signals and data transfer between satellites and Earth.


For tracking and identifying purposes, RF PCBs are employed in RFID (Radio Frequency Identification) systems. They enable wireless communication between RFID tags and readers, allowing applications for inventory management, access control, and asset tracking.



RF PCB technology is growing fastly and you can find its applications in almost all sectors. Designing RF PCBs is complex and needs careful consideration of different aspects, like material selection, impedance matching, noise reduction, low loss tangent, via design, transmission lines, and more.

Keeping in mind the crucial factors explained in this article, you can easily design an RF PCB based on your requirements. They offer various benefits like signal integrity, heat dissipation, low losses, miniaturization, impedance matching, and more. You can find RF PCB applications in various sectors, including wireless communication systems, radar systems, aerospace, satellite communication, and medical devices.

RF PCB has a bright future because wireless communication and connectivity have become ubiquitous in this world. It continues to be a crucial component of modern electronics, opening the way for the effective and seamless wireless communication networks that drive our interconnected world.

Ready to bring your PCB designs to life?

Contact MorePCB today and experience top-quality manufacturing,

quick turnaround times, and exceptional customer service.

Contact us to request a quote and start your next project!


Still, need help? Contact Us: sales@morepcb.com

Leave a Comment

Your email address will not be published. Required fields are marked *

Read More

Recommended Article

Flex PCB Stiffener

Flex PCB Stiffener: A Complete Guide

Introduction Flex PCB Stiffener   Flexible printed circuits (FPCs) are very beneficial due to their flexibility with challenging environmental and other factors. Sometimes, their flexibility

Scroll to Top

Get Free Quote

 We will answer you shortly! ( Able to send attachment )





Thanks For Contacting Us!​

We’re so glad you’re here!
We will get you back soon.
