Introduction
In the ever-evolving world of electronics, Printed Circuit Boards (PCBs) lie at the heart of virtually all modern devices, from smartphones and laptops to medical equipment and automotive systems. Ensuring the functionality and reliability of PCBs is paramount to delivering high-quality electronic products to consumers and businesses alike. PCB test fixtures, as specialized tools, play a pivotal role in this process by providing a structured and efficient means of assessing the functionality and integrity of PCBs during the manufacturing stage. By offering a controlled environment for precise testing and measurement, these fixtures have revolutionized electronics manufacturing, reducing production costs, enhancing product quality, and accelerating time-to-market. In this article, we will delve into the realm of PCB test fixtures, exploring their working principles, diverse types, wide-ranging benefits, and the challenges they address in the pursuit of manufacturing excellence.
What is a PCB Test Fixture?
A PCB test fixture, also known as a test jig or test rack, is a specialized tool used in the electronics manufacturing industry to assess the functionality and performance of Printed Circuit Boards (PCBs) during the production process. These fixtures provide a controlled environment for connecting and testing various nodes, components, and signals on the PCB to ensure it operates as designed.
PCB test fixtures consist of key components, such as test points strategically placed on the PCB, test probes (or needle probes) that make physical contact with the test points, interface hardware to connect the probes to testing equipment, and a guiding mechanism to ensure precise positioning and alignment. The fixtures can be either manually operated or automated, depending on the manufacturing volume and complexity. By employing PCB test fixtures, manufacturers can streamline the testing process, reducing testing time and costs, while simultaneously improving product quality. Early detection of defects and faults through these fixtures allows for timely corrective actions, leading to faster product development cycles and a shorter time-to-market. Furthermore, the consistent and repeatable testing environment provided by test fixtures ensures that only fully functional and reliable PCBs reach end-users, contributing to enhanced customer satisfaction and brand reputation.
Despite the benefits, designing and maintaining effective PCB test fixtures can be challenging, particularly for PCBs with intricate layouts or rapid design iterations. However, the advantages they offer, including increased production efficiency, reduced rework, and enhanced product reliability, have made PCB test fixtures indispensable tools in the electronics manufacturing industry, fostering innovation and continuous improvement in electronic device development.
Working Principles of PCB Test Fixture
The working principle of a PCB test fixture revolves around creating a controlled and repeatable testing environment for Printed Circuit Boards (PCBs) during the electronics manufacturing process. The primary goal is to accurately and efficiently assess the functionality and performance of the PCBs before they are assembled into final products. The working principle involves several key components and steps:
Test Points
During the design phase of the PCB, specific test points are strategically placed on the board. These test points serve as contact points for the test probes and provide access to critical signals, nodes, and components on the PCB.
Test Probes
The test probes are integral components of the test fixture. They are designed to make physical contact with the test points on the PCB. Test probes can take various forms, such as pogo pins, spring-loaded contacts, or needle probes. The choice of probes depends on the specific testing requirements and the layout of the PCB.
Interface Hardware
The test probes are connected to interface hardware, which establishes a reliable and stable connection between the PCB and the testing equipment. The interface hardware facilitates the transfer of test signals from the test fixture to the testing equipment, which may include oscilloscopes, multimeters, automated test systems, or other specialized testing instruments.
Guiding Mechanism
To ensure precise alignment and positioning of the test probes with the corresponding test points on the PCB, a guiding mechanism is integrated into the test fixture. This mechanism helps prevent misalignment, which can lead to inaccurate test results and potential damage to the PCB.
Testing Process
Once the PCB is placed onto the test fixture, the guiding mechanism ensures that the test probes make contact with the designated test points accurately. The testing process involves the activation of the test equipment, which sends test signals through the interface hardware to the test probes. These probes then measure and capture the responses and signals from the PCB.
Analysis and Evaluation
The testing equipment or an associated computer system analyzes and evaluates the captured data and responses. The results are then compared to predefined test criteria and standards to determine the functionality and quality of the PCB. Based on the analysis, the PCB is classified as either functional and compliant or faulty and non-compliant.
Reporting
The test fixture generates comprehensive reports that detail the test results and any detected faults or issues with the PCB. These reports provide valuable feedback to manufacturers, allowing them to take corrective actions and improve the design and manufacturing processes.
The PCB test fixture involves the precise alignment of test probes with designated test points on the PCB, the application of test signals, and the analysis of PCB responses to ensure its functionality and quality before further assembly into electronic products. By providing a standardized and controlled testing environment, test fixtures play a critical role in enhancing efficiency and product reliability during electronics manufacturing.
Types of PCB Test Fixtures
PCB test fixtures can be broadly categorized into two main types based on their operation:

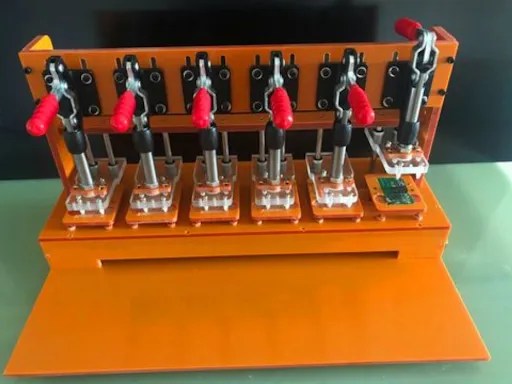

Manual Test Fixtures
Manual test fixtures are operated by human operators who manually place the PCB onto the fixture and engage the test probes with the corresponding test points. While these fixtures are relatively simple, cost-effective, flexible, and require low maintenance. They are better suited for low-volume production environments. On the contrary, the possibility of human error, labor intensive, and slow speed are the limitations.
Automated Test Fixtures
Automated test fixtures, as the name suggests, employ automation to streamline the testing process. These fixtures are integrated with automated test equipment that automatically places the PCB onto the fixture, engages the test probes, and conducts the testing. Automated test fixtures are ideal for high-volume manufacturing, as they significantly increase testing speed, accuracy, and repeatability.
Types of tests performed using PCB Fixtures
There are several types of tests performed using PCB fixtures:
ICT Testing
ICT (In-Circuit Testing) for PCB (Printed Circuit Board) is a crucial quality control process used in electronics manufacturing to assess the functionality and integrity of individual components and circuit connections on the board. It involves the use of specialized test equipment to apply electrical signals and measure responses, identifying faults such as open circuits, short circuits, incorrect component values, and manufacturing defects.
Flying Probe Testing
Unlike traditional ICT, FPT employs flying probe testers that utilize movable, needle-like probes to make contact with test points on the PCB, eliminating the need for expensive and time-consuming custom test fixtures. This enables rapid setup and quick adaptation to various PCB designs, making FPT ideal for low to medium-volume production and prototyping. Through precise electrical measurements, FPT identifies open circuits, short circuits, and component values, ensuring the integrity and reliability of the PCBs, reducing production time, and minimizing overall manufacturing costs.
Burn In Testing
Burn-in testing for PCB (Printed Circuit Board) is a specialized reliability assessment process used in electronics manufacturing to detect and eliminate latent defects before products are shipped to customers. During burn-in testing, the PCBs are subjected to elevated temperatures, electrical stress, and sometimes, thermal cycling for an extended period. The purpose is to accelerate the aging process and reveal any weak components or hidden flaws that may not surface under normal operating conditions. By subjecting the PCBs to this rigorous test, potential failures are identified and rectified, ensuring enhanced product quality and minimizing the risk of early-life failures in the field. Burn-in testing is particularly crucial for critical applications such as aerospace, automotive, and medical devices where reliability and longevity are paramount.
Benefits of PCB Test Fixtures
Integrating PCB test fixtures into the manufacturing process offers a plethora of benefits that positively impact the efficiency and quality of PCB production:
Improved Testing Efficiency
PCB test fixtures reduce the testing time significantly. In automated fixtures, the testing process is streamlined, eliminating human errors and accelerating the testing throughput, thereby reducing production cycle times.
Enhanced Product Quality
Consistent and repeatable testing ensures that faulty PCBs are detected early in the manufacturing process. This, in turn, leads to higher product quality, as defective units can be rectified or rejected before further assembly.
Cost-Effectiveness
Although the initial investment in test fixtures can be substantial, the long-term cost savings are notable. By identifying faults early on, the need for expensive rework and post-manufacturing testing is minimized, resulting in reduced overall production costs.
Increased Reliability
By subjecting PCBs to comprehensive testing during the manufacturing process, the reliability and durability of the final product are improved, leading to higher customer satisfaction and reduced warranty claims.
Streamlined Testing Process
Test fixtures provide a standardized and structured testing environment, making it easier for manufacturers to develop and implement testing procedures across different product lines and PCB designs.
Limitations
While PCB test fixtures offer several advantages, they are not without challenges and limitations:
Fixture Design Complexity
Designing an effective test fixture can be a complex process, especially for PCBs with intricate layouts or tight space constraints. Fixture designers must carefully consider factors such as test point accessibility and probe alignment.
Fixture Maintenance
Regular maintenance and calibration are essential to ensure the accuracy and reliability of the test fixture. Wear and tear on test probes or guiding mechanisms can lead to inaccurate test results if not addressed promptly.
Incompatibility with Rapid Prototyping
In the case of rapid prototyping or frequent design iterations, creating a custom test fixture for each version of the PCB can be time-consuming and costly.
High Initial Investment
Automated test fixtures, in particular, require a substantial initial investment. Small-scale manufacturers or those with low production volumes may struggle to justify the expenses.
Impact on the Electronics Manufacturing Industry
The integration of PCB test fixtures into the electronics manufacturing process has revolutionized the industry, leading to several noteworthy impacts:
Increased Production Efficiency
By streamlining testing procedures and reducing testing time, PCB test fixtures have contributed to overall production efficiency, allowing manufacturers to meet market demands more effectively.
Accelerated Time-to-Market
Early detection of defects through test fixtures enables faster correction of design flaws, leading to reduced development cycles and accelerated time-to-market for electronic products.
Quality Assurance
The ability to conduct comprehensive and repeatable testing ensures that only high-quality and fully functional PCBs reach the end user, improving overall product quality and brand reputation.
Facilitating Innovation
Test fixtures free up valuable engineering time by automating repetitive testing tasks, allowing engineers to focus on innovation, design improvements, and new product development.
Conclusion
In conclusion, the PCB test fixture stands as a vital and indispensable tool in the realm of electronics manufacturing. Its significance lies in its ability to ensure the functionality, reliability, and quality of Printed Circuit Boards before they become integral components of electronic devices. By providing a structured and controlled testing environment, test fixtures streamline the testing process, reduce production costs, and accelerate time-to-market for electronic products.
Through the strategic placement of test points and the use of specialized test probes, these fixtures facilitate precise and repeatable testing, detecting faults and defects early in the manufacturing process. This early detection allows for timely corrective actions, leading to improved product quality and enhanced customer satisfaction.
The benefits of PCB test fixtures extend beyond the manufacturing floor. They foster innovation by freeing up valuable engineering time, allowing professionals to focus on design improvements and new product development. Additionally, the standardized testing environment provided by these fixtures enables consistent results across different product lines and PCB designs, further bolstering the efficiency and reliability of the manufacturing process.
While PCB test fixtures offer numerous advantages, they are not without challenges. The design complexity, particularly for intricate PCB layouts, and the cost of initial investment in automated fixtures are among the obstacles that manufacturers must overcome. Nonetheless, the long-term benefits of reduced rework, increased production efficiency, and enhanced product reliability justify the integration of test fixtures into electronics manufacturing.
As technology continues to advance, we can expect further innovations in PCB test fixtures, leading to more sophisticated and efficient testing solutions. These advancements will continue to drive the electronics industry forward, ensuring the delivery of cutting-edge products that meet the demands of an ever-evolving market.
In the pursuit of excellence in electronics manufacturing, the PCB test fixture remains an invaluable asset, fostering consistent product quality, and ultimately, shaping the future of innovation in the world of electronics. Embracing these specialized tools with a focus on continuous improvement will enable manufacturers to remain at the forefront of technological advancements and meet the ever-increasing expectations of consumers worldwide.
