PCB Repair Kit: Tools for Electronics Enthusiasts

Introduction

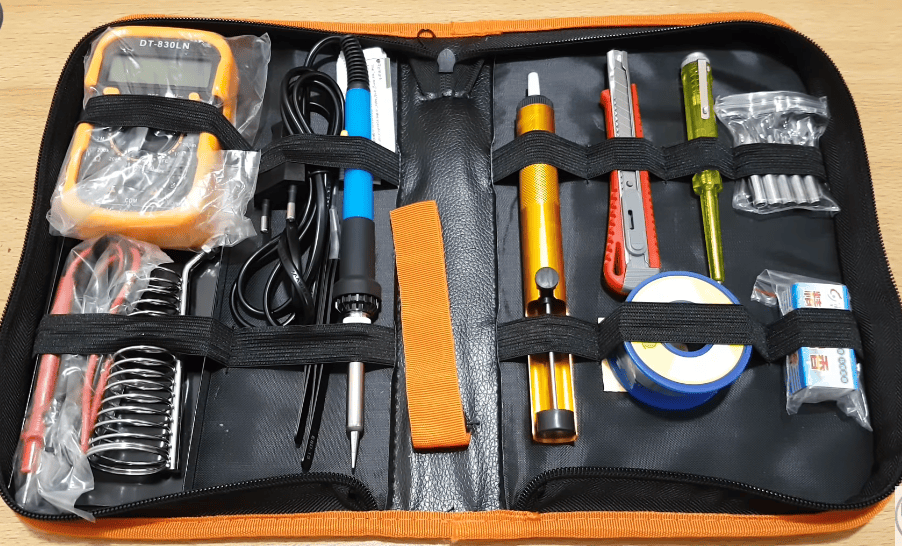

A printed circuit board (PCB) repair kit contains the tools and materials needed to diagnose issues and repair damaged PCBs. While essential soldering gear is sufficient for minor component-level fixes, repairing lifted traces, damaged pads, or plated through-holes requires specialized equipment and supplies.

PCB Repair Kit
PCB Repair Kit



This comprehensive guide will explore must-have items for PCB repair kits aimed at electronics hobbyists, technicians, and engineers. Whether you’re looking to build your first kit from scratch or upgrade an existing one, this checklist of indispensable PCB repair supplies will help equip your bench.



Soldering Station

Soldering station
Soldering station



At the core of any PCB repair kit is a high-quality soldering station. Soldering forms the foundation for re-attaching lifted traces, replacing damaged pads/lands, securing new components, and nearly all other PCB repair procedures. Here’s what to look for when selecting a soldering station:

  • Adjustable temperature range – The iron must reach temperatures up to 700°F or higher for specific jobs. Look for a station with precision temperature control.
  • Quick heat-up and recovery – When moving between multiple solder points, fast reheating of the iron tip is crucial for efficiency and avoiding accidental damage.
  • Variety of interchangeable tips – Different tip shapes and sizes are helpful for soldering components of various sizes. Stations that allow tip changing are the most versatile.
  • ESD safe design – An ionizer or grounded soldering iron prevents static discharge damage to sensitive components during repair work.
  • Magnifying lens/loupe holder – A holder or mount for an eye loupe allows hands-free detailed inspection of solder joints and board damage.
  • Stand and cleaning tools – A sturdy stand safely holds the unused iron. A tip-cleaning sponge removes oxidized solder.

Solder wick is also essential for accurately applying solder and removing it from pads and joints when desoldering components. A liquid flux pen makes it easy to flux minor solder points precisely.



Desoldering Tools

Two of the most commonly used desoldering tools are solder suckers and braids. Solder suckers use suction to vacuum molten solder, while braid uses capillary action to wick solder away. These tools allow old solder joints to be cleanly removed when replacing components or detaching pads and traces from the PCB.

Desoldering Pump
Desoldering Pump



Other handy desoldering tools include solder tip cleaners to remove stubborn residue and a flux remover spray or wipes to eliminate flux after repair work.



Circuit Frames

Circuit frames are thin sheets of conductive material, usually copper, with adhesive backing. These can be cut into custom shapes, allowing broken PCB traces to be bypassed or damaged pads to be replaced.

Frames with dry film adhesive allow precise application without the mess of liquid epoxy alternatives. They come on rolls or sheets in various widths, thicknesses, and materials. Some fundamental properties to look for:

  • Lead-free compatibility – Can withstand the higher temps of lead-free soldering.
  • RoHS compliance – Meets health and environmental requirements.
  • High bond strength – Forms a durable connection to the PCB surface.
  • High conductivity – Provides minimal electrical resistance.



Precision Hand Tools

Many PCB repairs require working in tight spaces and manipulating tiny components and bits of debris. Here are some essential precision hand tools:

  • Fine-tip tweezers – Allows grasping and placing small SMT components, wires, and other items under magnification.
  • Curved forceps – Ideal for reaching into confined spaces not easily accessible with tweezers.
  • Precision knife – A sturdy hobby knife with snap-off blades that helps trim circuit frames and scrape away laminate.
  • ESD-safe brushes – Nylon and carbon fiber brushes avoid static discharge while cleaning PCBs.
  • Clamps – Help secure boards and components during soldering and gluing operations.

Multimeter

A high-quality digital multimeter (DMM) is the most important diagnostic tool for identifying faults on damaged PCBs. It allows resistance, voltage, and continuity measurements at different points across the board. At a minimum, look for a DMM with these features:

  • Auto-ranging for automatically selecting measurement range
  • The fast sampling rate for capturing fluctuating readings
  • True RMS for accurate measurement of complex waveforms
  • Low burden voltage to avoid circuit interference
  • Large digit display with backlight for visibility

For troubleshooting dense surface mount components, mini grabber clip attachments are beneficial. These allow connecting the probe tips to tiny pads and contacts where traditional rigid multimeter probes will not fit. Grabber clips are available with rigid steel jaws or flexible wire ends.

Alligator clip adapters can attach probe leads to test points or component leads. Use optional tooth jaw adapters that provide a serrated grip to improve contact.

An analog multimeter can be helpful in the digital model when specific visual techniques are advantageous.

For example, an analog meter can detect erratic signal fluctuations that a digital readout may miss. The reactance of analog meters also allows inductance and capacitance checks.

Advanced specialty multimeters include:

  • Clamp meters – Measure current flow through wires without breaking the circuit.
  • LCR meters – Measure inductance, capacitance, and resistances at specific test frequencies.
  • Network testers – Perform cable fault location by sending a remote signal down the line.
  • AC/DC probes – Clamp onto wires to observe waveforms and behaviors.

For maximum flexibility, consider a combination multimeter that combines multiple functions like voltage, current, continuity, frequency, capacitance, and transistor testing into one unit.

Regardless of meter type, always inspect leads for damage and verify accuracy on a known live circuit before taking critical reliability readings. Proper use and care of the multimeter will aid in tracing faults and diagnosing problems accurately.

Microscope

Magnification system aids detailed inspection of PCB damage and monitoring of repair work. Options include:

  • Stereo microscope – Provides 3D viewing and magnification range of ~10-60x. Ideal for precision soldering and inspection.
  • USB microscope – Connects to a computer and displays an enlarged image on-screen.
  • Inspection microscope – Affordable and compact basic microscope for PCB work.
  • Illuminated eye loupe – Portable and inexpensive, but limited field of view.
Microscope for PCB repair
Microscope for PCB repair



SMT Replacement Pads

SMT replacement pads allow damaged or lifted surface mount pads and vias on a PCB to be repaired. They come in various sizes, shapes, and thicknesses to match different component footprints.

The most common materials used are:

  • Copper – Most economical, offers good conductivity.
  • Gold-plated copper – Resists corrosion and oxidation.
  • Beryllium copper – Has high durability and springiness.
  • Pure gold – Highest conductivity and chemical resistance.

Adhesive-backed SMT pads are positioned over a damaged pad site and soldered to the exposed copper trace on the board. Heat cures the adhesive, forming a permanent bond.

Pad stencils make placing many tiny SMT pads faster, easier, and more consistent. They have cutouts matching specific pad sizes that guide pad alignment. Stencils are taped over the repair site; pads are placed in the cutouts, then the stencil is removed.

Traditional rectangular pads can be carefully trimmed with a hobby knife for odd-shaped pads—fine-tip tweezers aid in handling the pads during placement.

Various specialized applicator tools are also available:

  • Vacuum pickup tools – Use suction to grab and position pads.
  • Heated placement tools – Heat aids pad adhesion during positioning.
  • Optical alignment systems – High magnification and precision xy-stages allow accurate alignment.

Once placed, the pads must be carefully soldered to the traces without lifting them. Adding extra flux reduces surface tension. Gradually heating from one side minimizes thermal shock.

Since SMT pads are fragile, they work patiently and gently. Keep a range of pad sizes, shapes, and thicknesses on hand to match component footprints properly. With practice, pad replacement becomes a quick and reliable PCB repair method.

Laminate Repair Materials

The laminate material that forms the base of a PCB occasionally becomes damaged, resulting in voids or burned areas that can cause shorts or component detachment. These regions must be repaired for the board to function correctly.

The most common repair method uses sheets or fiberglass mesh to fill voids and rebuild damaged laminate areas. The porous fiberglass provides structural reinforcement.

An epoxy resin is then used to saturate the fiberglass and bond it to the PCB surface.

Two-part epoxies cure at room temperature, while one-part epoxies require heat curing. The cured epoxy restores the insulating properties of the laminate in the repaired zone.

Here are some tips for selecting repair materials:

  • Match the laminate color to avoid visible patches.
  • Use fine mesh for a smoother finish.
  • Choose rigid or flexible epoxy as needed.
  • Get high-bond strength epoxy.
  • Select epoxy with a similar coefficient of thermal expansion (CTE) to the PCB material to prevent cracking.

The repair procedure involves the following:

  1. Removing any loose material and cleaning the void.
  2. Cutting fiberglass to size and shape of repair zone.
  3. Mixing epoxy resin per manufacturer instructions.
  4. Applying release film over the surrounding area.
  5. Clamping fiberglass into place and saturating with epoxy.
  6. Removing excess epoxy and curing per specifications.
  7. Sanding smooth once fully cured.

With care, multiple layers of fiberglass and epoxy can be built up to fill large voids or rebuild significant missing material. This laminate repair technique restores the PCB’s insulating structure, preventing shorts and enabling reliable performance.

Eyelet Crimping Tool and Supplies

Damaged or missing plated through-holes on a PCB often must be repaired for a board to function correctly. This is especially critical on multilayer boards where missing vias break connections between layers.

Crimping Tools
Crimping Tools



Eyelet crimping tools provide a reliable way to install new eyelets that restore conductivity through the hole. An eyelet is a hollow metal rivet with a flange on one end.

The basic crimping process involves:

  1. Drilling out the damaged via hole to clean diameter.
  2. Selecting an eyelet with an outer diameter matching the drilled hole.
  3. Inserting the eyelet into the hole with a flange on the solder side of the board.
  4. Positioning the eyelet crimping tool over the eyelet.
  5. Squeezing the handles to deform the tubular eyelet, locking it in place.

The flange solders to the trace around the hole, while the crimped tubular portion reconnects circuits between layers through the via.

A good eyelet crimping kit comes with the following:

  • Multiple eyelet size ranges to match various diameters.
  • Spare eyelet insertion pins for worn/damaged units.
  • Spare crimping inserts for different eyelet sizes.
  • Spare screw-in dies allow adjustment of crimp depth.
  • Cleaning tools to remove debris from eyelet crimp areas.

With practice, eyelet replacement becomes a quick and reliable technique for restoring the connectivity of damaged vias on high-density PCBs. It returns multilayer boards to complete functioning condition.

Conformal Coatings

Conformal Coating
Conformal Coating



Conformal coatings are protective layers applied to the surface of repaired PCBs to prevent future damage to reworked areas. The thin insulating coating prevents moisture ingress, corrosion, dendrite formation, and arcing across exposed conductors.

Several application methods exist:

  • Brushing – Uses a small brush to apply coating selectively.
  • Dipping – Dips just the repaired section in the coating.
  • Spraying – Uniformly coats the entire board.
  • Selective spraying – Masks off and sprays only desired areas.

Factors to consider when selecting a conformal coating:

  • Reparability – Can later repairs be done through the coating?
  • Outgassing – Does the coating absorb or release gases?
  • Thermal cycling – Does coating withstand heating and cooling cycles?
  • Flexibility – Does the coating crack when the board is flexed?
  • Repairability – Can later repairs be done through the coating?

UV-curable coatings offer faster processing versus air-dried coatings. They quickly cure under intense UV lamp exposure. Proper surface preparation and application are vital for performance regardless of coating type. Consult manufacturer guidelines and safety procedures before applying. With the suitable coating, protected repair zones will enjoy long-term reliability.

Basic Replacement Components

When troubleshooting and repairing PCBs, having a small stock of standard essential replacement components on hand saves time and avoids delays. Here are some of the most universally valuable components to keep:

  • Resistors – Assortment of 1/4 watt 5% tolerance carbon film resistors covering common values like 10 ohm, 100 ohm, 1k ohm, 10k ohm.
  • CapacitorsCeramic, film, and electrolytic capacitors range from pF to mF values. Radial and SMT types.
  • Transistors – Popular general purpose NPN and PNP types like 2N3904, 2N3906, BC547.
  • Diodes – Mix of 1N4001 and 1N914 or 1N4148 signal diodes. Schottky diodes.
  • Integrated Circuits – LM324 op-amps, 555 timers, 741 op-amps, common logic ICs.
  • Fuses – Slow blow fuses in standard ratings from 1/4 amp up to 1 amp.
  • Switches/Relays – SPDT and SPST toggle switches, miniature relays.
  • LEDs – Red, green, and yellow LEDs. A mix of 2-lead and SMT packages.
  • Connectors – Breadboards, jumper wires, 0.1″ pitch pin headers.
  • Sockets – IC sockets, transistor sockets, small perf boards.
  • Wire – Pre-cut lengths of hookup wire in multiple colors. 22-24 AWG size.

Keep components organized for quick identification and access during repairs. A stocked bench minimizes downtime in locating parts, allowing faster troubleshooting and rework.



PCB Repair Training Materials

Training materials like repair manuals, textbooks, and online video tutorials are invaluable for building skills. Guides with detailed visual step-by-step instructions are beneficial when learning new PCB repair methodologies.



Conclusion

While no single kit can contain every tool needed for all PCB repairs, the items covered in this guide represent an essential starting point for building a functional PCB repair toolkit.

Start with a high-quality soldering station and essential tools, then gradually add specialized equipment and materials as your experience grows. Regular practice strengthens the hands-on skills and techniques to diagnose faults and restore damaged boards to complete working order. With patience and the right tools, you’ll quickly tackle more challenging PCB repairs.



Frequently Asked Questions (FAQs)

What are some beginner-friendly PCB repair kits?

Entry-level PCB repair starter kits from SparkFun and Adafruit are great for beginners. They contain essential tools like soldering irons and commonly used materials and components.

Can I repair a PCB without any special tools?

You can perform basic repairs like replacing components with a soldering iron, solder, and essential tools like tweezers. But specialized tools will be required for more advanced work like tracing circuits or repairing damaged pads.

What type of soldering iron do I need?

Look for a temperature-adjustable soldering station that allows tips to be swapped out. Soldering irons from 20W to 65W are suitable for most PCB work. Opt for an ESD-safe iron with a grounded tip design.

Is it challenging to learn PCB repair skills?

The basics can be picked up fairly quickly with practice. However, mastering the intricacies of more complex PCB repair takes time and experience. Taking a class or following detailed tutorials will help accelerate the learning process.

Can conformal coating help extend the life of a repaired PCB?

The conformal coating creates a protective barrier that guards against oxidation and dendrite formation across repaired areas and exposed traces. This helps prevent future damage.
