PCB Headers: The Unsung Heroes Connecting Your World



Have you ever wondered about the invisible heroes shaping our electronic universe? Look around you! Electronics reign supreme whether you’re at home, hustling at the office, or exploring the world. What’s the secret behind these modern miracles?

Thanks to the ingenious Printed Circuit Boards (PCBs) that power our smartphones, PCs, TVs, and even the sleek car outside. Let’s dive into the captivating realm where technology and innovation converge – where PCBs weave the threads of our electrifying reality!

Accordingly, PCBs provide the foundation for every electronic device imaginable. They enable function by mechanically supporting and electrically connecting components using conductive pathways. Without PCBs, devices from tiny hearing aids to massive supercomputers wouldn’t work.

Imagine a PCB with all its intricately placed components ready for action. Transistors, resistors, capacitors, and integrated circuits are soldered in place and linked together to form circuits. There’s just one problem – this self-contained board now needs to interface with other components.

Therefore, how can power or data get in and out? That’s where the unsung heroes come into play – PCB headers. These humble connectors provide critical bridges between PCBs and the outside world.

Furthermore, PCB headers may seem insignificant, but be aware – they are mission-critical elements enabling practically all modern electronics. Curious to learn what these unglamorous but oh-so-essential components do and why they matter? Read on!

In this comprehensive guide, we’ll lift the lid on PCB headers. You’ll discover what they are, why only design is complete, the myriad types and terminations available, critical specifications, and more.


What Exactly is a PCB Header?

Now that we’ve set the stage let’s demystify precisely what a PCB header is. Fundamentally, a header acts as a bridge – it provides the critical connection point between a printed circuit board and external wires, cables, or other PCBs.

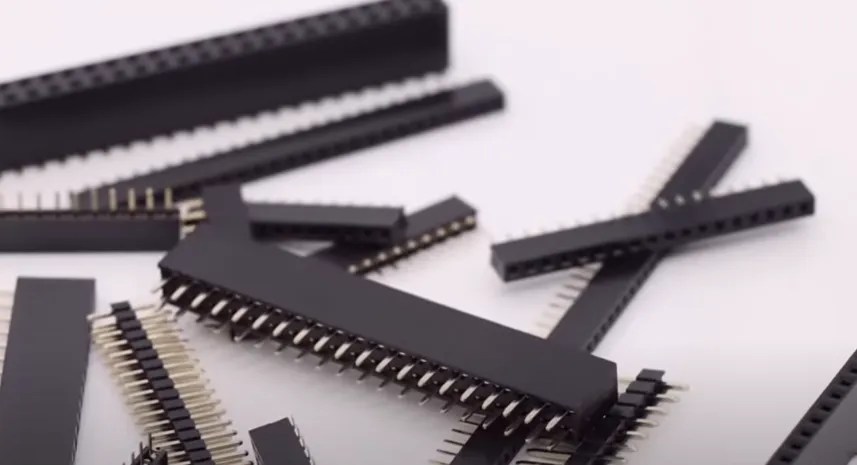

PCB Headers
PCB Headers


Specifically, a PCB or pin header is an electrical connector component used to join wires, cables, or other circuit boards to a target PCB. They enable signals, power, and ground in and out of a PCB. Structurally, headers consist of plastic housing that surrounds and isolates metal pins. Accordingly, the protruding pins on the opposite side allow physical and electrical connections.

Furthermore, headers come in single-row or dual-row configurations. Single-row variants have one pin per hole in the header, while dual row provides two offset rows of pins in the same footprint to increase density. Additionally, the pins may be straight or angled at 90 or 180 degrees relative to the PCB board.

Therefore, what are the key benefits PCB headers impart?


Critical Advantages of Utilizing PCB Headers:

PCB headers may appear simple, but they provide some invaluable benefits that make them a staple in electronics:

Consolidated Connections – Rather than independently terming dozens of wires or cables, a single header component can consolidate all these into one interface block. It tremendously simplifies PCB connectivity and saves space versus discretely terminating each conductor.

Quick Connectivity for Prototyping – Headers allow rapid connections and swapping of wires or test boards without soldering. It enables engineers to conveniently validate circuits by plugging in jumper connections and experimenting with arrangements. Far more versatile than solder-only prototyping.

Expandable Architecture – Stackable header blocks allow designers to extend the number of available connections on development platforms like Arduino. More functionality can be incrementally added to the base PCB as demands arise.

Facilitates Manufacturing and Services – Headers allow wires and mating boards to be detached without desoldering. It permits independently assembling and testing sub-systems before final integration and later disassembly for maintenance and upgrades.

Dedicated Power Delivery – Multiple pins can be explicitly allocated for power input, decoupling power integrity from sensitive signal traces. Higher gauge pins or additional pins can supply increased current demands.

Point-to-Point Circuit Customization – Unlike fixed PCB traces, header wiring can be configured as needed for each use case. Enables adapting the same PCB to many applications via different interconnect arrangements.

Ruggedized and Versatile Pin Termination – From soldered anchoring to press-fit and slide-in friction connections, headers accommodate the needed installation permanence and serviceability. Shrouding protects pins.


Major Types of PCB Headers

While all PCB headers provide an electrical interface between a printed circuit board and external wiring or components, several design factors differentiate the abundant header options. Choosing the correct variant for an application requires understanding their pros, cons, and tradeoffs.

Single Row vs. Double Row

Single row and Double row headers
Single-row and Double row headers


Single-row PCB headers incorporate a single linear sequence of pins within the header housing. This provides one pin per plated through-hole on the PCB. With only one pin per hole, single-row headers conserve space on the board and are a natural fit when minimal I/O connections are needed.

Single-row headers: are produced in both shrouded and non-shrouded versions. Shrouded versions fully encase the pins in protective plastic, preventing inadvertent short circuits but requiring slightly more area on the PCB. Non-shrouded types directly expose the pins, reducing the footprint but also exposing the pins to potential damage.

In contrast, double-row headers integrate two parallel rows of pins in the same compact header footprint by offsetting the rows diagonally. This effectively doubles the pin count and connection density while minimizing the PCB area consumed. The pitch between the staggered rows is designed to provide close spacing without inducing crosstalk.

Double-row headers: truly shine when many I/O connections need to interface with a small PCB. Their space-saving dual-row configuration can accommodate over 100 connections in the space of a single-row header. Double-row types also commonly leverage shrouding to help align mating connectors and avoid accidental shorts between densely packed pins.

Straight Orientation vs. Right Angle

Another fundamental PCB header differentiation is between straight and proper angle orientation. Straight headers have interface pins arranged in parallel with the board, protruding perpendicularly. This makes them well-suited when multiple PCBs need to be stacked and interconnected in a parallel sandwich arrangement.

Moreover, straight headers can withstand more repeated mate/inmate cycles without wear compared to suitable angle types. Their parallel pins also offer enhanced resistance to vibration stresses across the axis of the pins. However, straight headers require adequate vertical clearance to allow cable bend radii.

Conversely, right-angle PCB headers orient the interface pins at a 90-degree angle relative to the board surface. This allows horizontally positioned PCBs to be joined side-by-side via the header rather than stacking them vertically. Right-angle bending also helps reduce cable strain versus straight headers in many applications.

However, the perpendicular pins of right-angle headers mandate more PCB area than straight versions. They also require precise PCB drilling and fabrication to achieve proper pin alignment when mating two boards.


PCB Header Termination Types: Connecting the Pins to the Board

Beyond just the packaging and orientation, how PCB headers electrically and mechanically anchor to the printed circuit board varies tremendously based on the termination approach. The termination style impacts mechanical rigidity, electrical connectivity, automated manufacturability, reworkability and cost considerations.

Pin to board Connection
Pin to board Connection


Let’s dive deeper into popular PCB header termination options to understand their pros, cons, and ideal use cases:

Through-Hole Termination

The through-hole termination method involves header pins passing completely through plated holes in the PCB and emerging on the opposite side to be soldered. The solder forms an electrical and robust mechanical connection between the pin and the PCB pad.

Through-hole termination enables headers to be anchored most securely to the board.

Before the joint failure, the pins can withstand more vibration, shock, and mating cycles. Other termination methods-hole also easily accommodates many dozens of pins in high-density connectors.

However, the requirement to thread long pins through the entire PCB and access the opposite side for soldering makes through-hole termination more challenging to automate in mass production. Manual soldering or selective wave soldering is needed. Through-hole parts also mandate larger annular rings and pad sizes versus other termination styles.

Surface Mount Termination

In contrast to through-hole mounting, surface mounts PCB headers attach directly to only the top side of the board. The pins solder to matching surface pads without passing entirely through the PCB. This facilitates automated mass assembly and board production.

But since connections are only made on one side, surface mount headers are more prone to loosening over time than through-hole. The number of pins per header is also reduced since access is only from one side. However, some designs employ creative right-angle bending within the header to maximize pin count.

Press-Fit Termination

Press-fit PCB headers represent a hybrid between surface mount and through-hole. Header pins press firmly into plated through holes in the PCB without any soldering required. The tight dimensional tolerances between the pin and plating create a gas-tight interference fit.

Eliminating solder provides cost savings and eases automated assembly.

Press-fit headers also remain reworkable since pins can be withdrawn if needed. However, the press-fit does not anchor as securely to the board versus soldering. Vibration and mating cycle limits are reduced compared to soldered pins.

Solderless Termination

Solderless PCB headers feature pins that slide into open through holes in the board without any electrical or permanent mechanical connection. Friction temporarily holds them in place. A shroud around the pins prevents them from slipping out.

Soldering and Connection
Soldering and Connection


This header style completely avoids any soldering for assembly. However, the lack of robust pin anchoring or electrical connection renders solderless headers unsuited for anything beyond temporary connections in limited service and repair scenarios. They cannot withstand vibration or repeated mating and unmating.


Key PCB Header Specifications: Choosing Optimal Attributes

While all PCB headers provide an interconnection interface, several key specifications differentiate options and impact the suitability of an application. Carefully evaluating parameters like pitch, current rating, positions, mounting, and temperature will ensure the selected header optimally addresses design needs.


Pitch represents the center-to-center spacing between each pin in a PCB header. In simple terms, it is the distance between adjacent pins. Pitch directly influences the overall header size and connection density.

Standard pitches range from 1.27mm up to 2.54mm. Larger pitches around 2.54mm allow easier routing and lower crosstalk but consume more space. Extremely dense designs may require pitches under 2mm or even 1mm between pins. This enables substantial miniaturization but requires exact PCB drilling and routing.

So balance density demands with manufacturability. Also, consider future flexibility – a slightly larger pitch leaves room for additional traces or pins. Compare mating connectors and cables as well to ensure alignment.

Current Rating

The current rating denotes the maximum current each pin in the PCB header can sustain without excessive heating. Flowing too much current through an undersized pin causes resistive heating, potentially leading to thermal damage or failure.

Current capacity correlates with the physical pin size and thickness of the plating. Larger gauge pins and thicker plated copper can handle more amperage. Some headers utilize different pin sizes tailored for power versus low-current signal connections.

Review the expected current for each connection passing through the header and specify a design with a suitable per-pin current rating and margin. This ensures reliable performance under peak loading.


Positions refer to the total quantity of pin terminals within the PCB header. This can range from just a single pin for limited connections to over 100 pins for complex interfaces. More positions increase the connector footprint and cost.

Male and Female Headers
Male and Female Headers


Consider both current connectivity needs and potential future requirements when choosing positions. Screw terminal blocks allow adjusting active pin locations. Leave additional board space to add headers later if warranted.

Also, ensure the planned header mating connector or cable offers adequate positions. Matching positions prevents the need for adapters—plan positions in increments matching standard connectors to aid sourcing.

Mounting Style

The mounting style specifies how the header structurally attaches and anchors to the PCB. As detailed previously, common mounting styles include through-hole, surface mount, press-fit and solderless. The mounting dictates the termination method.

Through-hole mounting tends to be the most rugged and adaptable but harder to automate versus surface mount. Press-fit balances automation with reworkability. Select mounting to suit connectivity needs and production methods.

Temperature Range

This defines the minimum and maximum operating temperature the header can withstand without degrading. Most standard PCB headers range from -55°C up to +105°C. Note extremes outside this may require specialty solutions.

Ensure the temperature range aligns with the expected environment. If the application has wide temperature swings, ensure the header can accommodate this delta. Adding a generous thermal margin is wise for reliability.

The optimal PCB header can be selected by methodically evaluating specifications against application requirements, avoiding performance issues, rework, and replacements.


Comprehensive PCB Header Selection Considerations

Choosing the optimal header is crucial for any PCB design. Many interdependent factors warrant careful evaluation:

Pitch – Narrower sub-2mm pitch enables greater I/O density but requires precision manufacturing. A wider pitch lowers crosstalk but takes up more area.

Current rating – Don’t overlook per pin current capacity based on pin size and plating thickness. Excessive current causes overheating failures.

Positions – More positions add cost and footprint but ensure adequate connectivity. Balance current needs with future flexibility.

Mounting – Through-hole withstands vibration and more mating cycles than surface-mount—press-fit and solderless suit temporary connections.

Temperature – Most headers work from -55°C to +105°C. Extreme environments may require extended ratings or derating. Ensure suitable tolerance.

Durability – Mission-critical systems require 500+ mating cycles. Less demanding applications can tolerate far fewer. More cycles raise costs.

Manufacturer – Reputable manufacturers yield higher quality and reliability. Check their design support services as well.


Comprehensive PCB Header Integration Best Practices

Well-designed PCBs set headers up for success. Useful techniques include:

  • Thicker 2.4mm+ PCBs allow extended pin insertion depths for maximum ruggedness against vibration and movement.
  • Slightly oversized PCB holes make press-fit or soldered assembly easier. Tight clearances take more precision.
  • Headers along PCB edges simplify external connections versus buried mid-board. Reduce internal wiring complexity.
  • Polarized header pin one marking prevent reversed installations. Use unique pin sizes or shape for foolproofing.
  • Leverage your PCB assembly vendor’s design-for-manufacturing expertise. They can recommend optimizations for reliability and production yield.

Resolving Common PCB Header Faults and Failures

Despite proper selection and integration, headers can still experience issues over time. Let’s explore remedies for typical problems:

Intermittent Electrical Connections

Adjacent Pins
Adjacent Pins


  • Surface contamination on pins and PCB pads from grime, grease, and flux residue. This increases contact resistance.
  • Oxidation and corrosion on pins/pads if unsuitable plating is used. Oxidation acts as an insulator.
  • Cracked solder joints due to repeated thermal cycling or vibration. Fails mechanically and electrically.
  • Loose wire connections from inadequate clamping force or vibration. Sporadic open result.



  • Clean pins and PCB pads thoroughly with isopropyl alcohol to remove contaminants. Use a mildly abrasive eraser on oxides.
  • Check header pin plating spec. Tin over nickel mitigates tin whiskering. Gold resists corrosion but can diffuse into solder over time.
  • Reflow solder joints with proper flux to restore collapsed or cracked interfaces. Match solder alloy to the header.
  • Verify wires terminate with robust crimped lugs, not just strand wrap. Use vibration-resistant connections like shrouded mating connectors.

Excessive Heating and Thermal Damage


  • Current load exceeding per-pin current rating of header. Too much current creates resistive heating.
  • High ambient operating temperature approaching header rating. It reduces the thermal margin.
  • Insufficient PCB land pattern surface area to dissipate pin heat. It leads to a rise in junction temperature.


  • Review the current draw of circuits using the header and select the appropriate current rating with a margin.
  • Use thicker gauge wiring to reduce I^2R losses if the load current is unavoidable. Minimize wiring length.
  • If the redesign is impossible, the parallel split current across multiple headers to share the load.
  • Increase copper fills around the land pattern on inner layers for heat spreading if space allows.
  • Consider a header variant with a higher temperature rating or enhanced power pins.

Short Circuits Between Adjacent Pins

Header Components
Header Components


  • Mechanical damage resulting in bent pins contacting neighboring pins
  • Metal debris lodged within the header, causing pin-to-pin bridging
  • Wire insulation Damage allowing contact between adjacent terminals


  • Inspect any bent pins after handling and carefully straighten them using the proper plier technique.
  • Disassemble the header and check for any remnants of clipping/trimming or loose metal particles. Clean thoroughly.
  • Remove any portions of damaged wire showing bare copper. Replace compromised wires.
  • Specify the header with shrouding or use the mating connector with shielding to contain debris.

Mechanical Damage to Header Component


  • Excess mating cycles beyond header durability specification
  • Inadequate PCB support for footprint causing flexing
  • Mishandling or accidental impact inflicting cracks and structural damage


  • Analyze expected mating cycles based on usage. Specify a more durable variant if warranted.
  • Provide thick baseplate, rib supports, or potting compound to reinforce PCB and minimize flexing.
  • Train operators on proper handling guidelines. Avoid undue header strain during handling and assembly.
  • Seek drop-in replacement matching the original mechanical footprint if repair is needed.

Applying judicious troubleshooting can get connections restored quickly. But prevention via robust design trumps reactive cures. Let the insights above help you avoid issues proactively!



We’ve covered extensive ground exploring PCB headers. From key fundamentals to mitigating typical failure modes, you now have specialized knowledge to select, integrate, and support headers for maximum benefit. Keep this learning close as you architect your next generation of electronics!


Frequently Asked Questions (FAQs)

What is the primary purpose of a PCB header?

Providing an electrical and mechanical connecting point between a printed circuit board and external wires, cables, or other PCBs is the primary function of a PCB header. Signals, power, and ground may all be moved into and out of the board, thanks to headers.

What are the key benefits of using headers?

Key benefits include consolidated connections, quick connectivity for prototyping, expandable architecture, facilitated manufacturing/serviceability, dedicated power delivery, point-to-point circuit customization, and rugged/versatile pin terminations.

What are the different types of header orientations?

The main orientations are straight and right angles. Straight headers have pins parallel to the PCB for stacking boards vertically. Right-angle headers have pins perpendicular to the PCB to allow side-by-side attachment of horizontally mounted boards.

What are the different PCB header termination types?

Common termination types are through-hole (pins soldered on opposite sides of PCB), surface mount (soldered to pads on one side), press-fit (pins press into plated through-holes without soldering), and solderless (friction fit without electrical connection).

What are some common PCB header failures and solutions?

Failures include intermittent connections (clean pins/pads, improve plating, reflow joints, secure wires), overheating (reduce current, increase thermal rating, more prominent land pattern), short circuits (inspect pins, add shielding), and mechanical damage (improve durability, provide PCB support, proper handling).
