PCB Footprint: A Crucial Aspect Of Circuit Board Design

Introduction

In the world of circuit board design, a crucial element is often overlooked but holds immense importance in creating flawless boards. This element involves understanding PCB footprints and intricate patterns that have the key to unlocking a circuit board’s potential. Similar to the mysterious clues at a crime scene, these footprints contain vital details about each component’s shape, size, and electrical connections.

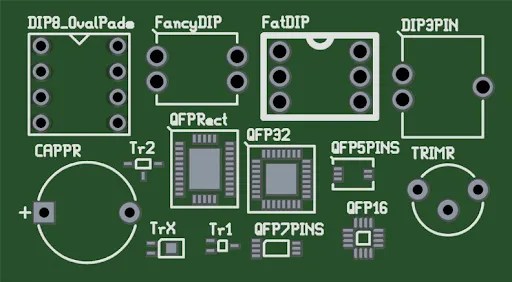

PCB Footprints
PCB Footprints



In today’s rapidly advancing technology landscape, as electronic devices become smaller and more compact, the significance of footprints has reached unprecedented levels. They are a vital link between the abstract schematic and the physical board, facilitating the precise placement of components during the assembly process.

Accurate footprints ensure proper alignment and play a crucial role in the manufacturability of circuit boards. When manufacturers receive PCB designs, they heavily rely on these footprints to guide their automated assembly machines, enabling components to be placed precisely in their designated positions. By providing clear and standardized footprints, designers help seamless manufacturing processes, reducing errors and significantly enhancing production efficiency.

Furthermore, footprints directly impact critical aspects of circuit board design, such as electrical performance and thermal management. By meticulously designing footprints that consider each component’s electrical characteristics, designers can optimize signal integrity and minimize undesirable noise or crosstalk. Additionally, well-designed footprints contribute to effective heat dissipation, preventing overheating and ensuring the long-term durability of electronic devices.

Therefore, designers must give utmost importance to the correct placement and alignment of components on the PCB, considering factors such as signal integrity, thermal management, and manufacturability. By profoundly understanding footprints, designers can optimize the overall layout, minimize electromagnetic interference, and enhance the overall performance of circuit boards.

What is the PCB footprint?

A printed circuit board (PCB) layout consists of specific arrangements of holes or pads on the board. These holes or pads act as the interface between the PCB and the electronic components that will be attached. Each component has its unique layout, specifically designed to match its dimensions and pin configuration. This ensures a seamless connection between the component and the PCB, resulting in a perfect fit.

The connection between the component leads and the PCB layout is vital for adequately functioning electronic devices. Component leads are the metal pins or connectors that extend from the electronic components. These leads are precisely aligned with the corresponding holes or pads on the PCB layout. When the component is soldered onto the PCB, the leads create electrical and mechanical connections, allowing signals and power to flow through the circuitry. The accuracy and compatibility of the PCB layout directly affect the quality of these connections and, ultimately, the performance and reliability of the electronic device.

The significance of PCB layouts in the assembly and production of PCBs cannot be overstated. A well-designed and accurate PCB layout ensures efficient manufacturing processes. Proper alignment of component leads with their corresponding holes or pads reduces the likelihood of errors during assembly. It also facilitates automated soldering processes and enables pick-and-place machines, greatly enhancing production speed and accuracy. Additionally, a standardized library of layouts allows for easy interchangeability of components, simplifying future maintenance and repairs.

Moreover, PCB layouts are critical in maintaining signal integrity and managing thermal considerations. The layout’s design and arrangement can impact a circuit’s electrical characteristics. By carefully considering factors such as trace length, impedance matching, and thermal dissipation, designers can optimize signal integrity and prevent noise, interference, and overheating issues. Therefore, a well-designed PCB layout contributes significantly to the electronic devices overall performance, reliability, and lifespan.

By diligently adhering to the design guidelines for PCB layouts, designers and engineers can ensure the accuracy and functionality of the electrical and mechanical connections on the board. Paying attention to these details is crucial for achieving the desired performance of the circuit.

PCB footprint 3D model
PCB footprint 3D model



Therefore, it is essential to allocate sufficient time and effort to create and verify the PCB layout, as it directly impacts the overall effectiveness of the printed circuit board.

PCB Footprint Components

When designing a PCB footprint, there are several components to consider for creating accurate and efficient PCB footprints.

Courtyard and Outline:

Establishing a Keep-Out Area

One of the essential aspects of PCB footprint design involves establishing the necessary space around the component to ensure proper clearance from neighboring elements. This designated area acts as a protective zone, preventing any interference that may compromise the performance or reliability of the PCB. Accurately defining this space enables designers to ensure optimal component spacing, avoiding potential issues like short circuits or mechanical collisions.

Mechanical Elements:

Considering their Impact on Footprint Design

When creating PCB footprints, it is crucial to consider mechanical elements such as connectors, mounting holes, and heat sinks. Their impact on the overall footprint design must be considered, including careful placement, dimensions, and required clearances. Designers can seamlessly integrate the components into the larger mechanical assembly by factoring in these mechanical elements during the footprint design stage.

Hole or Pad:

Relevance for Soldering

Pads play a vital role in establishing reliable and secure connections. They facilitate connections between pins and traces, traces and vias, or traces with external or off-board devices. Each pad has unique dimensions, including height, width, and diameter, specified for the PCB’s top and bottom layers. Sometimes, holes may be necessary for the pad to accommodate specific components or connection types.

The positioning of holes or pads within a PCB footprint is essential for soldering. These locations determine the connection points where solder joints are formed between the component and the PCB. Proper alignment and spacing of these holes or pads are critical to ensure accurate and reliable soldering during manufacturing. A well-designed footprint considers these locations meticulously, ensuring optimal soldering conditions and improving overall solder joint quality.

Silkscreen:

Enhancing Clarity and Component Placement

Silkscreen refers to the printed labels or markings on the PCB that provide information about component placement, reference designators, and other essential details. The placement of silkscreen must be strategic to enhance clarity without obstructing neighboring components or pads.

Reference Designator:

Unique Identification

Each component on a PCB requires a reference designator, which serves as a unique identifier. This designator facilitates effective communication between designers, manufacturers, and assemblers, enabling clear identification and cross-referencing of components throughout the design and assembly processes. Ensuring accurate and consistent reference designators within the PCB footprints is essential for streamlining manufacturing and assembly workflows.

Pin-1 Designator:

Ensuring Correct Component Orientation

To ensure proper functionality, many components have a designated pin-1 indicating the correct assembly orientation. Accurate placement and alignment of components become crucial to achieve the desired electrical performance. Including a pin-1 designator within the PCB, the footprint allows assemblers to quickly identify the correct orientation, minimizing assembly errors and reducing the risk of incorrect connections or circuit failures.

In recent years, integrating 3D modeling technology has significantly improved PCB design. By incorporating 3D models within PCB footprints, designers can visualize the physical form of the component and assess clearances more effectively. This visual representation helps identify potential clashes or collisions with neighboring components, mechanical elements, or the PCB. Leveraging 3D models allows designers to mitigate design risks, optimize component placement, and enhance the overall reliability of the PCB.

Components of PCB footprint
Components of PCB footprint

Design  a PCB Footprint

When designing a printed circuit board (PCB), it’s important to have access to the right footprints for your components. However, there may be instances where the desired footprint is unavailable in any library. In such cases, you must create a custom footprint from scratch and add it to the library.

Gather Component Specifications:

Before diving into creating a footprint, gathering accurate specifications for the component you’re working with is essential. These specifications typically include information about the pads, the component body’s contour, and the maximum width. Additionally, you’ll need to note down the reference designator, pin 1 designator, and other relevant mechanical attributes.

Start with Pads:

To begin creating the footprint, it’s generally recommended to start by defining the pads. Pads serve as the connection points for the component on the PCB. Ensure you accurately determine their dimensions and positions based on the component’s specifications.

Component Body:

This step involves outlining the physical shape of the component, considering its length, width, and height. Make sure to align the body’s dimensions with the specifications provided for the component.

Mechanical Attributes:

Apart from the pads and component body, it’s crucial to incorporate additional mechanical attributes. Depending on your PCB CAD tool, you may be required to enter attributes such as component height. Be diligent in providing these attributes, as they can prevent potential issues during the PCB layout phase.

Ensure Complete Footprint:

While creating a custom footprint, it’s important to be thorough and avoid incomplete information. Incomplete footprints can lead to problems during the PCB layout process. For instance, specific CAD tools may require height attributes for proper placement within the board enclosure or to ensure appropriate heat dissipation.

PCB footprint symbols
PCB footprint symbols
PCB footprint structure
PCB footprint structure



Considerations when working with PCB Footprints

Printed Circuit Board (PCB) footprints play a crucial role in designing and manufacturing electronic devices. While working with PCB footprints, there are several considerations that engineers and designers need to keep in mind to ensure successful PCB assembly and functionality. The following points should be kept in mind while using PCB footprints.

Utilizing Datasheets for Critical Component Details:

To ensure accurate footprints, utilizing the datasheets component manufacturers provide is essential. These data sheets contain valuable information about the critical details of the components, such as pin configurations, recommended land patterns, and mechanical specifications. By referring to these datasheets, designers can avoid errors and ensure that the components are correctly placed on the PCB.

Understanding Package Sizes for Accurate Footprints:

One particular aspect that should be considered understands package sizes. Components come in various package sizes, such as surface mount technology (SMT) or through-hole technology (THT). Each component package has a unique size and shape. Understanding these package sizes is essential for creating accurate footprints. Package sizes determine the land pattern dimensions required for component placement on the PCB. Common package types include Quad Flat No-Lead (QFN), Small Outline Integrated Circuit (SOIC), and Dual In-line Package (DIP). You can guarantee proper alignment and electrical connectivity by accurately translating the package dimensions into the footprint design.

Footprint Libraries:

Utilize reliable and up-to-date footprint libraries or CAD tools that provide a comprehensive collection of footprints for various components. Industry experts often maintain these libraries and include accurate footprints verified through extensive testing and experience. It’s essential to cross-check and validates the footprints against component datasheets before using them in your designs.

Component Orientation and Polarity:

Pay attention to the correct orientation and polarity of the components when creating or using footprints. Incorrectly placed or reversed components can lead to functional failures and potentially damage the PCB or other connected components. Double-check component markings and datasheets to ensure proper placement.

PCB Footprint Design Guidelines

Creating accurate footprints for electronic components is crucial to ensure smooth board assembly without any issues. Here are some guidelines to follow when designing footprints from scratch:

  • Symmetrical Component Pad Layout: It is essential to make the component pad layout symmetrical. This prevents tombstone issues, where the component partially detaches due to uneven stresses on its sides.
  • Consistent Pad Sizes and Shapes: Ensure that the opposite pads on a component are the same size and shape. This maintains balance and reduces stress during assembly.
  • Sufficient Space around Footprint Pads: Leave enough free space between the footprint pads and the board’s edges. This allows for proper management during assembly using automatic pick-and-place machines. It also prevents problems with board panelization.
  • Pin 1 Indicator: Include a pin 1 indicator for all required components. This indicator ensures the component pins are correctly connected to the corresponding pads.
  • Polarity Indicators: For polarized components like diodes, electrolytic or tantalum capacitors, include polarity indicators. This helps in identifying the correct orientation during assembly.
  • Component Outlines: Include the outlines of components in the footprints to facilitate proper assembly. This ensures that each component is placed accurately and securely.
  • Correct Pad Sizes and Spacing: Verify that all pads have the correct size. Pads that are too small can be fragile, while oversized pads may occupy unnecessary track space or cause movement of SMD components during soldering. Proper spacing between pads is crucial for a successful assembly.
  • Avoid Small Component Outlines: Steer clear of extremely small component outlines, as automated production lines may not recognize them during assembly. This can lead to errors and inefficiencies in the manufacturing process.

PCB Footprint Checklist

Having reliable libraries is crucial when designing printed circuit boards (PCBs). Therefore, it becomes essential to meticulously review a PCB footprint checklist to ensure that your footprints perfectly align with your chosen components.

Dimensions:

Pad pitch, pad sizes, and component outlines need scrutiny using computer-aided design (CAD) tools. Comparing the dimensions of the footprints with the actual components helps identify any discrepancies. Inconsistencies in dimensions can indicate the use of an incorrect package for the component.

Manufacturer Part Number (MPN):

Many components are available in various packages. The MPN serves as a specific code to identify a particular package. Verify whether the package specified in the footprint aligns with the manufacturer’s designated package for the corresponding MPN.

Basic Footprint Match:

Check whether the component’s footprint aligns with its intended purpose. In some cases, connectors and other components need more standardized packages. By carefully inspecting these footprints, it becomes easier to identify any mismatched components early in the design process.

Revision and Lifecycle Status:

Often overlooked, this point is crucial for avoiding complications. It is essential to avoid using end-of-life (EOL) components or those designated as Not Recommended for New Designs (NRND). Furthermore, ensure that the component’s footprint matches the manufacturer’s most recent revision, as revisions may introduce changes to the package or dimensions.

By following this comprehensive checklist, you can significantly reduce the chances of errors or inaccuracies in your PCB layout. Ensuring accurate footprints enhances your design’s overall functionality and saves time and resources during the manufacturing and assembly stages.

Common Issues Related to PCB Footprint and How To Avoid Them

Designing printed circuit boards (PCBs) requires careful attention to the guidelines for PCB footprints to avoid potential problems.

Small outlines

One common problem is using small outlines for land patterns. This can cause difficulties when using automated production lines for assembly. While manual assembly is possible to some extent, it can increase expenses and consume more time. In some cases, the manufacturer may even reject the circuit board altogether.

To avoid this issue, ensuring that the component outlines are compatible with automated production processes is essential. Following the recommended guidelines and dimensions for PCB footprints is crucial, as it allows for easy assembly using standard equipment.

Pads Sizes

Another issue to watch out for is incorrect pad sizes. Inadequate pad sizes can lead to breakout problems for through-hole (THT) parts and poor solder joints for surface mount designs. Conversely, overly large pads can take up valuable space needed for efficient trace routing on the PCB.

To address this challenge, selecting appropriate pad sizes for each component is important. This involves considering the type of component (THT or surface mount) and its specific requirements. By following the recommended pad sizes, you can avoid potential issues related to soldering and component attachment.

Pads Spacing

Spaced pads should be corrected during component insertion and soldering. If the through-hole pads are positioned too close or far apart, placing the components on the PCB properly can be difficult. Similarly, adequate spacing between surface mount design pads can result in sufficient solder formation.

To overcome this problem, adhering to the recommended pad spacing guidelines is crucial. This ensures the components can be easily inserted during assembly without risking misalignment or inadequate solder joints. By maintaining proper pad spacing, you enhance the reliability and manufacturability of your PCB design.

Standards For PCB Footprints

Adhering to specific standards is essential to ensure proper functionality and compatibility.

IPC 7351

The IPC 7351 standard, particularly the IPC-SM-7351-B version, is an internationally recognized standard that defines the pad’s dimensions surrounding an electronic component. This standard establishes a set of formulas to determine the ideal size and shape of footprints.

ANSI Y32.2-1975 (Schematic Symbols)

The ANSI Y32.2-1975 standard plays a vital role in defining graphic symbols and assigning class designation letters for electrical and electronic diagrams. These symbols and letters provide a standardized representation of various components, enabling effective communication between engineers and designers. While some PCB CAD tools allow designers to deviate from this standard if desired, others adhere to ANSI Y32.2-1975 as the default setting, ensuring design consistency.

ISO 10303-21 (3D Models)

This standard ensures seamless sharing of 3D models created by different software programs, facilitating collaboration and streamlining the manufacturing process. By adhering to ISO 10303-21, PCB designers can avoid compatibility issues and ensure smooth integration of 3D models into their designs.

Conclusion

In conclusion, PCB footprints are a critical element in circuit board design that often goes unnoticed but holds immense importance. They provide vital details about component shape, size, and electrical connections, acting as a link between the abstract schematic and the physical board. With the advancement of technology and the increasing miniaturization of electronic devices, the significance of footprints has reached unprecedented levels.

Accurate footprints ensure proper alignment and play a crucial role in the manufacturability of circuit boards. Manufacturers heavily rely on these footprints to guide their automated assembly machines, enabling precise component placement. Clear and standardized footprints provided by designers enhance manufacturing processes, reduce errors, and significantly improve production efficiency. Moreover, footprints directly impact critical aspects of circuit board design, such as electrical performance and thermal management. Meticulously designed footprints optimize signal integrity, minimize noise, and contribute to effective heat dissipation, ensuring the durability of electronic devices.

Designers must prioritize the correct placement and alignment of components on the PCB, considering factors like signal integrity, thermal management, and manufacturability. A profound understanding of footprints allows designers to optimize the overall layout, minimize electromagnetic interference, and enhance the performance of circuit boards. In conclusion, by understanding the design of PCB footprints and adhering to proper guidelines, designers can create dependable footprints that significantly contribute to the effectiveness, functionality, and manufacturability of printed circuit boards.
