What is Multilayer PCB?
Multilayer PCB is a type of printed circuit board with at least three conductive layers.
To ensure a strong electrical connection between these layers, plated-through holes are used. The number of layers can range from 4 to 100, and thanks to the growing number of PCB manufacturers in this industry, the manufacturing process and technology have been developed rapidly.
This has made fast turnaround multilayer prototyping and assembly a reality, saving customers time and money!

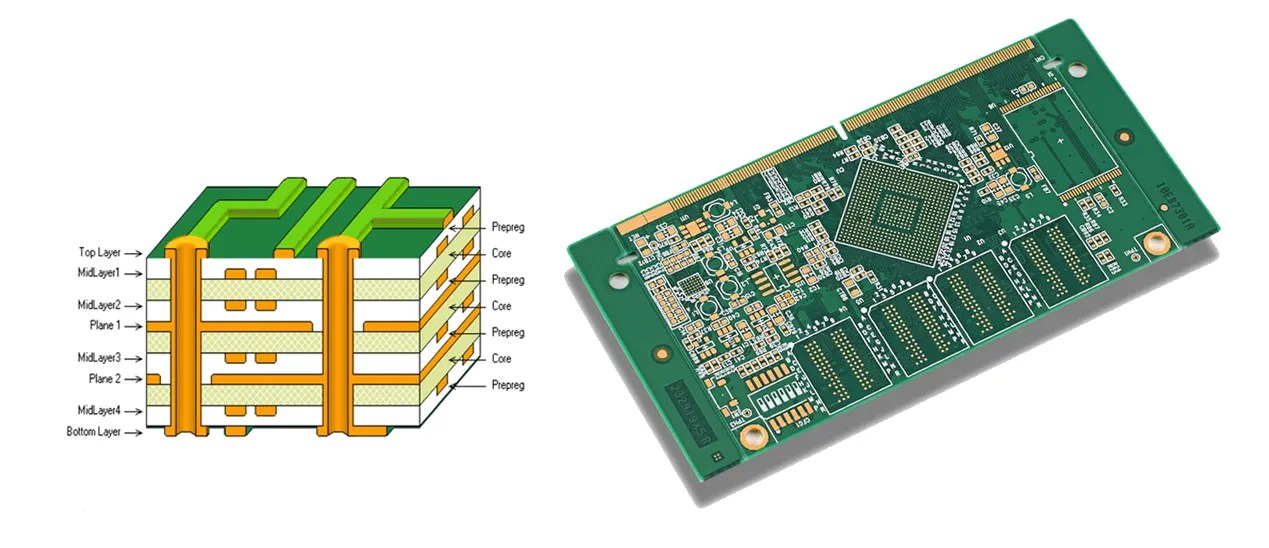

Producing multilayer PCBs is more complicated than single-side or double-sided PCBs, and detail is key. Connections between different layers are made with plated via holes, buried holes or blind holes.
With MorePCB’s extensive capabilities and facilities for complex multilayer PCBs, you can rest assured that the results will be reliable and high-quality!
What Are The Benefits Of Multilayer PCBs?
Multilayer PCBs provide improved performance and higher density, allowing greater functionality, capacity, and speeds.
- Smaller size – Reduced form factor
- High Durability
- Increased flexibility
- Higher assembly density
- Better controlled impedance features
- Better EMI Shielding
What Are The Multilayer PCB Applications?
Multilayer PCBs have become an integral part of electronic products and are widely used in many industries, including but not limited to:
- Medical Equipment
- Satellite Systems
- Wearable Devices
