PCB Enclosures: Protecting Your Electronics in Style

Introduction

PCB enclosures provide mechanical protection, shielding against electrical interference, and improved aesthetics for electronic devices. Selecting the proper enclosure is an integral part of the design process as it directly impacts the final product’s durability, functionality, and look. This article will explore the ins and outs of PCB enclosures to help you make informed design decisions.

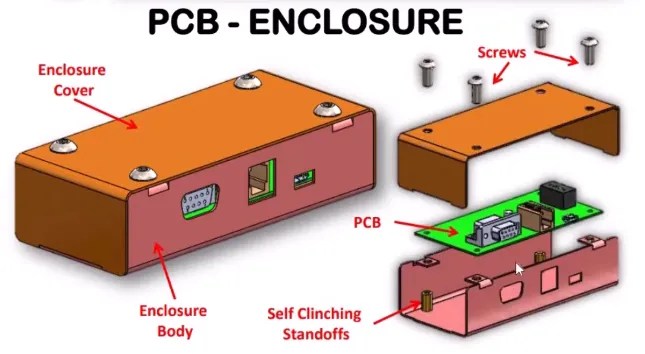

PCB Enclosure
PCB Enclosure



Types of PCB Enclosures

Several types of enclosures are used to protect PCBs based on material, manufacturing process, form factor, and more. The most common options are:

Plastic Enclosures

Plastic is the most widely used material for PCB enclosures due to its versatility, durability, and cost-effectiveness. The various types of plastics used include:

ABS: Acrylonitrile butadiene styrene is a common thermoplastic known for its strength, rigidity, and impact resistance. ABS enclosures are lightweight, easy to machine, and available in many aesthetic finishes.

Polycarbonate: Offering high impact resistance and flame retardancy, polycarbonate is an engineering thermoplastic suitable for demanding applications. It machines well but is susceptible to stress cracking.

PVC: Polyvinyl chloride enclosures provide chemical and moisture resistance and high dielectric strength. PVC is intrinsically fire retardant but has poor heat tolerance.

Nylon: Resilient to wear and abrasion, nylon (polyamide) enclosures offer chemical resistance and enhanced mechanical strength through glass filling. It has poor UV stability.

Plastic enclosures can be molded into virtually any shape and color. They can also be easily machined and printed on.

Metal Enclosures

Metal enclosures provide sturdy mechanical protection and shielding from EMI/RFI interference. The commonly used metals include:

Aluminum: Lightweight, corrosion-resistant, and excellent thermal conductivity make aluminum popular. It can be easily machined and finished.

Steel: Both cold-rolled and stainless steel offer high durability. Steel enclosures provide sturdy protection for heavy-duty applications but are prone to corrosion.

Die Cast: Alloys like zinc and aluminum can be die-cast into complex, high-precision enclosures. Superior dimensional accuracy and smooth surfaces can be achieved.

Metal enclosures are ideal for rugged, industrial applications. They naturally dissipate heat from electronic components. Metal finishes and CNC machining allow for aesthetic customization.



Key Design Considerations

Choosing the proper enclosure requires balancing factors such as protection level, environmental resistance, thermal management, EMI/RFI shielding, aesthetics, size/weight constraints, and more.

Protection Level

The level of mechanical protection required depends on the operating environment and the risks involved. This is quantified using the IP Rating, which classifies the degrees of protection provided against intrusion, dust, and water. For instance, an IP65 rating means complete dust protection and water resistance against low-pressure jets. Military-grade electronic enclosures even utilize MIL-STD-810 ratings for vibration, shock, and extreme temperatures.

Thermal Management

Proper thermal management is vital for the safe and reliable operation of electronics. PCBs can overheat quickly and exceed component temperature limits. Enclosures made of metals like aluminum offer excellent heat dissipation, while plastics are thermal insulators. Strategies like ventilation holes, cooling fans, and heat sinks are often necessary.

EMI/RFI Shielding

Electromagnetic interference can disrupt the functioning of sensitive circuitry. RFI shielding enclosures contain EMI by providing a conductive barrier and grounding path. A continuous conductive shell is necessary for effective shielding, with mating surfaces adequately gasketed. Metal enclosures provide excellent shielding, while composite options like plastic with conductive coatings offer cost-effective shielding.

Aesthetics

Aesthetics Considerations
Aesthetics Considerations



Along with technical considerations, aesthetics, and ergonomics impact the end-user experience. Enclosures allow designers to customize a product’s styling, textures, colors, and graphics. Branding emblems, control labels, and part info can also be added using silk screening, laser etching, engraving, and more.

Environmental Resistance

The operating conditions a product will be exposed to influence material selection. Coronary-resistant metals like stainless steel or aluminum work best for outdoor or marine environments. Plastics like polycarbonate and ABS provide chemical resistance. UL94 flammability ratings classify material fire safety.

Size and Weight

Factors like enclosure walls, mounting plates, connectors, and gaskets add size and weight beyond just the PCB. Complex designs need More significant cases to accommodate multiple PCBs and wiring harnesses. At the same time, thin wall construction and compact form factors aid portability. Weight limits apply mainly to aerospace and automotive applications.

Cost

Enhanced protective abilities and exotic materials increase costs. Using extruded aluminum boxes or machined die-cast enclosures is expensive compared to sheet metal and plastic designs. High production volumes help lower unit costs considerably. Reusing existing case designs and minimizing customization also reduces expenses.



PCB Enclosure Design Process

Enclosure design runs in parallel with the electronics design process. Here are the typical steps involved:

Determine Requirements

Define the required protection level, operating conditions, EMI/RFI, and thermal needs. Consider external interfaces like connectors, indicators, and controls. Outline form factor constraints and aesthetics. These drive the initial selection of enclosure type.

Enclosure Selection

Narrow down on a shortlist of candidate enclosures from manufacturers that meet most requirements. Availability, cost, and lead times play a crucial role here. Reusing proven enclosures from previous projects helps accelerate the process.

3D Modeling

Create 3D CAD models of the PCB assembly and enclosure for fit evaluations. Ensure adequate internal clearance spaces and manage heat buildup with thermal simulation. Refine the design to resolve any issues observed.

3D modeling
3D modeling



Prototyping

Build functional prototypes incorporating the chosen enclosures to validate real-world performance. Thermal testing and environmental stress screening identify failures to refine the design further.

Documentation

Detailed mechanical drawings, mounting, assembly, and installation instructions. Technical documentation for certification and compliance is prepared. Artwork and graphics are finalized for printing and finishing.

Production and Testing

The design is finalized for full-scale manufacturing. Quality checks for dimensional accuracy and performance weed out defects. Reliability testing over temperature, vibration, and lifetime validates readiness.



Types of Customizations

Customization
Customization



While off-the-shelf enclosures work for many applications, customizing for specific needs is often required. Here are some standard customization options:

Machining

Enclosures can be machined to cut openings and mount PCBs, I/O connectors, displays, controls, etc. CNC milling provides a high degree of accuracy and finish. Threading holes for fasteners is also easily achieved.

Additional Brackets

Custom sheet metal brackets to hold specific components and PCB assemblies can be fabricated and installed in enclosures using welding, riveting, or adhesives.

Special Coatings

Coatings enhance corrosion or scratch protection and electrical conductivity. Potting compounds help dampen vibration and shocks. EMI/RFI shielding gaskets and conductive coatings provide shielding. Powder coating allows color finishes.

Silkscreen Printing

Using resistant paints, Silkscreen logos, labels, and markings improves aesthetics and user experience. Recesses and high-contrast colors enhance legibility.

3D Printing

3D printing with plastics like ABS offers a fast and flexible solution for low-volume specialized enclosures. Tooling expenses are avoided.



PCB Enclosure Design Tips

Design Tips
Design Tips



Here are some best practices to follow for fail-safe enclosure design:

  • Analyze worst-case temperatures for components and PCBs to ensure thermal limits are never exceeded.
  • Minimize exposure of circuits to moisture by potting high-risk areas and using conformal coatings.
  • Prevent loose metal hardware from shorting out exposed solder joints or component leads.
  • Avoid placing connectors and controls where they will be subjected to high wear and tear.
  • Account for panel flexing, which can crack solder joints – use adequate board support.
  • Select fasteners sized appropriately for the enclosure material thickness to prevent screw threads from stripping out.
  • Use self-clinching standoffs to simplify PCB mounting and spacing within the enclosure.
  • Place heat-generating components closest to walls or ventilation holes to facilitate heat transfer outwards.
  • Design adequate strain relief strength for wired cable connections into the enclosure.
  • Ensure flammability ratings for plastics meet the application’s UL94 and other safety standards.
  • Try to maximize the commonality of enclosures across product families to optimize costs.



Rapid Prototyping with 3D Printed Enclosures

Introduction to 3D Printing Enclosures

3D printing, also known as additive manufacturing, provides a quick and inexpensive option for creating custom electronic enclosures for prototypes and low-volume production. Printing enclosures directly from 3D CAD files requires no tooling, and concept models can be realized in days.

Fused deposition modeling (FDM) is the most widely accessible and cost-effective 3D printing technology available today. In FDM, plastic filament is heated and precisely extruded layer-by-layer to build up enclosures per the CAD geometry.

Benefits of 3D Printed Enclosures

Here are some of the benefits of using 3D-printed enclosures:

Fast turnaround – Get custom enclosure samples in just 1-2 days without any complex tooling needed. Iterate frequently.

Cost-effective – No heavy investment in injection molding equipment is required. Low amortized cost per print part.

Design freedom – Complex organic shapes, customized fittings, and 3D contours can be realized.

Easy customization – Easily modify design dimensions, wall thicknesses, mounting points, etc., with just CAD changes.

Material choice – From basic PLA to ABS, nylon, and more – a wide material selection to suit the application.

Color options – Get creative with multi-color prints and complex patterns that are not feasible with injection molding.

Conformal cooling – Hollow internal channels can be 3D printed within walls for efficient liquid cooling.

Best Practices for 3D Printed Enclosures

To get the best results with your 3D printed enclosures, following certain design practices is recommended:

  • Maintain uniform wall thickness wherever possible to mitigate warping.
  • Orient the print so that layer lines are perpendicular to force loads acting on the enclosure.
  • Minimize overhanging vertical surfaces and cantilevers to avoid support structures.
  • Include small holes for escaping heated air to prevent degradation of trapped surfaces.
  • Embrace draft angles more significant than 2° for ease of part removal from the print bed.
  • Allow for post-processing like sanding, drilling holes, thread tapping, and smoothing.
  • Use wider clearances around fasteners to account for 3D print precision limitations.

Applications Example – Custom Quadcopter Drone Enclosure

3D printing is ideal for UAV enclosures with unique shape constraints and low-volume production. Lightweight custom drone enclosures can be designed in CAD and 3D printed from ABS plastic. The enclosure precisely fits around the frame and houses the PCB stack and FPV camera in custom recesses. Ventilation holes help airflow while maintaining structural rigidity. Since a plastic filament extrusion process is used, even small batch orders become feasible.

Modifying designs and fast turnaround times enable drone engineers to quickly test form and fit prototypes. Custom snap-fit joints and mounting points can be designed for easy assembly/disassembly. Overall, FDM printing brings flexibility and agility to drone enclosure designs.



PCB Enclosure Materials

Overview of Enclosure Materials

The choice of enclosure material significantly impacts cost, durability, environmental performance, and end-user experience. The most common categories of materials used for PCB enclosures include:

Plastics: Polymers like ABS, polycarbonate, nylon, and PVC offer the advantages of corrosion resistance, low cost, and a wide range of aesthetic finishes. However, plastics provide minimal EMI/RFI shielding and heat dissipation.

Metals: Aluminum, steel, and stainless steel enclosures are ideal for industrial applications requiring ruggedness. They provide excellent EMI shielding and heat sinking but are heavy and prone to corrosion.

Composites: Combining plastics with fillers like glass fibers enhances structural strength. Metalized plastic enclosures offer cost-effective EMI shielding. Exotic composites like carbon fiber minimize weight.

Exotic Materials: Specialized materials include ceramics for extreme temperatures, liquid crystal polymers for high rigidity, and clear polycarbonate for see-through covers.

Factors in Selecting Materials

Material selection is based on balancing factors such as:

Cost – Commodity plastics are less expensive than exotic metals and composites. High-volume production provides economy of scale.

Workability – The ease of tooling, finishing, machining, welding, and post-processing impacts time and cost.

Protection – Ruggedness against shock, abrasion, chemicals, and temperature extremes varies.

Aesthetics – Surface finish, color consistency, styling flexibility, and branding capability differ.

Aesthetics Considerations
Aesthetics Considerations



EMI/RFI – Metals provide the best shielding, while plastics require EMI gaskets/coatings.

Thermal – Metals and composites conduct heat better than insulating plastics. Operating temperature limits vary.

Safety – Materials must meet flame retardancy standards like UL94 V-0 for electronics.

Advanced Materials

Here are some of the advanced materials taking PCB enclosure design to new frontiers:

Liquid Crystal Polymers – Offer chemical inertness and dimensional stability over wide temperature swings. They are used in satellites and space probes.

Carbon Fiber – Incredibly strong yet lightweight black fabric enclosure construction ideal for drones and racing cars.

Shape Memory Polymers – 3D printed into complex shapes and later reshaped when heated past the transition point. Useful for deployable structures.

Nanocomposites – Combining plastics with nanoparticles enhances thermal and structural performance. For example, carbon nanotubes help dissipate heat.

Ceramics – Extremely hard and resistant to abrasion, corrosion, and high temperatures. Enable electronics to operate more than 1000°C like in jet engines.

Biopolymers – Sustainable plastic alternatives derived from plant starches like PLA can be 3D printed and used for green electronics packaging.



Critical Considerations for Production

Design for Manufacturing

To ensure enclosures can be mass-produced efficiently, specific DFM guidelines should be followed:

  • Standardize on standard fasteners like M3 or #4-40 screws to minimize inventory.
  • Avoid tight tolerances (>0.5mm) on plastic parts to account for shrinkage.
  • Keep wall thicknesses uniform for even cooling during injection molding.
  • Limit draft angles to 1-2° along part ejection direction.
  • Weld lines and knit lines affect aesthetic appearance and strength.
  • Bosses and ribs add strength while minimizing material usage and weight.
  • Maximize flat open space spans to optimize metal sheet usage.

Tooling and Fixturing

Custom metal enclosures require investment in tooling and fixtures:

  • Stamping dies to blank sheet metal parts incur high one-time costs.
  • Bending and punching tools are needed for forming operations.
  • Welding jigs accurately locate parts during assembly.
  • Powder coating tools like masking fixtures reduce rework.
  • Special drills create round or odd-shaped holes.

Finishing

Multiple stages of finishing are used to enhance enclosures:

Deburring – Removes sharp metal edges from cuts and holes to prevent injury.

Bead blasting – Stream of glass beads produces a uniform cosmetic texture on the surface.

Anodizing – The electrophoretic passivation process thickens the natural oxide layer on aluminum for corrosion resistance.

Chromating – A thin decorative chrome layer provides a shiny metallic look for plastics.

Laser Etching – Precision laser ablation creates permanent markings and logos without tooling.

Silkscreen Printing – Multi-color graphics and labels applied over decorative paints and chrome.



Environmental Considerations

Recyclability

Many plastics like polycarbonate and nylon can be recycled, especially if marked with material codes like PC or PA6. Metals like aluminum and steel are also highly recyclable materials. However, composites and bonded construction prove challenging to separate and reuse. Designing enclosures with ease of disassembly in mind for component reclamation helps with end-of-life recycling.

Biodegradability

Most metals and thermoset plastics like epoxy resin do not biodegrade readily. However, bio-based plastics derived from agricultural wastes offer compostable enclosures. Polylactic acid (PLA), made from corn starch, has become famous for disposable consumer electronics packaging. PLA plastic enclosures can decompose in industrial composting facilities.

Energy Efficiency

Maximizing enclosure material utilization by optimizing forms, ribs, and bosses reduces waste. Laser cutting sheet metal to exact outlines lowers scrap. Injection molding production techniques also result in minimal material losses—thin wall enclosures with robust designs lower overall weight and material usage. Recycling used enclosures back into manufacturing processes improves sustainability.

Supply Chain Ethics

Scrutinizing sources of raw materials for plastics and metals ensures ethical and sustainable sourcing free of exploitation—certifications like UL 2775 Carbon Measurement trace carbon emissions across supply chain partners. Electronics companies increasingly demand conflict-free minerals compliance from metal sources. The adoption of circular economy principles minimizes new resource consumption.



Conclusion

Well-designed enclosures must be considered when productizing PCBs into complete electronic devices. They protect sensitive circuits from environmental damage while facilitating usability and aesthetics. With myriad options for enclosure types, materials, manufacturing processes, customizations, and finishes, making the right design choices can be challenging.

By outlining critical considerations around protection levels, thermal management, EMI/RFI shielding, environmental resistance, production requirements, and more, this article aimed to educate PCB designers on best practices to follow. Identifying the right off-the-shelf or customized enclosure solution for any application takes research and careful evaluation of trade-offs. Prototyping and testing early with 3D-printed enclosures allows quick design validation.

Partnering with an experienced enclosure manufacturer ensures high quality and reliability standards crucial for end products. Investing in enclosure design the attention it deserves results in successful electronic products.



Frequently Asked Questions (FAQs)

What are the most common materials used for PCB enclosures?

The most common materials are plastics such as ABS, polycarbonate, nylon, and PVC, which offer durability, corrosion resistance, and ease of manufacturing. Metals, including aluminum, steel, and stainless steel, provide excellent EMI shielding and ruggedness but are heavier and prone to corrosion. Composite materials are also gaining traction.

How do I determine the level of protection needed?

The operating environment determines how much protection is needed. Standards like IP rating and MIL-STD-810 quantify mechanical robustness against shock, vibration, abrasion, and temperature extremes. The required water, dust, EMI, and chemical resistance level depends on use conditions.

What kind of customization is possible with enclosures?

Common customizations include CNC machining cutouts and holes; silkscreen printed graphics and labels, protective coatings and gaskets, 3D printed form factors, and integrally molded components. Custom brackets and heat sinks can also be incorporated into enclosures.

How can I reduce costs for higher volume production?

Design for manufacturing techniques like standardized fasteners, uniform wall thicknesses, draft angles, and avoidance of tight tolerances is critical. Prioritizing ease of tooling, assembly, and finishing helps minimize production costs. Reusing existing case designs across product families also provides significant savings.

What design tips prevent issues during product testing?

Proactively analyze worst-case thermal profiles, use adequate board support, prevent loose hardware from shorting exposed solder joints, account for material thinning from repeated disassembly, and properly strain relief wired cable connections. Following these tips improves the design robustness.
