Understanding PCB Component Side



Introduction

Printed Circuit Boards (PCBs) are the backbone of modern electronic devices, powering everything from smartphones to spacecraft. A crucial aspect of PCB design is the arrangement of components on the board, which leads us to the two primary sides of a PCB: the component side and the solder side. In this comprehensive article, we will delve into the specifics of the PCB component side, exploring its structure, the importance of component placement, design considerations, advanced techniques, inspection methods, best practices, and emerging trends to ensure optimal functionality and reliability of electronic circuits.

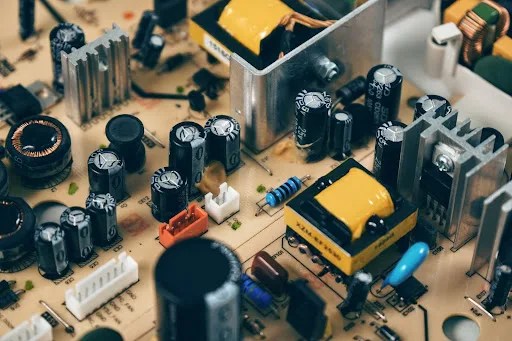

PCB Component side
PCB Component side



Understanding the PCB Component Side

Definition and Function

The component side of a PCB refers to the side where various electronic components, such as resistors, capacitors, integrated circuits (ICs), connectors, and other active and passive elements, are mounted. It is also known as the top side or the assembly side. This side plays a critical role in determining the overall performance and functionality of the PCB.

Component Placement Considerations

Effective component placement is fundamental to the success of any PCB design. Factors to consider when arranging components on the PCB component side include:

Signal Integrity

Proper placement helps minimize signal interference and noise, reducing the risk of data corruption and ensuring reliable signal transmission. High-speed signals must be carefully routed to avoid signal degradation and distortion.

Thermal Management

Ensuring adequate space and proper component orientation help dissipate heat effectively, preventing overheating and ensuring optimal performance. Components generating significant heat, such as power devices and amplifiers, should be placed to optimize thermal dissipation.

Accessibility and Reparability

Careful placement facilitates ease of access for assembly and maintenance processes, reducing manufacturing and repair costs. Maintenance is more straightforward when components are arranged logically, enabling faster troubleshooting and replacement.

EMI and EMC Considerations

Correct component placement can significantly reduce electromagnetic interference (EMI) and improve electromagnetic compatibility (EMC). Sensitive components should be shielded from high-frequency interference sources.

Mechanical Stress

Components should be positioned to minimize mechanical stress during assembly and operation. Large or heavy components should have additional support to prevent mechanical failure.

Component Footprints and Land Patterns

A critical aspect of component placement is ensuring the correct footprint and land pattern are used for each component. The footprint defines the physical dimensions, pad layout, and orientation of the component on the PCB. Properly selecting and designing component footprints is crucial for successful assembly and optimal electrical performance.

IPC Standards

The Institute for Printed Circuits (IPC) publishes standards for PCB design, including guidelines for component footprint sizes and tolerances.

Component Footprint Libraries

Many PCB design software packages include extensive libraries of pre-defined component footprints to simplify the design process and ensure accuracy.



PCB Component Side Layout

Component Orientation

PCB components have specific guidelines for orientation during placement. Depending on their types and requirements, components may be oriented horizontally (parallel to the board surface) or vertically (perpendicular to the board surface). Proper orientation ensures optimal performance and streamlines assembly processes.

Horizontal Orientation

Components like resistors, capacitors, and small signal diodes are commonly mounted horizontally to conserve space and simplify assembly.

Vertical Orientation

Components like ICs, transistors, and connectors are often mounted vertically to maximize thermal dissipation and facilitate signal routing.

Designators and Reference Designators

Each component on the PCB component side is identified with reference designators, usually denoted by a combination of letters and numbers. These designators aid in schematic-to-layout cross-referencing and ease the assembly and debugging processes. Properly labeled components streamline the assembly process and help technicians identify specific parts for troubleshooting and replacement.

Automated Designator Generation

Some PCB design software can automatically assign reference designators based on schematic connections.

Logical Sequence

Reference designators are typically assigned in a logical sequence, making it easier to locate components on the PCB.

Keep-Out Zones

Keep-out zones are designated areas on the PCB where no components or traces are allowed. These zones help prevent potential interference or collisions between components, traces, and mechanical parts. Keep-out zones also ensure that components are adequately spaced to maintain electrical and mechanical integrity.

Component Height Considerations

Keep-out zones should account for the height of components to avoid conflicts with enclosure or mechanical constraints.

Antenna Clearances

For wireless communication systems, keep-out zones are essential to maintain proper antenna clearances and prevent signal interference.

Component Side Design Best Practices

Component Grouping and Clustering

Grouping related components together can enhance signal integrity, reduce trace lengths, and simplify routing. Components with high-frequency signals or sensitive analog circuitry should be clustered carefully to minimize parasitic effects.

Signal Path Optimization

Grouping components involved in the same signal path reduces trace lengths and decreases the chances of signal interference. This practice is especially crucial for high-speed digital and RF circuits.

Analog and Digital Separation

To minimize analog-to-digital interference, separate analog and digital components into distinct regions on the component side.

High-Power Component Separation

High-power components should be placed separately to manage thermal dissipation effectively and avoid affecting the performance of low-power components.

Decoupling Capacitors

Placing decoupling capacitors near ICs and active components helps stabilize power supplies and reduces noise, improving overall circuit performance. These capacitors act as energy reservoirs, providing fast and localized charge when the attached circuitry demands it.

Capacitor Placement Strategies

Decoupling capacitors should be placed as close as possible to the power pins of ICs to minimize inductance in power delivery paths.

Multi-Layer Capacitors

For better high-frequency performance, consider using multi-layer ceramic capacitors (MLCCs) with low equivalent series resistance (ESR) and equivalent series inductance (ESL).

Bypassing Components

Multiple capacitors of varying values should be strategically placed to provide a broader range of decoupling at different frequencies.

Signal Traces and Routing

Proper trace width, spacing, and routing techniques are crucial for maintaining signal integrity, minimizing cross-talk, and avoiding impedance mismatches. Differential signaling and controlled impedance routing are vital for high-speed designs.

Differential Pair Routing

For high-speed signals, route differential pairs closely together with equal trace lengths to minimize common-mode noise.

Controlled Impedance

High-speed signals, especially those in high-frequency applications, require controlled impedance traces to maintain signal integrity.

Serpentine Traces

To compensate for trace length mismatches in high-speed designs, consider using serpentine routing techniques.

PCB Trace for components
PCB Trace for components

Thermal Considerations

Components dissipate heat during operation, and effective thermal management is essential. Thermal vias, heat sinks, and proper spacing between heat-generating components contribute to efficient heat dissipation.

Thermal Vias

Placing thermal vias beneath power components, such as power amplifiers and voltage regulators, improves heat dissipation by conducting heat away from the component and spreading it through the PCB layers.

Heatsinks

Heat-generating components, like power transistors or voltage regulators, may require heatsinks for additional thermal dissipation.

Thermal Relief Pads

Components with large thermal pads can benefit from thermal relief pads, which facilitate soldering while still providing an efficient thermal connection.

PCB Material Selection

High-thermal conductivity PCB materials, such as metalcore or ceramic substrates, are advantageous for applications with intense heat dissipation requirements.

Test Points and Accessibility

Incorporating test points on the PCB component side enables technicians to perform in-circuit testing (ICT) more efficiently, helping diagnose faults and verify circuit functionality.

Test Point Placement

Position test points near critical nodes, components, or connectors to ease testing and troubleshooting.

POGO Pin Testing

Implementing POGO pins (spring-loaded contact probes) for test points simplifies the connection during automated testing processes.

Bed-of-Nails Testing

Bed-of-nails testing is an automated test method that uses spring-loaded pins to make simultaneous electrical contact with multiple test points on the PCB.

Advanced Techniques on the Component Side

Multi-Layer PCBs

In complex designs, multi-layer PCBs offer additional routing space, enabling more intricate component placement, higher trace densities, and better signal integrity.

Signal Layer Arrangement

Distributing high-speed signal layers and power planes within the PCB stack-up optimizes signal routing and minimizes interference.

Via Stacking

Stacking vias between signal layers reduces signal reflections and improves signal integrity.

Blind and Buried Vias

Blind vias connect the outermost layers with one or more inner layers, while buried vias connect only inner layers, reducing the number of vias that penetrate through the entire board.

High-Density Interconnect (HDI) Technology

HDI technology provides finer trace and space, micro vias, and laser-drilled blind vias, allowing for smaller and more densely packed components.

Micro Vias

Micro vias allow for a higher density of interconnections while reducing overall PCB size.

Sequential Lamination

Implementing sequential lamination facilitates the integration of multiple HDI layers and provides more freedom in component placement.

Staggered Microvias

Staggered micro vias enable routing between BGA pads, increasing routing density and reducing the number of layers required.

Components with Bottom Terminations

Certain components, like Ball Grid Array (BGA) packages, have their connections on the bottom side. Proper design and assembly techniques are crucial for successful implementation.

BGA Routing and Fanout

Careful routing and fanout strategies are essential for routing signals to and from the BGA package.

Via-in-Pad (VIP) Technology

VIP technology enables vias to be placed directly under BGA pads, maximizing routing density and improving signal integrity.

X-ray Inspection

X-ray inspection is used to verify the correct alignment of the solder balls on the BGA and check for potential soldering defects.

Rework and Repair

Reworking BGA components requires specialized equipment and techniques to ensure proper soldering and avoid damage to adjacent components.



Component Side Inspection and Testing

Automated Optical Inspection (AOI)

AOI machines are used to inspect the PCB component side for component placement accuracy, orientation, and solder quality. AOI significantly improves quality control during the manufacturing process.

Inspection Algorithms

AOI systems use sophisticated algorithms to detect component defects, such as misalignment, tombstoning, and missing components.

False Alarm Reduction

Adjusting AOI settings helps reduce false alarms caused by reflections or variations in component appearance.

In-Circuit Testing (ICT)

ICT verifies the functionality of individual components and connections by applying specific electrical tests to the assembled PCB.

ICT Procedures

Customized test programs are developed to check each component’s functionality and identify faulty components or connections.

Boundary Scan Testing

Boundary scan testing (JTAG) is used to validate the connectivity and functionality of complex ICs with built-in boundary scan capabilities.

Flying Probe Testing

Flying probe testing is an alternative to traditional bed-of-nails testing, using robotic probes to test multiple points on the PCB without the need for custom test fixtures.

Prototyping and Low-Volume Production

Flying probe testing is particularly suitable for prototypes and low-volume production runs due to its flexibility and ease of setup.

Accessibility and Precision

Flying probe testers can reach test points that are difficult to access with bed-of-nails fixtures, allowing for testing in tight spaces.



Emerging Trends in PCB Component Side Design

Miniaturization and High-Density Integration

Advancements in semiconductor technology have led to the miniaturization of electronic components, enabling the integration of more functionality into smaller packages. As a result, PCB designers must carefully consider component placement to accommodate the increasing number of components within limited board space.

3D Stacking and System-in-Package (SiP)

3D stacking and SiP technologies involve integrating multiple die or functional units into a single package. These advanced packaging techniques require innovative component placement and routing strategies on the PCB component side.

High-Frequency and Millimeter-Wave Applications

With the rise of 5G communication and millimeter-wave technologies, PCB designers face new challenges in managing high-frequency signals and minimizing signal losses. Precise component placement and controlled impedance routing become crucial in achieving optimal performance.

Flexible and Rigid-Flex PCBs

Flexible and rigid-flex PCBs provide enhanced design flexibility for space-constrained and flexible electronic applications. Designers must carefully position components on these boards to accommodate bending and flexing while maintaining electrical and mechanical integrity.



Conclusion

The PCB component side is a critical aspect of electronic design, significantly influencing the overall performance, reliability, and manufacturability of electronic circuits. Proper component placement, adherence to design considerations, and utilization of advanced techniques contribute to successful PCB designs that meet the demands of modern technology. By employing the best practices and advanced techniques mentioned in this article, PCB designers can create robust and high-performance electronic circuits that drive the progress of technology into the future.

As technology continues to advance, emerging trends such as miniaturization, 3D stacking, and high-frequency applications will shape the future of PCB component side design. Staying informed about these trends and incorporating them into PCB designs will be essential to meet the evolving demands of the electronics industry. With careful planning and attention to detail, PCB designers can continue to push the boundaries of innovation and deliver cutting-edge electronic products to the world.
