PCB Capacitors Unveiled: Types, Uses, and Selection

Introduction

Capacitors are one of the most fundamental passive components in printed circuit boards (PCBs). They serve various critical functions, from storing charge and energy to filtering signals and stabilizing power delivery. Choosing the suitable PCB capacitors is essential for ensuring the proper functioning of the circuit.

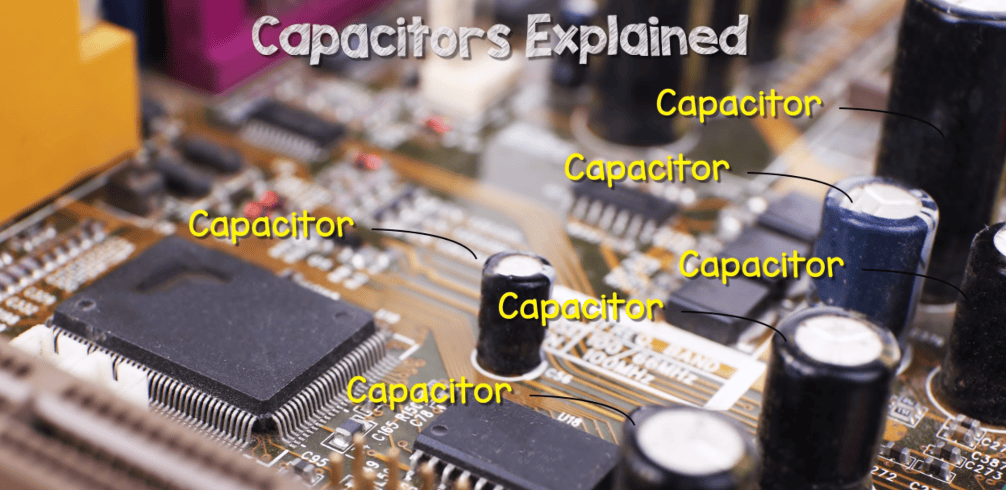

PCB Capacitor
PCB Capacitor



This comprehensive guide looks at PCB capacitors, their function and importance, different types, key selection factors, and proper handling. Whether you are new to PCB design or a seasoned engineer, this article will provide extensive knowledge about these crucial components.

We will start by understanding what PCB capacitors are, followed by how they work. Then, will explore the common capacitor types, their characteristics, and applications. Finally, will discuss critical considerations when selecting capacitors for your PCB design and safe usage practices. Let’s get started!



What are PCB Capacitors?

PCB capacitors are passive components mounted on printed circuit boards that store electric charge. They comprise two conducting plates separated by an insulating dielectric material.

When voltage is applied, electric charge accumulates on the plates, with polarity depending on the voltage polarity.

The capacitance value determines how much charge can be stored.

PCB capacitors behave similarly to conventional capacitors. Combining pads, tracks, pins, and components forms a structure that acts as a capacitor capable of frequency stabilization.

Additionally, power and ground planes in a PCB provide decoupling capacitance. Discrete capacitors added externally complement the PCB’s inherent capacitance. Capacitors flow of alternating current flow (AC) while blocking direct current (DC). They also maintain a steady voltage output despite fluctuations in current; PCB capacitors are indispensable components that profoundly impact circuit operation and performance.

Their functions include:

  • Storing and discharging electric charge
  • Filtering signals
  • Decoupling power supplies
  • AC coupling between circuit stages
  • Tuning and resonance circuits
  • Snubbing transients

In summary, PCB capacitors are vital building blocks in modern PCBs and electronic devices. Cand utilizing suitable capacitors properly is vital for functioning and stable circuits.



How Do PCB Capacitors Work?

PCB capacitors operate by electrostatically storing energy between their plates. They function similarly to small rechargeable batteries, accumulating electric charge when voltage is applied. However, capacitors do not chemically produce charge but only store it physically.

The basic structure comprises two metal plates separated by a dielectric insulator.

How Capacitors work
How Capacitors work



Electrons accumulate on one plate when connected to a DC voltage source, producing a negative charge. The other plate loses electrons and becomes positively charged.

An electric field develops across the dielectric due to the charge difference. The plates try to unite by attracting oppositely charged particles.

However, the dielectric insulation barrier between the plates prevents them from discharging.

The stored charge is released when the voltage source is removed, and the capacitor circuit is closed. The electrons flow from the negative to the positive plate, powering any connected components.

The capacitance (farads) determines the charge stored for a given voltage. Larger capacitance enables storing more energy.

The dielectric material also affects performance. Ceramics, polymers, epoxy, and mica are common dielectrics. Materials with higher permittivity, like ceramics, have larger capacitance.

In summary, PCB capacitors accumulate electric charge electrostatically when voltage is applied to their plates. They store energy in their electric field and discharge it when the external circuit is closed. Plate area, dielectric material, working voltage, and capacitance value determine their storage capacity and characteristics.



Types of PCB Capacitors

Types of Capacitors
Types of Capacitors



Various PCB capacitor types are classified according to dielectric material, structure, and functionality. The major classifications are:

Ceramic Capacitors

Ceramic capacitors use ceramic materials like titanium dioxide or barium titanate as the dielectric. They are usually compact, inexpensive, and have excellent high-frequency characteristics.

Ceramic Capacitor
Ceramic Capacitor



Key features:

  • Small capacitance values from 1 pm to 1 μF
  • High stability and low losses
  • Withstand high voltages up to 100 kV
  • Low ESR and inductance
  • High reliability and long lifespan
  • Operate from -55°C to 200°C
  • Tolerances up to ±1%

Types of ceramic capacitors:

  • Multilayer ceramic capacitors (MLCC) – Made by stacking alternate ceramic dielectric and metal electrode layers to achieve high capacitance density. Most common SMT capacitor type.
  • Ceramic disc capacitors – Leaded capacitors with capacitance from 1 pF to 0.1 μF. They are used for high-frequency coupling and bypassing.
  • Ceramic power capacitors – Can handle large currents and voltages up to 10 kV. They are used for power applications and snubbers.

Ceramic capacitors are ideal for decoupling, high-frequency filtering, timing, and precision circuits. Their high stability and reliability make them suitable for demanding applications.

Electrolytic Capacitors

Electrolytic capacitors use a skinny insulating oxide layer as the dielectric, etched on an aluminum or tantalum anode foil. They are polarized and have much larger capacitance than ceramics.

Electrolytic Capacitor
Electrolytic Capacitor



Features:

  • Medium to high capacitance values from 1 μF to 1 F
  • Withstand voltages from 2V up to 600V
  • Higher ESR and leakage than ceramics
  • Sensitive to polarity, heat, and mechanical damage
  • Lower tolerance of ±20%

Types of electrolytic capacitors:

  • Aluminum electrolytic is the most common type in through-hole and SMT packages.
  • Tantalum electrolytic – More stable, reliable, and expensive than aluminum. Used in space-critical applications.
  • Niobium electrolytic – Replacement for tantalum with higher capacitance density.
  • Conductive polymer aluminum – More stable and reliable than standard aluminum electrolytic.

Electrolytic capacitors are ideal for smoothing, buffering, and bulk decoupling applications where large capacitance values are needed. Their major downside is a shorter lifespan and degraded performance over time.

Supercapacitors

Supercapacitors, also called ultracapacitors or electric double-layer capacitors, provide very high capacitance in compact sizes. They use porous electrode materials and electrolytes to store charge electrostatically.

Super Capacitors
Super Capacitors



Key attributes:

  • Exceptionally high capacitance, up to thousands of farads
  • Low internal resistance allows high-power delivery
  • Operate from 2.3V to 5.5V
  • High-efficiency charge/discharge cycles
  • Withstand over 1 million recharge cycles
  • Work across a broad temperature range
  • High self-discharge rate when idle

Supercapacitors are ideal for energy storage and burst power delivery in memory backup systems, solar devices, and electric vehicles. Their high power density suits them for applications needing repeated charge/discharge cycles.

Film Capacitors

Film capacitors use thin plastic film as the dielectric, such as polyester, polypropylene, polycarbonate, and polystyrene. They are available in leaded and SMT packages.

Film Capacitors
Film Capacitors



Characteristics:

  • Low inductance and ESR
  • Tolerances from ±1% to ±20%
  • Operate from 55°C to 125°C
  • Withstand voltages from 50V to 1,600V
  • Capacitance ranges from 1 pm to 10 μF
  • Suitable for frequency filtering and coupling

Film capacitors are reliable AC coupling and filtering capacitors. Their self-healing properties increase lifespan and reliability. Film caps suit high-frequency tuning and timing circuits.

Mica Capacitors

Mica capacitors utilize mica sheets as the dielectric. Silver or metal deposited on mica acts as the electrodes. They have excellent stability and low losses.

Mica Capacitors
Mica Capacitors



Properties:

  • Shallow leakage current
  • High accuracy and stability
  • Low inductance, suitable for RF applications
  • Operate from -55°C to 125°C
  • Handle high peak voltages, low DC working voltages
  • Capacitance ranges from 1 pm to 0.01 μF
  • Often used in resonant circuits and timing applications

Mica capacitors suit precision high-frequency oscillator and filtering applications. Their low losses and accuracy make them ideal for tuning tank circuits.

To summarize, there are numerous PCB capacitor types and dielectric materials to suit diverse applications and operating conditions. Selecting the proper capacitors for an application requires understanding their characteristics and limitations.



PCB Capacitor Selection Guidelines

Choosing suitable capacitors is a crucial step in PCB design. Several factors must be evaluated to select the optimal capacitors for an application.

Capacitance Value

The capacitance directly determines the charge stored and energy handling capability. Electrolytic and supercapacitors offer large values where bulk decoupling is needed. Ceramics provide small values for high-frequency coupling.

Ensure the capacitance meets the circuit’s minimum requirements with a safe margin above 20%. Oversizing slightly improves stability and lifespan.

Voltage Rating

Voltage rating denotes the maximum working voltage applied without breakdown and short circuit failure risk. Always choose capacitors rated at least 50% higher than the expected working voltage.

High-voltage film and ceramic capacitors are available where large voltage margins are needed. Check transient spikes and ensure the voltage rating is not exceeded.

Temperature Range

Verify the capacitor’s operating temperature range suits the environmental conditions. Electrolytic caps have lower temperature limits of around -20°C. High-temperature film and ceramic caps operate up to 200°C.

Avoid exceeding the capacitor’s maximum temperature rating to prevent parameter degradation and damage—derate specifications for very high or low-temperature operation.

Tolerance

Tolerance indicates the allowable capacitance deviation from the rated value, usually ±1% to ±20%. Tight 1-2% tolerances ensure stability in timing and filter circuits but cost more. Coupling and bypass applications can tolerate ±10% or higher.

Leakage Current

Leakage current determines how well a charged capacitor holds the voltage when open-circuited. Ceramic and film caps have excellent leakage properties. Electrolytic caps discharge more rapidly when power is removed.

Low leakage is vital for timer and energy storage uses. Other applications can accept higher discharge rates after power down.

Equivalent Series Resistance (ESR)

ESR indicates internal power losses and heating. Ceramic and film capacitors have extremely low ESR, making them suitable for high-frequency bypassing. Electrolytic caps have significantly higher ESR, limiting their effectiveness at high-frequencies.

Lifetime Expectancy

Aluminum electrolytic caps have shorter lifespans, around 2,000 hours at rated temperatures. Film, ceramic, and tantalum capacitors last for over 1 million hours of use.

Mission-critical applications may require more durable capacitor types with longer working lifespans.

Physical Size

For compact SMT designs, small case-size chips or low-profile capacitors are essential. Consider height restrictions when selecting capacitors.

More giant can or box styles provide high capacitance and voltage ratings where space allows.

Cost

While film and ceramic capacitors are inexpensive, tantalum and supercapacitors cost considerably more. Electrolytic caps are moderately priced but have shorter lifespans.

Evaluate trade-offs between price and performance when comparing capacitor choices. Quality capacitors ultimately save long-term costs and prevent field failures.



PCB Capacitor Markings

Capacitors feature markings to denote key parameters and specifications. Understanding capacitor labeling helps identify appropriate components during circuit assembly and testing.

  • Capacitance value – Capacitance is typically marked in picofarads (pdf), nano Farads (nF), and microfarads (μF). Numeric code, decimal points, and multipliers are used.
  • Tolerance – Tolerance represents the allowable variance. Common markings are ±1%, ±5%, ±10%, ±20%.
  • Voltage rating – Maximum working voltage is given in volts, often abbreviated. Example: 4V7 = 4.7V.
  • Temperature coefficient – Denotes capacitance change with temperature. Codes like identify coefficients.
  • Date code – The batch date or date of manufacture is often printed. Formats vary by manufacturer.
  • Polarity – Polarized caps denote positive and negative leads for correct orientation.
Polar and Non-Polar Capacitor
Polar and Non-Polar Capacitor
  • Manufacturer logo – Supplier branding or part numbers are commonly included.

Additional markings like ripple current, insulating material, or lifetime hours may be present. Consult datasheets for details on all markings. Proper identification ensures capacitors with appropriate specifications are utilized.



Capacitor PCB Layout Considerations

Attention to capacitor placement and routing during PCB layout is vital for achieving stable performance. Follow these guidelines when designing your board:

  • Place bypass and decoupling capacitors as close to power pins to minimize inductance.
  • Use numerous small value caps near ICs rather than fewer large value caps.
  • The route traces from capacitor pads directly to power and ground planes using Vias.
  • Keep high-frequency capacitor ground connections short.
  • Avoid routing unrelated signals near capacitors.
  • Follow manufacturer recommendations for maximum lead, pad, and trace lengths.
  • Leave adequate clearance around capacitors for soldering, heating, and mechanical protection.
  • Place capacitors for easy access if servicing may be needed during operation.
  • The group associated decoupling capacitors together near their ICs.
  • Double-check that polarities match the schematic during layout.

Careful attention to placement, orientation, and routing helps capacitors function optimally and avoid short circuits or excessive parasites.



Capacitors in High-Frequency PCBs

At higher frequencies, capacitors exhibit non-ideal behavior like self-resonance and ESL inductance that designers must consider:

  • Use low ESR film or ceramic caps rated for high-frequency response. Avoid electrolytes.
  • Check frequency characteristics on datasheets and derate accordingly.
  • Large loop areas create problematic parasitic inductance.
  • Minimize trace lengths and ground return paths.
  • Smaller case sizes have lower ESL. Chip caps are better than lead.
  • Distance between capacitor pads affects resonant frequency.
  • Simulate the circuit with capacitor S-parameter models if available.
  • Test for frequency-dependent issues like ringing during prototyping.
  • Low ESR film caps may be needed for filtering high-frequency power rail noise.
  • Characterize capacitor impedance if operating near the self-resonant frequency.

Understanding and planning for capacitor non-idealities ensures stable operation in high-frequency PCBs.



Troubleshooting Capacitor Issues

Defective or damaged capacitors exhibit standard failure modes to watch out for:

Short circuit – Low resistance indicates internal short. Replace caps with shallow resistance readings.

Open circuit – No continuity or very high resistance denotes an internal open. The capacitor is no longer functioning.

Bulging or leaking – Fluid seepage in electrolytic caps signals the end of life. Dry out and cracking also occur. Replace immediately.

Overheating – Excessive ESR and ripple current overheats caps. Use higher ripple current-rated parts.

Low capacitance – Out of spec. Capacitance indicates worn-out capacitor dielectric. Substitute new components.

High leakage – Excessive discharged voltage when unpowered denotes leaking dielectric. Isolate and replace leaky caps.

Capacitors experiencing these standard failure modes must be replaced for reliable circuit operation.



Proper Handling of PCB Capacitors

Mishandling PCB capacitors during board assembly and service can result in damage or injury. Follow these guidelines for safe installation and usage:

  • Use anti-static mats and wrist straps when handling capacitors prone to ESD damage.
  • Do not exceed maximum voltage ratings, which can cause electrical shorts. Use proper test instruments.
  • Ensure correct polarity orientation for polarized capacitors to avoid explosions. Double-check markings before soldering.
  • Apply proper soldering temperatures, as excessive heat can crack ceramic caps or boil electrolytes.
  • Prevent mechanical stressing of leads, which can detach internal connections.
  • Avoid puncturing capacitor bodies or damaging their protective seals.
  • Only make soldered repairs after fully discharging stored energy. Use bleeder resistor circuits where applicable.
  • Handle larger damaged or bulging capacitors with extreme care. Explosive failures are possible.
  • Follow manufacturer instructions for proper storage, transportation, and installation.
  • Adhere to safety protocols, including personal protective equipment for hazardous voltages.

In summary, always exercise great care when working with charged PCB capacitors. Follow guidelines from the manufacturer datasheets for safe handling during all use phases.



Conclusion

Capacitors provide vital functions in all printed circuit board applications. They stabilize power delivery, filter signals, decouple noise, and store charge for electronic systems.

This guide examined PCB capacitor fundamentals, types, selection factors, handling considerations, and frequently asked questions.

The information presented will assist PCB designers and engineers in choosing and apply capacitors for optimal circuit performance.

In summary, key points covered include:

  • PCB capacitors store energy electrostatically between conducting plates separated by a dielectric.
  • Major capacitor types each offer distinct characteristics for different applications and operating conditions.
  • Correctly rating voltage, capacitance, tolerance, temperature range, ESR, and lifetime prevents field failures.
  • Proper capacitor selection, placement, and handling protect PCBs and ensure stable functioning.
  • Bypass and decoupling capacitors require careful design and quality components for clean IC power delivery.

With this comprehensive overview of PCB capacitor technology, you can now optimize selection and usage in your circuits for success.



Frequently Asked Questions (FAQs)

How do you test PCB capacitors?

Use a multimeter set to measure capacitance to confirm the capacitance value. An LCR meter provides more extensive testing of leakage current and ESR. For in-circuit testing, use voltage measurements across the capacitor to check for shorts or excessive leakage when disconnected from the power source.

How are capacitors rated on PCBs?

Significant ratings include working voltage, capacitance value, tolerance, temperature range, ESR, and rated lifetime hours. These specifications determine suitability for the expected operating conditions and circuit requirements.

Why decoupling capacitors are used on PCBs?

Decoupling caps filter noise between IC power pins and ground. They smooth current flow, preventing voltage drops when circuit loads change. Proper decoupling is essential for stable IC operation.

How much capacitance is needed for bypassing ICs?

A 0.1 μF ceramic cap often suffices for bypassing each IC power pin. If needed, electrolytic caps from 10 μF up may be added for heavier bulk bypassing. The values depend on the IC supply current and susceptibility to noise.

How does capacitor placement affect performance?

Minimize loop area by placing bypass caps as close as possible to supply pins to reduce parasitic inductance. Ensure ground plane connections are short and direct. Follow any placement guidelines on the PCB schematic.

Ready to bring your PCB designs to life?

Contact MorePCB today and experience top-quality manufacturing,

quick turnaround times, and exceptional customer service.

Contact us to request a quote and start your next project!

Tag:

Still, need help? Contact Us: sales@morepcb.com

Leave a Comment

Your email address will not be published. Required fields are marked *

Read More

Recommended Article

zero pcb board

What is Zero PCB Board?

Introduction to Zero PCB Board A zero PCB (printed circuit board) refers to a type of board used in electronics that does not have any

PCB Silkscreen Marking

PCB Silkscreen – Your Complete Guide

Introduction You already know that all electronic devices consist of a circuit board. PCBs, or printed circuit boards, are an integral part of today’s electronics.

Scroll to Top

Get Free Quote

 We will answer you shortly! ( Able to send attachment )

Skype

WhatsApp

Wechat

thank-you-warmed-heart-Transparent

Thanks For Contacting Us!​

We’re so glad you’re here!
We will get you back soon.
