PCB Buttons: Tactile Feedback and Capacitive Touch Switches



Introduction

Printed Circuit Board (PCB) buttons, commonly known as membrane switches, are versatile input devices widely used in various electronic applications. These buttons serve as critical components for user interface interaction, offering a reliable and cost-effective solution for incorporating tactile input into electronic devices. This article explores the functionality, types, design considerations, materials, manufacturing processes, customizations, and applications of PCB buttons, shedding light on their significance in modern technology.

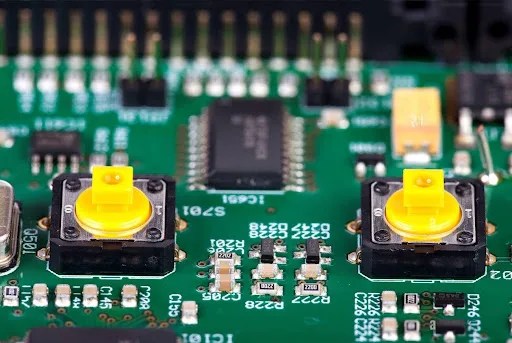

PCB Buttons
PCB Buttons



Functionality of PCB Button

PCB buttons consist of a thin, flexible layer of conductive material printed on a polyester or polycarbonate substrate. These buttons are designed with a specific pattern of conductive traces, forming a matrix that defines the buttons’ locations. When the user presses a button, the top and bottom layers of the membrane come into contact, creating an electrical connection and registering the key press.

The tactile response is a crucial aspect of the PCB button, ensuring that users receive feedback upon pressing a button. Manufacturers achieve this tactile feedback through various means, such as using metal domes, embossing the membrane, or incorporating poly domes that produce a distinct click or tactile sensation. The design of the PCB button determines the actuation force, travel distance, and tactile feel, which are tailored to meet the specific requirements of the application.



Types of PCB Button

Tactile PCB Button

Tactile buttons are the most commonly used PCB button and are designed to provide noticeable tactile feedback when pressed. They often incorporate metal domes or poly domes beneath the top membrane layer. When the button is pressed, the dome collapses, creating a click or tactile sensation, indicating successful actuation. These buttons are popular in applications where users need to feel a confirmation of their input.

Tactile Push Button
Tactile Push Button



Non-Tactile PCB Button

Non-tactile PCB buttons, also known as flat buttons, do not offer the same tactile feedback as tactile buttons. They have a smoother and more uniform surface without any domes or additional features. When pressed, these buttons make contact through a membrane switch but lack a distinct tactile sensation. Non-tactile buttons are often used in applications where a softer, quieter touch is preferred.

Non-Tactile PCB Buttons
Non-Tactile PCB Buttons



Capacitive Touch PCB Buttons

Capacitive touch buttons rely on changes in capacitance to detect touch input. They do not have any physical moving parts and instead use a touch-sensitive sensor to detect the user’s finger. When the user’s finger comes in contact with the button area, it alters the capacitance, triggering the button’s function. Capacitive touch buttons are popular in modern smartphones, tablets, and other touch-enabled devices.

Capacitive Touch Buttons Screen
Capacitive Touch Buttons Screen

LED Backlit PCB Buttons

LED-backlit PCB buttons incorporate transparent or translucent materials, allowing the integration of LEDs beneath the buttons. When activated, the LEDs illuminate the buttons, making them visible in low-light conditions or providing an aesthetically appealing design. LED backlit PCB buttons are commonly used in gaming peripherals, automotive dashboards, and home automation systems.

LED Backlit PCB Buttons
LED Backlit PCB Buttons



Sealed PCB Buttons

Sealed PCB buttons are designed to be water-resistant or waterproof, making them suitable for applications where environmental protection is critical. These buttons use additional sealing methods to protect the internal circuitry from moisture, dust, and other contaminants. They are commonly found in outdoor equipment, medical devices, and industrial control panels.

Elastomeric PCB Buttons

Elastomeric buttons use elastomer materials (rubber-like substances) to provide a soft and comfortable touch when pressed. These buttons offer a unique tactile feel and are often used in remote controls, handheld devices, and other applications where comfort is essential.

Metal Dome PCB Buttons

Metal dome PCB buttons incorporate small metal domes, typically made of stainless steel, which provide a crisp tactile response and a distinct clicking sensation when pressed. These buttons are highly durable and often used in applications where robust tactile feedback is required.



Design Considerations for PCB Buttons

Material Selection

The choice of materials is essential to ensure the durability and longevity of the PCB button. Polyester and polycarbonate are commonly used as substrates due to their flexibility and resistance to environmental factors like moisture, chemicals, and UV exposure. The conductive traces are often made of silver, copper, or carbon, providing excellent conductivity.

Circuit Layout

Designing the matrix of conductive traces requires careful consideration to prevent accidental button presses and ensure reliable operation. Proper isolation and separation between traces are essential to prevent ghosting or unintended input.

Tactile Feedback

Depending on the application and user preference, designers can opt for different tactile feedback mechanisms. Metal domes provide a crisp tactile response, whereas poly domes offer a softer feel. Embossing the membrane adds a tactile sensation without additional components.

Backlighting

For applications that require low-light or nighttime usage, designers can incorporate backlighting features into the PCB button. Transparent or translucent materials enable the integration of LEDs to illuminate the buttons, enhancing the user experience.

Customization

PCB button can be customized with various graphic overlays, colors, and designs to match the aesthetics and branding requirements of the device or equipment. This allows manufacturers to tailor the buttons’ appearance to suit the specific application and enhance user appeal.



Manufacturing Processes for PCB Button

The manufacturing process of PCB buttons involves several steps, each contributing to the final product’s performance and durability:

Printing Conductive Traces

The first step involves printing the conductive traces onto the substrate using methods such as screen printing or digital printing. These traces form the matrix that defines the button locations.

Adding Tactile Elements

If tactile feedback is desired, manufacturers add metal domes, poly domes, or embossed features during the assembly process. Metal domes are placed over the contact points of each button, while poly domes are integrated into the top membrane layer.

Overlay Printing

The graphic overlay is printed with button labels, icons, and any required graphics. It is typically printed on a separate layer and then placed over the conductive traces.

Lamination

The different layers, including the substrate, conductive traces, tactile elements, and overlay, are then laminated together to form a complete PCB button assembly.

Cutting and Finishing

The assembled PCB button is then cut into individual button units, and any finishing touches are added, such as adding adhesive backing or sealing the edges.

Materials Used in PCB Buttons

PCB buttons are constructed using several materials, each chosen for its specific properties and functionality:

Substrate Materials

The substrate is the base layer of the PCB button and is typically made of polyester or polycarbonate. These materials offer flexibility and durability while protecting the underlying circuitry.

Conductive Traces

The conductive traces are essential for creating electrical connections between the button’s top and bottom layers. Common materials for conductive traces include silver, copper, and carbon, providing good electrical conductivity.

Tactile Elements

For tactile feedback, manufacturers use different elements, such as metal domes, poly domes, or embossing techniques. Metal domes are made of stainless steel, and poly domes are typically made of polyester.

Overlay Materials

Graphic overlays are used to display button labels and icons. They are made from materials like polycarbonate or polyester with printed graphics and may include transparent windows for backlighting.



Customization Options for PCB Button

Manufacturers offer various customization options for PCB buttons, allowing designers to tailor the buttons to the specific needs of the application:

Color and Graphics

The graphic overlay can be customized with different colors, patterns, and icons to match the product’s branding and aesthetics.

Backlighting

LED backlighting can be customized to provide various lighting effects, enhancing the visibility and visual appeal of the buttons.

Size and Shape

PCB buttons can be manufactured in different sizes and shapes to fit specific product designs and user requirements.

Integration with Other Components

PCB buttons can be integrated with other components, such as displays, touchpads, or rotary switches, to create multifunctional user interfaces.



Applications of PCB Buttons

PCB buttons find application in a wide range of industries and electronic devices due to their compact design, ease of integration, and cost-effectiveness. Some common applications include:

Consumer Electronics

PCB buttons are commonly used in remote controls, gaming controllers, microwave panels, television control panels, and other household appliances.

Remote for TV
Remote for TV

Industrial Equipment

Industrial machinery and equipment often use PCB buttons in control panels, allowing operators to interact with complex systems efficiently.

Medical Devices

In medical equipment, such as infusion pumps, patient monitors, and diagnostic devices, PCB buttons provide a reliable and sterile input method.

Automotive

In modern vehicles, the PCB button controls various functions, such as audio systems, climate control, and infotainment interfaces.

Home Automation

PCB buttons play a crucial role in smart home devices, allowing users to control lighting, thermostats, and security systems.

Aerospace and Defense

PCB buttons are used in avionics, military equipment, and communication systems for precise control and reliable operation.



Conclusion

PCB buttons are essential components in numerous electronic devices, providing a user-friendly and reliable interface for human-machine interaction. With their versatility, cost-effectiveness, and ease of integration, these buttons continue to shape the way we interact with technology in various sectors. As technology advances, PCB buttons will likely evolve further, offering even more sophisticated tactile feedback and user experiences for a wide range of applications. Manufacturers and designers will continue to explore innovative materials, manufacturing processes, customizations, and designs, enhancing the functionality and user experience of PCB buttons across diverse industries. As a fundamental element in modern electronics, the PCB button will undoubtedly remain a crucial component in the evolution of technology and user interface design, driving advancements in human-machine interaction in the years to come.
