MCPCB (Metal Core PCB) – A Comprehensive Guide to Understanding

Introduction:

MCPCB (Metal Core PCB) is a type of printed circuit board (PCB) that is used in applications that require high thermal conductivity, such as high-power LED lighting, power electronics, and automotive electronics.

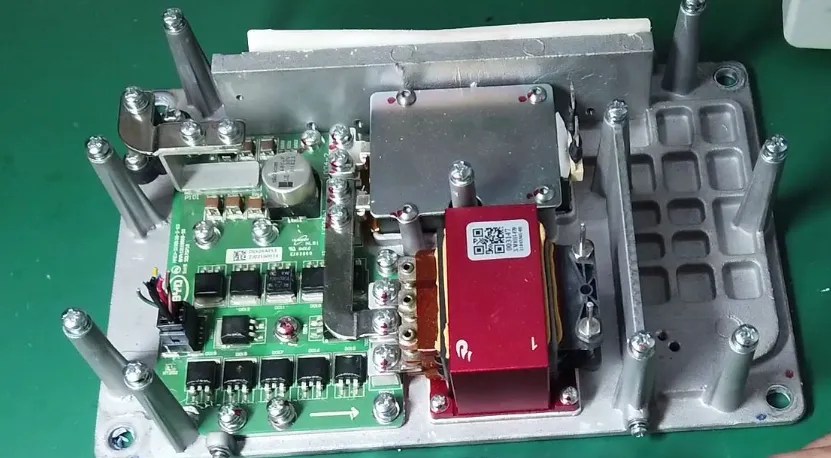

Metal Core PCB for MPU

Metal Core PCB for MPU

Thermal conductivity is the property of a material that describes its ability to conduct heat. MCPCB is designed with a metal core, typically of materials such as aluminum, copper, or a combination of the two. The metal core acts as a heat sink that dissipates the heat generated by the electronic components on the board, preventing overheating and damage to the components.

Traditional PCBs are made with a non-conductive substrate, such as a fiberglass-reinforced epoxy resin (FR4). This means that traditional PCBs cannot efficiently dissipate heat, limiting their use in applications requiring high power and thermal management. MCPCB is essential for such applications, as they offer several advantages over traditional PCB, such as

  • Better thermal management
  • Higher mechanical stability
  • Improved electrical performance.
  • Better reliability and a longer lifespan for electronic devices

These advantages make them an essential component of modern electronics manufacturing.



What is MCPCB?

Metal core printed circuit boards (MCPCB) are a type of printed circuit board that has a metal core layer sandwiched between a layer of dielectric material and a layer of copper trace circuitry. The metal core in MCPCB acts as a heat sink, providing a highly efficient pathway for heat dissipation, which makes them ideal for high-power and high-temperature applications.

In comparison to traditional FR4 PCB, MCPCB has a higher thermal conductivity and mechanical stability. The metal core in MCPCB provides better heat dissipation compared to FR4 PCB, which is made of non-conductive substrates such as fiberglass-reinforced epoxy resin. This allows MCPCB to handle higher power loads without overheating, making them ideal for applications such as automotive electronics, power supplies, and high-power LED lighting.

MCPCB is available in various types based on the type of metalcore used. Aluminum MCPCB is widely used due to its low cost, lightweight, and good thermal conductivity. Copper MCPCB offers higher thermal conductivity compared to aluminum, but is more expensive and heavier. Other types of metal cores used in MCPCB include steel, nickel, and tungsten.

Basic Structure of MCPCB

Basic Structure of MCPCB

Aluminum Core MCPCB

An Aluminum Core MCPCB is a type of metal core printed circuit board that has an aluminum core layer sandwiched between a layer of dielectric material and a layer of copper trace circuitry.

Aluminum Core MCPCB is widely used in high-power LED lighting applications as it offers superior thermal management compared to traditional FR4 PCB. The aluminum core has a high thermal conductivity, which allows it to efficiently transfer heat away from the LED chips, ensuring their longevity and stable performance.

The advantages of Aluminum Core MCPCB include:

Excellent thermal conductivity

The aluminum core in MCPCB provides a highly efficient pathway for heat dissipation, which allows them to handle higher power loads without overheating.

Lightweight

Aluminum is a lightweight material, which makes Aluminum Core MCPCB ideal for applications that require weight reduction such as LED lighting in automotive and aerospace applications.

Cost-effective

Aluminum is less expensive than copper, which makes Aluminum Core MCPCB a cost-effective alternative to copper-core MCPCB for applications that do not require the highest thermal conductivity.

Ease of manufacturing

Aluminum Core MCPCB is easy to manufacture using standard PCB manufacturing processes, which makes them more readily available compared to other types of MCPCB.

Aluminum Core MCPCB is a type of metal-core printed circuit board that offers superior thermal management, lightweight construction, cost-effectiveness, and ease of manufacturing. They are widely used in high-power LED lighting and applications such as automotive, aerospace, and architectural lighting where efficient heat dissipation and less weight are critical to ensuring reliable and stable performance.

Copper Core PCB

A Copper Core PCB (CCPCB) is a type of metal core printed circuit board that has a copper core layer sandwiched between a layer of dielectric material and a layer of copper trace circuitry.

Compared to Aluminum Core PCB (ACPCB), Copper Core PCB has a higher thermal conductivity, which makes it more efficient at dissipating heat from high-power components. Copper has a thermal conductivity of about three times higher than aluminum, allowing CCPCB to handle higher power loads without overheating.

In addition to their higher thermal conductivity, Copper Core PCB offer several other advantages over Aluminum Core PCB:

Better electrical conductivity

Copper is a better conductor of electricity than aluminum, which means that CCPCB has lower electrical resistance and can transmit electrical signals with greater efficiency.

Higher mechanical strength

Copper is more potent than aluminum, which makes CCPCB more mechanically stable and resistant to deformation or cracking during thermal cycling.

Better electromagnetic shielding

Copper is a better electromagnetic shield compared to aluminum, which makes CCPCB ideal for applications that require high electromagnetic interference (EMI) protection.

However, Copper Core PCB also has some drawbacks when compared to Aluminum Core PCB, including:

Heavier weight

Copper is denser than aluminum, which means that CCPCB are heavier and may not be suitable for weight-sensitive applications.

Higher cost

Copper is more expensive than aluminum, which makes CCPCB more expensive to manufacture compared to ACPCB.

Difficult to manufacture

The manufacturing process for CCPCB is more complex compared to ACPCB, which makes them less readily available and more difficult to manufacture.

Copper Core PCB offer better thermal conductivity, electrical conductivity, mechanical strength, and EMI protection compared to Aluminum Core PCB. However, they are also heavier, more expensive, and more difficult to manufacture. The choice between Aluminum Core PCB and Copper Core PCB will depend on the specific requirements of the application, such as power level, weight, cost, and EMI protection.



Applications of MCPCB (Metal Core PCB)

MCPCB is widely used in various industries that require high-power applications and efficient heat dissipation. Some of the industries where MCPCB is commonly used include:

LED lighting

MCPCB is widely used in high-power LED lighting applications such as streetlights, automotive lighting, and architectural lighting. They help to efficiently dissipate heat generated by LED chips, ensuring their longevity and stable performance. These lights are present in almost all LED lighting sources currently in manufacturing.



MCPCB LED LIGHT

MCPCB LED LIGHT

Automotive

MCPCB is used in automotive applications such as powertrain control units, electronic fuel injection systems, and lighting systems. They help to improve the reliability and performance of these systems, especially in high-temperature environments.



Aerospace

MCPCB is used in aerospace applications such as avionics, satellite, and communication systems. They help to improve the thermal management of these systems and ensure their reliable operation in extreme temperature and vibration conditions.

MCPCB for high speed MPU

MCPCB for high speed MPU



Power Electronics

MCPCB is used in power electronics applications such as motor drives, inverters, and power supplies. They help improve the thermal performance and efficiency of these systems, increasing their lifespan and reducing energy consumption.



Factors Affecting MCPCB Design

Designing an MCPCB involves several factors that need to be carefully considered to ensure optimal performance and reliability. Some of the critical factors that must be taken into account during the design process include:

Thermal conductivity

One of the primary factors to consider when designing an MCPCB is the thermal conductivity of the core material. The thermal conductivity of the core material determines how efficiently heat can be dissipated from high-power components mounted on the board. The choice of core material and thickness will depend on the specific power requirements and thermal management needs of the application.

Dielectric constant

The dielectric constant of the insulation material between the core and copper layers also plays an important role in the performance of the MCPCB. A higher dielectric constant will result in a larger capacitance and slower signal transmission, while a lower dielectric constant will result in a smaller capacitance and faster signal transmission. The choice of insulation material and thickness will depend on the specific signal transmission requirements of the application.

Trace width and spacing

The width and spacing of the copper traces on the MCPCB must be carefully designed to ensure optimal electrical performance and reliability. The width and spacing of the traces will depend on the specific current-carrying capacity and voltage requirements of the application.

Solder mask and silkscreen

The solder mask and silkscreen layers on the MCPCB are essential for protecting the copper traces and providing visual identification of the components. The choice of solder mask and silkscreen colors, patterns, and thickness will depend on the specific aesthetic and functional requirements of the application.

Mechanical stability

The MCPCB must be designed to withstand mechanical stress and environmental factors such as vibration, shock, and temperature fluctuations. The choice of core material, thickness, and mounting methods will depend on the specific mechanical stability requirements of the application.

The design of an MCPCB requires careful consideration of various factors to ensure optimal performance, reliability, and durability. Working with experienced MCPCB manufacturers and design engineers can help ensure that the design meets the specific requirements of the application and delivers optimal performance.



Fabrication of MCPCB (Metal Core PCB)

The fabrication process of MCPCB is similar to that of traditional PCB, but with some additional steps due to the metal core. The following are the steps involved in the fabrication  :

Material selection

The first step in the fabrication process is to select the appropriate materials for the MCPCB based on the specific application requirements. The selection of the metal core, insulation layer, and copper foil will depend on the required thermal conductivity, dielectric constant, and mechanical properties.

Drilling

The metal core is drilled with holes for component placement and routing. The drilling is typically done using computer-controlled drilling machines to ensure accuracy and consistency.

Copper deposition

A thin layer of copper is deposited on both sides of the metal core using an electroplating process. The thickness of the copper layer will depend on the specific application requirements.

Photoresist application

A layer of photoresist is applied to the copper layers, which are then exposed to UV light through a photomask to create the desired copper trace pattern.

Etching

The copper layers are etched away in areas not covered by the photoresist, leaving behind the desired copper trace pattern.

Insulation layer lamination

An insulation layer, typically made of a high-temperature polymer, is laminated onto both sides of the metal core, covering the copper traces.

Solder mask application

A layer of solder mask is applied to both sides of the MCPCB, leaving openings for component placement and soldering.

Surface finish application

A final layer of surface finish, typically a layer of metallic or organic material, is applied to the exposed copper traces to protect them from oxidation and other environmental factors.

Testing and inspection

The finished MCPCB is tested and inspected for quality, including electrical conductivity, thermal conductivity, and mechanical stability.

The fabrication process of MCPCB is more complex than traditional PCB due to the metal core, but with careful design and manufacturing processes, it can offer superior thermal management and performance for high-power electronic applications.



Conclusion

In conclusion, Metal Core PCB (MCPCB) are specialized circuit boards designed to improve thermal management and provide high performance for electronic applications. MCPCB consists of a metal core, an insulation layer, and copper traces for electronic component placement and routing. They are designed to dissipate heat more efficiently than traditional FR4 PCB, making them ideal for high-power applications such as LED lighting, automotive electronics, and power supplies.

The thermal conductivity, dielectric constant, trace width and spacing, solder mask and silkscreen layers, and mechanical stability are some of the critical factors that need to be carefully considered when designing MCPCB. Furthermore, the fabrication process of MCPCB involves several additional steps compared to traditional PCB due to the metal core.

Although MCPCB offers several advantages over traditional PCB, including improved thermal management, electrical performance, and mechanical stability, they also have some drawbacks. For instance, MCPCB is typically more expensive to manufacture than traditional PCB, and the selection of the metal core material can affect the overall thermal conductivity and mechanical stability of the board.

To achieve optimal performance and reliability, it is crucial to work with experienced MCPCB manufacturers and design engineers who can provide customized solutions tailored to specific application requirements. Furthermore, continuous research and development in the field of MCPCB is necessary to improve their thermal management and electrical performance while reducing their manufacturing costs.

In summary, MCPCB is a critical component of modern electronic devices, and their unique design and fabrication process make them ideal for applications requiring high performance and efficient thermal management. With careful design and manufacturing processes, MCPCB can continue to offer superior performance and reliability for various electronic applications.
