Illuminating Innovation: A Comprehensive Guide to LED Metal Core PCB

Introduction to LED Metal Core PCB

Utilizing LED Metal Core Printed Circuit Boards (PCB) is paramount in present day electronic circuitry. To ensure this technology runs optimally, a thorough understanding of its features is essential.

Below is a summary of the components, properties, and advantages:

Components:

  • Substrate
  • Copper Trace Layer
  • Solder Mask and Silkscreen Layer
  • Thermal Interface Material (TIM)

Properties:

  • High Thermal Conductivity
  • Low Thermal Resistance
  • Low Thermal Expansion Coefficient
  • Durable finish
  • Excellent Heat Resistance
  • Insulation properties

The LED metal core PCB effectively dissipates heat. This allows them to be used in high-luminosity lighting products, including headlamps, backlighting units of LCD displays, automotive lighting equipment, and streetlights.

Moreover, LED Metal Core PCBs have minimal thermal expansion in comparison to traditional FR-4 boards, thus resulting in minimal or no deformation.

This advanced technology can be traced back to 2008. Since then, scientists have been researching and developing ways to improve the thermal characteristics of LEDs. This has culminated in the present-day solution that reduces temperature output from lighting fixtures.

LED Metal Core PCBs: Letting your LEDs shine brighter than your ex’s new flame!

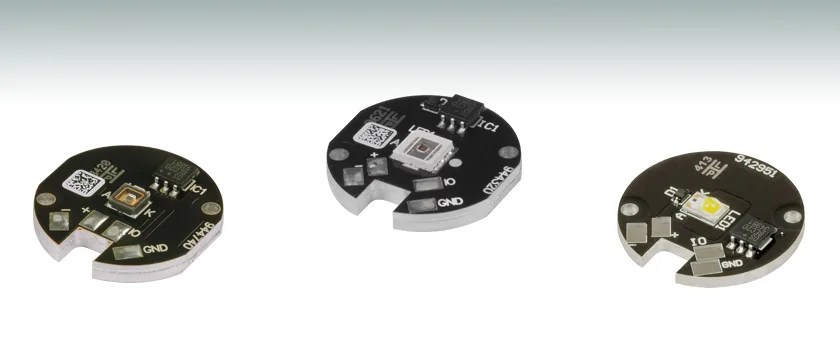

LED Metal Core PCB

Advantages of LED Metal Core PCB

To understand the advantages of LED Metal Core PCB in illuminating innovation, you need to know its benefits. Better heat dissipation, increased reliability, and enhanced performance are three sub-sections that help in making the LED Metal Core PCB stand out for its superior quality.

Better heat dissipation

LED Metal Core PCBs offer a major advantage: better heat dissipation! This is thanks to their metal core, which allows for enhanced thermal conductivity and distribution. Plus, it transfers heat away from delicate components, protecting them and extending the PCB’s lifespan.

LED Metal Core PCBs are perfect for high-power applications. Industries like automotive engineering, aerospace, and military all benefit from their superior thermal management. The metal core material can be aluminum, copper, or steel, depending on the needs. Copper cores are renowned for their thermal conductivity and aluminum cores are lightweight.

Using LED Metal Core PCBs boosts product performance and life. Plus, it reduces maintenance costs by reducing the impact of heat. Grand View Research Inc. found that in 2019, the global LED lighting market size was valued at $54.25 billion. From 2020 to 2027, they predict a CAGR of 9.4%, indicating growing demand for LED PCB boards worldwide. So, choose LED Metal Core PCBs for reliable results!

Increased reliability

LED Metal Core PCBs boast exceptional qualities that make them superior to traditional PCBs. These PCBs boast increased dependability, thanks to their superior heat dissipation capabilities. What’s more, they can handle higher operating temperatures without performance degradation or reduced longevity.

The metal core of these PCBs also has a high thermal conductivity, allowing for more power output and a reduced risk of overheating or failure. Plus, LED Metal Core PCBs are made from non-toxic materials, making them safe, eco-friendly and recyclable.

Designers should consider incorporating voltage regulation into their circuits, to ensure even voltage outputs while operating. Additionally, limiting current application at maximum temperature limits can help reduce heating-related damage, ensuring maximal lifespan for the device.

LED Metal Core PCBs: Light up your device, and your life!

Enhanced performance

LED Metal Core PCBs provide amazing circuit performance. They reduce temperature and offer thermal management, leading to high efficiency and stable functioning.

Heat dissipation is done quickly and evenly across the board surface. This helps avoid component damage and extends the life of electronics, increasing productivity and building customer trust.

These boards are great for many electronic devices, like automotive lighting, communication systems, climate control, ballasts, and power controllers. Manufacturers can improve their equipment without compromising quality.

Businesses also benefit from LED metal core PCBs. They reduce power consumption, making products eco-friendly. Plus, proper installation guidelines must be followed to optimize performance.

Upgrade your PCB! Go from bike to Harley with LED Metal Core PCBs.

Components of LED Metal Core PCB

To understand the key components of LED Metal Core PCB, dive into [section]: Components of LED Metal Core PCB with [sub-sections]. [Sub-section 1] talks about the metal core material which is crucial for heat dissipation. [Sub-section 2] focuses on the copper foil layer that provides conductivity, [Sub-section 3] deals with solder mask and silkscreen layer that insulates and protects the board, and [Sub-section 4] explains LED placement and routing.

Metal core material

The core material of LED Metal PCBs is vital for their effectiveness. Let’s discover what comprises this essential element.

Materials Thermal Conductivity (W/m.K)
Aluminum 1-10
Copper 8-20

As shown, materials have different thermal conductivities that influence the PCB’s heat dissipation. Aluminum and copper are widely used since they have high thermal conductivity, which moves heat away from the LEDs efficiently. Apart from thermal conductivity, factors like mechanical strength and cost must also be taken into account when choosing a metal core material. An ideal balance among these attributes results in an effective LED PCB with optimal performance.

It’s important to note that different types of LEDs require specific metal core materials that fit their needs. Doing proper research and consulting experts is key to selecting suitable materials for the best performance. To sum up, selecting the right metal core material is essential for designing efficient LED Metal Core PCBs. Don’t let wrong choices limit your LED designs’ potential; consult professionals now! Plus, copper foil on an LED Metal Core PCB is a sight to behold!

Copper foil layer

The Metal Core PCB has an essential component: a thin sheet of copper laminated to it. This layer is the primary means of electrical conduction between components. It ensures that the circuit has enough current without overheating. The table below outlines the key aspects of the Metal Core PCB copper foil layer.

Composition Thickness Conductivity Thermal Conductivity
Thin sheet copper lamina Varies Excellent Superior

Copper is the most common material for this layer due to its cost-effectiveness. Plus, modern manufacturing technology allows for customizing the thickness. Two leading producers of Metal Core PCBs are Kingbright Electronic Co Ltd (Hong Kong) and Rogers Corporation (Taiwan).

No need for a superhero – the solder mask and silkscreen layer are here to protect your LED metal core PCB!

Solder mask and silkscreen layer

LED Metal Core PCBs have a critical protection layer to prevent damage. This includes the Solder Mask and Silkscreen Layer, each with their own functions.

Solder Mask acts as insulation, covering copper traces and protecting from short circuits. It also protects the copper from oxidation or contaminants. It is applied with epoxy, polyimide, or solder-resist ink.

Silkscreen Layer identifies components on the PCB and also helps in PCB assembly and troubleshooting.

‘PCB Universe’ suggests coating copper traces with Solder Mask for better connectivity.

PCB design is essential for reliable electronics. Knowing the features and functions of Solder Masks and Silkscreen Layers helps create better designs. LED placement and routing is just as important as finding your way to the nearest bar!

LED placement and routing

LED component placement and network creation are important for Metal Core PCBs. Positioning LEDs affects illumination intensity and distribution. Routing sets pathways for data transmission and power supply with conductor traces. Good LED setup ensures balance from each component, without overheating or overpowering.

The table below shows the essential parameters for LED placement and routing:

Parameter Description
Pad Diameter Metallic pad diameter for mounting LED
Thermal Resistance Calculated using junction-to-case thermal resistance factor (Rθ JC)
Trace Width Width of the conductive path connecting components
Trace Spacing Distance between two conductor lines

Routing techniques include linear, meandering, mixed, and scatter methods. It depends on design requirements.

PCB fabrication must be done right. Soldering should be good and solder joints not over-stressed. Otherwise, LED placement or connections can lead to circuit issues under changing conditions.

For example, a top mobile manufacturer had to recall its flagship model due to malfunctioning after a few months. Poor LED placement caused wire erosion, leading to critical part failures. Now, manufacturers check their products rigorously for reliability and longevity.

Make your PCB shine with metal and light up your life! It’s like Iron Man for your LED lights.

LED Metal Core PCB

Design Considerations for LED Metal Core PCB

To design an efficient and effective LED metal core PCB, you need to consider various factors. In order to tackle the design considerations for LED metal core PCB with sub-sections like Thermal management, Trace width and spacing, Node placement, and LED arrangement and orientation, you need to have a clear understanding of each aspect’s significance. So, let’s dive deeper into each sub-section to understand their crucial role in the overall design of the LED metal core PCB.

Thermal management

For optimal temperature control of LED metal core PCBs, heat management is key. Heat sinks and thermal vias are commonly used to move heat away from the PCB. Heat sinks need to be created with a suitable surface area and thermal resistance, while thermal vias should be placed near high-power components.

Plus, factors like airflow and ambient temperature should be taken into account when constructing LED metal core PCBs.

One team had a hard time keeping LED temperatures stable during a lighting system project in an outdoor setting. They examined their design needs and saw that thermal profiles changed drastically under outdoor conditions, which caused unpredictable performance. So they made changes to their designs for safer and more reliable operation in various environmental conditions.

Also, it’s important to properly space out your traces on the PCB – unless you want to make some new kind of metal music!

Trace width and spacing

Heat dissipation is key for LED metal core PCBs. Trace widths and spacings must be chosen carefully. This affects the current-carrying capacity. See the below table for some values.

Trace Width (mil) Spacing (mil)
5 5
6 7
7 8

When selecting trace widths and spacings, consider operating temperature, total power dissipation, performance level, and board environment. Recently, narrow traces and tight spacing were used in LED strip lighting fixtures. But this caused excessive heat build-up, resulting in prototype failure. We must take trace width and spacing even more seriously to avoid such risks in the future. Who knows what the future of node placement holds on a LED Metal Core PCB?

Node placement

Node placement is essential to create an effective LED metal core PCB design. A table with columns for layout, heat dissipation, voltage drop, and current capacity can help designers plan.

They must consider size, positioning, and the environment. Space between components is vital to prevent thermal runaway and mechanical stress.

A case study showed that errors in node placement caused a LED PCB module to fail prematurely, leading to significant losses for the manufacturer.

Don’t let diodes dictate the positive direction – experiment with creative arrangements and orientations for a truly illuminating design!

LED arrangement and orientation

Designing a Metal Core PCB for LEDs requires careful consideration of LED diode positioning and alignment. A wise structure of the LED table with columns such as Type, Quantity, Positioning, Orientation, and Current Rating can help to find the best combination for optimal performance.

Also, spacing between LEDs needs to be taken into account. Heat buildup due to incorrect spacing can cause the board to overheat, leading to failure and reduced lifespan.

An engineer once didn’t pay enough attention to LED arrangement and layout – the resulting board had shorter lifespan and lower efficiency than expected. It’s like cooking a steak – the heat distribution is the key!

Fabrication Process of LED Metal Core PCB

To understand the LED Metal Core PCB fabrication process with drilling and routing, etching and plating, solder mask application and curing, and silkscreen printing as solutions, we have broken down the section further. These sub-sections are integral parts of the metal core PCB manufacturing process that helps improve the functionality, durability, and cost-effectiveness of the final product.

Drilling and routing

The metal core PCB fabrication process requires drilling and routing. This is key to the product’s quality. Here’s a 5-step guide:

  1. Use a drill to make holes in the board.
  2. Plate the holes with conductive material, like copper, for electrical connections.
  3. Use CNC routing machines and software to cut out shapes and patterns.
  4. Make sure the drilled holes and routed edges don’t have any deformities or burrs.
  5. Clean the board after all drilling and routing.

Every hole must match the positions for surface-mount components. Pro Tip: Follow manufacturer drill bit size recommendations for best results. And, don’t forget the old saying about etching and plating: it’s like watching paint dry – but with more toxic chemicals!

Etching and plating

We begin the Corrosion and Plating stage after designing and tracing the LED Metal Core PCB. To give you an idea, here’s a summary:

Process Purpose
Etching Remove extra copper while keeping pathways
Activation Prepares surface for bonding with other materials
Electroless Plating Deposits layer of metal on non-conductive surfaces
Electroplating Adds extra copper plating for conduction

Etching removes unnecessary copper. Activation makes it easy for copper to bond with other materials. Electroless Plating adds an even layer of metal. Electroplating adds extra copper plating.

At a manufacturing plant, I saw how important it is to keep uniformity during plating. Otherwise, there could be short circuits or resistivity issues, leading to device failure. Their slogan was “Consistency in every batch” – a testament to their quality control.

For a successful solder mask application and curing, make sure to secure components properly on the LED Metal Core PCB.

Solder mask application and curing

To make your LED Metal Core PCB stand out, solder mask application and curing is key! This process involves covering the board with a protective material that stops solder bridging and oxidation, while also making it easier to identify components. Here’s a five-step guide for solder mask application and curing:

  1. Clean the board, then use screen printing to apply the solder mask material evenly.
  2. Let the board dry at room temperature or with hot air.
  3. Using UV light, partially cure the board. Leave some areas uncured for development.
  4. Use development to remove the uncured portion of the mask – voila! You have well-defined patterns on the board.
  5. Finally, cure the patterned board completely with an oven in a nitrogen atmosphere to avoid oxidation and warping.

It’s important to make sure there are no errors during this process, since they may cause irreparable damage. Plus, the materials you choose should be able to stick during high-temperature operations. When handling this procedure, remember to follow safety guidelines – it involves high temperatures and UV lights! So why stick to a plain PCB when you can make it unique with silkscreen printing? Your LED can now have its own custom t-shirt!

Silkscreen printing

The process of transferring ink onto the metal core PCB is known as the Ink Deposition Method. This is essential for labeling necessary identifications and icons on the board. Everything you need to know about Silkscreen Printing: Substrate conductivity should be insulating, ink type should be epoxy-based inks, and ink curing method should be UV curing method.

Silkscreening is an old-fashioned technique used to imprint markings on the PCB. The process involves choosing the parts that need to be marked, setting up a stencil, and moving ink across it. Once painted, the surface must be exposed to UV rays to harden the ink. However, be careful not to cover any solder pads while inking, because it could disrupt performance.

Pro Tip: No extra layers or masking tape when silkscreening on LED Boards. Inspecting LED Metal Core PCBs is an important task – no one enjoys doing it, but it is necessary for good results.

Testing and Inspection of LED Metal Core PCB

To ensure the quality of your LED metal core PCB (printed circuit board), it is crucial to conduct rigorous testing and inspection. With this section on ‘Testing and Inspection of LED Metal Core PCB,’ you will learn about the importance of electrical testing, the significance of visual inspection, and special testing techniques such as X-ray, ICT, and AOI. These sub-sections provide an effective solution to verify the functionality and reliability of your LED metal core PCB.

Electrical testing

Testing electrical components in LED metal core PCBs is an essential part of the manufacturing process. To ensure optimal performance and life expectancy, there are several tests that need to be carried out. These include:

  • Voltage tests
  • Continuity tests
  • Current leak tests
  • Isolation resistance measurements
  • Infrared thermography tests and more.

A table is provided to explain these tests more clearly. It includes details such as test name, execution method, acceptable limits and more.

Failing to do proper testing can lead to bad product quality and malfunctioning.

The technology has advanced, so newer methods for testing have been created. These offer greater accuracy and sensitivity. Previously, there were limited options for testing circuitry, making it hard to identify the cause of failure. With more research, better ways were developed, improving the testing industry’s efficiency and effectiveness.

Visual inspection

Examining LED Metal Core PCBs requires a visual inspection. This includes observing the circuit board’s surface and components. It helps identify any visible defects, like cracks, scratches, soldering, or layout issues that can affect performance.

The inspector must assess the visible attributes and verify if they meet the standards, requirements, and specifications. Any deviation could lead to malfunctions.

Testing and inspection are essential to ensure safety and optimal performance. Testing facilities can identify faults in advanced electronic components efficiently.

Industry best practices suggest routine examination at every stage of assembly, to reduce errors during production. Who needs Superman’s x-ray vision when specialized testing techniques for LED Metal Core PCBs exist?

Special testing techniques (X-ray, ICT, AOI)

Special testing and inspecting techniques for LED Metal Core PCBs include X-ray, In-Circuit Test (ICT), and Automated Optical Inspection (AOI).

The below table outlines their uses:

Testing Technique Use
X-ray Uncover hidden damage, such as cracks or voids in solder joints.
ICT Confirm component placement and circuit connectivity.
AOI Look for defects in components, such as missing parts or incorrect placement.

It is important to run these tests to guarantee the quality and dependability of the LED metal core PCB. Other specialized methods can also be used according to the project’s specific requirements.

Reports by Allied Market Research suggest that the global market for LED printed circuit boards is anticipated to grow at a CAGR of 9.6% from 2020 to 2027.

LED Metal Core PCBs: shedding light on inventive applications and leaving traditional circuit boards in the shadows.

Applications of LED Metal Core PCB

To highlight the varied uses of LED Metal Core PCB with emphasis on the relevant industry, the section on ‘Applications of LED Metal Core PCB’ with sub-sections like ‘Automotive industry, Lighting industry, and Consumer electronics’ is the perfect solution.

Automotive industry

LED Metal Core Printed Circuit Boards (MCPCBs) are revolutionizing the automotive industry. In headlights, brake lights, dashboard lights, and signal lights, they offer brighter illumination and longer lifespan. Plus, they are resistant to vibrations and mechanical shock, so your car’s lighting system lasts longer.

LED MCPCBs also help power electronics devices such as motor drives and battery management systems. This ensures consistent temperature regulation within electrical components, resulting in improved efficiency.

Adopting LED MCPCBs lets car manufacturers create high-performance lighting solutions and streamlined electronic designs. Consumers benefit, too, with dependable products that last longer. So, don’t miss out on this innovative technology – use LED MCPCBs for better performance and reliability in automotive components! Brighten up your life – get an LED MCPCB PCB today!

Lighting industry

The demand for quality lighting products keeps growing, so the industry is looking for creative solutions. LED Metal Core PCB technology is one such solution! It offers better heat dissipation, which extends product life and boosts performance. Plus, it’s versatile, coming in different sizes and shapes.

This technology can take complex designs, thought impossible before, and make them reality. To make the most of it, manufacturers should optimize their assembly process. Surface mounting and reflow soldering techniques can reduce costs, boost throughput, and increase efficiency!

Consumer electronics

For modern-day gadgets, cutting-edge tech is key. Smarter solutions and innovative systems let users enjoy a seamless experience on various digital devices.

A quick look at different models of Consumer Electronics (CE) shows they use LED Metal Core Printed Circuit Board (MCPCB) for improved performance and power management. These products include smartphones, tablets, gaming consoles, TVs, home automation systems, audio peripherals and CCTV cameras.

The table below explains the different applications of LED Metal Core PCB in Consumer electronics:

Application Description
Smartphone Reduce heat from high-end processors
Tablets Improve battery life and touchscreen sensitivity
Gaming Consoles Maintain efficient communication between CPU/GPU & memory components
Television Efficient power management for better color accuracy and contrast ratios
Home Automation Dimmable light fixtures with improved Lumen output
Audio Peripherals Lower system noise by blocking EMI/RFI interference
CCTV Cameras Reduce thermal stress on optics/detection sensors; Complement Night Vision tech

LED MCPCBs provide optimal performance and versatility, plus lots of customization options for designers to tailor solutions to project needs. The future of LED Metal Core PCB looks bright!

Future of LED Metal Core PCB

To illuminate the future of LED Metal Core PCB with advancements in LED technology and emerging trends, this section will provide insights into the sub-sections. Learn about the benefits these developments can bring to PCB design, and stay ahead of the curve by staying informed about the latest advancements in LED technology and emerging trends.

Advancements in LED technology

LED Metal Core Printed Circuit Boards (MCPCBs) have become a popular choice due to their impressive efficiency and heat dissipation. To understand the advancements in this technology, a table could be created. It would have four columns: type of metal core, cost per unit, thermal conductivity levels, and design specifications.

However, there have been more than just advances in LED technology. For example, companies are now using ceramic-based options for PCBs for increased strength and insulation. An example of this is Philips Lumileds’ collaboration with Taiwan’s National Chiao Tung University to develop a copper microstructure for an LED module. This technology can emit twice as much white light-power as available ones, while reducing thermal resistance by 30%.

LED Metal Core PCBs are the future of electronics. Soon enough, we’ll be able to see our circuit boards glowing, like a futuristic rave party!

Emerging trends

The Metal Core PCB world is advancing rapidly. LEDs are raising the need for MCPCBs with high thermal materials, such as Aluminum and Copper, to manage heat better and increase lifespan. Plus, robotics and automation are helping to reduce production costs.

SEMICON West 2019 featured new ways to miniaturize PCBs. Reports say 40% of LED failure is caused by poor heat dissipation. But it’s hard to get quality materials in emerging markets. So, new solutions must be explored.

The MCPCB field is always changing. Designers and manufacturers must keep up with the latest trends. To get the brightest, most efficient lighting, stay informed about MCPCB’s future!

MorePCB - PCB Manufacturing and Assembly Manufacturer

Conclusion: Why LED Metal Core PCB is the way forward for innovation in lighting technology.

LED Metal Core PCB: Revolutionizing Lighting Technology

Demand for high-performance and energy-efficient lighting has risen. LED technology is the answer. Metal Core PCB is a breakthrough! It offers superior thermal management, enhanced performance and durability. It’s the way forward for lighting tech.

Key Benefits of LED Metal Core PCB:

Benefit Description
Thermal Management Improved thermal conductivity and heat dissipation. Reduces operating temperatures, and lengthens LED lifespan.
Enhanced Performance Reduced power consumption, increased reliability, high luminescence efficiency, and better color rendering.
Durability Increased resistance to moisture, chemicals, electrical noise, and mechanical stress.

Unique dielectric layer in MCPCBs gives excellent insulation between active device (LED) and metal core. Structural stability is improved. Customize design specs such as copper thickness or substrate materials to meet application needs.

Suggestions for Leveraging Benefits of LED Metal Core PCBs:

  • Handle and store correctly.
  • Use appropriate soldering techniques.
  • Avoid thermal shock tests, sudden temperature changes.

Time and resources for learning about LED Metal Core PCBs and how to use them throughout lifecycle will allow efficient lighting solutions to be used worldwide with greater reliability.

Frequently Asked Questions

Q: What is LED Metal Core PCB?

A: LED Metal Core PCB refers to a printed circuit board that is designed specifically to be used with LED lights. It features a metal core that provides excellent heat dissipation, enhancing the performance and lifespan of the LEDs.

Q: What are the benefits of using LED Metal Core PCB?

A: LED Metal Core PCBs offer several benefits, such as better thermal conductivity, improved heat dissipation, increased lifespan, and enhanced reliability. Besides, LED Metal Core PCBs are also more efficient and cost-effective than traditional PCBs when it comes to powering high-power LED products.

Q: Are LED Metal Core PCBs easy to use?

A: Although LED Metal Core PCBs require some technical skills to assemble and operate, they are easy to use once you understand their basics. However, it is always advisable to seek the services of a qualified technician to help you with any complex installations or wiring connections to ensure the safety and optimal performance of your LED Metal Core PCB.

Q: What are the applications of LED Metal Core PCB?

A: LED Metal Core PCBs are widely used in various lighting applications, such as streetlights, automotive lighting, commercial lighting, and outdoor lighting fixtures. They are also used in other applications, including traffic signals, medical devices, power supplies, and solar panels.

Q: What materials are used to make LED Metal Core PCBs?

A: LED Metal Core PCBs typically consist of three layers, with the top and bottom layers made of copper and the core made of a thermally conductive material such as copper, aluminum, or ceramic. These materials provide excellent heat dissipation and thermal management, making them ideal for LED lighting applications.

Q: How long do LED Metal Core PCBs last?

A: LED Metal Core PCBs are designed to last for many years, depending on the quality of their components and how well they are maintained. On average, LED Metal Core PCBs can last for up to 50,000 hours or more, which is much longer than traditional PCBs.

Tag:

Still, need help? Contact Us: sales@morepcb.com

Leave a Comment

Your email address will not be published. Required fields are marked *

Read More

Recommended Article

PCB Component side

Understanding PCB Component Side

  Introduction Printed Circuit Boards (PCBs) are the backbone of modern electronic devices, powering everything from smartphones to spacecraft. A crucial aspect of PCB design

Isola Material PCB

Isola PCB: A Comprehensive Guide

Introduction   This unique printed circuit board is manufactured using advanced laminate materials that are known for their high performance. It is prepared by using

Scroll to Top

Get Free Quote

 We will answer you shortly! ( Able to send attachment )

Skype

WhatsApp

Wechat

thank-you-warmed-heart-Transparent

Thanks For Contacting Us!​

We’re so glad you’re here!
We will get you back soon.
