Heavy Copper PCB Full Introduction

Introduction

In modern electronics, where demands for higher power, reliability, and thermal management are ever-increasing, heavy Copper PCB has emerged as a crucial technological solution. Heavy Copper PCB, with their thicker copper traces and larger copper-plated vias, offer a range of advantages over standard PCBs, making them indispensable in numerous applications.

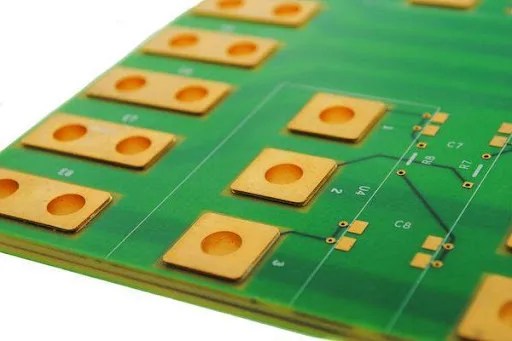

Heavy Copper PCB is characterized by copper thicknesses exceeding 3 oz per square foot (oz/ft²) or approximately 104 micrometers (μm). In some cases, they can even surpass 6 oz/ft² (210 μm). This substantial increase in copper thickness provides several key benefits that significantly enhance the performance and reliability of electronic systems.

<yoastmark class=



First and foremost, heavy Copper PCB has a higher current carrying capacity. The thicker copper traces can handle larger currents without succumbing to overheating or excessive voltage drops. This attribute is particularly vital in power-intensive applications where reliable and efficient power distribution is paramount.

Furthermore, heavy Copper PCB excels in thermal management. The increased copper mass enables superior heat dissipation, allowing electronic components to operate at optimal temperatures. This characteristic proves especially valuable in high-power applications where thermal management is crucial for preventing performance degradation or even component failure.

In addition to their power and thermal advantages, heavy Copper PCB exhibit improved mechanical strength and durability. The thicker copper features provide enhanced resistance to factors such as thermal expansion, vibration, and mechanical stress. This robustness translates into increased reliability and longevity of electronic systems, ensuring consistent performance even in demanding environments.

Given their unique advantages, heavy Copper PCB are extensively used in most industrial applications. They are commonly employed in power supplies, automotive electronics, high-power LED lighting, motor controllers, solar panels, industrial equipment, and high-current battery management systems. In these applications, heavy Copper PCB is crucial for delivering efficient power distribution, superior thermal management, and long-term reliability.

As heavy Copper PCB continues to evolve, new design considerations and manufacturing challenges arise. This necessitates exploration into optimal design practices, fabrication techniques, and material selections for heavy Copper PCB. Additionally, emerging trends and innovations in the field offer exciting possibilities for further advancements and expanded applications.



Design Considerations for Heavy Copper PCB

Current Carrying Capacity

The copper trace thickness has a direct relationship with the current rating of a PCB. Thicker copper traces can handle higher current levels due to their lower resistance. The resistance of a trace is inversely proportional to its cross-sectional area, which is determined by the trace width and thickness.

As the current flows through a trace, it encounters resistance, which causes a voltage drop and generates heat. Thicker copper traces have lower resistance, resulting in reduced resistive losses and lower voltage drops. This enables them to carry higher currents without excessive heating.

The current-carrying capacity of a trace depends on various factors, including the trace width, thickness, copper weight (ounces per square foot), and the allowable temperature rise. The IPC-2152 standard provides guidelines for calculating the current-carrying capacity of PCB traces based on these factors. The cross-section area can be calculated using the following formula.

Current Carrying Capacity

In general, increasing the copper trace thickness increases the current-carrying capacity. For example, while a standard 1 oz copper trace on a PCB might have a current-carrying capacity of around 1-1.5 A (depending on various factors), using a heavy copper thickness can significantly increase the current-carrying capacity to 3-5A.

It’s important to note that trace width also plays a significant role in determining the current-carrying capacity. In practice, both the trace width and thickness are considered together to ensure the PCB can handle the desired current levels without exceeding temperature limits or voltage drop constraints.

It’s recommended to consult IPC standards or use online trace width calculators or PCB design software that takes into account trace thickness, width, and other parameters to determine the appropriate trace dimensions for a specific current rating. Additionally, consulting with a PCB manufacturer or engineer can provide valuable insights into designing PCBs with optimal trace thickness and width for heavy current applications. Figure 2 shows the current vs trace cross-sectional area for a heavy Copper PCB.

Cross-section vs Current Graph for PCB traces
Cross-section vs Current Graph for PCB traces

Thermal Management

Heavy Copper PCB excel in dissipating heat generated by power components. The thicker copper features act as effective heat sinks, rapidly conducting heat away from hotspots and distributing it across the PCB. This efficient thermal management minimizes temperature rise and helps maintain optimal operating conditions for sensitive components. Heavy Copper PCB increase system reliability and longevity by reducing the risk of overheating. Figure 3 shows the thermal dissipation of a 3 oz PCB for a GPU.

Thermal Dissipation of 3 oz Copper PCB
Thermal Dissipation of 3 oz Copper PCB

While there are no specific thermal management standards exclusively for heavy Copper PCB, several general guidelines and standards can be followed to ensure effective heat dissipation Figure 2 also shows a comparison of different current vs conductor areas for different temperatures. Here are some commonly applied thermal management practices:

  1. IPC-2152: IPC-2152 is a standard that provides guidelines for calculating current-carrying capacity and temperature rise in PCB traces. While it primarily focuses on current capacity, it indirectly addresses temperature rise, which is crucial for thermal management. The standard considers factors such as trace width, thickness, length, and ambient temperature to estimate the temperature rise.
  2. Copper Pour and Thermal Pads: Utilize copper pours and thermal pads to enhance heat dissipation. Copper pours act as additional heat spreaders, allowing heat to dissipate across a wider surface area. Thermal pads, placed beneath high-power components, help transfer heat from the component to the PCB, improving overall thermal performance.
  3. Thermal Vias: Implement thermal vias to improve heat transfer from the PCB’s top copper layer to the internal layers and heat sinks. Thermal vias conduct heat from hot areas to the internal layers, which can then be dissipated through larger copper pours or connected to heat sinks.
  4. Heatsinks: Integrate heatsinks, such as metal plates or fins, to enhance thermal dissipation. Heatsinks provide additional surface area for heat transfer and can be attached to high-power components or copper pours through thermal vias or mounting holes.
  5. Heat Spreading Techniques: Distribute heat across the PCB by employing design techniques that help spread heat effectively. This includes spreading high-power components apart to avoid localized heating, distributing traces evenly to prevent hotspots, and employing a balanced component placement strategy.
  6. PCB Material Selection: Choose a PCB material with excellent thermal conductivity to enhance heat dissipation. Materials like metal core PCBs (MCPCB), which have aluminum or copper substrates, offer better thermal conductivity compared to standard FR4 PCBs. High thermal conductivity materials allow heat to transfer more efficiently through the PCB.
  7. Analysis and Simulation: Utilize thermal analysis and simulation tools to evaluate the effectiveness of the thermal management strategy. These tools can help identify potential hotspots, optimize the placement of heat-generating components, and determine the overall thermal performance of the PCB design.

Trace Width and Spacing Guidelines

When designing a PCB with heavy copper traces, the trace spacing guidelines depend on several factors, including the intended voltage isolation requirements, manufacturing capabilities, and specific industry standards, Figure 4 shows the IPC-2221 clearance requirement for Copper PCB. Here are some general guidelines to consider for trace spacing.

Clearance chart for Cu PCB
Clearance chart for Cu PCB
  1. Electrical Clearance: Electrical clearance refers to the minimum distance between two traces to ensure proper electrical insulation and prevent electrical breakdown or arcing. The electrical clearance requirement is often specified by industry standards such as IPC-2221 or IPC-2223, depending on the application.
  2. Voltage Isolation Requirements: If your design requires high voltage isolation, the trace spacing should be increased to meet the necessary insulation requirements. Consult the relevant standards, regulations, or specific design requirements for the required voltage clearance.
  3. Manufacturing Capabilities: Trace spacing may also be influenced by the manufacturing capabilities of your chosen PCB manufacturer. Smaller trace spacing may require advanced manufacturing techniques such as controlled impedance, laser drilling, or precision etching, which can affect the overall cost and feasibility of the PCB fabrication.
  4. Signal Integrity Considerations: For high-speed digital or RF signals, signal integrity can be a crucial factor. Trace spacing may need to adhere to signal integrity guidelines to minimize crosstalk and maintain signal integrity. These guidelines may vary based on the specific signal characteristics, frequencies, and the level of desired signal quality.
  5. Thermal Considerations: Heat dissipation is another aspect to consider when determining trace spacing. Adequate spacing between traces can help with heat dissipation and prevent excessive heating of neighboring traces.
  6. Design for Manufacturing (DFM) Guidelines: Collaborate with your PCB manufacturer and follow their recommended Design for Manufacturing (DFM) guidelines. These guidelines often include specific trace spacing recommendations based on their manufacturing capabilities and processes.
  7. Design Constraints and Constraints Manager: Many PCB design software tools provide a constraints manager or design rule checker that allows you to define specific trace spacing rules. You can set minimum spacing requirements, taking into account the factors mentioned above, and the software will flag any violations.

Vias and Plating Requirements

When using a heavy copper PCB, specific via requirements can depend on various factors, such as the application, board thickness, component density, and manufacturing capabilities. Here are some general considerations for via requirements:

Specific Via Sizes for Copper PCB
Specific Via Sizes for Copper PCB
  1. Via Size: The size of vias for a heavy copper PCB typically depends on the desired current carrying capacity and thermal dissipation. Larger vias with larger drill diameters offer lower resistance and better thermal conductivity. Common via sizes for heavy Copper PCB range from 0.3 mm (12 mils) to 0.5 mm (20 mils) drill diameters.
  2. Aspect Ratio: The aspect ratio of vias, which is the ratio of the via depth to its diameter, is an important consideration. Higher aspect ratios may require more advanced manufacturing processes and can pose challenges in terms of drilling and plating. It’s advisable to keep the aspect ratio within a reasonable range, such as 6:1 or lower, to ensure successful fabrication.
  3. Annular Ring: The annular ring is the copper pad surrounding the via hole. For such PCBs, it’s recommended to have an adequate annular ring to maintain good electrical connectivity and prevent copper cracking during thermal cycling. A general guideline is to have an annular ring of at least 0.15 mm (6 mil) for reliability.
  4. Plating Thickness: The thickness of the copper plating inside the vias is another consideration. Adequate plating thickness ensures good electrical conductivity and helps with thermal dissipation. A plating thickness of 25-35 μm (1-1.4 mil) is commonly used.
  5. Via Spacing: The spacing between vias should be considered to avoid issues such as solder bridging, excessive copper removal during drilling, or reduced available routing area. Recommended via-to-via spacing depends on the manufacturing capabilities and specific design requirements but typically ranges from 0.5 mm (20 mil) to 1.0 mm (40 mil) or more.
  6. Thermal Vias: If thermal management is a concern, additional thermal vias can be incorporated into the design. Thermal vias help dissipate heat by conducting it through the PCB layers to larger copper areas or heat sinks. The number, size, and placement of thermal vias depend on the heat dissipation requirements of the application.

Thermal Considerations and Heat Dissipation Techniques

Efficient thermal management is essential in heavy copper PCB design to prevent excessive temperature rise and ensure the longevity of components. Designers should incorporate heat dissipation techniques such as thermal vias, heat sinks, and thermal pads to efficiently transfer heat away from high-power components. The placement of components should consider airflow and heat flow paths to maximize cooling effectiveness.

PCB Material Selection and Compatibility

When selecting a material for a PCB with heavy copper, it’s important to consider factors such as thermal conductivity, electrical properties, mechanical strength, and cost. Here is a material selection guide for heavy Copper PCB:

  1. FR4 (Fire-Resistant 4): FR4 is the most commonly used PCB substrate material. It offers good electrical insulation, mechanical strength, and cost-effectiveness. However, FR4 has moderate thermal conductivity, which may limit its effectiveness in dissipating heat from high-power components.
  2. Metal Core PCB (MCPCB): MCPCBs feature a metal core, typically aluminum or copper, that provides better thermal conductivity compared to FR4. The metal core allows heat to spread more efficiently, making MCPCBs suitable for applications with high heat dissipation requirements. Copper-based MCPCBs offer higher thermal conductivity than aluminum-based ones.
  3. Ceramic-based PCBs: Ceramic materials, such as aluminum oxide (Al2O3) or aluminum nitride (AlN), offer excellent thermal conductivity, electrical insulation, and mechanical stability. Ceramic-based PCBs are well-suited for high-power and high-frequency applications that require efficient heat dissipation.
  4. Flex and Rigid-Flex PCBs: Flex and rigid-flex PCBs use flexible substrates that allow for complex bending and space-saving designs. These materials are often combined with heavy copper layers to provide both flexibility and enhanced current-carrying capacity. Flex and rigid-flex PCBs are used in applications where size, weight, and mechanical flexibility are critical.
  5. High-Temperature Substrates: For applications with high-temperature requirements, such as automotive or aerospace electronics, specialized high-temperature substrates like polyimide-based materials or liquid crystal polymer (LCP) can be considered. These materials offer good thermal stability and mechanical strength at elevated temperatures.
  6. Rogers or Teflon-based Materials: For high-frequency applications or RF designs, materials like Rogers or Teflon (PTFE) can be suitable. These materials provide excellent electrical performance, low dielectric loss, and high-frequency signal integrity.
  7. Cost Considerations: Material cost is an important factor in PCB design. FR4 is typically the most cost-effective option, while specialized materials like ceramics or high-temperature substrates can be more expensive.

It’s important to note that material selection should consider the specific requirements of your application, including thermal management needs, electrical performance, mechanical stability, and cost constraints. Consulting with your PCB manufacturer or a materials specialist can provide valuable insights and help determine the most appropriate material for your heavy copper PCB design.

Benefits of Heavy Copper PCB

Improved Mechanical Strength and Durability

The thicker copper in heavy Copper PCB provides enhanced mechanical strength and durability compared to standard PCBs. These boards can withstand greater mechanical stress, vibration, and thermal expansion without compromising their structural integrity. Heavy Copper PCB are less prone to damage caused by bending, twisting, or flexing, ensuring reliable performance in challenging environments. The robust construction contributes to the longevity and overall resilience of electronic systems.

Increased Reliability

Heavy Copper PCB offer improved reliability due to their enhanced electrical conductivity and resistance to factors such as electro-migration and thermal stress. The thicker copper features provide better current distribution, minimizing the risk of localized hotspots and voltage fluctuations. Additionally, heavy Copper PCB exhibits lower impedance, reduced signal losses, and improved signal integrity, resulting in reliable and stable circuit performance. This increased reliability is critical in mission-critical applications, where system failure can have severe consequences.

Design Flexibility

Heavy Copper PCB provides design flexibility by allowing for the use of wider traces and larger vias. This feature facilitates efficient power distribution and impedance control, reducing the need for complex routing and layer stacking. Designers can optimize their layouts to achieve optimal electrical and thermal performance. Heavy Copper PCB also enables the integration of high-power components, heatsinks, and thermal vias in a compact form factor, enhancing system efficiency and space utilization.

Enhanced Electromagnetic Compatibility (EMC)

The thicker copper layers in heavy Copper PCB provide shielding against electromagnetic interference (EMI). They help reduce radiated emissions and improve immunity to external interference. This characteristic is valuable in applications where electromagnetic compatibility is critical, such as automotive electronics or industrial control systems.

Cost Savings

While heavy Copper PCB may have a higher initial cost compared to standard PCBs, they can result in cost savings in the long run. The increased current carrying capacity and efficient thermal management reduce the need for additional cooling mechanisms or oversized components. This optimization can lead to cost savings in component selection, system size, and overall system complexity.

 By leveraging the benefits of heavy Copper PCB, designers can create high-performance, reliable, and robust electronic systems capable of handling demanding power requirements, maintaining optimal thermal conditions, and operating in challenging environments.

Applications of Heavy Copper PCB

Heavy Copper PCB are primarily used in applications requiring high current and thermal dissipation. These PCBs are used in most industrial power drives and automotive electronics. Some applications are discussed below.

Power Supplies and Converters

Heavy Copper PCB are extensively used in power supply and converter applications. These PCBs can efficiently handle high current levels, making them suitable for power distribution and switching circuits. Heavy copper traces minimize voltage drops and heat generation, ensuring reliable power delivery in systems such as server power supplies, uninterruptible power supplies (UPS), and industrial power distribution units.

Automotive Electronics

In the automotive industry, heavy Copper PCB plays a crucial role in various electronic systems. They are used in engine control units (ECUs), motor control units (MCUs), and power management modules. Heavy Copper PCB provides the necessary current carrying capacity to handle the power demands of electric vehicles (EVs) and hybrid electric vehicles (HEVs). They also contribute to improved thermal management, ensuring efficient operation of automotive electronics in harsh temperature conditions.

High-Power LED Lighting

Heavy Copper PCB finds extensive use in high-power LED lighting applications. LED modules require efficient heat dissipation to maintain optimal performance and lifespan. Heavy Copper PCB with their enhanced thermal management capabilities effectively transfer heat away from the LEDs, prolonging their operational life. Additionally, heavy Copper PCB allows for higher current densities, enabling brighter and more powerful LED lighting solutions.

Motor Controllers

Heavy Copper PCB are employed in motor control applications, particularly for high-power motors. They facilitate the efficient distribution of high current levels required to drive motors in industrial machinery, robotics, and electric vehicles. The increased copper thickness helps reduce power losses and enhances the motor’s performance and responsiveness. Heavy Copper PCB also contribute to improved thermal dissipation, preventing motor overheating.

Solar Panels

Heavy Copper PCB are utilized in producing solar panels to enhance their efficiency and durability. They are responsible for conducting and distributing the electrical current generated by solar cells. The increased copper thickness enables efficient power transmission, reduces electrical losses, and improves the overall performance of the solar panel. Heavy Copper PCB also help dissipate heat generated by the solar cells, preventing performance degradation and extending the panel’s lifespan.

Industrial Equipment

Heavy Copper PCB finds wide application in various industrial equipment, including power distribution units, motor drives, machine control systems, and process automation equipment. The robust copper features allow for reliable power transmission, enhanced thermal management, and increased resistance to mechanical stress. Heavy Copper PCB ensures the durability and longevity of industrial electronics, even in demanding industrial environments.

High-Current Battery Management Systems

Heavy Copper PCB plays a critical role in high-current battery management systems, such as those found in electric vehicles and energy storage systems. These PCBs enable efficient charging and discharging of high-capacity batteries, handling large current levels without voltage drops or excessive heat generation. Heavy Copper PCB contributes to the overall safety, reliability, and performance of battery management systems.

Heavy Copper PCB have revolutionized these industrial applications by providing superior power handling capabilities, efficient thermal management, enhanced mechanical strength, and increased system reliability. Their unique characteristics make heavy Copper PCB indispensable in high-power, demanding environments where efficient power distribution and reliable operation are paramount.

Manufacturing Challenges and Solutions for Heavy Copper PCB

While heavy Copper PCB offer significant benefits, their manufacturing presents unique challenges that need to be addressed. The following are some of the key manufacturing challenges associated with heavy Copper PCB and possible solutions:

Copper Plating and Etching

The increased thickness of copper in heavy Copper PCB poses challenges during the plating and etching processes. Achieving uniform and consistent copper plating throughout the PCB can be more challenging due to the thicker copper layers. Specialized plating techniques, such as pulse plating or reverse pulse plating, can be employed to ensure proper copper distribution and adhesion. Likewise, etching the excess copper while maintaining tight tolerances can require adjustments to the etching process parameters.

Drilling and Vias

Drilling holes and creating vias in heavy Copper PCB can be more challenging due to the increased copper thickness. Standard drilling processes may not be sufficient to penetrate the thicker copper layers effectively. Specialized drilling equipment and techniques, such as high-speed drilling or laser drilling, may be required to achieve clean and precise holes. Additionally, plating and filling vias with copper may need to be carefully controlled to ensure uniform conductivity throughout the PCB.

PCB Material Selection

Heavy Copper PCB requires suitable materials that can handle the increased thermal and mechanical stresses. Finding compatible PCB materials that offer high thermal conductivity, mechanical strength, and good adhesion with thicker copper layers can be a challenge. Various substrate materials, such as specialized high-temperature laminates or metal-backed laminates, can be considered to meet the requirements.

3 oz PCB Cross-section and Core Material
3 oz PCB Cross-section and Core Material

Warpage and Bowing

The thicker copper layers in heavy Copper PCB can induce warpage or bow during the manufacturing process, particularly during thermal processes like solder reflow. This can result in difficulties during component assembly and may impact overall reliability. Careful control of the manufacturing processes, including temperature profiles and cooling techniques, can help mitigate warpage and ensure the flatness of the PCB.

Cost and Complexity

Heavy Copper PCB can be more costly and complex than standard PCBs. The increased copper thickness, specialized materials, and additional processing steps contribute to higher manufacturing costs. However, advancements in manufacturing techniques and economies of scale are gradually reducing these cost differentials. Collaboration with experienced PCB manufacturers like MorePCB who specialize in heavy Copper PCB can help optimize the manufacturing process and mitigate cost challenges.

Design for Manufacturability

Designing heavy Copper PCB for manufacturability can be a challenge. The unique requirements, such as specific trace widths, via sizes, and copper distribution, need to be carefully balanced with manufacturability considerations. Collaborating closely with PCB manufacturers during the design phase and following design guidelines for heavy Copper PCB can help ensure smooth manufacturing and reduce the risk of potential issues.

<yoastmark class=

By addressing these manufacturing challenges through specialized techniques, careful material selection, collaboration with experienced manufacturers, and adherence to design guidelines, heavy Copper PCB can be successfully manufactured with optimal quality, reliability, and performance.

Conclusion

In conclusion, heavy Copper PCB offers numerous benefits and is widely used in various industrial applications. Their ability to handle high currents, efficient thermal management, and enhanced mechanical strength make them indispensable in high-power, demanding environments. However, designing and manufacturing heavy Copper PCB come with their own set of challenges. These challenges include specialized plating and etching processes, drilling and via requirements, material selection, warpage control, cost considerations, and design for manufacturability. By addressing these challenges with specialized techniques, collaboration with experienced manufacturers, and adherence to design guidelines, it can be successfully produced with optimal quality, reliability, and performance. The advancements in heavy copper PCB technology continue to drive innovation and enable the development of advanced electronic systems in various industries.
