ENIG PCB-An Electroless Nickel Immersion Gold Surface Finish



Introduction

Printed Circuit Boards (PCBs) are the backbone of virtually all electronic devices we use today, ranging from smartphones and laptops to medical equipment and automotive systems. To ensure the longevity, reliability, and performance of these electronic devices, choosing the right surface finish for PCBs is of paramount importance. Among the various surface finishes available, Electroless Nickel Immersion Gold (ENIG) has emerged as one of the most popular and widely used options in the electronics industry. ENIG, an advanced surface finish technology, revolutionized the PCB industry by addressing critical challenges related to solderability, corrosion resistance, and the compatibility of modern electronic components. Its unique properties and numerous advantages have made it an attractive choice for various applications, spanning consumer electronics, telecommunications, medical devices, automotive systems, aerospace, and defense industries. This article will delve into the world of ENIG PCBs, exploring the ENIG process, its benefits, applications, and considerations for design and manufacturing.



The ENIG Process

The ENIG (Electroless Nickel Immersion Gold) process is a two-step surface finish method used in the manufacturing of printed circuit boards (PCBs). It involves the deposition of a thin layer of nickel, followed by a thin layer of gold, on the exposed copper surfaces of the PCB. The ENIG process has gained significant popularity due to its excellent solderability, corrosion resistance, and flat surface, making it suitable for a wide range of electronic applications.

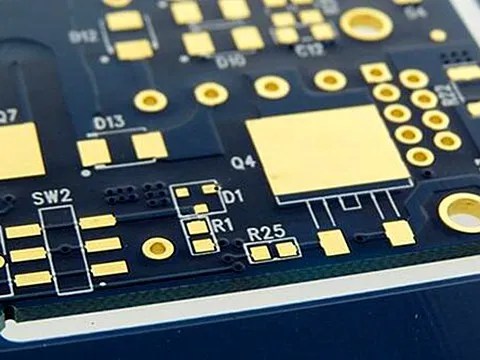

A surface finish ENIG PCB
A surface finish ENIG PCB



The manufacturing steps of the ENIG process are explained in detail:

Electroless Nickel (EN) Deposition

Surface Preparation

The ENIG process begins with the thorough cleaning of the bare copper surfaces of the PCB. Any contaminants, oils, or residues are removed to ensure proper adhesion of the nickel layer.

Activation

After cleaning, the PCB is subjected to an activation step. During activation, a chemical solution is applied to the copper surfaces to create active sites or catalytic centers for the subsequent nickel deposition. This activation process is crucial for initiating the autocatalytic nickel plating.

Autocatalytic Nickel Plating

In the main step of EN deposition, the activated PCB is immersed in a chemical solution containing nickel ions, reducing agents, and stabilizers. Unlike traditional electroplating, which requires an external electrical current, EN plating is an autocatalytic process. The nickel ions are catalytically reduced on the activated copper surfaces, forming a uniform and adherent nickel layer. This layer adheres directly to the copper through a chemical reaction without the need for an external power source.

Controlled Thickness

The thickness of the electroless nickel layer can be precisely controlled based on the specific requirements of the application. Typical nickel thickness for ENIG PCBs ranges from 2 to 6 microns, depending on the manufacturer’s specifications.

Immersion Gold (IG) Deposition

Surface Activation

After the EN deposition, the PCB undergoes another cleaning and activation step to prepare the nickel surface for gold plating.

Gold Immersion

In the immersion gold (IG) step, the activated PCB is immersed in a chemical solution containing gold ions. The gold ions undergo a displacement reaction, where they replace the nickel on the surface, forming a thin layer of gold over the nickel layer. The gold atoms adhere to the exposed nickel surface, creating a smooth and solderable gold surface.

Gold Thickness

The thickness of the immersion gold layer is typically very thin, ranging from 1-3U”  [ 1u”=(1/39.37)um=0.025um ] (0.025 to 0.075 microns). The gold thickness is tightly controlled to provide excellent solderability without introducing excessive cost. The gold layer provides several benefits, including excellent solderability, corrosion resistance, and a flat surface ideal for soldering components during assembly.



Layers of ENIG PCBLayers of ENIG PCB

Layers of ENIG PCB

Advantages of ENIG PCB

ENIG surface finish offers a range of advantages, making it a popular choice in various electronic applications:

Flat and Uniform Surface

ENIG provides a flat and uniform surface across the PCB, ensuring precise and reliable soldering of surface-mount components. This feature is particularly beneficial for miniaturized electronic devices and high-density PCB designs.

Excellent Solderability

The thin layer of immersion gold offers excellent solderability. During the assembly process, the solder easily wets and adheres to the gold surface, creating strong and reliable solder joints between the components and the PCB.

Corrosion Resistance

The nickel layer in ENIG provides an effective barrier against oxidation and corrosion of the copper traces and pads. This protection is especially valuable in environments with high humidity or corrosive gases, enhancing the PCB’s overall reliability and lifespan.

Storage Stability

ENIG PCBs have good storage stability, allowing them to be stored for extended periods before assembly without significant degradation of solderability. This feature is advantageous for manufacturers dealing with large-scale production and inventory management.

Surface Planarity

The ENIG process results in a flat surface, ensuring even and consistent coplanarity of components during soldering. This is crucial for devices with ball grid arrays (BGAs) and fine-pitch components.

Wire Bonding Compatibility

ENIG is compatible with wire bonding processes, making it suitable for applications that require both surface-mount and wire-bonding connections.



Applications of ENIG PCB

ENIG surface finish finds applications in a wide range of industries and electronic devices:

Consumer Electronics

ENIG is extensively used in consumer electronics such as smartphones, tablets, laptops, digital cameras, and smartwatches. These devices often require compact designs with high-density components, where ENIG’s flat surface and solderability are highly advantageous.

Telecommunications

Telecommunication equipment, including routers, modems, and network switches, benefit from ENIG’s corrosion resistance and excellent signal transmission properties. Additionally, the flat surface of ENIG aids in maintaining signal integrity in high-frequency applications.

Medical Devices

In the medical industry, ENIG is preferred for various electronic devices, including medical monitors, diagnostic equipment, and implantable medical devices. The corrosion resistance of ENIG ensures the reliability of critical medical equipment, while the solderability is vital during the assembly of medical electronics.

Automotive Electronics

Automotive electronics face challenging environmental conditions, such as temperature variations, vibrations, and exposure to chemicals. ENIG’s corrosion resistance and stable solderability make it a suitable surface finish for automotive PCBs, ensuring consistent performance and longevity.

Aerospace and Defense

Aerospace and defense electronics demand high reliability and resistance to harsh environmental conditions. ENIG meets these requirements, making it a preferred choice for avionics, military communication systems, and satellite equipment.



Considerations for Design and Manufacturing

When opting for an ENIG finish, several considerations are important during the PCB design and manufacturing process:

Pad and Trace Dimensions

The thickness of the ENIG coating should be factored into the PCB design, especially for fine-pitch components. Designers should ensure that the pad and trace dimensions are appropriate to accommodate the additional layer of nickel and gold.

Gold Thickness

The thickness of the gold layer can impact the solderability and cost of the ENIG finish. Manufacturers and designers should strike a balance between the required solderability and the additional cost of thicker gold plating.

Nickel Underplating

The quality and uniformity of the nickel underplating play a crucial role in determining the overall performance of the ENIG finish. It is essential to work with reputable PCB manufacturers who maintain strict quality control processes during the ENIG process.

Cost Factor

The cost factor of ENIG PCB (Electroless Nickel Immersion Gold) is an important consideration for PCB manufacturers and customers. While ENIG offers several advantages, it is generally more expensive than some other surface finish options. The cost of ENIG PCB is influenced by various factors, which include:

Materials Cost

The materials used in the ENIG process, such as nickel and gold solutions, contribute to the overall cost. Gold, in particular, is a precious metal, and its price can fluctuate based on market conditions. As a result, the cost of the immersion gold step can be a significant portion of the overall PCB production cost.

Process Complexity

The ENIG process involves multiple steps, including surface preparation, activation, nickel deposition, and immersion gold deposition. Each of these steps requires careful control and monitoring to achieve the desired quality. The complexity of the process can increase manufacturing time and labor costs.

Thickness Requirements

The thickness of the nickel and gold layers can impact the cost. Thicker layers may require more materials and processing time, leading to higher costs. Designers must strike a balance between the required thickness for performance and the cost implications.

When considering ENIG as a surface finish option, designers and manufacturers must carefully assess the specific requirements of their application and weigh the benefits of ENIG against the associated cost implications. In some cases, alternative surface finishes with similar performance characteristics may offer a more cost-effective solution. Overall, the decision to use ENIG PCB should consider the balance between performance, reliability, and budget constraints.



ENIG Compatibility with Other Processes

ENIG may not be compatible with all manufacturing processes, such as certain types of conformal coating. Designers should consider the complete manufacturing process and select surface finishes that complement each other to avoid potential compatibility issues.

Environmental Considerations

The use of gold in the ENIG process raises environmental concerns due to the finite nature of gold resources and the environmental impact of mining. Alternative surface finishes, such as Immersion Tin (iSn) or Organic Solderability Preservatives (OSP), are more environmentally friendly options worth exploring.



Conclusion

Electroless Nickel Immersion Gold (ENIG) is a versatile and reliable surface finish that has become a staple in the PCB industry. Its flat surface, excellent solderability, corrosion resistance, and compatibility with various electronic applications make it a popular choice for consumer electronics, telecommunications, medical devices, automotive electronics, aerospace, and defense. While ENIG offers many advantages, designers, and manufacturers must consider specific aspects related to design, manufacturing processes, gold thickness, and environmental implications. By leveraging the benefits of ENIG and addressing its considerations, engineers can enhance the reliability and performance of electronic devices, ensuring that they meet the demands of today’s rapidly evolving technology landscape.

ENIG’s popularity stems from its numerous advantages, which enhance the performance and reliability of electronic devices across various industries. The thin layer of immersion gold provides excellent solderability, ensuring reliable and robust solder joints during the PCB assembly process. This is especially important in today’s electronics, where miniaturized components and fine-pitch designs demand precise and consistent soldering. The nickel layer in ENIG acts as a protective barrier, shielding the underlying copper from oxidation and corrosion. This corrosion resistance makes ENIG PCBs suitable for electronic devices operating in harsh environments with high humidity, temperature variations, and exposure to corrosive elements.

The flat and uniform surface offered by ENIG ensures consistent coplanarity of components, critical for successful surface-mount technology (SMT) assembly. With electronic devices becoming increasingly compact and complex, the need for precise alignment and soldering is paramount, making ENIG an ideal choice for modern PCB designs.

ENIG’s compatibility with wire-bonding processes further expands its applications, making it suitable for devices that require both surface-mount and wire-bonding connections. This feature is valuable for various electronic applications, including consumer electronics, telecommunications, medical devices, automotive electronics, aerospace, and defense industries.

Despite these advantages, designers and manufacturers must consider specific factors during the PCB design and manufacturing process, such as pad and trace dimensions, gold thickness, nickel underplating quality, compatibility with other processes, and environmental implications. Addressing these considerations ensures the optimal performance and reliability of ENIG PCBs.

In conclusion, the ENIG process has revolutionized the electronics industry by providing a reliable, solderable, and corrosion-resistant surface finish for printed circuit boards. Its versatility and compatibility with various applications have made it a preferred choice in modern electronics, setting the standard for reliability, performance, and compatibility with modern electronic components. As the electronics industry continues to evolve, the role of ENIG PCBs remains indispensable in shaping the future of electronics, enabling the creation of innovative and reliable electronic devices that power our interconnected world.
