Advantages of Copper Core PCB in Heat-Sensitive Electronics

A copper core PCB (Printed Circuit Board) is a type of circuit board that features a core made of a copper substrate. It is commonly referred to as MCPCB or copper-clad laminate (CCL).

The primary purpose of using a metal core, typically aluminum or copper, in PCB is to provide enhanced thermal conductivity. Metal cores allow for efficient dissipation of heat generated by electronic components on the board. This is particularly beneficial in applications where heat management is crucial, such as high-power LED lighting, power electronics, automotive electronics, and other heat-sensitive electronic systems.

Copper Core PCB Structure
Copper Core PCB Structure



Applications of Copper core PCB

Copper core PCB find applications in various industries and electronic systems where efficient heat management and reliable performance are crucial. Some common applications of copper core PCB:

  1. LED Lighting: Copper core PCB are widely used in high-power LED lighting applications. LEDs generate heat during operation, and the core helps dissipate that heat efficiently, ensuring optimal performance and extending the lifespan of the LEDs.

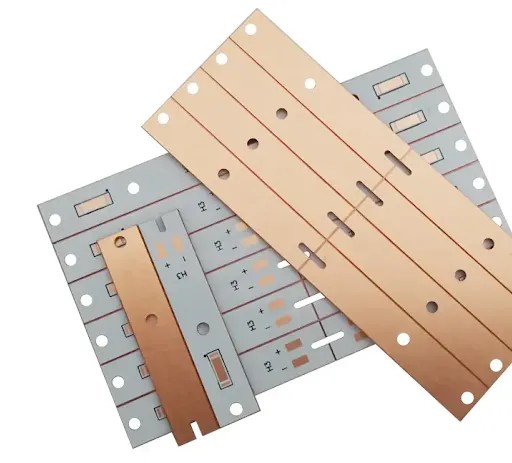

Copper core PCB LED lighting Board
Copper core PCB LED lighting Board
  1. Power Electronics: Power electronic systems, such as motor drives, inverters, and converters, often require effective heat dissipation. Copper core PCBs enable efficient thermal management, allowing these systems to handle higher power levels while maintaining stability and reliability.
  2. Automotive Electronics: With the increasing complexity of automotive electronic systems, including engine control units, lighting systems, and infotainment systems, copper core PCBs play a vital role in ensuring reliable operation under high-temperature conditions. They provide excellent heat dissipation, ensuring the longevity and performance of electronic components in vehicles.
  3. Renewable Energy Systems: Copper core PCBs are utilized in renewable energy applications, including solar power systems and wind turbine inverters. These systems often generate significant heat, and the metal core helps dissipate it, preventing performance degradation and ensuring efficient energy conversion.
  4. Medical Devices: Medical equipment, such as diagnostic devices, surgical tools, and patient monitoring systems, often require reliable and precise performance. Copper core PCBs assist in maintaining stable operating temperatures, ensuring the acCopperracy and longevity of medical devices.
  5. Industrial Electronics: In industrial settings, where electronic systems operate under demanding conditions, copper core PCBs provide thermal efficiency and reliability. They are used in automation systems, power supplies, motor controls, and other industrial applications.
  6. Aerospace and Defense: The aerospace and defense industries demand rugged and reliable electronic systems. Copper core PCB are employed in avionics, satellite communications, radar systems, and military equipment, where they help manage heat dissipation and ensure stable performance in extreme environments.



Thermal Dissipation of Copper core PCB

Copper is well-known for its excellent thermal conductivity, making it an ideal choice for applications requiring efficient heat dissipation. The thermal conductivity of copper is approximately 401 W/(m·K) at room temperature, which is significantly higher than many other common metals and materials used in electronic systems.

The high thermal conductivity of copper allows it to effectively transfer heat away from heat-generating components on a copper core PCB. When heat is generated by electronic components, such as integrated cirCopperits or power devices, copper quickly conducts the heat away from these components and spreads it throughout the metal core.

The efficiency of thermal dissipation in copper core PCB depends on several factors:

  1. Copper Thickness: The thickness of the copper layer in the PCB affects its thermal conductivity. Thicker copper layers can conduct heat more effectively, allowing for better heat dissipation.
  2. Metal Core Material: Copper core PCBs utilize a metal core, typically made of copper or aluminum, which aids in thermal dissipation. Copper core PCBs offer higher thermal conductivity compared to aluminum metal core PCB, allowing for more efficient heat transfer.
  3. Thermal Vias: Thermal vias play a crucial role in enhancing heat dissipation in copper core PCB. These vias conduct heat from the top copper layer to the metal core, facilitating the transfer of heat away from heat-generating components and spreading it throughout the metal core.
  4. Component Placement: Strategic placement of heat-generating components on the PCB can significantly impact thermal dissipation. Grouping high-power components together and positioning them near thermal vias or copper planes can help ensure efficient heat transfer and dissipation.
  5. Additional Cooling Solutions: Depending on the application and thermal requirements, additional cooling solutions such as heat sinks, thermal pads, or fans can be employed to further enhance thermal dissipation. These solutions provide increased surface area for heat transfer and can significantly improve the overall thermal management of the PCB.

By leveraging the high thermal conductivity of copper and implementing effective thermal design practices, copper core PCBs can efficiently dissipate heat generated by electronic components. This helps maintain optimal operating temperatures, prolongs the lifespan of components, and ensures the reliability and performance of electronic systems.



Etching of Copper core PCB

Etching copper core PCB involves selectively removing copper from the PCB substrate to create cirCopperit traces or patterns. The etching process is typically performed using a chemical solution, such as an etchant, that selectively dissolves the exposed copper while leaving the protective layer intact. Here is a general overview of the etching process for copper core PCB:

  1. Prepare the PCB: Start by preparing the copper core PCB for etching. Clean the surface of the PCB substrate to remove any contaminants that may interfere with the etching process. Ensure that the protective layer, such as solder mask or a photoresist layer, is applied to areas where copper should be preserved.
  2. Apply the Etchant: Apply the appropriate etchant solution to the PCB, making sure it comes into contact with the exposed copper areas. The etchant chemically reacts with the copper, dissolving it and removing it from the PCB.
  3. Etching Method: There are different methods for applying the etchant to the PCB. The most common methods include:
    1. Spray Etching: Spray the etchant solution onto the PCB using a spray bottle or nozzle, ensuring even coverage of the exposed copper areas.
    2. Immersion Etching: Submerge the PCB into a container filled with the etchant solution. Agitate the solution to promote consistent etching.
    3. Conveyorized Etching: In industrial-scale production, conveyorized etching machines may be used. The PCB are passed through a conveyor system while being exposed to the etchant solution.
  4. Etching Time: The duration of the etching process depends on various factors, such as the etchant solution, copper thickness, and desired trace width. Follow the recommended etching time provided by the manufacturer or conduct test etches to determine the optimal etching duration for your specific requirements.
  5. Rinse and Neutralize: After the desired amount of copper is etched away, rinse the PCB thoroughly with water to remove the etchant solution. It is important to neutralize any remaining traces of the etchant using a suitable neutralizing agent or a basic solution.
  6. Remove the Protective Layer: Once the etching process is complete and the desired cirCopperit traces are created, remove the protective layer, such as the solder mask or photoresist, from the PCB. This can be done using appropriate techniques like stripping or peeling.
  7. Final Cleaning: Conduct a final cleaning of the PCB to remove any residual chemicals or contaminants. This ensures that the PCB is ready for further processing, such as component placement and soldering.



Design Considerations for Copper core PCB

Copper core PCB adhere to several industry standards and specifications to ensure their proper design, manufacturing, and quality control. Key standards include IPC-6012 and IPC-6018 from the Association of Connecting Electronics Industries (IPC), which provide requirements for rigid PCB and metal core base materials, respectively. UL 796 by Underwriters Laboratories (UL) foCopperses on safety certification for printed wiring boards, including copper core PCB. The international standard IEC 62368-1 covers electrical and electronic equipment safety requirements, addressing thermal considerations and insulation requirements. The JEDEC JC-70 standards offer guidance for thermal management in electronic systems, aiding in efficient heat dissipation. These standards outline specifications for copper foil, copper thickness, conductor spacing, and thermal conductivity. Adhering to these standards ensures the thermal performance, electrical properties, safety, and quality of copper core PCB. It is important to consult with experts and manufacturers to determine the most relevant and up-to-date standards for specific applications. The following table shows a brief comparison of PCB and Copper core PCB.

Keeping in view the standard requirements following design considerations must be kept in mind when designing a Copper core PCB.

Thermal management

   Copper core PCB are primarily used for applications that require efficient heat dissipation. To maximize thermal performance, consider the following:

   – Thermal vias: Strategically place thermal vias to enhance heat transfer from the copper layer to the metal core, promoting efficient heat dissipation.

   – Copper pour: Use copper pours or planes on the metal core layer to spread heat evenly across the PCB.

   – Component placement: Position heat-generating components near the metal core for effective heat dissipation.

   – Heat sinks: Integrate appropriate heat sinks and thermal management solutions to further enhance heat dissipation.

Thermal management comparison between Aluminium with Copper
Thermal management comparison between Aluminium with Copper

Copper core PCB layout

   The layout of the cirCopperit traces and components on a Copper core PCB influences the overall performance and reliability. Consider the following aspects:

   – Thermal conductivity: Optimize the copper traces to ensure efficient heat transfer from heat-generating components to the metal core.

   – Ground plane placement: Place a ground plane on the opposite side of the metal core to minimize the thermal gradient and provide better heat dissipation.

   – Component spacing: Provide adequate spacing between heat-generating components to prevent thermal interference and ensure uniform heat dissipation.

   – Signal integrity: Follow best practices for signal routing and minimize signal interference by avoiding crosstalk and impedance mismatches.

Material selection

   Careful material selection is crucial for Copper core PCBs to meet thermal and electrical requirements:

   – Metal core: Select a metal core material (e.g., aluminum, copper, or alloys) with high thermal conductivity to facilitate efficient heat dissipation.

   – Insulation layer: Choose a thermally conductive dielectric material with appropriate insulation properties to electrically isolate the copper layer from the metal core.

   – Copper thickness: Determine the optimal copper thickness to balance thermal conductivity and electrical performance.

Mechanical considerations

   Consider mechanical aspects to ensure the structural integrity and reliability of the Copper core PCB:

   – PCB thickness: Determine the appropriate PCB thickness based on mechanical requirements and available space.

   – Mounting and assembly: Account for the mechanical stability of the Copper core PCB during mounting and assembly processes.

   – Thermal expansion: Consider the coefficient of thermal expansion (CTE) of the materials used to minimize stress and potential mechanical failures caused by temperature variations.

Thermal Dissipation

Calculating thermal dissipation in a copper core PCB involves considering factors such as the thermal conductivity of materials, power dissipation of components, and thermal resistance. Here’s a simplified approach to estimate heat dissipation:

Determine power dissipation

   Identify the power dissipated by heat-generating components on the PCB. This information can be obtained from component datasheets or by measuring power consumption. Note the total power dissipation (P_total) in watts.

Calculating thermal resistance

   Determine the thermal resistance between the heat source (components) and the metal core. Thermal resistance is a measure of how easily heat can flow through a material or interface. It is represented by the symbol Rθ (theta) and is typically provided in datasheets.

   – Component thermal resistance (Rθ_component): Check the datasheets of the components for the specified thermal resistance. It represents the thermal resistance from the component junction to the component case or heatsink.

   – PCB copper thermal resistance (Rθ_copper): Copper has a relatively high thermal conductivity. However, to account for the thermal resistance of the copper layer and any insulation layers, use the thermal resistance specified for the metal core PCB material.

Calculating effective thermal resistance

   The effective thermal resistance (Rθ_effective) is the combined thermal resistance of the PCB, components, and any additional thermal interfaces. It can be Calculated by summing the individual thermal resistances:

   Rθ_effective = Rθ_copper + Rθ_component + Rθ_interface

Calculating heat dissipation

   The heat dissipation (Q) can be Calculating using the formula:

   Q = P_total * Rθ_effective

The unit of heat dissipation will be in watts (W).

Keep in mind that this is a simplified approach, and there may be additional factors and complexities to consider in a specific design. It is advisable to consult thermal design guidelines, thermal simulation software, or collaborate with thermal experts to obtain acCopperrate and detailed heat dissipation calCopperlations for your specific PCB design.



Conclusion

In conclusion, the utilization of Copper core PCB offers significant advantages in applications requiring efficient heat dissipation and enhanced thermal management. The incorporation of Copper core PCBs in electronic designs enables improved reliability, prolonged component lifespan, and enhanced overall system performance.

By carefully considering thermal management aspects during the design phase, such as optimizing the layout for effective heat transfer, implementing thermal vias, utilizing copper pours, and integrating appropriate heat sinks, Copper core PCB can efficiently dissipate heat generated by components. This capability allows electronic systems to operate within safe temperature limits, mitigating the risk of thermal stress, component failures, and performance degradation.

Furthermore, the selection of suitable materials, including a metal core with high thermal conductivity and a thermally conductive dielectric layer, plays a crucial role in facilitating effective heat dissipation. Ensuring proper insulation properties between the copper layer and metal core maintains electrical isolation and avoids potential short cirCopperits or other electrical issues.

The integration of Copper core PCB in designs necessitates careful consideration of mechanical aspects, including PCB thickness, mounting, and assembly processes. Attention to these mechanical considerations ensures the structural integrity and mechanical stability of the Copper core PCB, reducing the risk of mechanical failures or damage during operation.

Copper core PCB offer designers flexibility in designing complex electronic systems where thermal management is critical. Their application extends to various industries, including automotive, lighting, power electronics, and renewable energy, where efficient heat dissipation is paramount.

While Copper core PCB provide effective thermal management solutions, it is essential to collaborate with manufacturers, thermal experts, and utilize appropriate simulation tools to optimize the design for the specific application. By following proper design guidelines and considering thermal, electrical, and mechanical aspects, designers can harness the benefits of Copper core PCB, resulting in improved reliability, enhanced thermal performance, and extended lifespan for electronic systems.
