Introduction

PCBs, or printed circuit sheets, are crucial for most contemporary hardware. However, they can be susceptible to defects during the manufacturing process. These imperfections can prompt PCB disappointment and adversely influence item execution and unwavering quality.

This far-reaching guide analyzes the most predominant PCB fabricating deserts, investigates their underlying drivers, and gives likely answers for limited chances. PCBs consist of conductive copper traces layered on an insulating substrate. Components are soldered onto the board to create a functional electronic circuit.

At each fabrication stage, issues can arise that lead to defects in the finished circuit boards. Common defects include soldering, mechanical damage, contamination, dimensional inaccuracies, plating flaws, inner layer misalignments, drilling problems, and material issues.

PCB defects and quality control, As we strive to maintain high standards of quality and efficiency, it’s crucial that we address and minimize these common PCB manufacturing defects.

These defects can produce electrical shorts, open circuits, poor aesthetics, reduced reliability, and complete PCB failure.

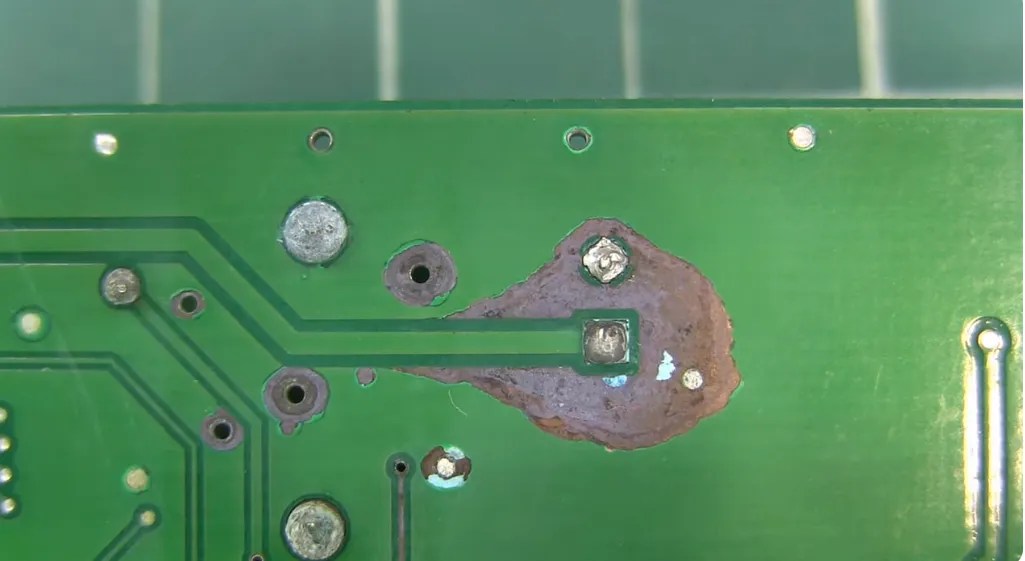

Common PCB Manufacturing Defects
Common PCB Manufacturing Defects



Gaining an in-depth understanding of the leading causes of PCB defects allows manufacturers to implement robust process controls and inspection methods to minimize risks. This article explores the most prevalent Common PCB manufacturing defects, their root causes, and potential solutions.

Detecting and resolving defects early in the process is critical to reducing scrap and avoiding functional issues in end products. Working closely with PCB manufacturers and communicating quality and defect prevention expectations leads to positive outcomes. This guide covers strategies for minimizing defects through design, process control, inspection, training, and other methods.



Major Causes of PCB Defects

Design flaws and manufacturing variability are the two major contributors to PCB defects. Here are several leading causes of Common PCB manufacturing defects:

PCB fabrication involves many complex steps, including design, imaging, etching, drilling, plating, solder mask application, silkscreen printing, routing, and assembly. Multiple variables can lead to defects at each stage if not adequately controlled. Grasping the significant drivers of PCB defects allows the implementation of preventive measures.

Improper Design

Many PCB defects originate from design issues. Common design-related causes include insufficient spacing between traces, small annular rings around drilled holes, acute trace angles beyond manufacturing capabilities, and fine lines or spaces with tolerances too tight for fabrication processes to achieve.

Other examples are symmetrical patterns that risk acid traps, thin traces that enable damage from electrostatic discharge, and thermal relief issues. Performing thorough design for manufacturability (DFM) analysis and adhering to PCB design guidelines prevents many design-caused defects.

Bringing fabrication engineers into the design process helps assess manufacturability. Simulation and modeling tools also verify a design’s tolerance to real-world stresses and identify problem areas. Optimizing the design for manufacturability is a crucial first step in minimizing Common PCB Manufacturing Defects.

Contamination

PCB fabrication involves using many chemicals and processes that can lead to contamination. During manufacturing, PCBs are susceptible to contamination from substances like flux residues, finger oils, acidic plating solutions, particulate debris, and residuals from cleaning agents.

Contaminants introduce the risk of electrical shorts, open circuits, soldering defects, and long-term corrosion issues. Keeping production areas extremely clean, enforcing strict contamination controls, and preventing contact with human hands minimize contamination risks. Staff training on proper handling procedures is also crucial.

Material Defects

The materials utilized in PCB fabrication must be free of inherent flaws. Substandard PCB materials like low-quality laminates, prepregs, foils, and other components can contain defects like resin starvation, glass fiber protrusions, pinholes, and nodules.

These material defects get incorporated into the final boards and impact performance. Ensuring all materials are sourced from reputable suppliers with extensive quality control helps avoid material-related issues. Inspection of incoming materials is also advised.

Mechanical Damage

Mechanical Damage PCB
Mechanical Damage PCB



PCBs are thin, fragile components susceptible to mechanical damage during fabrication. Impacts, scratches, bends, dents, and other sources can inflict physical harm. PCBs come into contact with many surfaces, fixtures, and handling equipment throughout production.

Careful handling procedures and fixtures designed to minimize contact points help avoid mechanical damage. Staff training on proper techniques when loading, moving, and storing PCBs is also essential. Inspection of boards between process steps catches damage early.

Process Variations

Normal process variability can produce PCB defects if key parameters shift outside control limits. Common examples include inaccurate etchant temperatures, off-target drill speeds, misaligned lamination, and poor storage conditions.

Monitoring processes using statistical methods allow for detection when they deviate from desired tolerances. Control charts provide visual tools to maintain fabrication processes in a state of statistical control to minimize variability-related defects.

Human Error

Despite best efforts to prevent them, human mistakes are inevitable in PCB production. Machine operators may misload boards into plating tanks, use incorrect drill bit sizes, improperly store finished boards, and make other errors that damage PCBs or incorporate defects.

Comprehensive training programs, detailed work instructions, job aids like checklists, and increased automation all help reduce human error. Redundancy through items like secondary verification of machine setups also accommodates mistakes before they impact end products.



Common PCB Manufacturing Defects

Now let’s explore some of the most common PCB manufacturing defects that occur:

A wide variety of potential PCB defects can arise during fabrication. Awareness of the most prevalent manufacturing issues allows factories to focus appropriately on inspection and process control efforts. Here are some of the most common PCB defects.

Soldering Defects

Solder Defects PCB
Solder Defects PCB



Most PCB defects originate from the assembly process when soldering components onto boards. Common soldering defects include:

Soldering is a critical PCB assembly process prone to multiple defects if not executed properly. Implementing strict protocols and inspection techniques minimizes soldering-related defects. Common soldering issues include bridges, voids, cold joints, balls, tombstoning, and insufficient wetting.

Solder bridges – Bridging occurs when solder unintentionally connects two areas that should remain electrically isolated. Excess solder and component misalignment during reflow are common causes.

Solder voids – Small gaps of missing solder within a joint. Reduce mechanical strength and conductivity. It was caused by contaminated surfaces, poor wetting, inferior solder, and low heat.

Cold solder joints – Joints with incomplete wetting between surfaces due to insufficient heat during soldering. Increase electrical resistance.

Solder balls – Small balls of solder that form into standalone pieces. It can cause shorts. Often from splashing during hot air reflow processes.

Insufficient solder – Inadequate solder volume and fillet formation around joints. Leads to poor connections and reliability issues.

Tombstoning – When one end of a surface mount component lifts from the board during reflow due to thermal imbalances in the soldering process.

Mechanical Damage

Mechanical damage represents one of the most prevalent defect categories. PCBs become damaged through:

PCBs’ thin, delicate nature makes them prone to mechanical damage during fabrication from impacts, scratches, bending, and other sources. Maintaining proper handling procedures and fixturing minimizes risks. Common mechanical defects include:

Dents – Localized depressions in the PCB surface that can fracture copper and degrade trace-to-trace spacing. Impacts with objects typically cause scratches – Areas where cover material is rubbed away, exposing the substrate. It can compromise spacing and cause shorts or open traces. Often arise from contact with fixtures.

Warping – Distortion from overall PCB flatness. Impacts soldering processes and assembly. It is generated by thermal stresses or improper handling that bends boards.

Cracks – Fractures in the PCB substrate and copper that disrupt electrical connectivity. Formed when bending stresses exceed material limits.

Holes – Complete punctures through the board that destroy circuitry. Typically, cont., act with sharp objects during handling.

Chipping – Small pieces are broken from the edges of the PCB and caused by collisions between boards during storage and handling.

Contamination

PCB fabrication introduces multiple opportunities for contamination:

Many contaminants are unintentionally introduced during PCB manufacturing. These include flux residues, finger oils, metallic particles, chemical solutions, dust, and other debris. Contamination leads to shorts, impaired soldering, leakage currents, and corrosion.

Flux residues – Leftover rosin flux after soldering assemblies. It can cause electrical leakage over time.

Finger oils – Skin oils that deposit on PCB surfaces from handling. Interfere with soldering and can enable electrochemical migration.

Metallic particles – Tiny metallic debris that settles onto PCBs. This can result in shorts and obstruct soldering.

Chemical solutions – Plating solutions, solvents, and etchants that dry on boards leaving residuals. Promote corrosion.

Dust/debris – Particles that collect during production. Impair soldering, assembly, and operational reliability.

Dimensional Defects

PCBs must meet tight dimensional tolerances. Common accuracy issues:

Maintaining tight dimensional tolerances is critical for achieving proper PCB functionality. Common dimensional defects include:

Skew – Misalignment between layers resulting in shifting of inner layers. It can produce shorts or open circuits.

Pattern misregistration – Layers are incorrectly aligned, causing features like holes not correctly to line up.

Hole misalignment – Drilled holes positioned incorrectly from their intended locations. Prevents proper assembly.

Hole Misalignment
Hole Misalignment



Annular rings – Annular rings around drilled holes are sized incorrectly per specifications—impact hole wall adhesion.

Out-of-tolerance features – Traces, spaces, holes, and other features exceeding specified tolerances. This can create shorts or reliability concerns.

Board warpage – Overall, PCBs warped outside permitted flatness tolerances. It makes assembly difficult.

Plating Defects

PCB Plating
PCB Plating



High-quality PCB plating is essential. Typical plating flaws:

The plating applied to PCBs must be consistent and defects-free to enable proper electrical connectivity and soldering. Common plating defects include:

Nodules – Isolated bumps in the plated copper surface. It can bridge gaps causing shorts in severe cases.

Pits – Small voids and depressions in the plating. Lead to poor solder wetting and unreliable joints.

Poor adhesion – Plating needs to adhere correctly to board surfaces. Causes flaking and reliability issues long-term.

Dull deposits – Lackluster plating with rough, dull texture rather than smooth shine. Indicates substandard plating quality.

Thin deposits – Plating applied thinner than specifications require. It will wear faster under electrical loads.

Drilling Defects

PCB Drilling Defects
PCB Drilling Defects



Proper PCB hole drilling is crucial. Drilling defects include:

Drilled holes must exhibit excellent quality to enable proper connections between layers. Common drilling defects:

Breakouts – Fractures around drilled holes with protruding glass fibers. Impact connections.

Smear – Resin residue around holes after drilling. It can hinder plating adhesion.

Misshapen holes – Holes with imperfect circularity or diameter. Leads to poor connections.

Burring – Rough hole edges that degrade plating quality.

Hole position – Incorrect hole centering. Prevents proper assembly and connections.

Via stubs – Blind and buried vias drilled only partially through dielectric layers.



Solutions for Preventing Common PCB Manufacturing Defects

There are many ways to reduce the risks of PCB defects:

While PCB defects can never be eliminated, there are multiple strategies to minimize their occurrence:

Design for Manufacturability (DFM) Analysis

Performing DFM analysis during the design stage identifies features that may be hard to manufacture reliably. Designers can modify the layout to remove these manufacturability risks before board fabrication begins.

Bringing your PCB manufacturer’s engineers into the design process ensures fabrication knowledge is built into the design. Simulation and modeling tools also verify designs will tolerate real-world stresses and meet specifications.

Process Control

Implementing robust process control is vital for minimizing PCB defects resulting from manufacturing variability. Statistical process control (SPC) techniques allow continuous monitoring of critical process parameters continuously to detect when they deviate from established control limits. Control charts provide visual tools to maintain fabrication processes with statistical stability.

Some critical processes to control include:

  • Etching – Monitoring etchant temperature, conveyor speed, and solution chemistry ensures optimal etching quality. Detecting when these drift out of acceptable ranges minimizes under/over-etching.
  • Lamination – Controlling parameters like applied pressure, temperature ramps, and alignment stop layer misregistrations and skew defects.
  • Drilling – In-process measurements of bit wear, hole size, hole position, surface finish, and breakouts reduce drilling issues.
  • Plating – Tracking plating thickness, adhesion testing, surface roughness, and solution chemistry catches plating problems early.
  • Solder mask – Controlling coating thickness, cure time, viscosity, and adhesion prevents solder mask defects.
  • Soldering – Monitoring profiles, peak temperature consistency, and wetting quality ensure robust solder joints free of defects.

The critical input factors influencing quality must be identified and monitored at each process step. Statistical process control provides the tools to measure these inputs on each board and visualize when they shift out of defined control limits.

Operator Training

Extensive training of machine operators is essential for reducing human errors that cause PCB defects. Workers should have the information and abilities to play out their manufacturing jobs appropriately without presenting imperfections. Training should cover:

  • Equipment Operation – Proper machine loading/unloading, startup/shutdown, calibration, preventive maintenance, and parameter adjustment procedures. Hands-on demos ensure proficiency.
  • Handling Techniques – Delicate PCB handling methods to avoid scratches, drops, edge impacts, bending, and other damage sources. Use of protective racks, gloves, and cleanroom protocols.
  • Visual Standards – Detecting subtle PCB flaws involves recognition skills. Inspectors need standards showing example, defect types like plating nodules, solder voids, contamination, etc.
  • Defect Identification – Beyond visual skills, training on electrical tests and inspection methods to reliably identify PCB defects. Diagnostic skills to pinpoint root causes.
  • Contamination Control – Contamination risks and methods to prevent finger oils, chemical residues, particles, fibers, etc., from contacting PCBs during handling.
  • ESD Controls – Static electricity hazards, proper wrist strap use, footwear grounding, grounding equipment, and safe PCB handling to avoid electrostatic discharge damage.

Formal certification programs validate operator qualifications through testing. This ensures each employee meets knowledge requirements before working independently. Periodic recertification and refresher courses reinforce skills.

Inspection

A thorough inspection of PCBs at multiple fabrication stages is crucial for detecting defects early before they increase. Both automated inspection systems and human visual checks should be utilized. Standard inspection methods include:

  • Automated Optical Inspection (AOI) – Uses cameras to image PCBs and sophisticated algorithms to identify defects undetectable to the human eye. Checks for solder bridging, insufficient wetting, lifted leads, and contamination.
  • X-Ray Inspection – X-ray imaging can identify defects like voids in solder joints, blocked vias, and component positioning errors. Especially useful for finding hidden flaws.
  • Flying Probe Testing – Uses probes to check PCBs for electrical shorts and open circuits. Detects broken connections and damage not visible externally.
  • To ensure cleanliness, ionic Cleanliness Testing – Measures ionic residues on PCB surfaces from flux, finger oils, and other contaminants.
  • Solder Paste Inspection – Checks solder paste deposits for proper volumes, offsets, slumping, and bridging.
  • Visual Inspection – Manual visual checks by trained quality technicians under magnification detect surface flaws.

Frequent inspection at each major fabrication step (imaging, etching, AOI, ICT, FPT, etc.) identifies defects at the earliest possible point. This allows reworking or scrapping defective boards rather than propagating issues further.

Contamination Control

Implementing rigorous contamination control is vital for preventing particle, chemical, and ESD-related PCB defects. Methods include:

  • Cleaning – Thorough cleaning between all wet process steps prevents chemical and debris accumulation on boards. Ultrasonic cleaning combined with DI water rinsing removes residues effectively.
  • ESD Protocols – Wrist straps, ESD-safe footwear, anti-static flooring, grounded worksurfaces, ionizers, and humidity control prevent electrostatic discharge damage during handling.
  • Covering – Keeping boards covered with caps or foam sheets when not in active processing protects from environmental particles settling on surfaces.
  • Gloves – Lint-free gloves are mandatory for all PCB handling and prevent oils and particulates from bare hands contacting boards. Frequent glove changes maintain cleanliness.
  • Laminar Flow Hoods – Assembly and inspection in laminar flow hoods use filtered airflow to block contaminants from contacting PCBs.
  • Cleanrooms – The ultimate contamination control environment. HEPA filters remove airborne particles, while sticky mats trap shoes. Personnel gowning procedures maintain cleanliness.
  • Training – Educating staff on contamination risks, cleaning methods, proper handling techniques, and contamination prevention is critical.
  • Inspection – Ionic cleanliness testing frequently verifies PCBs meet cleanliness specifications. Identifies when process improvements are needed.

A clean, controlled environment is essential for eliminating contamination-related defects. Thorough boarding handling procedures and training maintain PCB cleanliness. Contamination control must be treated as an integrated system spanning materials, machines, employees, and facilities.

Traceability

Maintaining detailed records through travelers or MES software allows tracing PCBs back through production processes and materials when defects occur to pinpoint root causes.

Traceability provides the data needed for failure analysis. Records of machine parameters, test results, images, and material lots facilitate troubleshooting.

Redundancy and Mistake-Proofing

Building redundancy accommodates inevitable human mistakes, like secondary verification of machine setups and comparing Gerber files.

Mistake-proofing through checklists, confirmation prompts, and process standardization reduces operator errors impacting quality.



Conclusion

Defects arise in PCB fabrication due to both design and manufacturing factors. Understanding the most common PCB defects allows factories to focus on targeted prevention and inspection efforts. Fundamental prevention principles are performing design analysis, tightly controlling processes, training operators, inspecting thoroughly, maintaining cleanliness, tracing boards, and mistake-proofing principles.

Detecting and fixing defects as early as possible minimizes scrap and prevents functional issues in end products. Working closely with your PCB manufacturer and aligning on quality expectations are essential for success. With rigorous prevention and inspection methods, PCB defect risks can be effectively managed.



Frequently Asked Questions (FAQs)

What are some of the most prevalent Common PCB

manufacturing defects?

Common PCB defects include soldering issues like bridges and voids, mechanical damage like dents and scratches, contamination from flux and oils, dimensional inaccuracies, plating flaws like nodules and thin deposits, drilling defects like breakouts and poor hole quality, and inner layer misalignment.

What types of mechanical damage occur to PCBs during manufacturing?

Dents, scratches, cracking, chipping, holes, and warpages are typical mechanical damage modes. Impacts, abrasion, bending stresses, mishandling, and contact with fixtures inflict damage. Careful handling procedures and protective storage racks prevent mechanical issues.

How can PCBs become contaminated during production?

Flux residues, finger oils, metal particles, chemical solutions like etchants and plating baths, dust, and debris often contaminate boards. Staff training on contamination controls is vital. Keeping production areas extremely clean minimizes risks.

What are some dimensional defects found in PCBs?

Common examples include Skew, misregistration, incorrect hole alignment, out-of-tolerance features, poor annular rings, and board warpage. Maintaining tight tolerances on all PCB dimensions is critical for assembly and performance.

How do you detect and correct PCB defects?

Inspecting after each major fabrication step catches defects early when easiest to fix. Standard methods include automated optical, x-ray, ionic cleanliness, and flying probe testing. Corrections include rework, manual touch-up, re-etching, re-soldering, or scrapping boards.
