CEM3 PCB: A Complete Guide

Introduction

In the realm of printed circuit boards. For decades, FR4 has reigned supreme as the material of choice. Double-sided and multi-layer printed circuit boards, made of a copper-clad flame-retardant epoxy glass cloth board, are widely used with FR-4 substrates. The main difference between FR4 PCB and CEM3 PCB is that the CEM3 is made of glass mat and glass cloth composite substrate



CEM3 PCB (Composite Epoxy Materials Grade-3)



CEM3 PCB derives its name from the words “Composite Epoxy Material.” This refers to their unique composition, utilizing a non-woven glass mat and woven glass fabric infused with specialized epoxy resin. The result is a substrate that eclipses FR4 in nearly every metric that matters.

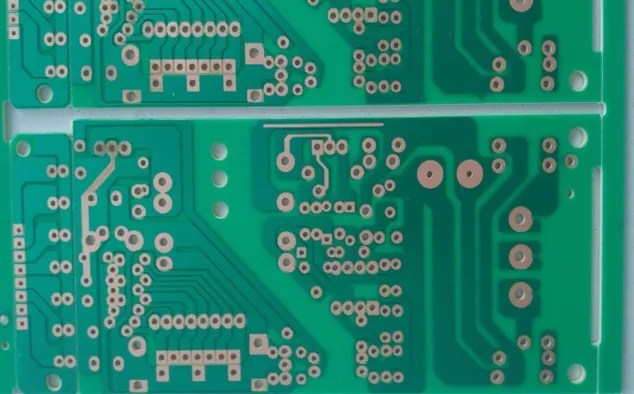

CEM3 PCB
CEM3 PCB

While FR4 relies solely on woven fiberglass cloth, CEM3 integrates thin, non-woven glass mats between sheets of traditional woven cloth. The mats provide isotropy and uniformity impossible with woven cloth alone. Meanwhile, the woven fabric lends strength and tear resistance. Together, they create a balanced, high-performance composite material.

Additionally, CEM3 PCB employs highly engineered epoxy resins designed for superior electrical, thermal, and mechanical properties. The resin matrix is carefully formulated with additives like silica, flame retardants, and modifiers to take full advantage of the composite glass reinforcement.

Combining composite fiber substrate and robust resin gives CEM3 PCB enhanced capabilities. It allows them to take electronics to the next level when FR4 has run out of steam.



HPC Systems Powered by CEM3

High-performance computing relies on densely packed components operating at blistering speeds while generating substantial heat. This punishing environment demands the most advanced PCB solutions. CEM3’s strengths make it perfect for HPC:

Supercomputers and Servers

  • The massive scale of supercomputers generates intense thermal loads. CEM3’s excellent heat dissipation enables effective cooling of CPUs, GPUs, and other hot components.
  • Minimizing latency and interference is critical. CEM3’s robust signaling integrity allows high-speed communication between the countless chips in HPC systems.
  • The many PCBs in a supercomputer must endure years of non-stop operation. CEM3 provides the rugged reliability required of these mission-critical systems.

High-Frequency Trading Systems

  • Shaving every nanosecond in automated trading matters. CEM3’s high-frequency capabilities enable the ultra-low latency needed for lighting fast transactions.
  • Stability is vital for financial systems. CEM3’s rigid construction and low CTE prevent timing errors from thermal fluctuations and mechanical stress.

Physics Research Equipment

  • Precision scientific instruments involve dense, complex circuitry. CEM3 can integrate thousands of components and channels required by devices like particle detectors and telescopes.
  • Noise must be minimized for sensitive measurements. CEM3 provides multiple quiet power and ground planes to reduce electrical interference.



Composite Construction – The CEM3 Difference

To fully appreciate CEM3 PCBs, it helps to dive deeper into their unique composite configuration. The composition of the glass reinforcement and resin come together to enhance performance:

Glass Mat – The Hidden MVP

The understated hero of CEM3 PCB is the low-profile, non-woven glass mat. Comprised of randomly distributed fibers just 1-2 microns thick, the mat looks unassuming but provides immense utility. It gifted CEM3 boards with their superstar properties.

The mat eradicates woven cloth’s anisotropic behavior, leading to uneven thermal spreading and dielectric breakdown. In its place, the mat offers complete isotropy and homogeneity through the x, y, and z axes. This uniformity unlocks next-level performance and design freedom.

Mats typically utilize microglass or E-glass fibers weighing 50 to 100 g/m2. Heavier mats improve thermal and mechanical attributes, while lighter mats excel at reducing costs. The mat composition tailors the PCB properties to the application.

Woven Fabric – TheTraditional Touch

Although the unsung mat does the heavy lifting, conventional woven fiberglass cloth still plays a crucial role in CEM3 PCB. The woven fabric grants tear strength, impact resistance, and handling robustness during fabrication.

108g/m2 fabrics are standard, but heavier 211g/m2 cloths are used when maximum ruggedness is needed. The weave construction and fiber width can also be tuned. While the mat brings novelty, the woven cloth provides familiarity.

Epoxy Resins – The Special Sauce

The epoxy resin permeating the CEM3 substrate delivers the final touch of performance enhancement. Modified brominated epoxy resins provide flame retardance without compromising electrical behavior. These are further enhanced with reactive components and additives.

By incorporating dicyandiamide (DICY), the curing reactivity and glass transition temperature are dialed in for ideal fabrication. Tetrabromobisphenol-A boosts flame resistance. Silica reduces thermal expansion, while inorganic fillers like boron nitride enhance thermal conductivity. Every ingredient in the resin formula is engineered for maximum PCB proficiency.

Copper Foils – The Current Carriers

Every PCB needs quality copper foils to facilitate the circuits themselves. CEM3 boards utilize rolled or electrodeposited copper foils from 1⁄4 to 2 oz. Thickness. The foils receive unique treatments to promote resin adhesion and oxidation resistance. This ensures the conductive pathways remain functional and reliable throughout the PCB lifetime.

The synergy between the glass reinforcement, resin, and copper foils built into CEM3 delivers all-around superiority no single material can match. It demonstrates the power of carefully constructed composites.



Fabricating the Future of PCB

The forward-looking functionality of CEM3 PCBs would mean nothing if they couldn’t be manufactured efficiently at scale. Fortunately, fabricating CEM3 boards utilizes known processes adapted for the unique material:

Layering Up for Success

PCB fabrication starts with the layup – building the stack of materials that form the final board. For CEM3, the glass mat and cloth sheets are first impregnated with resin and arranged in a sandwich structure. This may be 20% mat / 80% cloth for standard boards or 70%/30% in highly thermally demanding applications. Copper foil layers are added top and bottom, and the package is vacuum de-aired.

Bonds of Steel, Flexibility of Rubber

Next, the CEM3 layup enters a heated press to fuse and cure under pressure. Temperatures approaching 200°C polymerize the resin into a crosslinked matrix, while pressures upwards of 300 PSI compress the layers. The curing process transforms the raw materials into a cohesive, robust circuit board substrate.

Extra care must be taken to apply pressure and heat to minimize internal stresses uniformly. The higher glass transition temperature of CEM3 compared to FR4 also factors into the lamination process. But overall, the fundamental principles remain unchanged.

Sharpen Your Etching Skills

Once cured, the CEM3 panel appears no different than an FR4 board. The same fabrication steps apply – photolithographic patterning followed by etching to form the circuit traces. Holes are mechanically drilled through the board before electroless copper plating makes the walls conductive. Just like that, the basics of the printed circuit board are complete.

The similarities with FR4 fabrication ensure that bringing CEM3 manufacturing online is straightforward. Facilities equipped for FR4 need only minor equipment adjustments and process tuning to accommodate CEM3 PCB. The barrier to adoption is impressively low.

The Finishing Touches

CEM3 PCB undergoes the same finishing steps as FR4 boards, with the circuits etched and holes plated. Photoresist and screen printing or inkjet technology apply the solder mask and component legends. Hot air solder leveling (HASL) or other surface finishes prepare the boards for soldering. Finally, automated routing separates the individual PCB from the fabrication panel.

Throughout finishing, the innate ruggedness of CEM3 prevents any issues. If anything, CEM3’s thermal and mechanical fortitude results in fewer defects. The exceptional fabrication behavior demonstrates why CEM3 is the future.



CEM3 Surges Forward as The Next-Generation PCB

Given the apparent advantages, it is no surprise that CEM3 PCB usage has snowballed as OEMs pivot to higher-performing material:

  • Globally, CEM3 consumption expands over 10% annually as FR4 adoption declines.
  • The Asia Pacific region drives massive demand, accounting for over 55% of fabrication.
  • CEM3 has grown from niche material to mainstream, particularly in China, with fabrication increasing 25% year-over-year.
  • In Japan, over 50% of all PCB production leverages CEM3 technology.
  • Countries like Taiwan, Vietnam, and South Korea are quickly bolstering CEM3 capabilities.

And the technology remains in its infancy, with a long runway for improvement. As electronics continue pushing boundaries, CEM3 provides the launching pad to reach new heights.



CEM3 Applications – Where It’s Winning

CEM3 Applications
CEM3 Applications



Given its portfolio of premium properties, CEM3 serves as an upgrade path for nearly any FR4 application. Some areas seeing massive CEM3 adoption include:

Consumer Electronics

Mobile devices like smartphones and laptops depend on CEM3’s thinner profiles and low dielectric losses at high frequencies. The improved thermal design enables more powerful mobile processors and 5G modules without overheating issues.

Communications Infrastructure

Reliable thermal management and electrical insulation are compulsory in network switches and servers. CEM3 provides the ideal backbone to support 100Gbps speeds and beyond while maintaining signal integrity.

Automotive Applications

Automobile applications call for unyielding reliability under harsh conditions, from engine control units to ADAS sensors. CEM3 answers the call, giving PCB the durability to withstand years of vibration swings in temperature and humidity.

Aerospace and Defense

The uncompromising demands of aerospace require PCB that surpass all metrics. With space-grade resins and manufacturing refinements, CEM3 is gaining approval for mission-critical space applications.

And CEM3’s applicability only continues expanding as fabrication processes improve. If it can be built on FR4, it can be built better with CEM3.



What Does the Future Hold for CEM3?

CEM3 PCB technology remains in a growth phase with substantial room for improvement as processes mature:

  • As automation improves, expect CEM3 fabrication speed and capabilities to increase.
  • Advanced resin chemistries will strengthen thermal conductivity and electrical insulation properties.
  • Glass materials and additives will be enhanced to enable higher interconnect density PCB.
  • Copper-filled composites and new thermal interface materials will bolster heat dissipation.
  • Embedded passives and shielding will allow higher levels of integration and miniaturization.

And these are just the incremental advancements – disruptive technologies could accelerate CEM3 to new paradigms:

  • Additive manufacturing and inkjet printing enable on-demand, low-volume CEM3 PCB production.
  • Adopting high-frequency ceramic or liquid crystal polymer materials could produce hybrid CEM3 designs.
  • Leveraging AI and machine learning can rapidly optimize fabrication parameters and sizings for maximized yield and performance.

The foundation has only just been laid for CEM3 PCB to transform electronics. As innovation continues, CEM3 will shape itself to the needs of the future.



CEM3 Stands Ready to Elevate Your Next PCB Design

PCB substrate technology often needs to catch up on the radar, overshadowed by the electronic components and devices themselves. Yet the role of CEM3 should not be discounted – it is the backbone enabling those leading-edge gadgets. As electronics advance to dizzying heights, CEM3 provides the support structure to reach the pinnacle.

With unrivaled thermal capacity, mechanical robustness, and electrical stability, CEM3 represents the new standard for mission-critical printed circuit boards. It empowers designers to push limits once thought insurmountable. CEM3 possesses every trait needed to thrive as next-gen electronics become smaller, faster, and more powerful.

The time has come to look beyond the tired technology of yesterday. CEM3 PCB are the future – more intelligent, robust, and daring than the electronics world has ever seen. The power is at your fingertips; all you must do is reach out and harness it. Leave FR4 in the past where it belongs, and let CEM3 elevate your designs to the heights they deserve. The summit is waiting!



Frequently Asked Questions (FAQs)

What types of products use CEM3 PCB?

CEM3 is widely used in consumer electronics, telecommunications, automotive, industrial, aerospace, and medical applications. Any product requiring high reliability, electrical performance, and thermal management can benefit from upgrading to CEM3 from FR4.

How does CEM3 PCB fabrication differ from FR4?

The fabrication process for CEM3 is nearly identical to FR4. The only significant differences are lamination pressure/temperature adjustments and drill/mill parameters to account for CEM3’s distinct material properties. Facilities equipped for FR4 can quickly adopt CEM3.

Is CEM3 more expensive than FR4?

CEM3 pricing is decreasing steadily and is now nearly on par with FR4 boards, especially for higher layer counts. The performance advantages often justify slightly higher costs. In large volumes, CEM3 can even be cheaper due to higher fabrication yield and lower rework rates.

Can CEM3 be used for flexible PCB?

CEM3 can be adapted for flexible circuits using thin cores and reinforced cover layers. More flexible resin systems may also be used. However, other flexible PCB materials, like polyimide, are still more commonly used.
