Blank PCB (A Bare PCB): Role Of Blank PCB In Electronics



Introduction

Explore the World of a blank PCB (Printed Circuit Board) and how it plays a crucial role in our lives, from simple remote controls to complex satellite systems. The demand for blank Printed Circuit boards is increasing day by day because they help solve simple to world big problems. That is why the printed circuit board (PCB) market is a billion-dollar industry. This article provides complete insights into the manufacturing process, the testing methods, and the future possibilities of blank PCBs, driving innovation and shaping our digital age.

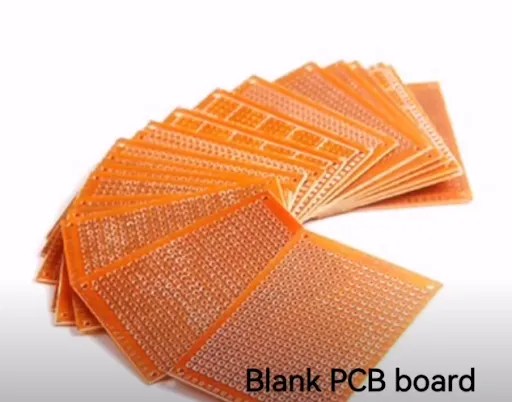

Blank PCB
Blank PCB



What Is A Blank PCB (Printed Circuit Board)?

A blank or empty PCB stand for a Printed Circuit board is  Just a clean Slate without components and any physical interconnections only holes coated with copper and Pathways for the flow of electricity. The printed circuit board (PCB) is made up of various layers, including copper layers that function as traces connecting circuit components.

When designing a PCB, the tracks or paths need to be constructed with specific widths to handle power and consider their lengths to avoid voltage drop. The holes are made to insert components like resistors, capacitors, transistors, or processors to complete the circuit functional as gadgets. PCBs have a long history, dating back to the early 1900s, and have evolved over time in terms of materials and fabrication processes. The green color of PCBs is due to the glass epoxy used, but they can be made in various colors.

PCBs offer advantages over breadboards, such as scalability and reliability, making them ideal for industrial prototypes. They are rugged, inexpensive, and highly reliable. The use of PCBs reduces the size of component assemblies and provides consistent results compared to traditional point-to-point construction methods.

From Blank PCB into fully functional PCB
From Blank PCB into fully functional PCB



The Significance of A Blank PCB

A Blank PCB Circuit Board is of utmost importance in electronics. It serves as the foundation for building functional electronic devices. Providing a blank canvas without any components allows designers to create custom circuits and layouts according to their specific requirements.

A Blank PCB is essential because it enables rapid prototyping and testing of new electronic designs. Before finalizing the PCB design, designers can experiment with various configurations, components, and connections. It helps identify and rectify potential issues or errors early in the development process, saving time and resources.

The Role of PCBs in Our Daily Life

You will be reading this article on an electronic device that can be a desktop computer, laptop, mobile, etc. Behind the scenes, there’s a blank PCB circuit board that performs the backbone function to enable us to read the article. Almost every electronic device has a fundamental component, the PCB circuit board, from simple remote controls to advanced satellite systems. Here is a detailed diagram of the Role of PCBs in our daily life and the modern world.

The importance of a blank PCB as the foundation for various electronic devices
The importance of a blank PCB as the foundation for various electronic devices



How Does A Blank PCB Work?

A Blank PCB Circuit Board works by providing a platform for creating functional electronic circuits. It consists of layers of materials, such as fiberglass and copper, laminated together to form a solid board.

The copper PCB blanks act as a conductive pathway, carrying electric current between different components. Designers use specialized software to create circuit layouts, indicating where each component should be placed and how they should be connected.

Once the design is finalized, the Blank PCB is manufactured using various processes like etching and soldering. The copper traces and components are added to the board, which undergoes testing to ensure its functionality and reliability.

Limitations of Using Breadboards

Scalability: Breadboards have their own physical limitations and are used only for experimental purposes, not for electronic gadgets.

Current and Power Handling: Breadboards might not be able to handle current in a higher range as well as power in a higher range.

Short Circuits: If the number of components increases, the number of wires also increases, resulting in a tangled mess of wires that can make troubleshooting very difficult.

Advantages of Using PCBs

Compact Design: PCB designers and engineers choose PCBs for system-on-chip designs, reducing the overall size and complexity of circuits.

Scalability: PCBs can have multiple layers for complex systems, allowing greater flexibility in design.

Higher Power and Current Handling: PCBs can handle higher current and power ratings, making them suitable for demanding applications.

Stability: PCB materials can resist temperature variations. PCBs have a great aging factor. Before manufacturing, PCB design software can anticipate and handle potential errors.

Professional Appearance: PCBs have neat, organized traces and components, giving the final product a professional look.

Customization: Engineers and designers customize PCBs in ways that lead to optimized performance, reliability, and functionality.



Types of Blank PCBs

Single-Sided PCBs

The blank PCB single-sided has components and traces on only one side of the board, making them straightforward and cost-effective. These boards are suitable for simple applications with minimal circuit complexity, such as basic electronic devices or low-cost consumer products.

Single Sided PCB board
Single Sided PCB board



Double-Sided PCBs

The blank PCB double-sided boards have components and traces on both sides of the board, providing increased circuit complexity and routing options. It allows designers to create more versatile and capable electronic circuits than single-sided PCBs.

Double-sided Pcb
Double-sided Pcb



Multi-Layer PCBs

Multi-Layer PCBs have multiple layers stacked together, offering enhanced functionality and reduced space requirements. These PCBs are designed for high-density applications, where many components and connections must be accommodated within a limited area.

AlN PCB & Alumina PCBs

AlN and alumina PCBs are made from ceramic materials with outstanding thermal conductivity. AlN PCBs, especially, are suitable for ICs due to their small coefficient of thermal expansion.

Flexible PCB & Rigid-Flex PCBs

Flexible and rigid-flex PCBs are made from flexible materials like PI or PET, allowing them to bend. Rigid-flex PCBs combine flexible sections with FR4 layers, offering a balance of flexibility and rigidity.

FR4 PCBs

FR4 PCBs are widely used and budget-friendly. They consist of epoxy fiberglass with a flame retardant level-4. These boards are easy to manufacture, and their prepreg layers help insulate copper layers effectively.

High-Frequency PCBs

High-frequency PCBs, or high-speed and RF microwave PCBs, use PTFE-based materials to transmit and receive high-frequency signals. They find applications in antennas, radars, GPS, and more.

Metal Core PCBs

Metal Core PCBs come in two types: aluminum and copper core. They boast superior thermal conductivity to FR4, making them ideal for LED lighting and power applications.



Blank PCB Material Instructions

Blank PCBs are constructed using various materials, each offering distinct properties for specific applications.

Material Description
FR-4 The most widely used material for standard PCBs due to its excellent electrical properties, cost-effectiveness, and ease of fabrication.
High-Temperature FR-4 Enhanced with the ability to withstand higher operating temperatures. Suitable for applications with extended heat conditions.
Polyimide (PI) The flexible material is known for its exceptional thermal stability, ideal for flexible and rigid-flex PCBs.
Metal Core Substrates Comprising a layer of metal (usually aluminum) as the core for efficient heat dissipation. Suitable for power electronics and LED applications where effective heat dissipation is crucial.
Rogers RO4000 Series Specialized high-frequency materials designed for advanced wireless and microwave applications.



The Manufacturing Process of A Printed Circuit Board

Design & Layout

The PCB manufacturing process begins with designing the circuit schematic and layout using specialized software. Designers carefully plan component placement, signal paths, and thermal considerations to create an efficient and reliable circuit design.

Imaging

Next, photosensitive material transforms the designed circuit pattern from the digital layout to the blank PCB. UV light exposes the photosensitive material, forming the circuit traces on the PCB surface.

Etching

Unwanted copper on the blank PCB printed circuit board surface is removed through chemical etching. This process leaves behind the circuit traces, defining the conductive pathways that connect electronic components.

Drilling

Holes are drilled on the PCB to accommodate component leads and vias (inter-layer connections). These holes enable the proper placement of components and facilitate connections between different layers of the PCB.

Plating

Copper is plated onto the drilled holes to enhance electrical connections and create a conductive pathway between different layers of the PCB.

Solder Mask Application

A protective layer of solder mask is applied to the PCB surface, covering the copper traces. It prevents accidental short circuits and ensures accurate soldering of components during assembly.

Silkscreen Printing

Component labels, logos, and reference indicators are printed on the PCB surface using silkscreen printing. These markings aid in identifying components during assembly and maintenance processes.

Electrical Testing

Before completion, the finished PCB undergoes rigorous electrical testing to verify its functionality and integrity. This testing process ensures that the circuit blank PCB board meets the required specifications and performs as expected.



Testing of Blank PCB Boards

Blank circuit board testing is crucial for several reasons. As the foundation of the circuit board, the empty PCB may encounter issues during the installation of wires and components, leading to significant problems in the final product.

Moreover, even before adding components, the blank circuit board might have defects like over-etching, under-etching, or holes. It can affect the performance of additional features in the future. Here is the flowchart representing the testing process for blank PCB boards:

Flow Diagram of the testing process for blank PCB boards
Flow Diagram of the testing process for blank PCB boards



Benefits of Blank Circuit Board Testing

Testing the blank circuit board offers numerous advantages. Early testing helps to identify and resolve problems during the prototype development phase, preventing issues from escalating during subsequent production stages. It can save time, money, and resources in the long run.

Additionally, testing in the early stages of manufacturing allows for detecting the root causes of any potential problems. It is much more challenging once components are installed on the PCB, making it difficult to identify the source of a failure.

Blank PCB Testing Methods

  1. Automated optical inspection
  2. Burn-in test
  3. Flying probe test
  4. Pinned fixture test
  5. X-ray inspection



How Can You Make A Blank Printed Circuit Board?

If you are a blank PCB board manufacturer and want to manufacture an Empty PCB, you can make it with a little effort. The process involves four steps, from creating sketches to etching the circuit lines. By following these steps, you can craft your empty printed circuit board and embark on the journey of circuit board creation.

Line Draft: Create sketches using software like PROTEL and print them on transparency or tracing paper.

Exposure: Use a desk or exposure lamp to illuminate the photosensitive circuit board, imprinting the line sketch onto it.

Development: Remove the sensitizer with a developer after exposure, revealing a rough sketch of the exposed area.

Etching: Eliminate unwanted copper foil, leaving only the desired circuit lines, resulting in a fresh blank PCB board.



Connecting Components To A Blank PCB

Discover the process of connecting components to a bare printed circuit board through two crucial techniques: soldering and desoldering. Soldering joins components using a soldering iron and special solder material tightly, while desoldering allows easy removal for repair or replacement. Let’s unravel the mysteries of these essential techniques in electronic circuit assembly.

Connecting Components to PCB
Connecting Components to PCB



Soldering

Soldering is the process of securely joining components on a blank PCB. It involves melting solder between the components using a soldering iron. Unlike welding, soldering doesn’t damage the electrical parts during the joining process. The solder material has a lower melting point than the components, ensuring a reliable connection without harming the electronic parts. For effective soldering, it is essential to use solder material with high electrical conductivity.

Desoldering

Desoldering is the opposite of soldering, where components and solder connections are removed from the PCB. It is done for repair, replacement, or salvage purposes. The primary tool used for desoldering is the desoldering pump. Other materials, such as heat guns, solder wicks, and removal fluxes, assist in desoldering.



What Is The Role of A Blank PCB For Milling?

Blank PCBs are essential for milling in millwork. blank PCB board factories often supply blank boards and mill them using necessary milling equipment. The costs of CNC milling have become more affordable, ranging from 330 to 450, making it an accessible and cost-effective option for obtaining blank printed circuit boards. This practice ensures proper part selection when redesigning circuits, leading to improved outcomes.

In milling, the process involves removing copper portions from the white-printed circuit board to create tracks and designs. These structures are generated from digital files using position power. While etching may seem easier, it falls short when dealing with smaller Surface Mount Devices (SMDs) due to their tighter pitch. In such cases, milling becomes the preferred option for achieving precision and efficiency in PCB manufacturing.

Advantages of Blank PCBs For Milling

  • No need for automatic leveling, allowing flexibility in fitting and pathways.
  • Enhanced modularity through careful planning and assembly.
  • Flexibility in machining, suitable for batch production.
  • Cost-effective and time-saving manufacturing process.
  • Wide range of applications and possibilities for different components.
  • Versatility compared to individual or double-sided boards.



Challenges & Limitations of Blank PCBs

Modern-day PCB
Modern-day PCB



Complexity

As electronic circuits become more intricate and sophisticated, blank PCBs face the challenge of accommodating complex designs. The increasing number of components, connections, and signal paths demand careful planning and layout. Designers must ensure that traces do not interfere with each other and that the circuit functions correctly without interference or signal degradation.

Miniaturization

The trend towards smaller, more compact electronic devices drives the need for a small blank PCB board. As components shrink in size, the spacing between traces must reduce accordingly. Achieving precise trace spacing is crucial to prevent short circuits and maintain signal integrity.

Assembly & Reliability Challenges

Miniaturization not only affects trace spacing but also presents assembly and reliability challenges. Smaller components are more delicate and susceptible to damage during soldering. Ensuring proper solder joints and avoiding defects become critical to maintaining the PCB’s reliability over time.

Thermal Management

High-power applications, such as power electronics and LED lighting, generate significant heat. Efficient heat dissipation prevents component overheating and maintains circuit performance and reliability. Blank PCB materials must be carefully chosen to withstand thermal stresses and efficiently transfer heat away from heat-generating components.

Materials & Cost Considerations

Choosing suitable materials for blank PCBs is essential to meet specific performance requirements. Advanced materials, such as high-frequency laminates or metal-core PCBs, may be necessary for specialized applications but can increase manufacturing costs.

Signal Integrity & EMI/EMC Issues

Maintaining signal integrity becomes crucial with increasing circuit complexity and faster signal speeds. Signal traces should be carefully designed and routed to minimize signal loss and electromagnetic interference (EMI) or electromagnetic compatibility (EMC) issues. Proper grounding and shielding techniques are essential to reduce the impact of external and internal electromagnetic interference.

Environmental Impact & Sustainability

As electronic waste continues to grow, the environmental impact of PCB manufacturing and disposal has come into focus. Designers and blank PCB board manufacturers must strive for environmentally friendly practices, such as using lead-free solder and recyclable materials to minimize the ecological footprint of blank PCBs.

Rapid Technological Advancements

The pace of technological advancements can pose challenges for blank PCBs. Designers must adapt to meet changing requirements and standards as new technologies emerge. Staying up-to-date with the latest advancements and embracing cutting-edge manufacturing processes is essential to remain competitive in the electronics industry.



The Future of Blank Printed Circuit Boards

Increased Miniaturization

As technology progresses, the future of blank PCBs will see remarkable miniaturization. Advancements in materials and manufacturing techniques will enable designers to create even smaller and more complex circuits. Nano-sized components and trace spacing will become the norm. It will drive the development of cutting-edge electronics that are sleeker, lighter, and more powerful.

Integration of New Materials

The future will witness the integration of new and innovative materials into blank PCBs. Flexible and conductive polymers will revolutionize PCB design, creating flexible circuits that conform to irregular shapes. These materials will open doors for novel applications in wearable technology, bendable displays, and intelligent textiles.

Improved Thermal Management

With the growing demand for high-power electronics, thermal management will be a focal point in the future of blank PCBs. Advanced thermal management techniques, such as embedded heat pipes, liquid cooling, and heatsinks, will address heat dissipation challenges.

Enhanced Signal Integrity

As data transmission becomes increasingly critical, the future of blank PCBs will prioritize enhanced signal integrity. PCBs with reduced signal loss and noise will support faster and more efficient communication between electronic components. Signal integrity will be optimized through improved routing techniques, signal shielding, and advanced dielectric materials.

Advanced Electronics

The China blank PCB industry is developing with specialized manufacturers and modern factories. These China blank pcb board manufacturers are paving the way for the future, producing high-quality and innovative solutions to meet the various needs of the electronics market.

Internet of Things (IoT) Revolution

The rise of the Internet of Things (IoT) will play a pivotal role in shaping the future of blank PCBs. IoT devices require specialized PCBs with low power consumption, wireless connectivity options, and multi-layer integration. Blank PCBs will cater to the demand for smart sensors, wearables, and interconnected devices that facilitate seamless communication and data exchange in the IoT ecosystem.

Environmental Sustainability

In line with global environmental concerns, the future of blank PCBs will prioritize sustainability. PCB manufacturers will explore eco-friendly materials and processes, reducing waste and adopting recyclable components. Lead-free soldering and environmentally conscious manufacturing techniques will become standard practices to minimize the environmental impact of blank PCB production and disposal.



Conclusion

The blank PCB has great significance in the world of electronics. It is the foundation for creating electronic circuits, allowing designers to improve their creativity and build innovative devices. The blank PCB is vital in powering our modern lives, from everyday electronic devices to advanced technologies.

As we move forward in technology, let us appreciate the significant role of the humble blank PCB and its contribution to shaping our electronic future. With every blank PCB, endless possibilities arise, propelling progress and transforming our digital age. It opens the door to a world of innovation, shaping how we live, work, and connect in our digital age.



Frequently Asked Questions (FAQs)

What is a blank PCB called?

A blank PCB is commonly known as a bare PCB or an empty PCB. It is a printed circuit board without any components or electronic parts mounted on it.

How to use a blank PCB board?

To use a blank PCB board, assemble electronic components onto its surface by soldering them according to your circuit design. Test the connections and functionality to ensure proper operation.

What is the average price of a PCB board?

Printed circuit boards vary widely in quality, dependability, complication, and pricing. Depending on your requirements, the blank PCB board price can range from 50 cents to $300.
