Audio Amplifier PCB Layout Design, Advancements, & Optimization



Table of Contents

Introduction

Welcome to the world of audio amplifiers, where the magic of sound reproduction comes to life. In this era of cutting-edge technology, the quest for high-quality audio experiences has led to the development of increasingly sophisticated audio amplifier circuitry. Among the crucial elements determining an audio amplifier’s success lies its PCB layout, a hidden hero that silently shapes its performance and efficiency.

Before diving into the depths of audio amplifier design, let’s understand an audio amplifier PCB layout. In simple terms, it refers to the intricate arrangement of components, traces, and connections on a printed circuit board (PCB) that form the foundation of an audio amplifier. The PCB layout is a crucial canvas on which the symphony of electrical signals transforms into the musical output we hear through our speakers or headphones.

The significance of a thoughtfully crafted PCB layout for audio amplifiers cannot be overstated. Just like a conductor directing a grand orchestra, the layout of the PCB can profoundly impact the performance, efficiency, and sound quality of the amplifier it supports. A well-designed PCB ensures optimal signal flow, minimizes interference, reduces noise, and manages heat dissipation effectively. The result is an audio amplifier that can faithfully reproduce audio with unparalleled fidelity, capturing every nuance and subtlety of the original recording.

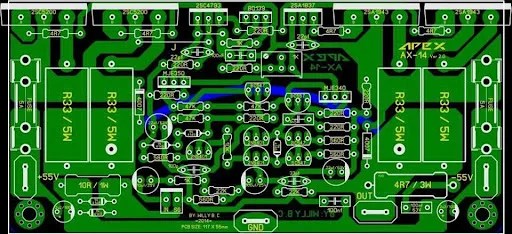

Audio amplifier PCB
Audio Amplifier PCB Layout



In this article, we journeyed through the fundamentals of audio amplifiers and PCB layout design. We will explore the key components and working principles of audio amplifiers, delve into the various classes of amplifiers and their corresponding PCB layouts, and uncover the essential considerations for designing high-performance audio amplifier PCBs. Moreover, we will delve into the critical aspects of heat dissipation and EMI/EMC mitigation and share practical tips to master the art of amplifier PCB layout.



Understanding Audio Amplifier PCB Layout Basics

Explaining Audio Amplifiers and Their Functionality

An audio amplifier is an electronic device that takes a weak audio signal and magnifies it to a level suitable for driving speakers or headphones, creating the beautiful music and captivating sounds we adore.

The primary purpose of an audio amplifier is to faithfully reproduce the input audio signal without introducing any significant distortion or alteration. The amplifier leverages various electronic components, such as transistors, operational amplifiers (op-amps), and resistors, to amplify the electrical signal’s voltage or current.

The process begins with the input audio signal, typically from a music player, microphone, or audio source. This signal enters the amplifier circuit, undergoing a series of amplification stages. Each stage incrementally boosts the signal’s power, enhancing its amplitude while preserving the original waveform.

The amplified audio signal then passes through the output stage, delivered to the connected speakers or headphones. Here, the importance of a clean and robust PCB layout becomes evident. A well-designed PCB ensures that signal integrity is maintained throughout the amplification process, minimizing noise, interference, and distortion.

Amplified audio signal
Amplified audio signal



PCB Layout in Amplifier Circuit Design

An amplifier-printed circuit board (PCB) layout visualizes copper wire patterns arranged on a circuit board, and a PCB designer accomplishes its creation. This intricate mechanism facilitates the enhancement of the input signal it receives. The applications of the Amplifier PCB are numerous, with one of its primary functions being the conversion of raw analog signals into digital signals. Before analysis by a microprocessor, these signals undergo amplification to produce an output. To achieve this transformation from analog to square waves, the Amplifier PCB utilizes high input saturation and exploits harmonic saturation for waveform generation, as mentioned earlier. The process of converting signals into square waves is of utmost importance.

The Amplifier PCB plays a crucial role in amplifying signals and maintaining important factors like frequency. It has a higher voltage and near-zero output resistance, making it suitable for powering loudspeakers. However, its poor input resistance requires a connection between the circuitry and the receiver to prevent unintended signals from causing interference. Thus, the Amplifier PCB is an essential intermediary for preserving signal integrity.



Types of Audio Amplifier PCB Layout and Their Classes

Overview of Different Amplifier Classes (Class A, B, AB, C, D, E, F, G)

Amplifier classes fall into two primary groups. The first encompasses the traditional conduction angle amplifiers (Classes A, B, AB, and C), where the output transistor operation lies between “fully ON” and “fully OFF.” The second group includes newer “switching” amplifiers (Classes D, E, F, G, S, T) that use digital circuits and pulse width modulation (PWM) to switch the signal between “fully ON” and “fully OFF,” driving the output into transistor saturation and cut-off regions.

Class A Amplifiers:

Class A amplifiers use one output-switching transistor biased around the Q-point for continuous conduction over 360 degrees. Despite never turning “OFF,” they boast excellent linearity, high gain, and low signal distortion when designed correctly. While less common in high-power applications due to thermal limitations, they shine in high-fidelity audio designs, delivering unparalleled sonic quality.

Class A amplifier
Class A amplifier



In order to attain excellent linearity and gain, the output stage of a class A amplifier is continuously biased in the “ON” (conduction) state. Therefore, to categorize an amplifier as “Class A,” the zero signal idle current within the output stage should be equivalent to or surpass the maximum load current necessary to generate the most substantial output signal.

Class B Amplifiers:

Class B amplifiers emerged as a remedy for the efficiency and heat-related challenges of class A amplifiers. They use two complementary transistors for each half of the waveform in a “push-pull” configuration. The class B amplifier operates with zero DC base bias current, resulting in higher efficiency but reduced linearity in the switching device.

Class B amplifier
Class B amplifier



The positively biased transistor conducts during a positive input signal while the negatively biased transistor switches “OFF.” For a negative input signal, the positive transistor turns “OFF,” and the negatively biased transistor turns “ON” to conduct the negative segment. Each transistor device in the class B amplifier conducts for only half the time (180 degrees) in a precise time alternation. Nevertheless, the output stage combines both halves to produce the entire linear output waveform. This design ensures improved efficiency at the cost of slightly reduced linearity compared to class A amplifiers.

Class AB Amplifiers:

The Class AB Amplifier combines features from Class A and Class B types. It is widely used in audio power amplifier design, eliminating crossover distortion by allowing both devices to conduct simultaneously around the waveform’s crossover point. With a bias voltage of 5 to 10% of the quiescent current, each transistor conducts for slightly more than one-half cycle of the input signal, resulting in a conduction angle between 180° and 360°. This configuration achieves improved linearity compared to Class B amplifiers without compromising efficiency, making Class AB amplifiers a prevalent choice in contemporary audio applications.

Class AB amplifier
Class AB amplifier

Class C Amplifiers:

The Class C Amplifier design boasts the highest efficiency but the lowest linearity among the mentioned amplifier classes. Unlike the linear amplifiers (Classes A, B, and AB) with linearly related input and output signals, the Class C amplifier is heavily biased to yield zero output current for over one-half of an input sinusoidal signal cycle, with the transistor idling at its cut-off point.

Class C amplifier
Class C amplifier



Consequently, the transistor’s conduction angle falls significantly below 180 degrees, typically around 90 degrees. Due to their limited linearity, Class C amplifiers find utility in radio frequency (RF) and communication applications where signal distortion is less critical.

Overview of Different Amplifier Classes
Overview of Different Amplifier Classes



Class D Amplifiers:

Class D amplifiers, or “digital amplifiers,” use pulse-width modulation (PWM) to switch the output devices on and off rapidly. This results in high efficiency and minimal heat generation. Class D amplifiers are commonly found in portable audio devices because they are energy-efficient.

Class E, F, and G Amplifiers:

These are specialized amplifier classes that offer enhanced efficiency for specific frequency ranges or power levels. Class E amplifiers are optimized for radio frequency applications, Class F amplifiers for high-frequency operation, and Class G amplifiers for efficient operation at different power levels using multiple power supply rails.

Advantages and Efficiency Comparison of Each Class

The choice of amplifier class depends on the specific requirements of the audio application. Here’s a brief comparison of the advantages and efficiency of each class:

  • Class A: Advantages include low distortion and excellent audio fidelity. However, they are inefficient and generate more heat.
  • Class AB: Balances audio fidelity and efficiency, making them widely used in audio amplification applications.
  • Class B: More efficient than Class A but suffers from crossover distortion.
  • Class C: Highly efficient but unsuitable for high-quality audio reproduction due to high distortion levels.
  • Class D: Exceptional efficiency, making them ideal for battery-powered devices, but may require careful filtering to avoid audio artifacts.
  • Class E, F, and G: Specialized classes with enhanced efficiency for specific applications, particularly in RF and high-power scenarios.



Designing a High-Performance Audio Amplifier PCB Layout

Determining Amplifier Requirements and Specifications

Creating a high-performance audio amplifier begins with clearly understanding the specific requirements and performance goals. Whether it’s a low-power headphone amplifier or a high-fidelity stereo system, defining the amplifier’s purpose and intended application lays the foundation for the entire design process.

One crucial consideration is selecting the appropriate components, such as transistors, op-amps, and capacitors, which can handle the required power and frequency range. Choosing these components significantly impacts the amplifier’s performance, and careful research and testing can lead to the best-suited components for the design.

Power Plane Considerations

To optimize power planes, ensure sufficient thickness to meet supply pin requirements. For multiple ICs sharing the supply plane, use star-connected traces from the power control IC. Bypass transistors serve instant switching current needs and reduce voltage noise on control pins, improving power supply stability. Place convergence capacitors near related pins and route them with wide traces to minimize redundant inductors and resistance. If access to decoupling capacitors on the top layer is impossible, consider routing them from adjacent layers to the top layer to minimize parasitic effects on internal pins. These techniques optimize power delivery and minimize parasitic effects on audio amplifier PCBs.

Optimizing Capacitor Positioning and Ground Connections

For optimal performance, it is crucial to establish close and direct connections between the device’s ground pins and the ground plane. Directly linking unit pads to the ground plane is preferable to ensure a robust connection. It’s crucial to note that each ground pin must be well-connected to serve as the return path for different supplies.

Capacitor Positioning
Capacitor Positioning



Place capacitors close to specific pins on the top layer to minimize undesirable inductance. Inductors and resistors can cause voltage spike overshoot or undershoot due to switching current needs. Reducing parasitic inductance and resistance requires the shortest possible route. Optimal decoupling cap placement is within 1 mm of the unit pin, with additional caps nearby. Multiple parallel connections to the ground reduce parasitic inductance. Strategic capacitor positioning and efficient ground connections enhance audio amplifier PCB performance.

Minimizing Crosstalk and Noise for Enhanced Signal Integrity

To preserve signal integrity, measures can be taken to minimize crosstalk effects. Optimizing PCB layer configuration is recommended, ensuring signals crossing adjacent layers move in opposite directions, eliminating parallelism between traces. Introducing a ground plane or power plane between signal layers increases the distance between them, offering a more efficient return path to the ground, which is necessary for signal layers. If parallelism is unavoidable, minimizing trace width helps reduce coupling. Routing high-frequency signals like clocks as far away from other signal traces further mitigates crosstalk.

Signal integrity
Signal integrity



Heat Dissipation and Thermal Management in Amplifier PCBs

Importance of Heat Sinks and Heat Dissipation Techniques

Heat dissipation and thermal management are critical considerations in high-performance audio amplifier PCBs. As amplifiers handle higher power levels, they generate significant heat during operation. Heat sinks are vital in dissipating excess heat from power-hungry amplifier components. These passive cooling devices provide a large surface area facilitating efficient heat transfer from hot components to the surrounding air. Choosing the right heat sink with the appropriate thermal conductivity is essential to prevent overheating and maintain amplifier stability. Employing advanced heat dissipation techniques, such as heat pipes or vapor chambers, can further enhance thermal performance.

Integrating Heat Sinks onto the PCB Layout

The integrating process of the heat sink involves several components:

  • Solder pins: Various heights and stand-off shoulders are characteristics of these pins, which require wave soldering and are solderable rolling pins.
  • Shur-lock tabs have rounded and bifurcated tips, facilitating easy snapping into PCB holes. They ensure proper alignment and prevent the heat sink from slipping out.
  • Solderable mounting tabs: Tiny plated spring steel tabs are permanently locked to the heat sink, usually mounted after anodizing.
  • Solderable staked on tabs: These tabs are permanently assembled onto the heat sink for solder mounting on PCBs.
  • Thermal clips: These eliminate the need for screws and nuts. Locking types have internal tabs to secure the heat sink permanently.
  • Device mounting studs: Through-hole mounting technology employs mounting studs, reducing assembly time and unnecessary hardware usage.
  • Clinch nuts: Threaded and permanently pressed into the heat sink, allowing single screw mounting of the resistor.
  • Female and male mounts: Self-feeding screws aid in quickly mounting the heat sink with semiconductors.
  • Kool Clips: Correspond to specific heat sinks or families, eliminating the need for nuts, screws, and lock washers.
  • Solderable studs: Swaged permanently to the heat sink for quick transistor preassembly. Legacy part numbers specify the required number of studs in some models.
  • Solderable Nuts: Featuring closed ends to prevent flux and contaminants. Legacy part numbers determine the number required in specific models.
  • Tapes: Directly attached to the heat sink and source, providing excellent thermal characteristics.
Heat Sinks onto the PCB
Heat Sinks onto the PCB



Reducing Thermal Shock and Ensuring Component Efficiency

To mitigate thermal shock, the PCB layout should be designed to facilitate smooth heat dissipation, avoiding abrupt temperature changes. Proper thermal relief patterns for vias and copper planes can aid in gradual temperature transition, reducing the risk of component failure.

Furthermore, ensuring efficient component placement can enhance thermal management. High-power components should be spaced adequately to prevent overheating due to proximity. On the other hand, placing sensitive components away from the heat sink can safeguard against thermal stress on these components.



EMI/EMC Design Guidelines for Audio Amplifier PCB Layout

Shielding and Filtering Strategies for EMI Mitigation

EMI mitigation through shielding is a widely employed technique in various applications. Shielding involves the utilization of closed, conductive enclosures firmly connected to the ground. The primary objective is to diminish the loop antenna effect by effectively reflecting and absorbing a portion of the radiation emitted.

Filtering is another powerful tool to combat EMI. Low-pass filters can prevent high-frequency noise from reaching sensitive audio circuits, while ferrite beads and inductors can suppress conducted EMI. The strategic placement of these filters and proper trace routing can significantly reduce the risk of EMI-related issues.

Proper Trace Spacing

Ensuring appropriate spacing and layout of traces is of paramount importance. Traces act as conduits carrying current from the driver to the receiver. If traces bend or intersect, antenna formation is risky, leading to electromagnetic interference (EMI). Therefore, isolating all signals from one another is advisable to mitigate crosstalk and minimize EMI concerns.

Components Segregation and Impedance Matching

Component segregation is a fundamental aspect of a well-designed PCB layout. Components are classified based on operating signals, encompassing high-speed, low-speed, power supply, and digital or analog signals.

Impedance matching plays a critical role, particularly in high-speed circuits, as impedance mismatches can give rise to EMI issues. Employing matched signal termination strategies is a practical approach to reducing EMI and ensuring smooth signal reflection.



Applications and Advancements in Audio Amplifier PCB Layout Design

Current Trends and Advancements in Operational Amplifiers

Operational amplifiers (op-amps) play a pivotal role in audio amplifier PCB design, and current trends showcase exciting advancements in this field. Manufacturers constantly push the boundaries, developing op-amps with lower distortion, wider bandwidth, and improved noise performance. Modern op-amps are designed to operate at lower voltages and offer rail-to-rail inputs and outputs, making them ideal for low-power and portable audio amplifiers. Furthermore, advanced op-amps with integrated features like digital signal processing and adaptive compensation pave the way for more sophisticated audio amplifier designs that deliver unparalleled audio fidelity.

High-Fidelity Audio Amplifiers for Professional Audio Systems

High-fidelity audio amplifiers cater to the discerning ears of audiophiles and professionals in the audio industry. These amplifiers are designed to deliver pristine sound reproduction with minimal coloration or distortion. Advancements in PCB design and meticulous component selection have created audio amplifiers with ultra-low distortion and noise levels, achieving a remarkable signal-to-noise ratio. Additionally, high-fidelity audio amplifiers are engineered for robust power delivery and heat dissipation, enabling them to handle demanding audio environments gracefully and precisely. Whether in recording studios, concert halls, or home audio setups, these high-fidelity amplifiers elevate the audio experience to a new level of excellence.



Practical Tips and Techniques for Mastering Amplifier PCB Layout

Strategies for Noise Reduction and Interference Prevention

Noise and interference can undermine the performance of even the most sophisticated audio amplifier. To achieve a pristine audio output, implementing noise reduction strategies is essential. Firstly, keep analog and digital circuitry separate, minimizing the chances of digital noise contaminating sensitive audio signals. Ground and power planes should be carefully designed to maintain a low-impedance return path for signals, reducing the risk of ground loops and minimizing noise. Placing decoupling capacitors near high-power components and filtering high-frequency signals effectively suppress unwanted noise.

Tips for Minimizing Heat Generation and Ensuring Thermal Efficiency

Efficient heat management is paramount to the longevity and performance of audio amplifiers. Choose components with lower power dissipation ratings to minimize heat generation and ensure they are adequately rated for the amplifier’s power requirements. Efficient thermal vias and proper positioning of heat sinks facilitate effective heat dissipation. Additionally, consider the airflow and ventilation around the amplifier’s enclosure to maintain optimal operating temperatures. Adequate thermal relief for vias and copper planes can prevent thermal shock and ensure thermal efficiency.

Proper Grounding Techniques for Enhanced Signal Integrity

Proper grounding techniques are crucial for maintaining signal integrity and reducing noise in audio amplifier PCBs. Implement a star grounding scheme where all ground connections converge simultaneously, preventing ground loops and reducing noise. Ground traces and signal traces should be routed away from each other to minimize interference. Ground planes can provide a low-impedance reference for signals, further enhancing signal integrity.

By incorporating these practical tips and techniques into the PCB layout, designers can master the art of audio amplifier design. The key to creating high-performance amplifiers that deliver uncompromising audio quality is to balance noise reduction, efficient thermal management, and proper grounding as we venture deeper into the intricacies of amplifier PCB layout.



Conclusion

In conclusion, designing a PCB may be labor-intensive, but its benefits make it worthwhile. A well-designed PCB offers many advantages, including reduced noise, enhanced RF signal immunity, and minimized distortion, improving audio performance. Additionally, the PCB’s EMI performance is elevated, potentially reducing the need for excessive shielding components, simplifying the design, and optimizing cost-efficiency.

Conversely, overlooking the importance of meticulous PCB design can lead to complications during product testing, creating avoidable setbacks. Rectifying issues after the PCB layout’s completion can be a challenging task that demands both time and resources, impacting the overall efficiency and costs of the system. Therefore, designers must approach PCB layout with utmost care and attention, implementing strategies for noise reduction, proper grounding, and efficient heat dissipation. By heeding these considerations, designers can create high-performance audio amplifiers that deliver unparalleled sound quality, bringing the listener closer to the true essence of music and sound.

Pursuing excellence in PCB design remains an unyielding journey in the ever-evolving landscape of audio amplifier technology. With each amplifier design, there lies an opportunity to shape the future of audio experiences, where innovation and creativity harmonize to elevate our connection to music and sound. As we look ahead, let us embrace the challenge of optimizing performance and efficiency, aiming to craft audio amplifiers that transcend expectations and enrich our lives with the power of sound. We can forge a path toward a more captivating auditory world through unwavering dedication and a passion for audio amplification.
