What is SMT Stencil ?
SMT Stencil is one form-stable templates to print solder paste onto the component pads of printed circuit board before the assembly, using a stencil will allow you to apply an even and accurately placed coat of solder paste to the pads. This is often quicker and easier than doing it manually with a syringe, especially if you working with more than one copy of the same board. A consistent and accurate coat of paste will reduce the number of solder bridges and decrease board cleanup time
Laser cut SMT stencil | SMT mini stencil | LED stencil |
Frame SMT stencil | Frameless stencil | PCB stencil | SMT glue Stencil | Solder paste stencil | BGA stencil |
Why Choose Morepcb for SMT Stencil ?
If you are looking for a reliable SMT stencil manufacturer, MorePCB can help.
Our experienced engineers can provide you with professional suggestions for determining the best stencil smt thickness for your specific application.
When deciding on the pcb stencils it is important to consider the size and pitch of the components, as well as the type of solder paste being used. A stencil that is too thick may result in an insufficient amount of solder paste being deposited on the pads, while a stencil that is too thin may result in too much solder paste being deposited, leading to bridging or other issues. Our experienced engineers can help you determine the optimal stencil thickness based on these factors and more.

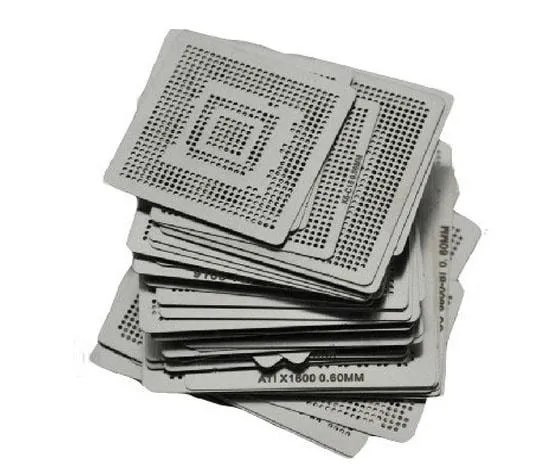

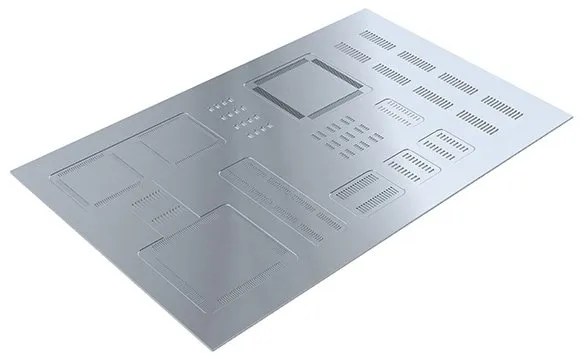

In addition to standard SMT stencils, we also specialize in producing stepped stencils, BGA re-balling stencils, and custom steel stencils for automatic printing machines. Our advanced manufacturing capabilities and quality control processes ensure that our stencils meet the highest industry standards for quality, accuracy, and reliability.


How to decide the SMT stencil plate thickness ?
Type | PITCH | Pad Width | Pad Length | Opening Width | Opening Length | Plate Thickness |
PLCC | 1.27mm | 0.65mm | 2.00mm | 0.6mm | 1.95mm | 0.15-0.25mm |
QFP | 0.635mm | 0.35mm | 1.50mm | 0.32mm | 1.45mm | 0.15-0.18mm |
QFP | 0.50mm | 0.254-0.33mm | 1.25mm | 0.22-0.25mm | 1.2mm | 0.12-0.15mm |
QFP | 0.40mm | 0.25mm | 1.25mm | 0.2mm | 1.2mm | 0.10-0.12mm |
QFP | 0.30mm | 0.20mm | 1.00mm | 0.15mm | 0.95mm | 0.08-0.12mm |
0402 | 0.50mm | 0.65mm | 0.45mm | 0.6mm | 0.12-0.15mm | |
0201 | 0.25mm | 0.40mm | 0.23mm | 0.35mm | 0.08-0.12mm | |
BGA | 1.27mm | 0.80mm | 0.75mm | 0.15-0.20mm | ||
μBGA | 1.00mm | 0.38mm | 0.35mm | 0.35mm | 0.10-0.12mm | |
μBGA | 0.50mm | 0.30mm | 0.28mm | 0.28mm | 0.08-0.12mm | |
Flip chip | 0.25mm | 0.12mm | 0.12mm | 0.12mm | 0.12mm | 0.08-0.10mm |
Flip chip | 0.20mm | 0.10mm | 0.10mm | 0.10mm | 0.10mm | 0.08-0.10mm |
Flip chip | 0.15mm | 0.08mm | 0.08mm | 0.08mm | 0.08mm | 0.08-0.10mm |
PCB stencil size without frame (cm)
- 10*10
- 15*15
- 20*20
- 22*22
- 25*25
Standard stencil size with frame (cm)
|
|
Standard SMT stencil thickness (mm)
- 0.08
- 0.10
- 0.12
- 0.13
- 0.15
- 0.18
- 0.20
