TURNKEY PCB ASSEMBLY SERVICES
MorePCB provide comprehensive PCB assembly solutions, encompassing PCB manufacturing, PCB assembly, component sourcing, IC programming, and functional testing. Our forte lies in fast turnaround prototype PCB assembly.
Exceptional PCB Assembly Manufacturer in China
PCB Assembly and PCB Manufacturing are our main business advantage. Assembly PCB are PCBs with components on them, for short PCBA is the manufacturing process. We are able to undertake a high-quality Printed Circuit Board Assembly on competitive prices and flexible conditions.
As one competitive China OEM manufacturer supply electronic manufacturing services promises mature PCBA with low costs. Quick build time and quality guaranteed without MOQ for any prototypes and samples. SMT assembly, BGA assembly, through hole assembly and soldering . SMD placement capacity includes:0402,QFP,QFN,BGA etc. From simple boards to high complexity multi material boards. Low, medium or high volume.
DFM / DFA Check
DFM validation makes it possible to find faults early on, preventing production pauses and costly errors. We freely check manufacturability validation for every project.
Bare PCB Making
No MOQ and fast making bare PCB at suitable panel format , the PCB can be easily separated from the produced panel after PCB Assembly is finished.
Full Assembly
Incoming Material Inspection-SMT Solder Paste-Reflow Soldering-X-Ray Inspection-Wave Soldering-PCBA Inspection-BOX Building-Function Text
PROTOTYPE PCB ASSEMBLY
Rigid PCB assembly / Rigid – flex PCB assembly
MorePCB offers
PCB Assembly on rigid &
rigid – flex PCBs. BGA,
Micro-BGA, QFN, and etc.
packages could be soldered here.
Flexible PCB assembly
It is the same assembly
process with rigid PCBs except
some special operations based
on different technical
requirement for Flexible
PCB assembly.
Case / Box assembly
For a finished project,
Case / Box assembly service
will be needed by our
customer, and it will be
offered by us.
Cable assembly
Cable assembly service with
different cables 12-28AWG
will be provided by
MorePCB.
Our Complete Assembly Lines
Our Assembly Lines feature with various setups, suitable for different production requirements. The lines consist of below equipments:
- Automatic Stencil Printer
- 3D SPI (Solder Paste Inspection System)

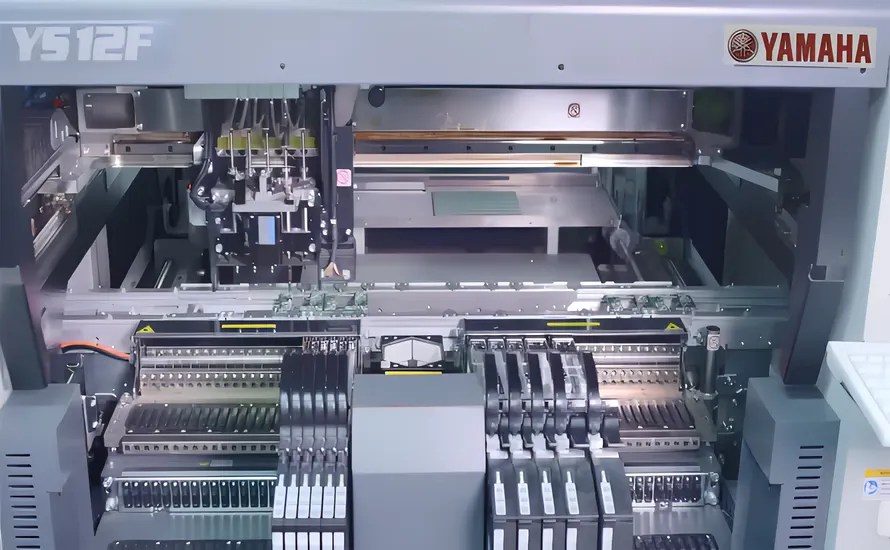

- High-speed / medium-speed Pick-and-Place Machine
- Multi-Function IC Mounter
- 8 Heat-Zone Reflow Machine
- Automatic Optical Inspection System
- Multi-functional Production Line
We pride ourselves on our highly flexible production line, allowing the shortest turn-around time. Such efficiency is the results of comprehensive planning and commitment in equipment investments.

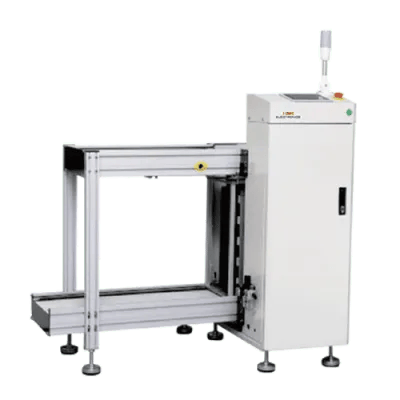

PCB Loader

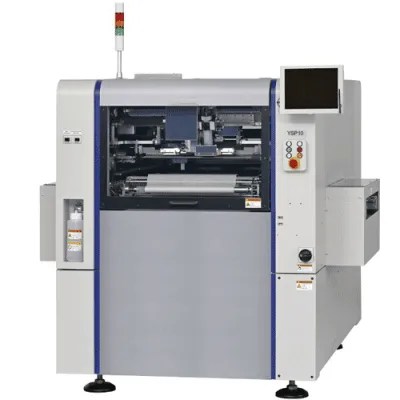

Stencil Printer
SPI

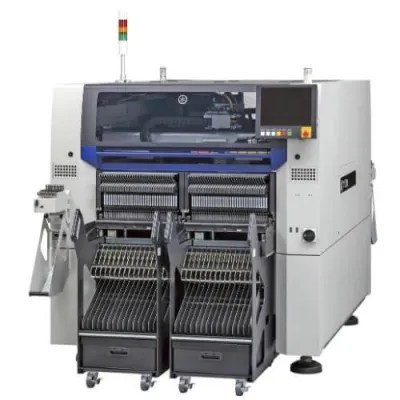

Pick $ Place

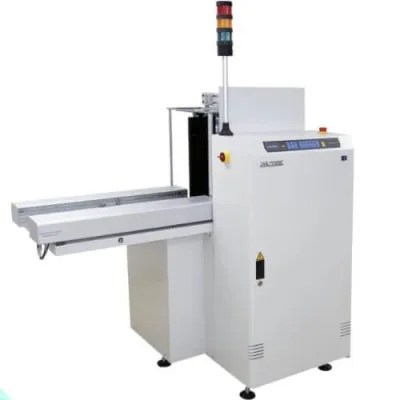

PCB Unloader
AOI 2nd
Reflow Oven
AOI 1st
Our PCB Assembly Capabilities
Our team consists of around 300 skilled professionals. Our turn-key electronic PCB assembly services are second to none, and we are committed to delivering high-quality solutions to meet our clients’ unique needs.
| Placer Speed: | 6000 Chips/Hours |
|---|---|
| Lead time: | 1-25 Days (To Be Decided) |
| Assembly: | SMD, DIP (Through Hole) , Wire Harness Assembly, IC Program burning , Conformal Coating |
| PCB Size: | 50 mm—50 mm / 1200 mm—450 mm |
| PCB Thickness: | 0.5mm-4.5mm |
| Min. Diameter / Space of BGA: | 0.2mm / 0.2mm |
| Qualifications: | ISO 9001:2015 |
| Min.Line / Track Width: | 3mil |
| Minimum Width / Space of QFP: | 0.15mm / 0.3mm |
| Reliability Test: | Flying Probe Test / Fixture Test, Impedance Test, Solderability Test, Thermal Shock Test, Hole Resistance Test, and Micor Metallographic Section Analysis, etc. |
Our PCB Assembly Service Features
- Prototype assembly (PCBA) fastly building and delivery.
- Volume Production (up to 9,000,000 plus in annual volume capabilities).
- SMT/DIP/BGA Assembly, Rigid Flex PCB Assembly, Box Build Assembly, Cable Assembly.
- Component Package Used – BGA, Micro BGA, TSOP,0201, etc.
- Substrate Material Used – FR4 PCB, Multi-layer mixed laminates, Aluminum PCB, Rigid-Flex PCB.
- Assembly Technologies Used – Surface mount, Pin through the hole, Selective soldering, Operator soldering, Paste and glue, Epoxy resin .

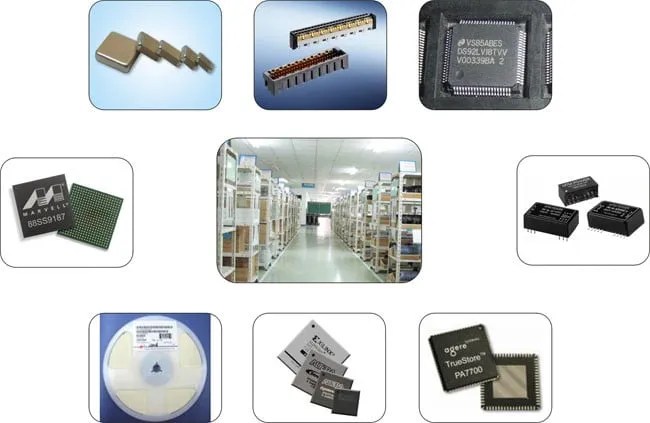

Electronic Components Sourcing For Assembly PCB

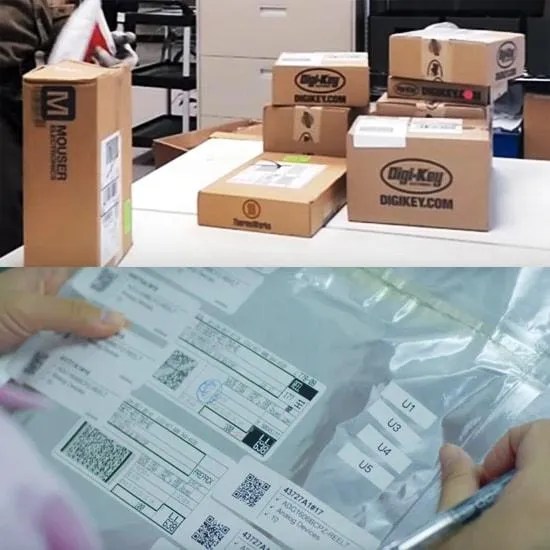

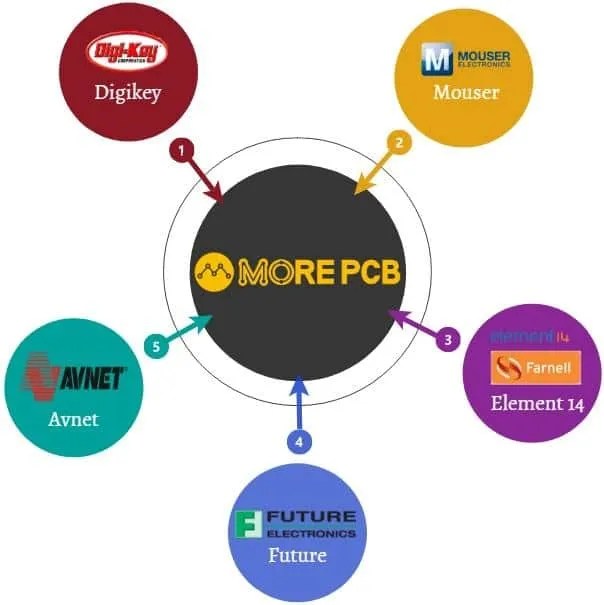

MorePCB sources all of its electronic components from the highest quality vendors and global distributors, such as Digikey, Mouser, Element14(Farnell), Future,Avnet,etc.
We are experts in procuring components and take into account every aspect of the componnents while doing so.
As a professional turnkey pcb (EMS) provider, we not only can purchase electronics components for you, but also can buy plastic & metal enclosures, accessories, cables, and other fabricated compositions. All of our prices are extremely competitive and all of our products are of the highest quality.
Ensuring the quality of incoming raw materials is a critical first step in our industrial process. Identification of non-conforming materials can improve operational performance and save valuable time. All of the components we purchase will be checked one by one to make sure we have the right quantity and that the quality is as good as promised.
