Annular Rings In PCB



Introduction

Printed Circuit Boards (PCBs) are the backbone of modern electronics, providing a reliable platform for interconnecting electronic components. Within PCB design, one critical aspect that demands meticulous attention is the annular ring. Annular rings play a pivotal role in ensuring the reliability and functionality of a PCB. In this comprehensive article, we will delve into what annular rings are, their significance, design considerations, calculations, manufacturing implications, best practices, and the substantial impact they have on PCB performance in various electronic applications.



What are Annular Rings?

In the context of PCBs, an annular ring refers to the circular copper area surrounding a plated through-hole (PTH). Plated through-holes serve as vital conduits that connect different layers of a PCB, enabling the efficient passage of signals, power, or ground between the layers. The annular ring is the copper region between the edge of the hole’s barrel and the pad’s outer perimeter.

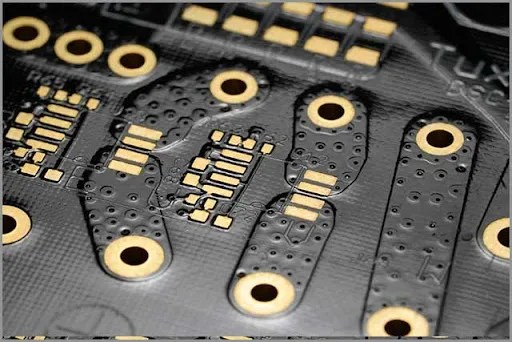

Annular Rings on PCB
Annular Rings on PCB



Significance of Annular Rings

Annular rings have several critical functions in PCB design that directly influence the overall performance and reliability of the electronic assembly

Ensuring Electrical Connectivity

The primary purpose of an annular ring is to establish a reliable electrical connection between the plated through-hole and the corresponding component pad or trace. A well-designed annular ring ensures efficient signal transfer, minimal impedance, and reduced signal distortion, particularly in high-frequency applications.

Enhancing Mechanical Strength

Adequate annular ring dimensions are essential for bolstering the mechanical strength of the hole. This helps to minimize the risk of failure due to mechanical stress, vibration, or thermal cycling, ensuring that the PCB can withstand harsh environmental conditions.

Facilitating Heat Dissipation

In applications where high-power components are utilized, the annular ring contributes to heat dissipation. A larger annular ring allows for better heat distribution and dissipation, ensuring that the components and the PCB operate within their safe temperature limits.



Design Considerations for Annular Rings

To ensure the optimal performance of a PCB, several design considerations regarding annular rings must be taken into account during the design phase:

Annular Ring Width

The width of the annular ring is a critical parameter for maintaining electrical connectivity and minimizing impedance discontinuity. It is typically specified in the PCB design guidelines provided by the manufacturer and is subject to manufacturing tolerances.

Annular Ring
Annular Ring



Via Size and Aspect Ratio

The size and aspect ratio (the ratio of via diameter to its depth) significantly impact annular ring dimensions. A larger via size or a higher aspect ratio may lead to a smaller annular ring, potentially affecting the reliability of the connection. Therefore, designers should carefully consider the trade-offs between via dimensions and annular ring size.

Annular Ring in Multi-Layer PCBs

In multi-layer PCBs, the alignment and dimensions of annular rings are crucial for providing proper connectivity between various layers. Misalignment or inaccuracies can lead to signal integrity issues and impact the functionality of the PCB.



Calculations for Annular Ring Size

The annular ring size is an essential dimension that can impact the overall performance and reliability of a PCB. To calculate the annular ring size, the following data is required:

Pad Diameter (PD)

The pad diameter is the circular area on the PCB surface where the component is soldered. It is measured from one side of the pad to the other and is typically specified in the PCB design documentation.

Hole Diameter (HD)

The hole diameter is the dimension of the plated through-hole (PTH) that runs through the PCB. It is determined by the component lead size or the requirement for Vias to connect different PCB layers.

The annular ring size can be calculated using the formula:

Annular Ring Size = (Pad Diameter – Hole Diameter) / 2

The result of this calculation will give the width of the annular ring, which is the distance between the edge of the hole’s barrel and the outer edge of the component pad.

For example

Suppose we have a PCB with a pad diameter of 1.5 mm and a hole diameter of 0.6 mm. Plugging these values into the formula:

Annular Ring Size = (1.5 mm – 0.6 mm) / 2 Annular Ring Size = 0.45 mm

In this case, the annular ring size would be 0.45 mm. Designers and manufacturers would need to verify that this value aligns with their specific design guidelines and manufacturing capabilities.



Manufacturing Implications

Proper design and dimensioning of annular rings are crucial during the PCB manufacturing process. If the annular rings are too narrow or improperly aligned, it can lead to manufacturing defects, such as open circuits, shorts, or voids in the plating. These defects may result in PCB failure during operation or testing and increase manufacturing costs.

Manufacturers follow specific fabrication processes that have associated tolerances. These tolerances can impact the final dimensions of the annular ring. Designers need to consider these manufacturing tolerances to ensure that the final product meets the required specifications.



Impact on PCB Performance

The proper design of annular rings significantly impacts the performance and reliability of a PCB. Well-designed annular rings ensure robust electrical connections, reducing the risk of signal loss, reflections, or noise interference. Reliable connectivity enhances signal integrity, contributing to the overall performance of the PCB in high-frequency and high-speed applications.

Furthermore, the annular ring’s role in heat dissipation is crucial in high-power applications. By allowing efficient heat transfer to the copper layers and thermal vias, the annular ring helps prevent overheating and potential component damage.



Best Practices for Annular Rings in PCB Design

To optimize the functionality and reliability of a PCB, designers should adhere to the following best practices related to annular rings:

Design for Manufacturability

Collaborate closely with PCB manufacturers during the design phase to ensure that the annular ring dimensions are manufacturable and align with the manufacturer’s capabilities.

Follow Design Guidelines

Adhere to the manufacturer’s design guidelines regarding annular ring width, aspect ratio, and tolerances to avoid manufacturing issues and ensure reliable PCB performance.

Consider Signal Integrity

In high-frequency applications, wider annular rings can help reduce impedance discontinuity and improve signal integrity.

Thermal Considerations

In high-power applications, larger annular rings aid in effective heat dissipation, preventing thermal issues that could lead to component failure.

Verification and Testing

Validate the annular ring dimensions through simulations and testing to ensure that the PCB meets performance requirements before mass production.



The Role of Annular Rings in High-Speed PCB Design

In recent years, the demand for high-speed PCB designs has surged with the proliferation of advanced technologies such as 5G, the Internet of Things (IoT), artificial intelligence, and autonomous vehicles. These technologies require PCBs with exceptional signal integrity to handle fast data transmission and reduce the impact of signal degradation.

Annular rings play a crucial role in achieving the required signal integrity in high-speed PCBs. As data rates increase, the signal frequency becomes a critical factor in PCB design. High-frequency signals are more susceptible to electromagnetic interference (EMI), crosstalk, and signal attenuation. By paying meticulous attention to annular ring design, PCB designers can mitigate these challenges and create high-speed circuits that deliver superior performance.

Impedance Control

One of the primary concerns in high-speed PCB design is impedance control. The impedance of a transmission line is critical in maintaining signal integrity by reducing reflections and minimizing signal distortion. The annular ring’s dimensions, in combination with the via size and pad diameter, affect the characteristic impedance of the transmission lines connected through the vias.

To achieve impedance control, designers need to accurately calculate and manage the annular ring dimensions. Improper annular ring design can lead to impedance mismatches, causing signal reflections and signal integrity issues. To ensure consistent impedance values, designers should employ tools and simulations that account for the effects of annular rings on signal performance.

Differential Pair Routing

Differential signaling is commonly used in high-speed data transmission to reduce noise susceptibility and enhance signal integrity. In a differential pair, two signals of equal amplitude but opposite polarity are transmitted on separate traces with a controlled impedance.

In such designs, the annular rings for the differential vias should be symmetrical to maintain balanced signal transmission. Any asymmetry in the annular rings can introduce imbalances in the signal paths, leading to common-mode noise and degradation in signal quality. Proper annular ring design ensures that the differential pair signals experience equal coupling and maintain the desired phase relationship, improving noise immunity.

Minimizing Signal Cross-Talk

Cross-talk occurs when electromagnetic fields from one signal couple into an adjacent signal trace, leading to interference and signal corruption. In high-speed PCBs, managing cross-talk becomes critical to maintain signal integrity.

Annular rings, along with the via spacing and trace routing, impact cross-talk. A larger annular ring can create more separation between signal vias, reducing cross-talk between adjacent signals. Additionally, proper via placement and ground plane implementation help minimize the effects of cross-talk, allowing high-speed signals to traverse without interference.

EMI/EMC Considerations

 High-speed PCBs are more susceptible to electromagnetic interference (EMI) and electromagnetic compatibility (EMC) issues due to the fast switching of signals. Improperly designed annular rings can exacerbate EMI and EMC problems by acting as unintended antennas or resonant structures.

To mitigate EMI and EMC issues, designers should consider the annular ring’s impact on radiation and resonance. Careful selection of annular ring dimensions, as well as grounding strategies, can help reduce unwanted radiation and prevent interference with other electronic components in the system.

Stackup Design and Layer Stacking

The stack-up design of a PCB significantly affects signal integrity, impedance control, and overall performance. The arrangement of copper layers, dielectric materials, and ground planes in the stack-up influences the propagation of high-speed signals.

Annular ring design plays a role in determining the optimal layer stacking and ground plane configurations. Properly placed annular rings ensure efficient signal transitions between layers and maintain a controlled impedance throughout the transmission path.



Thermal Considerations in High-Power Applications

In high-power applications, such as power amplifiers and motor control circuits, annular rings play a vital role in thermal management. High-power components generate significant heat, which must be efficiently dissipated to prevent component failure and maintain stable performance.

Designers can use larger annular rings to facilitate better heat dissipation. The increased copper area provides a path for heat transfer from the component’s pads to the copper layers and thermal vias, effectively dissipating the heat. By optimizing annular ring dimensions, designers can ensure that the PCB operates within safe temperature limits, contributing to the overall reliability and longevity of the electronic system.



Manufacturing Implications in Advanced Technologies

As technology continues to advance, PCB fabrication processes are continuously evolving to accommodate higher circuit densities, finer features, and increased data rates. Advanced manufacturing techniques, such as micro-vias, blind vias, and buried vias, allow for tighter integration of components and more complex PCB designs.

However, these advancements also bring forth new challenges related to the annular ring design. Smaller vias and finer traces demand tighter manufacturing tolerances, making it crucial for designers to collaborate closely with PCB manufacturers. By aligning the design with manufacturing capabilities, designers can ensure that the annular rings are manufacturable and meet the stringent requirements of high-speed applications.



Conclusion

Annular rings are an essential aspect of PCB design, particularly in high-speed and high-frequency applications. Their influence on electrical connectivity, signal integrity, thermal management, and EMI/EMC performance cannot be underestimated. Properly designed annular rings ensure robust and reliable PCBs that meet the demands of modern electronics.

As technology continues to advance, the role of annular rings in high-speed PCB design becomes even more critical. PCB designers must stay abreast of the latest advancements in manufacturing processes and simulation tools to optimize annular ring design and achieve superior performance.

By adhering to design considerations, employing accurate calculations, and following best practices, designers can create high-speed PCBs capable of meeting the rigorous requirements of cutting-edge technologies. Collaborative efforts between designers, manufacturers, and engineers are instrumental in pushing the boundaries of PCB design and driving the advancement of electronic technologies in diverse industries. Properly designed and manufactured annular rings pave the way for continued innovation and progress, ushering in a new era of high-performance electronics.
