Aluminium PCB Board for LED: Revolutionizing Lighting Technology

The use of aluminium PCB board for LED is rapidly increasing in the electronics industry due to its exceptional thermal conductivity, mechanical strength, and durability. This article takes you through the advantages of using aluminium PCBs in LED applications and explores their various types, manufacturing processes, and real-life applications.

What is an LED Aluminum PCB Circuit Board?

An LED Aluminum PCB Circuit Board is a type of printed circuit board (PCB) specifically designed for LED applications.

It consists of a thin layer of thermally conductive but electrically insulating dielectric material that is laminated between an aluminum base and a copper circuit layer.

The aluminum base provides excellent heat dissipation properties, while the dielectric layer ensures that the electrical components on the PCB are isolated from the aluminum substrate.

This unique construction allows for efficient thermal management, which is crucial in high-power LED applications where excessive heat can cause premature failure or reduced performance.

Advantages of Aluminium PCB Board for LED

      1. Superior Thermal Management: Aluminium PCBs have excellent heat dissipation properties, enabling them to handle high-power LED components efficiently. This helps maintain optimal operating temperatures and prolong the lifespan of the LEDs.

      1. Enhanced Durability: Aluminium PCBs are known for their sturdiness and resistance to mechanical stress, making them ideal for LED lighting systems that require long-term reliability.

      1. Lightweight Design: Despite their strength and durability, aluminium PCBs are lightweight, allowing for easy installation and reduced overall weight of LED lighting fixtures.

      1. Cost-Effectiveness: Aluminium PCBs offer a cost-effective solution for LED applications, as they provide efficient thermal management and mechanical support at a lower cost compared to other materials like copper.

    Types of Aluminium PCBs for LED Applications

    Single-Sided Aluminium PCBs

    Single-sided aluminium PCBs consist of a single layer of copper foil laminated onto an aluminium substrate. These PCBs are widely used in LED applications that require simple circuitry and limited component density.

    Double-Sided Aluminium PCBs

    Double-sided aluminium PCBs have copper layers on both sides of the substrate, allowing for more complex circuit designs and increased component density. These PCBs are suitable for LED applications with higher power requirements and more intricate designs.

    Manufacturing Process of Aluminium PCB Board for LED

        1. Substrate Preparation: The aluminium substrate is cleaned and prepared for lamination, ensuring a smooth and contaminant-free surface.

        1. Lamination: A thin layer of thermally conductive dielectric material is applied to the aluminium substrate, followed by the copper foil layer. The laminated layers are then bonded together under heat and pressure.

        1. Circuit Patterning: The circuit pattern is transferred onto the copper layer, either through photolithography or screen printing.

        1. Etching: The unwanted copper areas are etched away, leaving only the desired circuit pattern.

        1. Drilling and Plating: Holes are drilled in the PCB for mounting components, and the through-holes are plated to create electrical connections between the layers.

        1. Solder Mask and Silkscreen: A solder mask is applied to protect the copper traces, followed by silkscreen printing to label component positions and other important information.

        1. Component Assembly: The LED components are soldered onto the PCB, either through surface mount technology (SMT) or through-hole technology.

      Real-Life Applications of Aluminium PCB Board for LED

      LED Street Lights

      Aluminium PCBs are widely used in LED street lights due to their excellent thermal management capabilities and long-lasting durability. The efficient heat dissipation of aluminium PCBs ensures optimal performance and extends the lifespan of LED street lights.

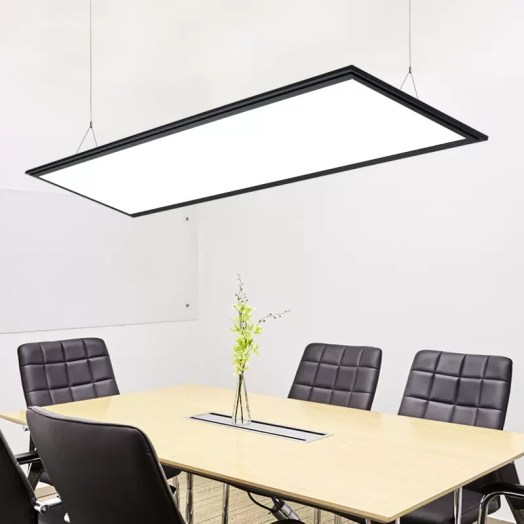

      LED Panel Lights

      LED panel lights require a lightweight, slim design, and efficient heat dissipation, making aluminium PCBs the perfect choice. The use of aluminium PCBs enables manufacturers to create sleek and stylish LED panel lights with high light output and long service life.

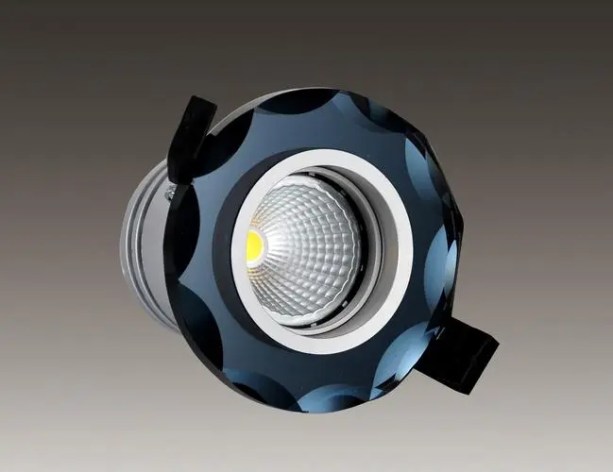

      LED Downlights

      LED downlights often require compact designs with efficient thermal management, and aluminium PCBs provide the perfect solution. Their lightweight and slim profile, combined with excellent heat dissipation properties, make aluminium PCBs ideal for use in LED downlights.

      LED Automotive Lighting

      Aluminium PCBs are extensively used in automotive LED lighting systems, including headlights, tail lights, and interior lighting

      . The durability and thermal management capabilities of aluminium PCBs make them well-suited for the demanding conditions of automotive applications.

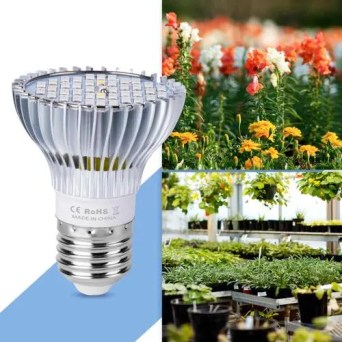

      LED Grow Lights

      LED grow lights are used in horticulture to provide optimal light conditions for plant growth. Aluminium PCBs are widely used in these systems due to their excellent heat dissipation properties, ensuring that the LED grow lights remain at optimal operating temperatures and provide consistent light output.

      LED Emergency Lighting

      Aluminium PCBs are a popular choice for LED emergency lighting systems, as they offer a combination of durability, efficient heat dissipation, and lightweight design. These factors contribute to the reliability and long service life of LED emergency lights, ensuring that they function effectively when needed.

      LED Emergency Lighting

      Conclusion: The Future of Aluminium PCB Board for LED

      The adoption of aluminium PCB boards for LED applications is expected to grow as the demand for energy-efficient, durable, and high-performance LED lighting systems continues to rise. With their superior thermal management, mechanical strength, and cost-effectiveness, aluminium PCBs are well-positioned to play a critical role in the future of LED lighting technology.

      As the industry continues to innovate, manufacturers may develop new aluminium PCB designs and manufacturing processes to further enhance the performance and efficiency of LED lighting systems. By staying informed about the latest advancements in aluminium PCB technology and understanding their potential applications, businesses and consumers can make informed decisions when selecting LED lighting solutions.
