2 OZ Copper PCB Comprehensive Analysis

Introduction

A PCB trace, also known as a PCB track, is a narrow copper conductor on the surface of a printed circuit board (PCB) that carries electrical signals. It is formed by etching away the surrounding copper foil, leaving behind a flat, narrow pathway. Printed Circuit Boards (PCBs) serve as the foundation of modern electronic devices, providing a platform for connecting and supporting various electronic components. Among the key considerations in PCB design is the choice of copper weight, which determines the thickness of the copper layer on the board. In this comprehensive article, we will delve into the world of 2 oz Copper PCB, exploring their benefits, applications, the manufacturing process involved, and why they are gaining increasing popularity in the electronics industry.



Understanding 2 oz Copper PCB

Determining the appropriate trace width involves considering factors such as the current carrying capacity of the trace. Several considerations come into play when selecting the right trace width:

Copper layer thickness

The copper layer thickness refers to the actual thickness of the trace on the PCB. High current PCBs typically have copper thicknesses ranging from 1 oz (35 microns) to 2 oz (70 microns).

Cross-sectional area of the trace

Higher power requirements necessitate traces with larger cross-sectional areas, which is directly proportional to the trace width.

Trace position

 The position of the trace, whether it is on the bottom, top, or inner layer of the PCB, impacts its cross-sectional area and, consequently, its current-carrying capacity. Increasing the trace width is an effective way to achieve the desired current rating.

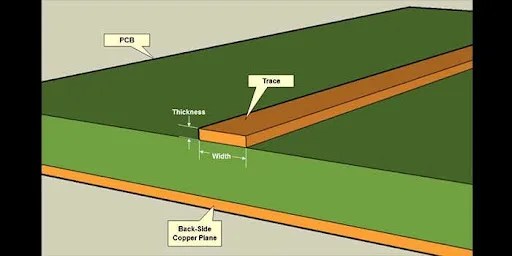

PCB Trace Structure
PCB Trace Structure



2 oz Copper PCB refer to printed circuit boards with a copper layer thickness of 2 ounces per square foot (oz/ft²), equivalent to approximately 70 μm or 0.07 mm. These PCBs are commonly used in applications that require higher current carrying capacity, improved thermal management, and enhanced durability. The choice of copper weight in PCB design is crucial as it directly impacts the electrical and thermal performance of the board. The copper layer serves as the primary conductor, carrying electrical signals between components. A thicker copper layer, such as 2 oz, reduces resistance and enables the smooth flow of higher current levels, making 2 oz Copper PCB well-suited for power electronics applications that demand robust electrical performance.



2-Layer / 2oz copper / blue resist PCB
2-Layer / 2oz copper / blue resist PCB



It’s important to note that while the copper weight indicates the thickness of the copper layer, it does not determine the overall thickness of the PCB. The copper layer is laminated onto the board substrate, typically made of fiberglass-reinforced epoxy laminate (FR-4) material, which provides mechanical support and insulation between copper layers. By laminating a thicker copper layer onto the substrate, 2 oz Copper PCB offer improved current carrying capacity, efficient thermal management, and enhanced durability. This makes them ideal for applications where reliability is critical, such as in aerospace, industrial, and automotive sectors.



In 2 oz Copper PCB, the copper layer’s thickness directly influences the cross-sectional area of the trace. With a thicker copper layer, the trace width or thickness can be increased, resulting in a larger cross-sectional area. This expanded cross-sectional area enables the 2 oz PCB trace to handle higher current levels with reduced resistance and heat buildup. By leveraging the increased copper weight, 2 oz Copper PCB offer improved current carrying capacity, making them well-suited for applications that require robust electrical performance and efficient thermal management.



Conductor width vs Cross section graph
Conductor width vs Cross section graph



Benefits of 2 oz Copper PCB

Increased Current Carrying Capacity

The primary advantage of 2 oz Copper PCB lies in their enhanced current-carrying capacity. The thicker copper layer reduces resistance and enables the smooth flow of higher current levels, making them well-suited for power electronics and devices that require robust electrical performance. By minimizing resistive losses, these PCBs facilitate more efficient power transfer and help prevent component overheating.

Improved Thermal Management

The higher copper weight in 2 oz PCBs aids in efficient heat dissipation. Copper possesses excellent thermal conductivity properties, allowing it to effectively spread and dissipate heat generated by power components. As a result, 2 oz Copper PCB are highly suitable for devices operating under high-power or high-temperature conditions. The improved thermal management provided by these PCBs helps maintain component reliability and longevity.

Enhanced Durability and Reliability

The thicker copper layer in 2 oz Copper PCB provides improved mechanical strength, making them more resistant to stresses such as bending and warping. Additionally, the increased copper weight enhances the board’s resistance to environmental factors like humidity and corrosion, ensuring long-term reliability of the circuitry. These attributes make 2 oz Copper PCB ideal for applications where reliability is critical, such as aerospace, industrial, and automotive sectors.

Lower Impedance and Signal Loss

The increased copper weight in 2 oz PCBs enables better impedance control. This is particularly crucial in high-frequency applications where maintaining the correct impedance throughout the circuit is vital for accurate signal transmission. With lower impedance, 2 oz Copper PCB experience reduced signal loss, resulting in improved signal integrity and reduced distortion. These characteristics make them highly suitable for applications involving RF (Radio Frequency), microwave, and high-speed digital circuits.



Manufacturing Process of 2 oz Copper PCB

Design

The manufacturing process of 2 oz Copper PCB begins with the design phase. PCB design software is used to create the circuit layout, taking into account the specific requirements of the application. The design includes placing the electronic components, routing the traces, and determining the copper thickness and layer stack up.

Substrate Preparation

The substrate, or PCB base material, is prepared by cutting it to the desired size and shape. The most commonly used substrate material is fiberglass-reinforced epoxy laminate, commonly known as FR-4. The substrate is cleaned and prepared to ensure proper adhesion of the copper layer.

Copper Cladding

In the copper cladding process, a thin layer of copper foil is bonded to the substrate. This is typically done using heat and pressure in a lamination press. The copper foil is available in various thicknesses, and for 2 oz Copper PCB, a thicker copper foil is used.

Photoresist Application

A layer of photosensitive material called photoresist is applied to the copper-clad substrate. The photoresist is sensitive to ultraviolet light and will harden when exposed to it. The photoresist acts as a protective layer for the subsequent etching process.

Photolithography

The photolithography process involves transferring the PCB design onto the photoresist layer. A photomask, which is a film with the desired circuit pattern, is placed over the photoresist-coated substrate. The assembly is then exposed to ultraviolet light, which passes through the transparent areas of the photomask and hardens the photoresist.

Etching

After the exposure to ultraviolet light, the PCB is immersed in an etchant solution that removes the unprotected copper. The hardened photoresist acts as a mask, protecting the copper traces and pads from being etched away. Once the desired copper pattern is achieved, the PCB is rinsed to remove any remaining etchant, and the photoresist is stripped off.

Drilling

Next, the PCB undergoes the drilling process. Precision drills are used to create holes, or vias, in the board. These holes are used for component mounting and interconnecting different layers of the PCB. The holes are then plated with a thin layer of copper to ensure electrical conductivity.

Plating and Copper Thickness Build-up

To achieve the desired copper weight of 2 oz, a process called electroplating is employed. The PCB is submerged in an electrolyte bath containing copper ions. A direct current is applied, causing copper ions to migrate and deposit onto the exposed copper surfaces. This plating process continues until the desired copper weight is achieved.

Surface Finishing

After the copper plating, the PCB goes through surface finishing to protect the copper traces and pads from oxidation and to provide a suitable surface for component soldering. Common surface finishes include HASL (Hot Air Solder Leveling), ENIG (Electroless Nickel Immersion Gold), and OSP (Organic Solderability Preservative).

Solder Mask Application

A solder mask layer is applied to the PCB to protect the copper traces from environmental factors and to provide insulation between components. The solder mask is typically green, but other colors are also available. Openings, or pads, are left in the solder mask layer to expose the copper pads for component soldering.

Silkscreen Printing

The final step in the manufacturing process is silkscreen printing, where component markings, labels, and other identifying information are printed on the PCB surface. This information helps with component placement and assembly.

Applications of 2 oz Copper PCB

Power Electronics

2 oz Copper PCB find wide use in power electronics applications due to their ability to handle high current levels. Power supplies, motor drives, inverters, and industrial equipment benefit from the enhanced current carrying capacity and superior thermal management of these boards. 2 oz Copper PCB ensure efficient power distribution, minimize power losses, and contribute to the overall reliability and performance of power electronic systems.

Automotive Electronics

The automotive industry heavily relies on PCBs for various applications, including engine control units, safety systems, infotainment systems, and lighting control modules. 2 oz Copper PCB are well-suited for automotive electronics, as they can withstand the vibration and thermal challenges of the automotive environment while providing reliable performance. The robustness and reliability of these PCBs make them essential for maintaining the safety and functionality of vehicles.

LED Lighting

LED lighting fixtures often require robust circuitry to handle high currents and manage heat dissipation effectively. 2 oz Copper PCB provide the necessary current-carrying capacity and thermal conductivity, making them ideal for LED lighting applications such as streetlights, automotive lighting, and commercial lighting solutions. These PCBs contribute to the overall efficiency, longevity, and performance of LED lighting systems.

High-Frequency Communications

In applications involving high-frequency signals, such as RF (Radio Frequency) and microwave circuits, 2 oz Copper PCB offer low-loss transmission and improved signal integrity. These boards enable better impedance control, reducing signal distortion and ensuring accurate and reliable communication. They find applications in wireless communication systems, radar systems, satellite communication, and other high-frequency electronic devices.

Renewable Energy Systems

Renewable energy systems, including solar power and wind power, often involve high-power applications that require efficient energy conversion and management. 2 oz Copper PCB play a vital role in these systems by enabling the design of high-current and high-temperature circuitry. They are used in inverters, charge controllers, and power distribution systems in renewable energy installations, contributing to the overall performance and reliability of the systems.

Industrial Automation

The industrial automation sector relies on robust and reliable electronic systems to control and monitor various processes. 2 oz Copper PCB find applications in motor control, programmable logic controllers (PLCs), robotics, and other automation systems. The enhanced current carrying capacity, thermal management, and durability of these PCBs contribute to the efficient and safe operation of industrial automation equipment.

Aerospace and Defense

In the aerospace and defence sectors, where reliability and performance are paramount, 2 oz Copper PCB are extensively used. These PCBs are suitable for avionics systems, satellite communication systems, missile guidance systems, and other critical applications. The enhanced durability, thermal management, and electrical performance of 2 oz Copper PCB ensure reliable operation even in harsh environments.

Medical Electronics

The medical industry relies on high-quality electronic systems for various applications, including patient monitoring, imaging devices, diagnostic equipment, and implantable devices. 2 oz Copper PCB play a vital role in medical electronics by providing the necessary reliability, performance, and safety required for critical medical applications. These PCBs ensure accurate data acquisition, precise control, and long-term operation in medical devices.

Consumer Electronics

Consumer electronics, such as smartphones, tablets, laptops, and gaming consoles, benefit from the use of 2 oz Copper PCB. These PCBs provide improved power distribution, thermal management, and signal integrity, contributing to the overall performance and reliability of consumer electronic devices. The increased current carrying capacity of 2 oz Copper PCB allows for the efficient operation of power-hungry components in these devices.

Telecommunications

Telecommunication infrastructure, including base stations, routers, switches, and network equipment, requires robust and reliable PCBs for efficient data transmission and communication. 2 oz Copper PCB offer low-loss transmission, improved thermal management, and excellent signal integrity, making them suitable for high-speed data networks and telecommunications systems.

Audio Equipment

High-quality audio equipment, such as amplifiers, mixers, and professional audio systems, requires low signal distortion and accurate signal transmission. 2 oz Copper PCB ensure precise impedance control, reducing signal loss and maintaining signal integrity throughout the audio circuitry. These PCBs contribute to improved audio quality, fidelity, and performance.

Research and Development

2 oz Copper PCB are also widely used in research and development (R&D) projects. Whether it’s prototyping new electronic designs, testing new technologies, or developing custom electronic solutions, these PCBs provide the necessary electrical and thermal performance required for advanced R&D work. The enhanced current carrying capacity, thermal management, and durability of 2 oz Copper PCB make them an ideal choice for innovative and cutting-edge projects.



Emerging Trends and Advancements in 2 oz Copper PCB

In recent years, advancements in technology and the increasing demand for high-performance electronic systems have led to further developments in the field of 2 oz Copper PCB. These advancements aim to improve the overall efficiency, reliability, and functionality of electronic devices. Let’s explore some of the emerging trends and advancements in 2 oz Copper PCB.

High-Density Interconnects (HDI) Technology

HDI technology involves the use of advanced manufacturing techniques to create PCBs with higher circuit density and smaller form factors. This technology allows for more components to be packed into a smaller area, making it particularly useful for portable devices such as smartphones and tablets. By incorporating 2 oz copper layers into HDI PCBs, designers can ensure efficient power distribution and robust signal integrity, even in compact and densely populated circuit designs.

Embedded Components

Embedded components technology integrates passive and active components directly into the PCB, eliminating the need for separate discrete components. This approach reduces the size and weight of the final electronic assembly, while also improving electrical performance and reliability. By utilizing 2 oz Copper PCB in embedded component designs, higher current handling capacity and better thermal management can be achieved, ensuring optimal performance and longevity.

Flexible and Rigid-Flex PCBs

Flexible and rigid-flex PCBs provide the ability to bend or flex the board to fit into unconventional shapes or spaces. These types of PCBs are commonly used in applications where space constraints or mechanical flexibility are critical, such as wearable devices, medical implants, and aerospace applications. By incorporating 2 oz copper layers in flexible and rigid-flex PCBs, designers can take advantage of the enhanced current carrying capacity and thermal conductivity, while still maintaining the necessary flexibility.

Advanced Materials

Advancements in material science have contributed to the development of new substrate materials with improved electrical, thermal, and mechanical properties. For instance, high-temperature materials such as polyimide-based substrates can withstand elevated temperatures without compromising performance, making them suitable for applications involving high-power components. Integrating these advanced materials with 2 oz copper layers enables the creation of PCBs that can handle high current levels and dissipate heat efficiently.

3D Printing of PCBs

Additive manufacturing techniques, such as 3D printing, have begun to revolutionize the PCB manufacturing process. 3D printing allows for the rapid prototyping and production of complex PCB designs, including those with 2 oz copper layers. This technology enables designers to quickly iterate and test their designs while reducing time-to-market. By leveraging 3D printing technology, the production of 2 oz Copper PCB can be streamlined, allowing for greater design flexibility and customization.

Advanced Copper Plating Techniques

In addition to traditional electroplating methods, advancements in copper plating techniques have led to the development of innovative processes that improve the quality and reliability of 2 oz Copper PCB. For example, pulse plating and reverse pulse plating techniques can enhance the copper deposition process, resulting in improved copper distribution and reduced surface roughness. These techniques ensure uniform copper thickness and enable tighter control over the final copper weight, leading to more consistent electrical performance.

Simulation and Modeling Tools

With the increasing complexity of electronic systems, simulation and modeling tools have become indispensable in PCB design and analysis. Advanced software tools allow designers to simulate electrical performance, thermal behavior, and signal integrity of 2 oz Copper PCB before fabrication. These tools enable the optimization of trace routing, power distribution, and impedance control, resulting in higher-quality designs and improved overall performance.

Environmental Consideration

As sustainability and environmental consciousness continue to gain importance, the electronics industry is also focusing on reducing the environmental impact of PCB manufacturing processes. Efforts are being made to develop greener alternatives to traditional manufacturing methods, such as replacing hazardous chemicals with eco-friendly alternatives. Additionally, recycling and reusing PCB materials are being explored to minimize waste and conserve resources. These environmentally friendly practices align with the growing trend of adopting 2 oz Copper PCB, as they contribute to energy-efficient and eco-friendly electronic devices.



Conclusion

The advancements in 2 oz copper PCB technology are driving innovation in various industries, ranging from consumer electronics to aerospace and medical applications. The benefits of 2 oz Copper PCB, including increased current carrying capacity, improved thermal management, enhanced durability, and lower impedance, continue to make them an attractive choice for high-performance electronic systems. As emerging trends and advancements shape the future of PCB design and manufacturing, it is expected that 2 oz Copper PCB will remain a crucial component in meeting the ever-increasing demands for efficient, reliable, and compact electronic devices. By staying at the forefront of these advancements and leveraging the benefits of 2 oz Copper PCB, engineers and designers can continue to push the boundaries of technological innovation and create the electronic systems of tomorrow.
